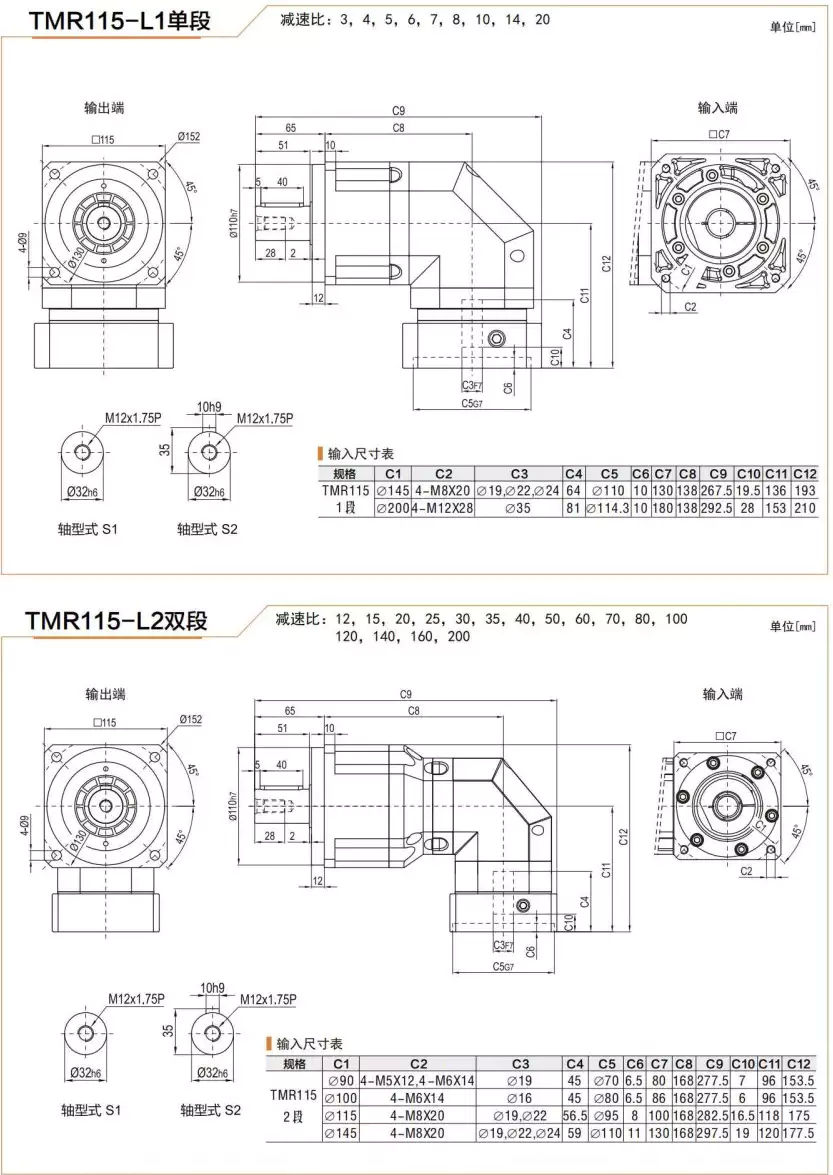

The TMR115 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gearbox that is used to transmit power and reduce speed. It is also known as servo motor planetary gearbox and low backlash planetary gearbox. This gearbox plays a crucial role in mechanical engineering applications and is designed to deliver high precision and high performance.
The high precision planetary gearbox consists of the following main components:
The sun gear is located at the center of the planetary gearbox and is usually connected to the input shaft or fixed to the housing as a stationary component.
The planet gears rotate around the sun gear and are supported and held in their relative positions by a planet carrier. Each planet gear meshes with both the sun gear and the internal ring gear and, when power is inputted, they collectively bear and distribute the load.
The planet carrier is a structure with multiple planet gear shaft holes. It supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft for torque transmission or reception.
The internal ring gear is a large-diameter ring gear fixed inside the housing. It has teeth on both its inner and outer surfaces that mesh with the planet gears. In some applications, the internal ring gear can also be used as an input or output end.
The bearings in the high precision planetary gearbox support the input shaft, output shaft, and planet carrier to ensure stable rotation and smooth operation of the components.
The housing is the external framework of the entire gearbox. It protects the internal components from external environmental influences and provides installation interfaces. Seals ensure that the internal lubricating grease does not leak and prevent dust and water from entering the gearbox.
The working principles of a high precision planetary gearbox are:
When power is inputted to the sun gear, the planet gears rotate around the sun gear. As the planet gears mesh with both the sun gear and the internal ring gear, they perform self-rotation on their own axis and revolve around the center of the sun gear with the planet carrier. In this way, the torque inputted to the sun gear is amplified by the planet gears and evenly distributed to the planet carrier at the output end.
By adjusting the gear ratio of different components, speed conversion between input and output and torque amplification can be achieved. Generally, as the number of planet gears or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed will decrease accordingly.
In high precision applications, to ensure accurate position control and minimum mechanical clearance, high precision planetary gearboxes adopt preloading technology to reduce or eliminate the clearance between gears, aka "zero/low backlash" design.
An important advantage of planetary gear mechanisms is that they can distribute loads evenly among multiple planet gears, thereby improving the load-bearing capacity and stability of the entire system, and optimizing dynamic response performance.
| Design and Selection Considerations | Explanation |
|---|---|
| Load Characteristics | The load characteristics include torque, speed, radial and axial forces, and moment of inertia. These must be considered to ensure the gearbox can handle the required load. |
| Application Environment | The environment in which the gearbox will be used must be considered, including temperature, humidity, and the presence of dust and other contaminants. |
| Mounting Arrangement | The mounting arrangement must be considered to ensure proper alignment and operation of the gearbox with other system components. |
| Efficiency and Noise | The efficiency and noise of the gearbox must be considered to ensure the overall performance of the system. |
| Cost and Availability | The cost and availability of the gearbox must be considered to ensure it is a viable solution for the intended application. |
The High Precision Planetary Gearbox is widely used in various industries, including:
The High Precision Planetary Gearbox is widely used in servo motor systems to achieve high precision and high performance motion control. It is used in industrial automation equipment such as robot joint drives, precision machine tool feed mechanisms, and semiconductor manufacturing equipment.
The High Precision Planetary Gearbox is used in high-end medical equipment such as CT scanners, MRI machines, and surgical robots to achieve precise motion control and torque amplification.
The High Precision Planetary Gearbox is used in aircraft landing gear retraction systems, actuating mechanisms in flight control systems, satellite attitude adjustment devices, and other applications that require high reliability and accuracy.
The High Precision Planetary Gearbox is used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other scenarios with extremely high requirements for transmission accuracy.
The High Precision Planetary Gearbox is used in power steering systems of new energy vehicles, drive units of electric vehicles, transmission systems of high-performance racing cars, and other applications in the automotive industry.
The High Precision Planetary Gearbox is widely used in joint drive parts of industrial robots, service robots, and special operation robots.
The High Precision Planetary Gearbox is used in automatic storage systems such as elevators, conveyor drive systems, AGVs, etc. to achieve precise motion control and high reliability.
We are a professional manufacturer of transmission equipment, located in Ningbo, Zhejiang. We strictly operate according to the international quality management system standard ISO90012015. Our products have passed the mandatory CCC certification in China and the EU CE certification.
We manufacture our products according to international IC standards and have achieved the advanced level of similar products in the international market.
