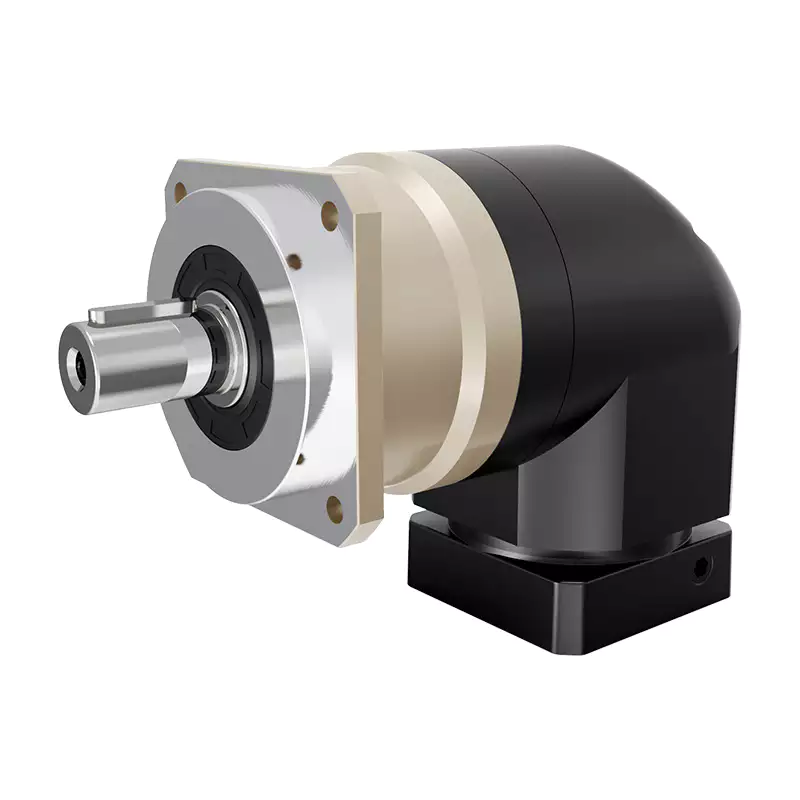

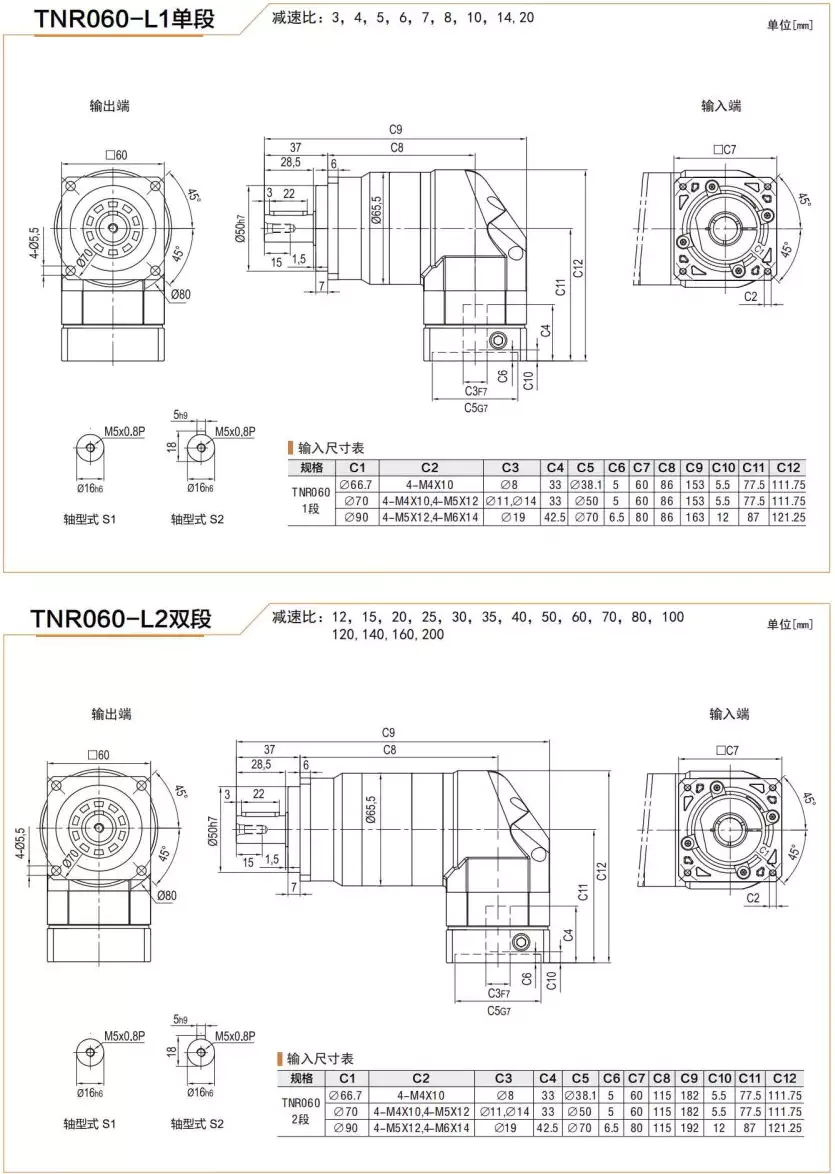

TNR060 Series High Precision Planetary Gearbox Helical Gear Reducer

TNR060 Series High Precision Planetary Gearbox Helical Gear Reducer Overview

The TNR060 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gearbox that is commonly used in the field of industrial automation. It is a type of gearbox that is designed to provide high precision and low backlash operation, making it ideal for use in applications that require precise positioning and motion control. The TNR060 Series High Precision Planetary Gearbox Helical Gear Reducer is also known as servo motor planetary gearbox and low backlash planetary gearbox. This gearbox is often used in conjunction with servo motors to provide precise motion control in a variety of applications.

High Precision Planetary Gearbox Basic Structure

The basic structure of the High Precision Planetary Gearbox is composed of the following elements:

• Sun Gear: The sun gear is located in the center of the planetary gearbox and is typically connected to the input shaft or fixed to the housing as a stationary component.
• Planet Gears: The planet gears rotate around the sun gear and are supported and held in position relative to each other by the planet carrier. Each planet gear meshes with both the sun gear and the ring gear, and when power is input, they collectively bear and distribute the load.
• Planet Carrier: The planet carrier is a structure with multiple planet gear shaft holes that carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.
• Ring Gear/Annulus: The ring gear is a large diameter annular gear fixed inside the housing with teeth on both the inner and outer surfaces that mesh with the planet gears. In some applications, the ring gear can also be used as an input or output end.
• Bearings and Shaft System: The bearings in the high precision planetary gearbox support the input shaft, output shaft and planet carrier, ensuring stable rotation and smooth operation of each component.
• Housing and Seals: The housing is the external frame of the entire gearbox, protecting the internal components from external environmental influences and providing installation interfaces. Seals ensure that the internal lubricating grease does not leak and prevent dust and water from entering the gearbox.

Explanation of Each Element:

1. The sun gear is the central component of the planetary gearbox and serves as the input element.
2. The planet gears rotate around the sun gear and mesh with both the sun gear and the ring gear.
3. The planet carrier supports the planet gears and allows them to rotate around the sun gear.
4. The ring gear is a fixed component that meshes with the planet gears.
5. The bearings in the gearbox support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation of each component.
6. The housing is the external frame of the gearbox and provides installation interfaces, while the seals protect the internal components from external environmental influences.

Working Principle of High Precision Planetary Gearbox

The working principle of the High Precision Planetary Gearbox can be explained in the following aspects:

1. Torque transmission: When power is input to the sun gear, the planet gears rotate around the sun gear. Since the planet gears mesh with both the sun gear and the ring gear, they also revolve around the sun gear's center along with the planet carrier while performing their own rotation motion around their axes. Thus, the torque input to the sun gear is amplified by the planet gears and evenly distributed to the planetary carrier at the output end.
2. Speed conversion and torque amplification: By adjusting the gear ratio of different components, speed conversion and torque amplification between input and output can be realized. Generally, when the number of planetary gears increases or the gear ratio increases, the effect of increasing torque is more obvious, but the output speed will be reduced at the same time.
3. Low backlash design: In high-precision applications, to ensure precise position control and minimize mechanical clearance, high-precision planetary gearboxes adopt preload technology to reduce or eliminate the clearance between gears, known as "zero/low backlash" design.
4. Load distribution and dynamic response: An important advantage of the planetary gear mechanism is that it can distribute the load evenly among multiple planet gears, thereby improving the entire system's load-bearing capacity and stability and optimizing dynamic response performance.

Explanation of Each Aspect:

1. The torque input to the sun gear is amplified by the planet gears and distributed to the planetary carrier at the output end.
2. Speed conversion and torque amplification can be realized by adjusting the gear ratio of different components.
3. High-precision planetary gearboxes adopt preload technology to reduce or eliminate the clearance between gears, known as "zero/low backlash" design.
4. The planetary gear mechanism can distribute the load evenly among multiple planet gears, thereby improving the load-bearing capacity and stability of the entire system and optimizing dynamic response performance.

High Precision Planetary Gearbox Design and Selection Factors

The design and selection of a high-precision planetary gearbox should consider the following factors:

Applications of High Precision Planetary Gearbox

The High Precision Planetary Gearbox is widely used in the following fields:

1. Servo motor systems: Used in industrial automation equipment for precise speed control and position positioning, such as robot joint drives, precision machine tool feeding mechanisms, and semiconductor manufacturing equipment.
2. Medical devices: Used for precise motion control and torque amplification in high-end medical equipment such as CT scanners, MRI machines, and surgical robots.
3. Aerospace: Used in aircraft landing gear retraction systems, flight control system actuators, satellite attitude adjustment devices, and other applications that require high reliability and precision.
4. Precision instruments: Used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other applications that require high transmission accuracy.
5. Automotive manufacturing: Used in power steering systems for new energy vehicles, drive units for electric vehicles, transmission systems for high-performance racing cars, and other applications.
6. Robotics: Used in the joint drive part of industrial robots, service robots, and special operation robots.
7. Logistics automation: Used in vertical lifters, conveyor driver, AGV (Automatic Guided Vehicle), and other automatic warehousing systems.

Explanation of Each Field:

1. Used in industrial automation equipment for precise speed control and position positioning, such as robot joint drives, precision machine tool feeding mechanisms, and semiconductor manufacturing equipment.
2. Used for precise motion control and torque amplification in high-end medical equipment such as CT scanners, MRI machines, and surgical robots.
3. Used in aircraft landing gear retraction systems, flight control system actuators, satellite attitude adjustment devices, and other applications that require high reliability and precision.
4. Used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other applications that require high transmission accuracy.
5. Used in power steering systems for new energy vehicles, drive units for electric vehicles, transmission systems for high-performance racing cars, and other applications.
6. Used in the joint drive part of industrial robots, service robots, and special operation robots.
7. Used in vertical lifters, conveyor driver, AGV (Automatic Guided Vehicle), and other automatic warehousing systems.

About Us

We are a professional manufacturer of transmission equipment located in Ningbo, Zhejiang. We specialize in the research, development, production, and sales of high-quality transmission equipment. Our products have passed the CCC certification in China and the CE certification in the European Union. Our products are produced according to international standards and have reached the advanced level of similar products in the international market.

Our Advantages

• We strictly adhere to the international quality management system standard ISO90012015.
• We have a professional research and development team and a complete production line to ensure product quality and innovation.
• We have a strict inspection system to ensure that our products meet the highest quality standards.
• We provide excellent after-sales service to ensure customer satisfaction.
• We have a wide range of products to meet the needs of different customers.

Author: Miya
