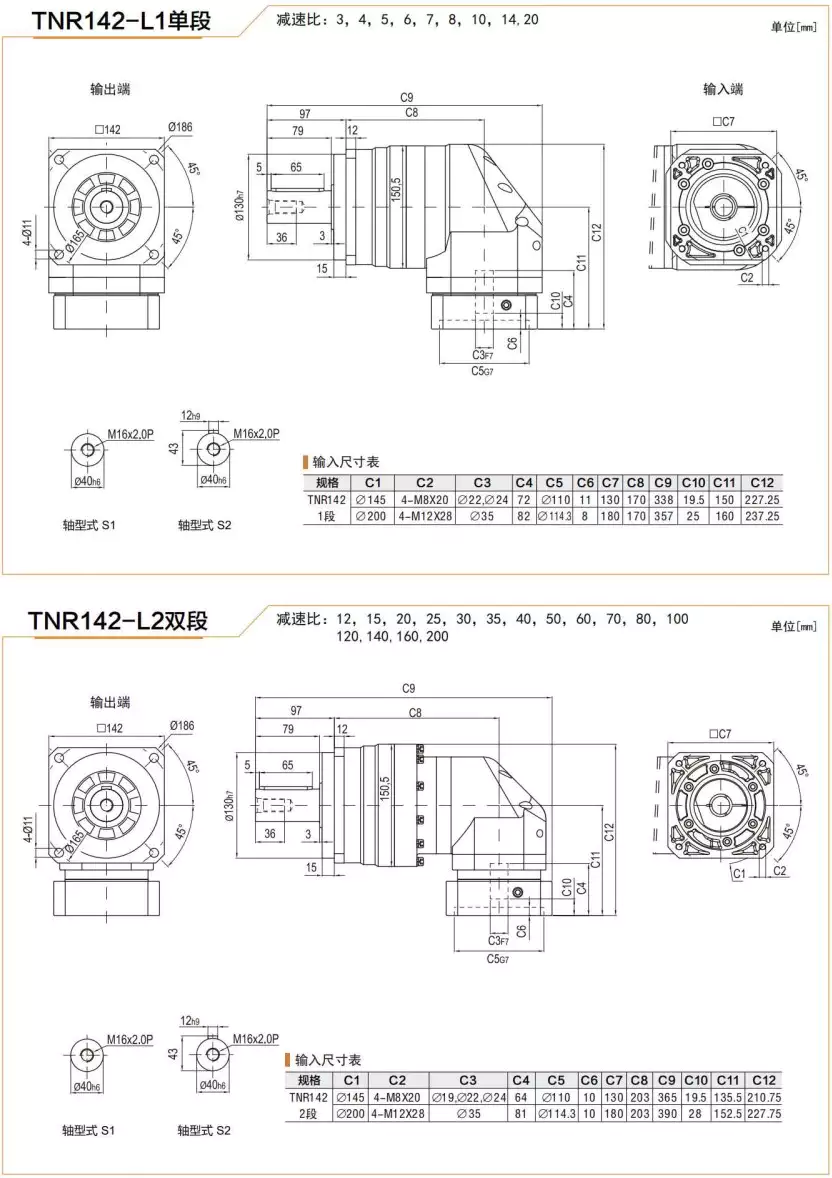

TNR142 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a type of gearbox designed for high precision and high efficiency applications. It is commonly used in industrial automation equipment, medical equipment, aerospace, precision instruments, robotics, and automotive manufacturing industries, among others.
The sun gear is located at the center of the planetary gearbox and is usually connected to the input shaft or fixed to the housing as a stationary component.
The planet gears rotate around the sun gear and are supported and held in relative position by the planet carrier. Each planet gear meshes with the sun gear and the ring/annulus gear, and they share and distribute the load when power is inputted.
The planet carrier is a structure with multiple planet gear axle holes, which supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.
The ring/annulus gear is a large diameter circular gear fixed inside the housing and has teeth on both inner and outer surfaces, which meshes with the planet gears. In some applications, the ring gear/annulus can also be used as an input or output end.
Bearings in high precision planetary gearboxes support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between components. The shaft system is an important part of the gearbox that determines its performance.
The housing is the external frame of the entire gearbox, which protects the internal components from external environmental effects and provides installation interfaces. Seals ensure that the internal lubricant does not leak and prevent dust and water from entering the gearbox.
When power is inputted to the sun gear, it drives the planet gears around it to rotate. Because the planet gears mesh with both the sun gear and the ring gear/annulus, they rotate around their own axis while also revolving around the sun gear's center through the planet carrier. This way, the torque inputted to the sun gear is amplified and evenly distributed to the planet carrier on the output end.
By adjusting the gear ratio of different components, speed conversion and torque amplification between input and output can be achieved. Generally, when the number of planet gears increases or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed will decrease at the same time.
In high precision applications, to ensure precise position control and minimum mechanical clearance, high precision planetary gearboxes use preloading technology to reduce or eliminate the clearance between gears, known as "zero/low backlash" design.
One important advantage of planetary gear mechanisms is that they can distribute the load evenly among multiple planet gears, thus improving the bearing capacity and stability of the entire system, and optimizing dynamic response performance.
| Consideration Factors | Explanation |
|---|---|
| Size and Dimensions | The gearbox should fit within the space and weight limits of the application. |
| Gear Ratio and Efficiency | The gear ratio determines the speed and torque output. High efficiency ensures less energy loss and more precise output. |
| Ingress Protection | IP rating and sealing ensure protection against dust, water, and other environmental factors. |
| Backlash | Low or zero backlash design is necessary for high precision and accurate position control applications. |
| Input and Output Shaft Options | Different shaft types and mounting options provide flexibility in installation and connection with other components. |
| Operating Environment | The gearbox should be selected based on the application's temperature, vibration, shock, and other environmental factors. |
We are a professional transmission equipment manufacturer located in Ningbo, Zhejiang. Our products strictly adhere to the international quality management system standard ISO90012015 and have passed the China Compulsory Certification (CCC) and European Union CE certification. Our products are manufactured according to international standards and have reached the advanced level of similar products in the world.
Author: Miya
