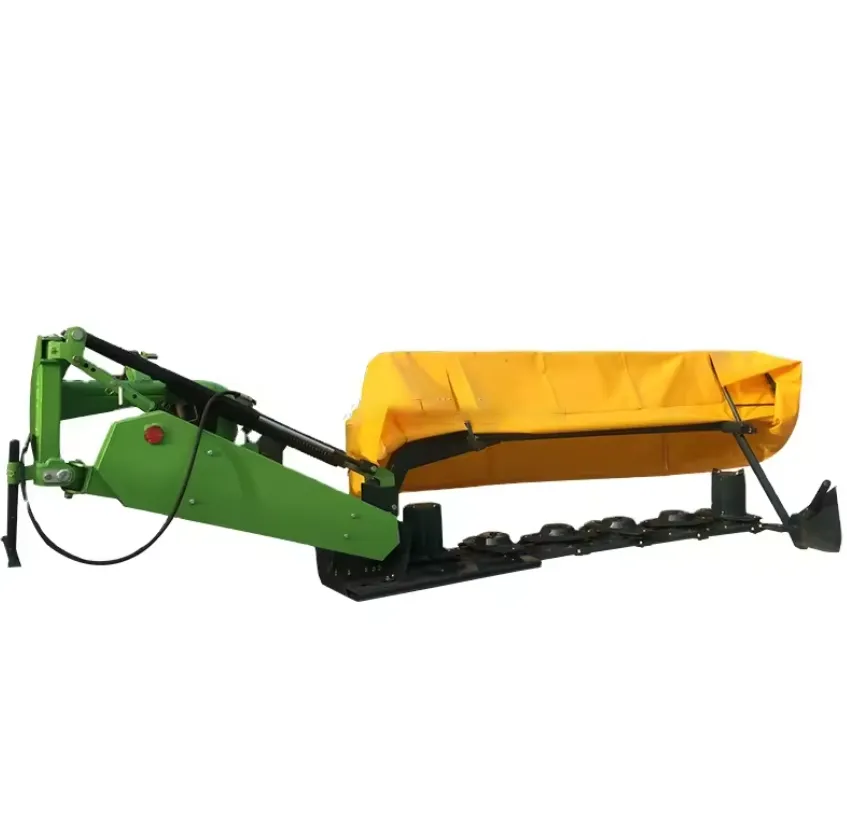

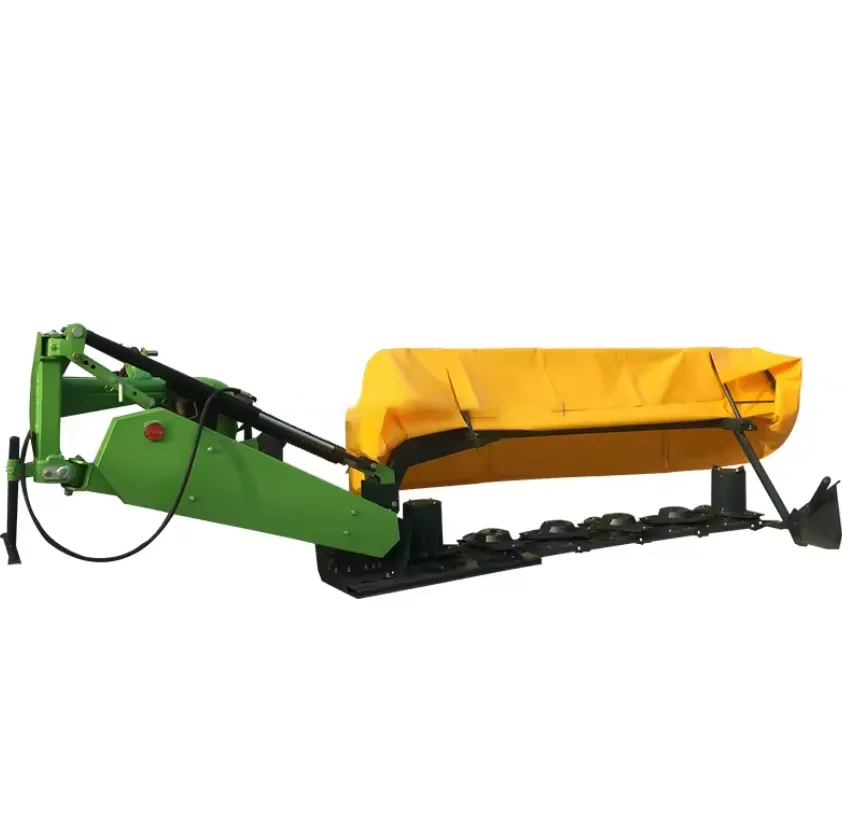

Top Manufacturer Rice Straw Disc Mower

As one of the leading manufacturers in the agricultural industry, we proudly introduce our Rice Straw Disc Mower. This farm equipment is a new model, DM1300, designed to meet various agricultural needs. It's proven to be one of the most durable designs among all hay harvesting mowers. The DM1300 is versatile, suitable for cutting grass, hay, corn, wheat, and more. It's not just a piece of machinery; it's an investment in efficiency and productivity for your farm.

Unveiling the Advantages of Our Rice Straw Disc Mower

The DM1300 Rice Straw Disc Mower is packed with features designed to bring your farming operations to the next level. Here are some of its major advantages:

1. Wide Cutting Width: With a cutting width ranging from 1300-2550mm, this device can cover large areas efficiently, saving you time and effort.
2. Customizable: You can choose between 2pcs or 3pcs disk numbers based on your needs. Additionally, the colour can be customized to your liking.
3. ISO Certified: The DM1300 is ISO certified, ensuring its quality and reliability.
4. Adaptable Speed: The working speed of the mower is adjustable between 4-10km/h, allowing you to control the pace according to the situation.
5. Power Match: It matches power ranging from 18-50HP, providing enough force to tackle thick and stubborn vegetation.
6. After-sales Service: We offer excellent after-sales service, with engineers available to service machinery overseas.

Exploring the Applications of the Rice Straw Disc Mower

The Disc Mower's applications go beyond just cutting crops. It's designed to handle a variety of tasks, making it a versatile addition to your farm equipment. Here are some of its key applications:

1. Grass Cutting: It's ideal for cutting grass in fields, lawns, or pastures. Its wide cutting width and adjustable speed make it suitable for both small and large areas.
2. Hay Harvesting: The Disc Mower is perfect for hay harvesting. It cuts the hay cleanly and efficiently, reducing the time and effort needed for this task.
3. Corn Harvesting: It can also be used for cutting corn, making it a versatile piece of equipment for different crop types.
4. Wheat Harvesting: The Disc Mower can efficiently cut wheat, ensuring a quick and efficient harvest.
5. Alfalfa Cutting: It's also suitable for cutting alfalfa, a task that can be challenging with other types of mowers.
6. Adaptable to Different Terrains: Whether it's flat terrain or uneven, rocky ground, the Disc Mower can handle it all, making it a truly versatile piece of equipment.

How Does the 3 Point Hitch Disc Drum Mower Work?

The 3-point hitch disc drum mower is a type of agricultural machinery used for cutting and harvesting hay or grass. It is typically attached to the rear of a tractor using a three-point hitch, which provides stability and allows for easy maneuverability. Here's how the 3-point hitch disc drum mower works:

1. Mounting: The mower is attached to the tractor's three-point hitch, which consists of two lower arms and an upper link. The lower arms are connected to the mower frame, while the upper link provides vertical adjustment.
2. Power Source: The mower is powered by the tractor's power take-off (PTO), which transfers power from the tractor engine to the mower blades. The PTO shaft is connected to the mower's gearbox, which increases the rotational speed and transmits it to the cutting mechanism.
3. Cutting Mechanism: The cutting mechanism consists of a set of horizontally rotating disc drums equipped with cutting blades. These blades are mounted on the drums at specific intervals and are designed to cut the standing crop as the mower moves forward.
4. Height Adjustment: The mower's height can be adjusted using the upper link of the three-point hitch. By changing the angle of the upper link, the cutting height can be increased or decreased, allowing the operator to adapt to different crop conditions or cutting requirements.
5. Operation: Once the mower is properly attached and adjusted, the tractor moves forward, pulling the mower along. As the disc drums rotate, the cutting blades engage with the crop, slicing it at the desired height. The cut material is then discharged to the side or rear of the mower, forming a windrow or spreading it evenly, depending on the design of the mower.
6. Safety Features: To ensure safe operation, most disc drum mowers are equipped with various safety features. These may include guards around the rotating blades to prevent debris from being thrown out, shear bolts or slip clutches to protect the mower from damage in case of an obstacle, and a quick-release mechanism to disengage the mower from the tractor in emergencies.

How to Install the Disc Drum Mower to Tractor?

Installing a disc drum mower to a tractor generally involves the following steps:

1. Position the Tractor: Park the tractor on a level surface and engage the parking brake to ensure stability during the installation process. Adjust the three-point hitch to the proper height. This can usually be done by using the hydraulic control lever or crank on the tractor. The hitch should be set to match the attachment points on the mower.
2. Align the Mower: Position the disc drum mower behind the tractor, aligning the lower hitch arms of the mower with the attachment points on the tractor's three-point hitch. Ensure that the hitch arms are securely connected to the tractor.
3. Attach the Top Link: Connect the top link of the three-point hitch to the upper attachment point on the mower. Adjust the length of the top link as needed to achieve the desired height and level the mower. Double-check all fasteners, including pins and bolts, to ensure they are tight and secure. This step is crucial for safety and to prevent any parts from becoming loose during operation.
4. Connect PTO Shaft: Attach the power take-off (PTO) shaft of the mower to the PTO stub on the tractor. The PTO shaft should slide onto the stub and be secured using the locking mechanism, such as a collar or a pin.
5. Adjust Height and Level: Use the tractor's hydraulic control lever or crank to adjust the height of the mower. Set it to the desired cutting height, keeping in mind the type of crop and cutting conditions.

6. Test Operation: Before starting the actual cutting, engage the PTO and observe the mower's operation. Ensure that the blades rotate smoothly and that there are no unusual vibrations or noises. Check for any interference between the mower and the tractor.

Maintenance of the Disc Drum Mower

Proper maintenance of a 3-point hitch disc drum mower is essential to ensure its optimal performance, extend its lifespan, and promote safe operation. Here are some maintenance tasks to consider:

1. Regular Cleaning: After each use, clean the mower thoroughly to remove any debris, grass clippings, and other material that may have accumulated. Pay attention to the cutting blades, disc drums, and discharge chute. Use a brush or compressed air to remove stubborn debris.
2. Blade Inspection and Sharpening: Regularly inspect the cutting blades for signs of wear, damage, or dullness. Replace any blades that are bent, cracked, or excessively worn. Sharpen the blades as needed to maintain their cutting efficiency. Follow the manufacturer's recommendations for blade maintenance and sharpening techniques.
3. Lubrication: Keep all moving parts properly lubricated according to the manufacturer's instructions. This includes lubricating bearings, gearbox components, and any other areas specified in the maintenance manual. Use the recommended lubricants and follow the recommended intervals for lubrication.
4. Gearbox Inspection: Check the gearbox for any leaks, abnormal noises, or signs of wear. If you notice any issues, address them promptly to prevent further damage. Follow the manufacturer's guidelines for gearbox maintenance and lubrication.
5. PTO Shaft Maintenance: Inspect the PTO shaft for any signs of wear, damage, or loose components. Ensure that the protective shielding is intact and properly secured. Grease the PTO shaft as recommended by the manufacturer.
6. Check Nuts and Bolts: Regularly inspect all nuts, bolts, and fasteners on the mower for tightness. Vibrations during operation can cause them to loosen over time. Tighten any loose fasteners to ensure the mower remains properly assembled.

Why Choose Raydafon's Agricultural Disc Drum Mower?

Raydafon Agricultural Machinery Co., Ltd. is a renowned manufacturer in the agricultural industry. With our advanced technology, experienced team and commitment to quality, we offer a range of agricultural machinery that meets the highest industry standards. Here's why you should choose our disc drum mower:

1. Professionalism: With over 100 employees, including 20 technical staff and five senior R&D personnel, we are equipped to deliver professional and efficient services.
2. Certifications: Our products are ISO-certified, ensuring their quality and reliability. You can trust that our machinery meets international standards.
3. Customized Services: We understand that every farm is unique. That's why we offer customized services to meet your specific needs. Whether you require a specific color or disk number, we can accommodate.
4. Advanced Production Facilities: Our production technology is strong, and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. This ensures the high quality of our products.
5. Excellent After-sales Services: We offer excellent after-sales service, with engineers available to service machinery overseas. We also have enough spare parts in the warehouse, and can quickly send parts by DHL, ensuring your operations are not disrupted.

Video Introduction of Our Disc Drum Mower

For a more detailed look at our disc drum mower, please watch the video below:

Author: Yjx
