TR042 Series High Precision Planetary Gearbox Right Angle Reducer

Overview of TR042 Series High Precision Planetary Gearbox Right Angle Reducer

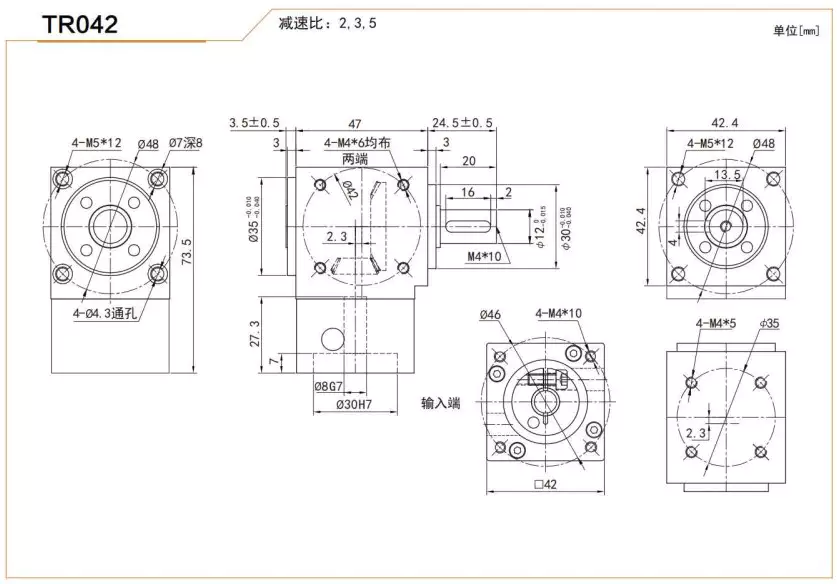

The TR042 Series High Precision Planetary Gearbox Right Angle Reducer is a type of gearbox that is commonly used in industrial automation applications. It is also known as servo motor planetary gearbox and low backlash planetary gearbox. This gearbox is designed to provide high precision and accuracy in motion control applications. The TR042 Series Gearbox is featured in the image below:

Basic construction of High Precision Planetary Gearbox

The High Precision Planetary Gearbox consists of the following components:

1. Sun Gear: The sun gear is located in the center of the planetary gearbox and is typically connected to the input shaft or fixed to the housing as a stationary component.
2. Planet Gears: The planet gears rotate around the sun gear and are supported and held in relative position to each other by the carrier. Each planet gear engages with both the sun gear and the internal ring gear, and they collectively bear and distribute the load when power is inputted.
3. Planet Carrier: The carrier is a structure with multiple planet gear shaft holes, which supports the planet gears and allows them to rotate relative to the sun gear. The carrier can serve as an output element or be connected to another shaft to transmit or receive torque.
4. Ring Gear/Annulus: The internal ring gear is a large diameter ring gear fixed inside the housing, with teeth on both its inner and outer surfaces that mesh with the planet gears. In some applications, the internal ring gear can also serve as an input or output terminal.
5. Bearings and Shaft System: The bearings in the high-precision planetary gearbox support the input and output shafts as well as the planet carrier, ensuring stable rotation and smooth operation between the components.
6. Housing and Seals: The housing is the outer frame of the entire gearbox, which protects the internal components from external environmental effects and provides installation interfaces. The seal ensures that the internal lubricating grease does not leak while preventing dust and water from entering the gearbox.

The following image shows the basic construction of a High Precision Planetary Gearbox:

Working principle of High Precision Planetary Gearbox

The working principle of the High Precision Planetary Gearbox is as follows:

1. Torque transmission: When power is inputted to the sun gear, the planet gears rotate around the sun gear. Since the planet gears engage with both the sun gear and the internal ring gear, they rotate about their own axis while revolving with the carrier around the center of the sun gear. In this way, the torque inputted to the sun gear is amplified by the planet gears and evenly distributed to the planet carrier at the output end.
2. Speed conversion and torque amplification: By adjusting the gear ratio of different components, speed conversion between input and output and torque amplification can be achieved. Generally speaking, the greater the number of planet gears or gear ratio, the more significant the torque amplification effect, but the output speed will decrease accordingly.
3. Low backlash design: In high-precision applications, in order to ensure accurate position control and minimal mechanical clearance, high-precision planetary gearboxes use preload technology to reduce or eliminate the clearance between gears, which is known as "zero/low backlash" design.
4. Load distribution and dynamic response: An important advantage of the planetary gear mechanism is that it can distribute the load evenly among multiple planet gears, thereby improving the bearing capacity and stability of the entire system and optimizing dynamic response performance.

The following image shows the working principle of a High Precision Planetary Gearbox:

Design and selection considerations for High Precision Planetary Gearbox

The following table shows the design and selection considerations for High Precision Planetary Gearbox:

Applications of High Precision Planetary Gearbox

The following are some of the applications of High Precision Planetary Gearbox:

1. Servo Motor Systems: High Precision Planetary Gearbox is used in conjunction with servo motors for precise speed control and positioning in industrial automation equipment such as robot joint drives, feed mechanisms for precision machine tools, and semiconductor manufacturing equipment.
2. Medical Equipment: High Precision Planetary Gearbox is used in high-end medical equipment such as CT scanners, MRI machines, and surgical robots for precise motion control and torque amplification.
3. Aerospace: High Precision Planetary Gearbox is used in aircraft landing gear retract systems, flight control system actuators, satellite attitude adjustment devices, and other applications requiring high reliability and accuracy.
4. Precision Instruments: High Precision Planetary Gearbox is used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other applications with extremely high demands on transmission accuracy.
5. Automotive Manufacturing: High Precision Planetary Gearbox is used in power steering systems for new energy vehicles, drive units for electric vehicles, and transmission systems for high-performance racing cars.
6. Robotics: High Precision Planetary Gearbox is used in the joint drive portion of industrial robots, service robots, and special operation robots.
7. Logistics Automation: High Precision Planetary Gearbox is used in automatic storage systems such as elevators, conveyor drive units, and AGVs (Automatic Guided Vehicles).

About Our Company

We are a professional manufacturer of transmission equipment, located in Ningbo, Zhejiang. Our company strictly operates according to the international quality management system standard ISO90012015, and our products have obtained mandatory CCC certification in China and CE certification in the European Union. Our products are produced according to international IC standards and have reached the advanced level of similar international products. The following image shows the installation steps of Precision Planetary Gearbox:

Our advantages include:

• We have a strong research and development team to constantly innovate and improve our products.
• We have advanced production equipment and strict quality control system to ensure product quality.
• We provide customized solutions to meet the specific needs of our customers.
• We have a professional and efficient after-sales service team to provide timely and effective support to our customers.

Author: Miya
