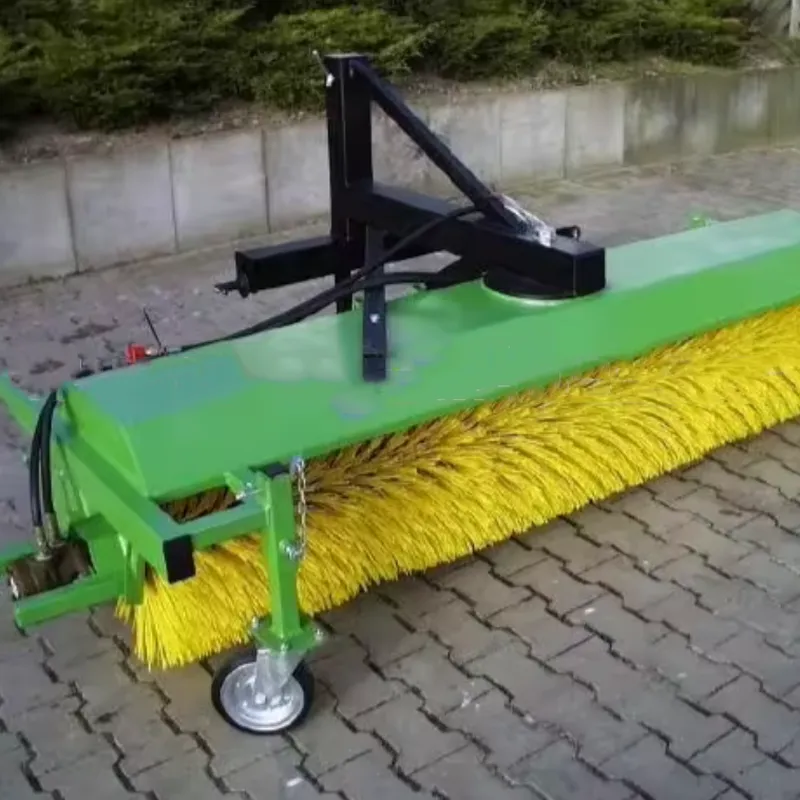

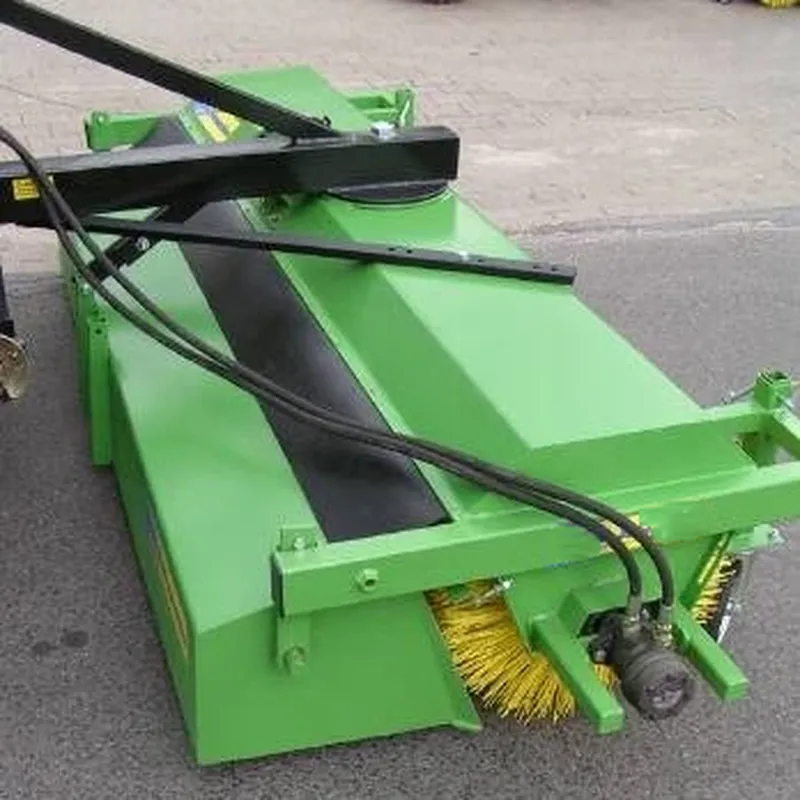

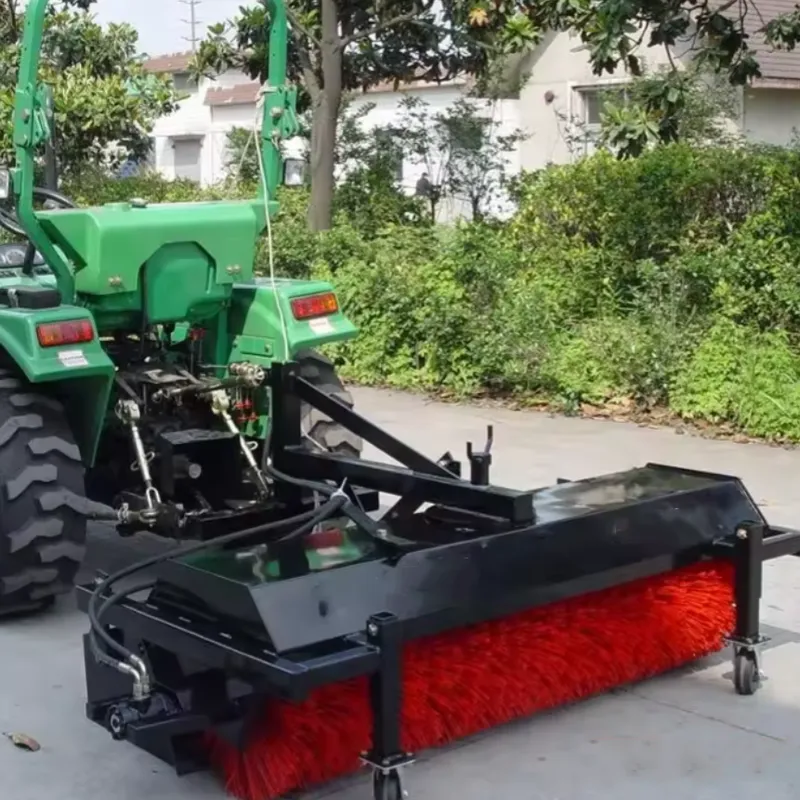

Tractor 3 Point Hitch Mounted Street Sweeper for Cleaning Road RSS120 RSS160

Tractor 3 Point Hitch Mounted Street Sweeper for Cleaning Road RSS120 RSS160

A tractor 3-point hitch-mounted road cleaning sweeper powered by a hydraulic motor is a specialized attachment designed to efficiently clean roads, parking lots, and other large outdoor areas. It is commonly used by municipalities, maintenance crews, and landscaping companies to maintain cleanliness and remove debris from surfaces. The key component of this road cleaning sweeper is the 3-point hitch, which allows the attachment to be easily mounted and operated by a tractor. The hydraulic motor, powered by the tractor's hydraulic system, provides the necessary power to drive the sweeper and its various functions. The sweeper typically features a large rotating brush or a series of brushes that are powered by the hydraulic motor. These brushes rotate at high speeds and make contact with the surface being cleaned, effectively sweeping up debris such as leaves, dirt, gravel, and other loose materials. The brushes are adjustable, allowing the operator to set the desired height and angle to achieve optimal cleaning performance. The hydraulic motor provides the necessary power to drive the sweeping mechanism, ensuring efficient operation even in demanding conditions. The speed and direction of the brushes can usually be controlled from the tractor's cabin, allowing the operator to adjust the sweeping action as needed. In addition to the sweeping function, some models may also include additional features such as water spraying systems. These systems use water from an onboard tank or an external water source to spray the surface being cleaned, helping to dislodge stubborn dirt or debris.

Tractor Mounted 3 Point Hitch Street Sweeper Specifications

Model	RSS120	RSS160
Dry Mass	180kg	220kg
Overall dimension(mm)	1380 X 800 X 800mm	1780 X 800 X 800mm
Brush width(mm)	1180	1580
work efficiency(sq.m/hour)	16800	22100
Required tractor power	20-45hp	50-75hp
Attaching to tractor	3 point hitch	3 point hitch
Drive system	Hydraulic motor drive	Hydraulic motor drive
Brush material	PP	PP
Brush axle material	Seamless steel	Seamless steel
brush rotation speed	180 rpm	180 rpm
Brush diameter	560mm	560mm
Packing size (CBM)	0.9	1.15

Benefits of Using the Tractor 3 Point Hitch Mounted Street Sweeper

Using a tractor 3-point hitch-mounted road cleaning sweeper powered by a hydraulic motor offers several benefits. Here are some of the key advantages: 1. Efficient Cleaning: The hydraulic motor provides ample power to drive the sweeping mechanism, ensuring effective and efficient cleaning of roads, parking lots, and other surfaces. The high-speed rotating brushes effectively sweep up debris, including leaves, dirt, gravel, and other loose materials, leaving the surface clean and well-maintained. 2. Versatility: The 3-point hitch attachment allows for easy mounting and operation on a tractor. This versatility enables the sweeper to be used with different tractors, expanding its usability across various applications and locations. 3. Time and Labor Savings: The powerful hydraulic motor and large brush size enable quick and thorough cleaning, reducing the time and effort required compared to manual methods. The operator can cover a larger area in less time, increasing productivity and reducing labor costs. 4. Adjustable Brush Settings: The sweeper typically features adjustable brush settings, allowing the operator to set the desired height and angle for optimal cleaning performance. This adaptability ensures that the sweeper can effectively clean different surfaces and accommodate various debris types. 5. Easy Operation: The hydraulic motor is powered by the tractor's hydraulic system, eliminating the need for a separate power source. The operator can control the speed and direction of the brushes from the tractor's cabin, providing convenient and effortless operation. 6. Durability and Reliability: Hydraulic motors are known for their durability and reliability, making them suitable for demanding outdoor applications. They can withstand harsh operating conditions and provide consistent performance over extended periods. 7. Cost-effective: Investing in a tractor-mounted road cleaning sweeper can be cost-effective in the long run. It reduces the need for manual labor, increases efficiency, and minimizes the requirement for additional cleaning equipment. The durability of hydraulic motors also contributes to the longevity of the sweeper, reducing maintenance and replacement costs.

Tractor 3 Point Hitch Mounted Street Sweeper Application Scenarios

A tractor 3-point hitch-mounted street sweeper powered by a hydraulic motor can be used in various application scenarios to effectively clean and maintain streets and roadways. Here are some common scenarios where this type of sweeper can be utilized: 1. Municipalities: Street sweepers are commonly used by municipalities to keep city streets clean and free from debris. They are particularly useful in urban areas with high traffic volume, where accumulated dirt, leaves, litter, and other debris can quickly accumulate. The sweeper can efficiently clean the streets, improving the overall cleanliness and appearance of the city. 2. Parking Lots: Parking lots, whether they are located in commercial areas, shopping centers, or residential complexes, can benefit from the use of street sweepers. These areas often accumulate dirt, leaves, sand, and other debris, which can be effectively removed by the sweeper. Regular cleaning helps maintain a clean and safe environment for vehicles and pedestrians. 3. Parks and Recreational Areas: Public parks, sports fields, and recreational areas can benefit from street sweepers to maintain cleanliness. The sweeper can remove fallen leaves, grass clippings, litter, and other debris, ensuring a clean and pleasant environment for visitors. 4. Residential Streets: In suburban areas, residential streets can accumulate leaves, dirt, and other debris over time. A street sweeper can help keep these streets clean, enhancing the overall appearance of the neighborhood and reducing the risk of debris entering storm drains. 5. Road Construction and Maintenance: During road construction and maintenance projects, street sweepers are essential for keeping the work area clean and free from debris. They can remove dirt, gravel, and other materials that accumulate during construction, ensuring a safe working environment and preventing debris from entering nearby roadways.

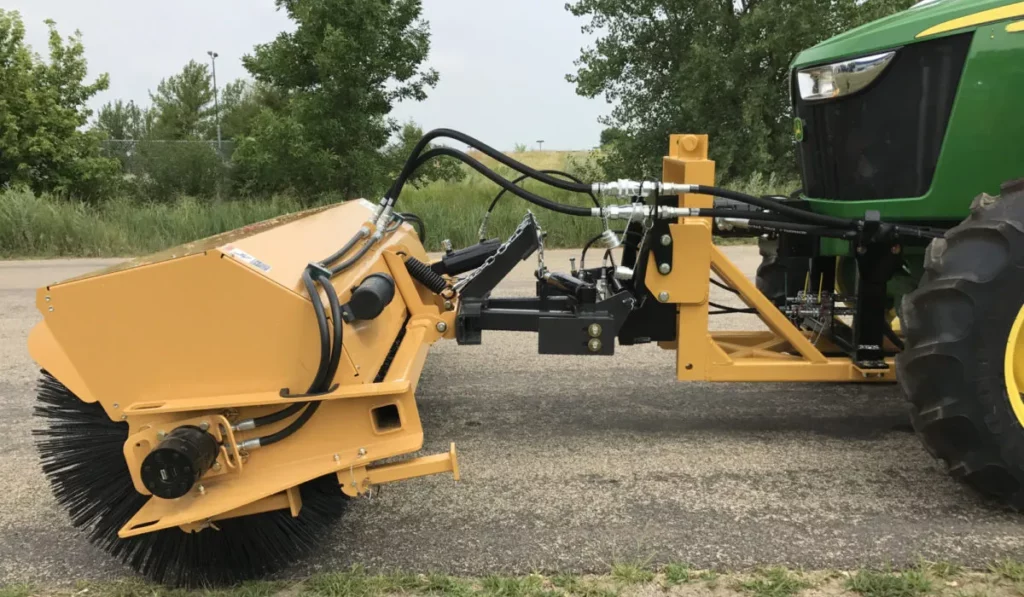

Common Troubleshooting of Tractor 3 Point Hitch Mounted Road Sweeper

While a tractor 3-point hitch-mounted road sweeper is a reliable and durable piece of equipment, like any machinery, it may encounter occasional issues. Here are some common troubleshooting steps for addressing potential problems:

1. Brush Rotation Issues:
   • Check hydraulic connections: Ensure that the hydraulic hoses are securely connected and there are no leaks or damage.
   • Verify hydraulic flow: Make sure the hydraulic flow is reaching the sweeper. Check the tractor's hydraulic system and ensure it is providing adequate flow and pressure.
   • Inspect the hydraulic motor: Examine the hydraulic motor for any signs of damage or malfunctions. Check for proper lubrication and ensure it is receiving adequate hydraulic power.
2. Poor Cleaning Performance:
   • Adjust brush height: Ensure the brush height is properly adjusted. If the brush is set too high or too low, it can affect the sweeping efficiency. Adjust it to the appropriate height for optimal cleaning performance.
   • Check brush condition: Inspect the brushes for wear or damage. Worn or damaged brushes may not effectively sweep up debris. Replace the brushes if necessary.
   • Examine brush speed: Verify that the brush is rotating at the correct speed. Adjust the speed accordingly if it is too slow or too fast.
3. Hydraulic System Issues:
   • Check hydraulic fluid levels: Ensure that the hydraulic fluid levels in the tractor's hydraulic system are adequate. Low fluid levels can impact the performance of the hydraulic motor.
   • Inspect hydraulic filters: Examine the hydraulic filters for clogs or excessive dirt buildup. Clean or replace the filters as needed to maintain proper hydraulic flow.
   • Check for leaks: Inspect all hydraulic hoses, connections, and seals for any signs of hydraulic fluid leaks. Repair or replace any damaged components.
4. Hopper or Collection Bin Issues:
   • Verify hopper capacity: Ensure that the hopper or collection bin is not overloaded. Empty the hopper if it has reached its maximum capacity.
   • Check hopper release mechanism: If the hopper has a release mechanism, make sure it is functioning properly. It should open and close smoothly to empty the collected debris.
   • Inspect hopper seals: Examine the seals around the hopper or collection bin for any damage or leaks. Replace any worn or damaged seals to prevent debris from escaping.
5. General Maintenance:
   • Regularly clean the sweeper: Remove any debris or buildup from the sweeper, including the brushes, hopper, and hydraulic components. This helps maintain optimal performance and prevents clogs or obstructions.
   • Lubricate moving parts: Apply lubrication to the moving parts of the sweeper, such as pivot points, hinges, and brush bearings. Regular lubrication prevents excessive wear and ensures smooth operation.

Why Choose Raydafon's 3 Point Hitch Road Sweeper?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We offer a range of professional, international certifications, customized services, state-of-the-art production facilities, and dependable after-sales services.
