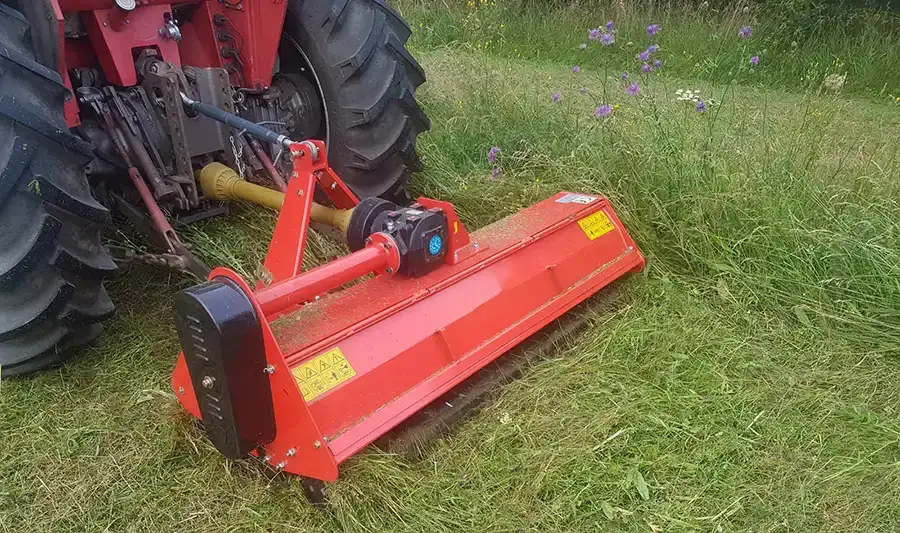

Tractor Driven New Flail Mower Mulcher for Cutting Grass

[embed]https://youtu.be/uV9sIx16M9o[/embed]

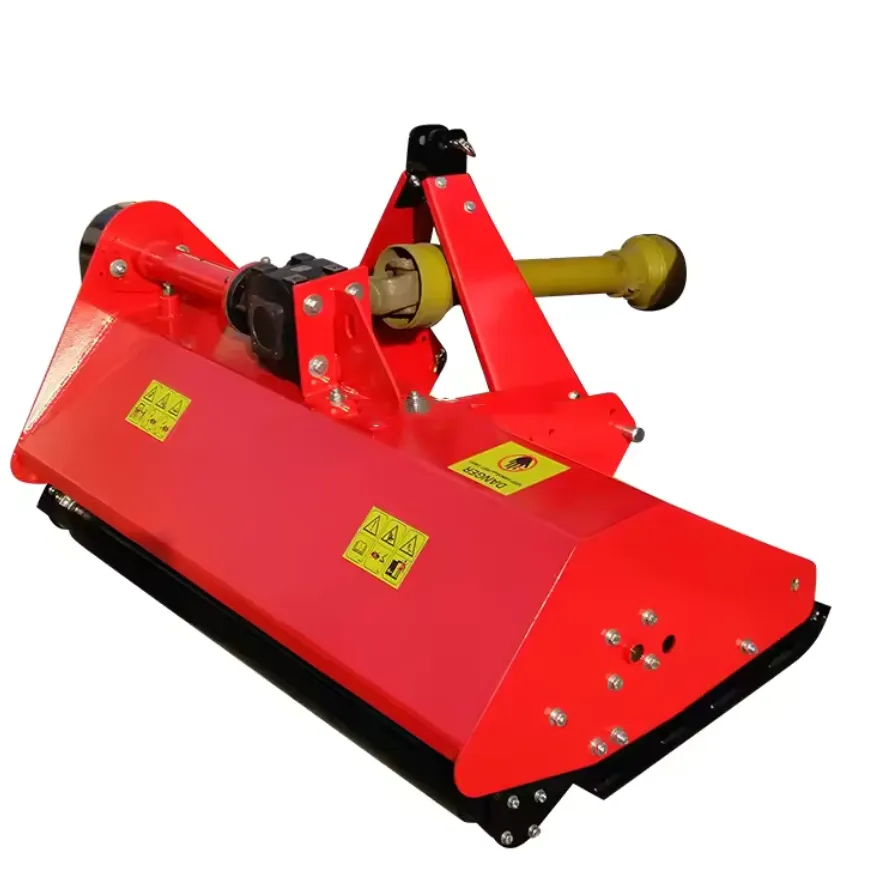

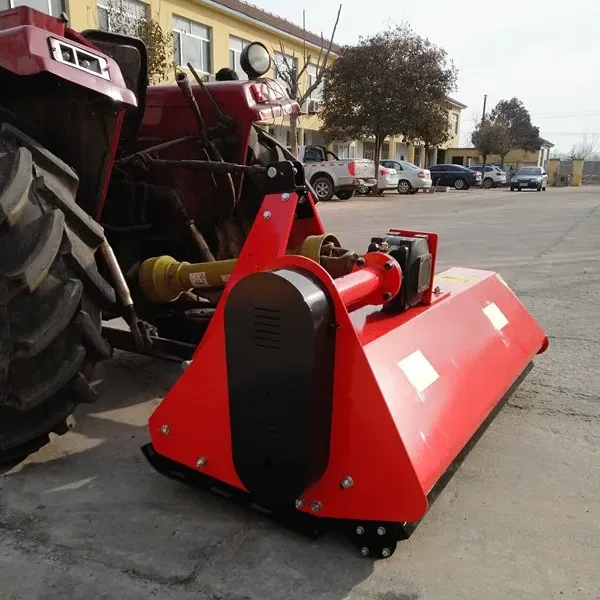

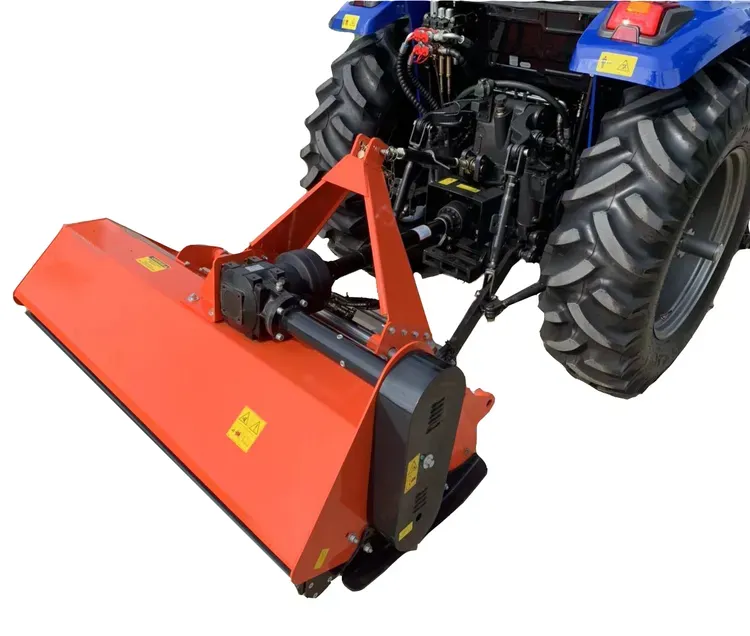

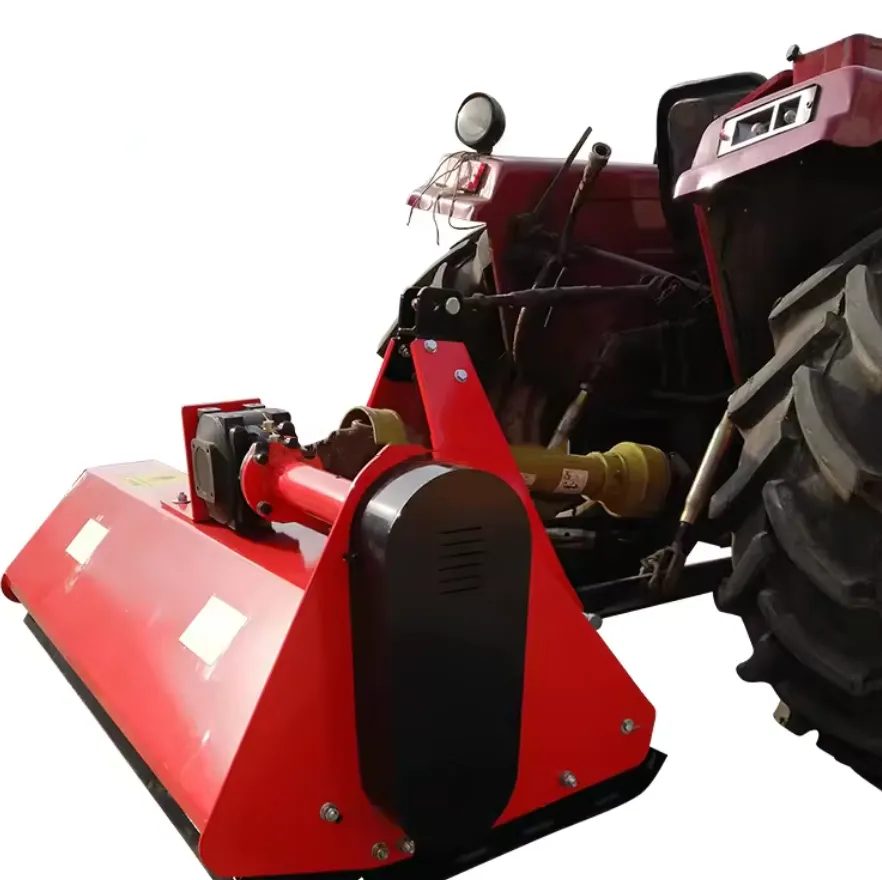

Tractor Driven Flail Mower Mulcher

A tractor-driven flail mower is a powerful and versatile machine designed for effectively cutting grass and vegetation. It consists of a heavy-duty cutting attachment mounted on the rear of a tractor, driven by a power take-off (PTO) shaft. The flail mower features a horizontal rotating drum or shaft with multiple knives or flails attached to it. These flails spin rapidly, delivering a high-speed cutting action to chop and shred grass, weeds, brush, and other vegetation. The design of a flail mower offers several advantages over traditional rotary mowers or sickle bar mowers. The use of multiple flails distributed across the cutting drum provides a more even and consistent cut, even on uneven terrain. The flails can easily adapt to contours and obstacles, allowing for efficient cutting around trees, fence lines, and other obstacles in the field. The cutting mechanism of a flail mower is highly effective in handling thicker vegetation. The flail knives are made of durable materials and are designed to withstand impact from rocks, stumps, or other debris, making the mower suitable for rough and challenging terrains. The shredded vegetation is typically discharged evenly over the mowing width, reducing the risk of windrows or clumping.

Specifications of Tractor Mounted Flail Mower:

Specification for Ef Series Flail Mowers
Model	EF95	EF105	EF125	EF145	EF155	EF165
Matched Power	18-20HP	20-25HP	20-35HP	25-35HP	30-40HP	35-45HP
Dimensions	1040×790×850	1140x790x850	1370×790x850	1570x790x850	1670x790x850	1770x790x850
Weight	235kg	250kg	275kg	315kg	330kg	345kg
Blade Type	Y	Y	Y	Y	Y	Y
3 Point Linkage	CAT I	CAT I	CAT I	CAT I	CAT I	CAT I
Cutting width	95cm	105cm	125cm	145cm	155cm	165cm

Key Features:

The tractor PTO driven flail mower, designed for cutting grass and light brush, boasts several key features that make it a popular choice for agricultural and landscaping tasks:

1. Power Take-Off (PTO) Compatibility: The flail mower is powered by the tractor's PTO, which provides a direct transfer of power from the tractor's engine. This compatibility ensures efficient power usage and eliminates the need for an additional engine on the mower itself. The PTO system allows for adjustable speeds, enhancing performance across various terrains and vegetation types.
2. Robust Flail Blades: Equipped with numerous flail blades that are attached to a rotating drum, these mowers are designed to handle tough vegetation. The blades swing freely, allowing them to retract upon hitting hard objects, which reduces the risk of damage. This design also ensures effective cutting and mulching of grass, weeds, and small brush.
3. Versatile Cutting Capability: Flail mowers are highly versatile, able to cut through heavy grass, weeds, and even small saplings. They are ideal for maintaining fields, orchards, and roadside verges. The design allows for a clean, uniform cut, and they can handle uneven terrain and varied landscapes without difficulty, ensuring consistent results.
4. Adjustable Cutting Height: The cutting height of a flail mower can be adjusted to suit different landscaping needs. This feature allows operators to maintain the desired grass length, whether for aesthetic purposes or specific agricultural requirements. The adjustability ensures that the mower can be used across different seasons and for various types of vegetation.
5. Durability and Construction: Built with heavy-duty materials, flail mowers are designed to withstand harsh working conditions. The robust construction ensures longevity and reliability, reducing the need for frequent maintenance or replacement. This durability makes them a cost-effective solution for large-scale agricultural and landscaping tasks over time.
6. Safety Features: Flail mowers are equipped with safety features to protect both the operator and the equipment. The design minimizes the risk of debris being ejected during operation, as the vegetation is finely mulched. Additionally, the retractable blades reduce the likelihood of damage from obstacles, enhancing overall safety during use.
7. Efficiency in Mulching: The flail mower excels in mulching capabilities, breaking down cut vegetation into small, fine pieces. This process not only leaves a tidy appearance but also returns nutrients to the soil. Effective mulching reduces the need for additional cleanup, saving time and effort in maintaining large areas.

Key Components of a Flail Mower

A flail mower is a versatile agricultural implement commonly used for cutting grass, weeds, and light brush. Its design includes several key components that work together to efficiently and effectively mow vegetation:

• Rotating Drum: The rotating drum is the core component of a flail mower, housing the flail blades. It spins at high speeds, allowing the blades to swing out and cut vegetation. The drum's balanced design ensures smooth operation and reduces vibration, which enhances cutting efficiency and operator comfort.
• Flail Blades: Attached to the rotating drum, flail blades are the cutting elements of the mower. Made from robust materials, these blades swing freely and can retract when encountering hard objects. This flexibility minimizes damage and ensures effective cutting and mulching of grass, weeds, and small brush.

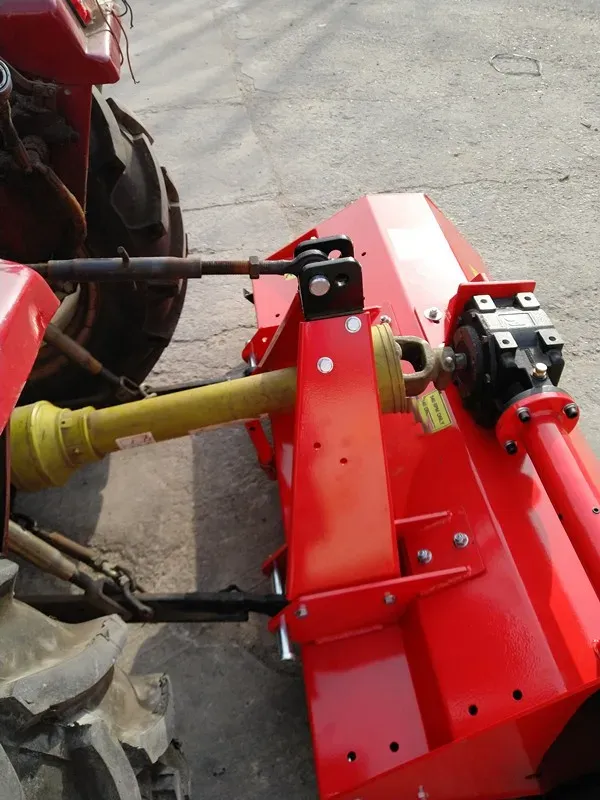

• Power Take-Off (PTO) Shaft: The PTO shaft connects the flail mower to the tractor, transferring power from the tractor’s engine to the mower. This shaft is essential for the mower's operation, ensuring that the drum and blades receive the necessary power to perform efficiently. It is designed for easy attachment and detachment.
• Housing and Frame: The housing and frame provide structural support and protection for the flail mower’s internal components. Made from durable materials, they shield the drum and blades from external damage and debris. The robust construction ensures longevity, even in demanding working conditions, while also contributing to operator safety.
• Height Adjustment Mechanism: This mechanism allows the operator to set the cutting height of the mower. By adjusting the position of the mower relative to the ground, it can handle different types of vegetation and terrain. This feature is crucial for maintaining desired grass lengths and ensuring a uniform cut across varying landscapes.
• Rear Roller: The rear roller supports the mower and helps maintain consistent cutting height. It also aids in smoothing the cut area, providing a neat finish. The roller can adjust to terrain contours, reducing scalping and ensuring an even cut. This component is essential for achieving professional-quality mowing results.

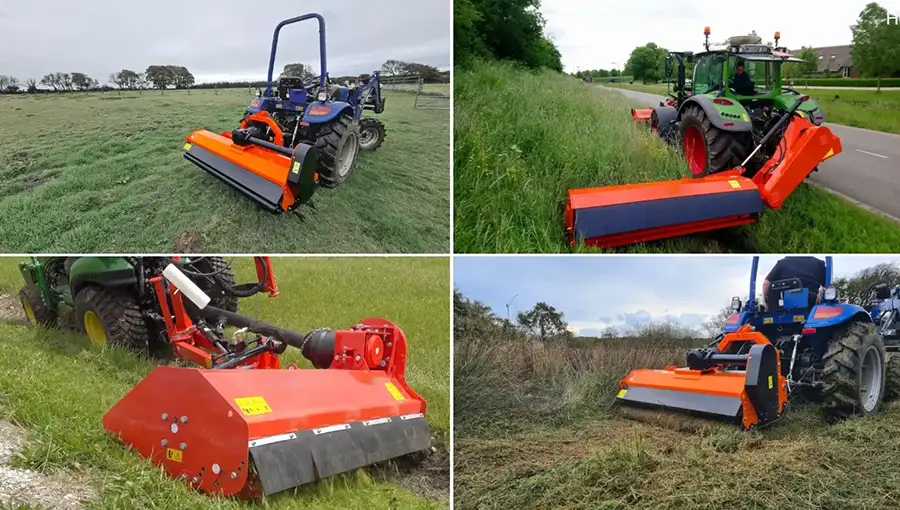

Common Applications:

Tractor-mounted flail mowers are versatile implements commonly used in various agricultural, landscaping, and land maintenance applications due to their ability to handle different types of vegetation and terrain. Some common applications of tractor-mounted flail mowers include:

1. Cutting Grass: Flail mowers are ideal for cutting grass in large fields or open areas. Their design allows for efficient mowing even on uneven terrain, providing a uniform cut. They can handle thick and tall grass without clogging, making them a preferred choice for maintaining parks, sports fields, and other expansive green spaces.
2. Orchard and Vineyard Maintenance: In orchards and vineyards, flail mowers are used to manage the grass and weeds between rows. The ability to mulch cuttings finely helps return nutrients to the soil. Their maneuverability allows them to navigate tight spaces without damaging trees or vines, ensuring a well-maintained and productive environment.
3. Roadside Maintenance: Flail mowers are frequently used to maintain roadsides, where they efficiently cut back overgrown vegetation. Their robust construction allows them to tackle tough brush and small trees. The mulching action reduces debris, minimizes cleanup requirements, and leaves a tidy appearance along highways and rural roads.
4. Pasture Management: In pastures, flail mowers help control weeds and encourage healthy grass growth. By chopping and spreading plant material, they enhance soil fertility and improve grazing conditions. This maintenance supports livestock health by ensuring a consistent supply of quality forage, making pasture management more sustainable and productive.
5. Landscaping Management: Flail mowers are valuable in landscaping for creating aesthetically pleasing environments. They handle various terrains, from flat lawns to hilly gardens, providing a neat finish. Their ability to cut and mulch simultaneously reduces the need for additional cleanup, making them efficient for both commercial and residential landscaping projects.
6. Forestry and Woodland Management: In forestry, flail mowers clear underbrush and manage young tree growth, preventing overgrowth and reducing fire risk. They can handle dense vegetation, including small saplings, without damaging the soil structure. This capability supports sustainable forestry practices by maintaining clear access paths and promoting healthy woodland ecosystems.

Working Principle of Tractor PTO Driven Flail Mower for Cutting Grass

A PTO driven flail mower is a type of mower that is attached to a tractor and is powered by the tractor's PTO shaft. The PTO shaft transmits power from the tractor to the mower, allowing it to cut grass efficiently. Here is a brief overview of the working principle of a tractor PTO driven flail mower:

• Power Transfer via PTO: The flail mower operates by connecting to the tractor’s Power Take-Off (PTO) shaft. The PTO shaft transfers engine power directly to the mower, enabling the rotation of the internal drum. This seamless power transfer is crucial for the mower’s efficient cutting and mulching performance across various terrains.
• Rotation of the Drum: Once powered, the drum inside the mower begins to rotate at high speeds. This rotation is central to the mower’s operation, as it propels the attached flail blades outward. The drum’s speed and balance ensure effective cutting action, allowing the mower to handle dense vegetation without losing efficiency.
• Swinging Flail Blades: The flail blades, attached to the drum, swing freely as the drum rotates. This swinging motion allows them to cut grass and vegetation effectively. The blades' ability to retract upon hitting hard objects minimizes damage, making them ideal for tackling tough and uneven ground with minimal risk of breakage.
• Cutting and Mulching: As the flail blades strike the vegetation, they cut and mulch it simultaneously. This dual action reduces grass, weeds, and small brush to fine mulch, which is evenly distributed on the ground. The mulching process not only leaves a neat appearance but also aids in returning nutrients to the soil.
• Height Adjustment: The mower’s cutting height can be adjusted to suit different requirements. This adjustment is achieved through mechanisms that alter the position of the mower relative to the ground. By setting the desired height, operators can ensure a uniform cut tailored to specific landscaping or agricultural needs.
• Efficient Cleanup: The mulching action of the flail mower reduces the need for additional cleanup. By finely chopping the cut material, the mower ensures that the debris decomposes quickly, enhancing soil health. This efficiency in processing vegetation makes flail mowers a time-saving tool in large-scale grass and brush management.

Flail Mower vs. Rotary Mower

Flail mowers and rotary mowers differ primarily in their cutting mechanisms and ideal applications. A flail mower uses a series of small blades, called flails, attached to a rotating drum. These blades swing freely and can handle tougher vegetation, making them ideal for uneven terrain and overgrown areas. They provide a finer mulch and are less likely to eject debris, enhancing safety. Conversely, a rotary mower has horizontally spinning blades, similar to a lawnmower. It is more suited for regular lawn maintenance and provides a faster, cleaner cut on flat, even surfaces. However, it may struggle with dense or tall vegetation and can potentially throw objects from underneath. The choice between the two depends on the specific task: flail mowers are better for rough, uneven areas with heavy growth, while rotary mowers excel in maintaining well-kept, open grassy spaces.

Feature	Flail Mower	Rotary Mower
Cutting Mechanism	Uses flails attached to a rotating drum	Uses horizontally spinning blades
Ideal Terrain	Rough, uneven, overgrown areas	Flat, even grassy surfaces
Vegetation Handling	Handles dense, tall vegetation	Best for short, regular grass
Debris Ejection	Minimizes debris ejection	Higher risk of ejecting debris
Mulching Capability	Provides finer mulching	Less effective mulching
Safety	Safer due to enclosed design	Potentially less safe due to open blade design
Maintenance	Generally requires more maintenance	Easier to maintain
Versatility	More versatile, can tackle various vegetation	Less versatile, best for regular lawns
Speed	Slower operation	Faster cutting speed
Blade Durability	Blades can retract upon impact	Blades are fixed and can be damaged more easily
Cost	Typically more expensive	Generally less expensive
Noise Level	Can be quieter due to enclosed design	Often noisier due to exposed blades
Weight	Heavier due to robust construction	Lighter and easier to maneuver
Cut Quality	Provides a more rugged cut	Provides a cleaner, more precise cut
Applications	Suitable for agricultural and roadside maintenance	Ideal for residential lawn care
Durability	Built for heavy-duty use	Designed for lighter, regular use

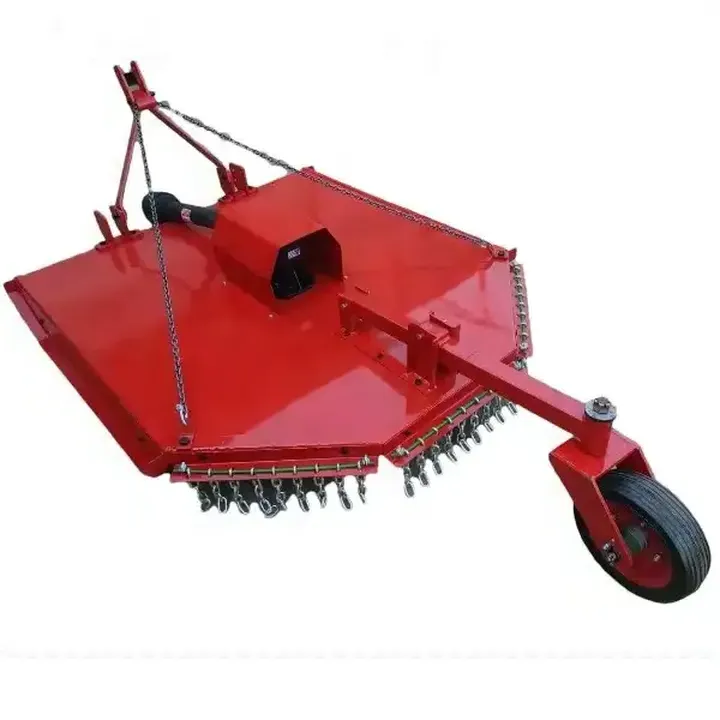

Flail Mower	Rotary Mower

Choosing the Right Agricultural PTO Shaft for Flail Mower

Selecting the correct PTO shaft for your flail mower is crucial to ensure efficient and safe operation. Here are some key factors to consider when choosing the right agricultural PTO shaft for your flail mower:

1. Shaft Length: The length of the PTO shaft is crucial for connecting the tractor to the flail mower. It should be adjustable to accommodate different distances while ensuring there’s no excessive slack. Proper length ensures efficient power transfer and prevents undue stress on the machinery during operation.
2. Power Rating: Ensure that the PTO shaft’s power rating matches or exceeds the flail mower’s requirements. This rating is usually measured in horsepower and ensures that the shaft can handle the power output of the tractor without failing. A mismatched power rating can lead to inefficiencies or mechanical failures.
3. Tube Profile: The tube profile of the PTO shaft affects its strength and compatibility. Common profiles include triangular, lemon, and star-shaped tubes. Each type offers different levels of torque transmission and strength. Selecting the appropriate profile ensures optimal performance and durability under different working conditions.
4. Safety Features: Safety is paramount when operating machinery. Look for PTO shafts equipped with protective guards and safety chains. Guards prevent accidental contact with the rotating shaft, while safety chains ensure the shaft remains attached if disconnected from the tractor, reducing the risk of accidents.
5. Connection Type: The connection type at both ends of the PTO shaft must be compatible with the tractor and flail mower. Common connection types include splined and quick-release yokes. Compatibility ensures a secure fit, easy attachment, and detachment, which are vital for efficient operation and quick setup.
6. Material Quality: The material quality of the PTO shaft influences its longevity and performance. High-quality materials, such as hardened steel, resist wear and tear from regular use. Investing in a durable shaft reduces the frequency of replacements and maintenance, ensuring continuous operation and cost-effectiveness.
7. Torque Capacity: The PTO shaft must have an adequate torque capacity to handle the demands of the flail mower. Torque capacity ensures the shaft can transmit the necessary force without twisting or breaking. This capacity is crucial for maintaining efficient power transfer and preventing mechanical breakdowns.
