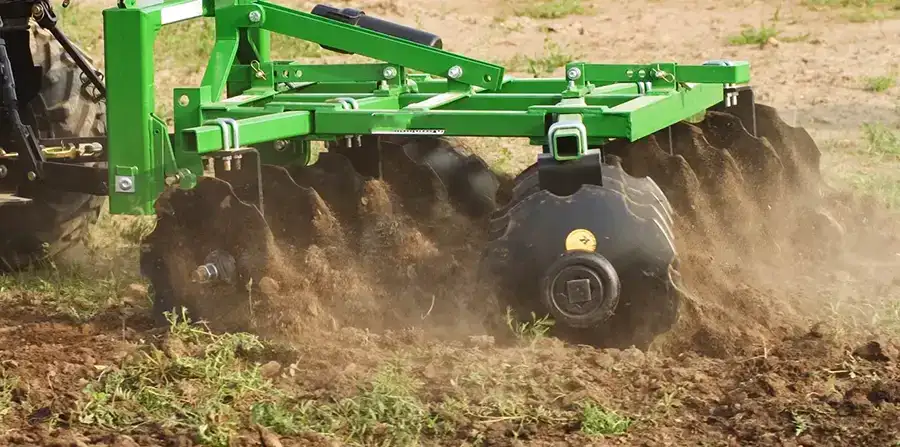

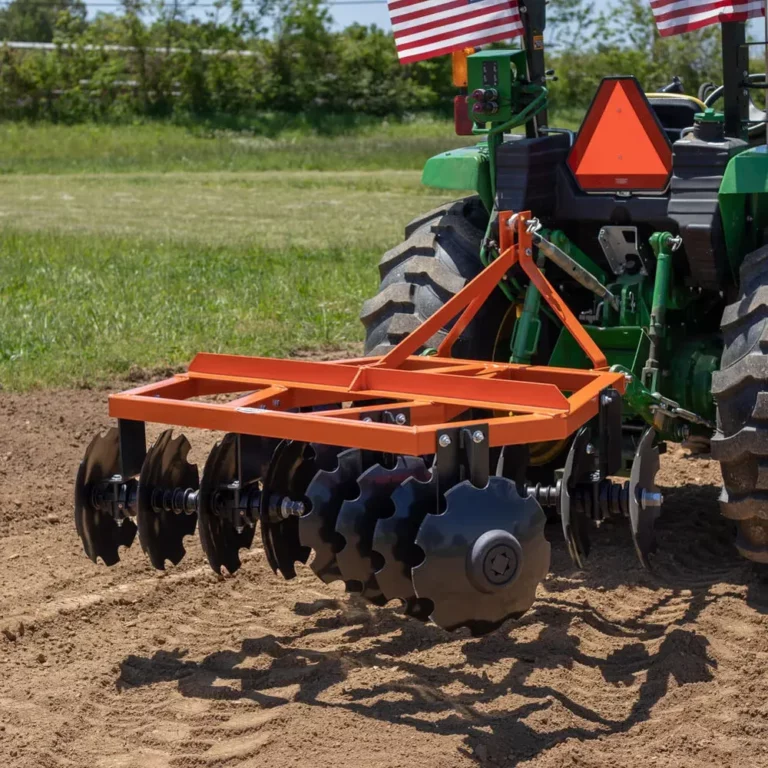

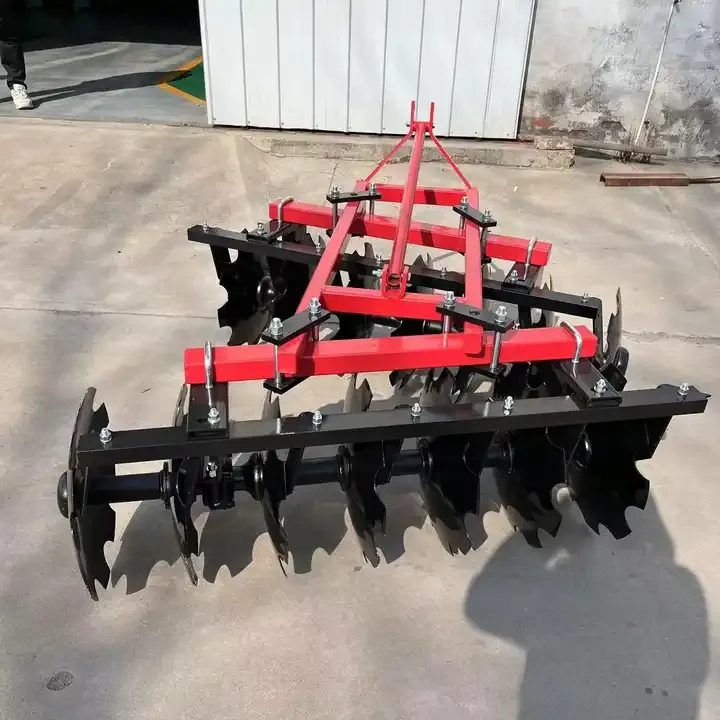

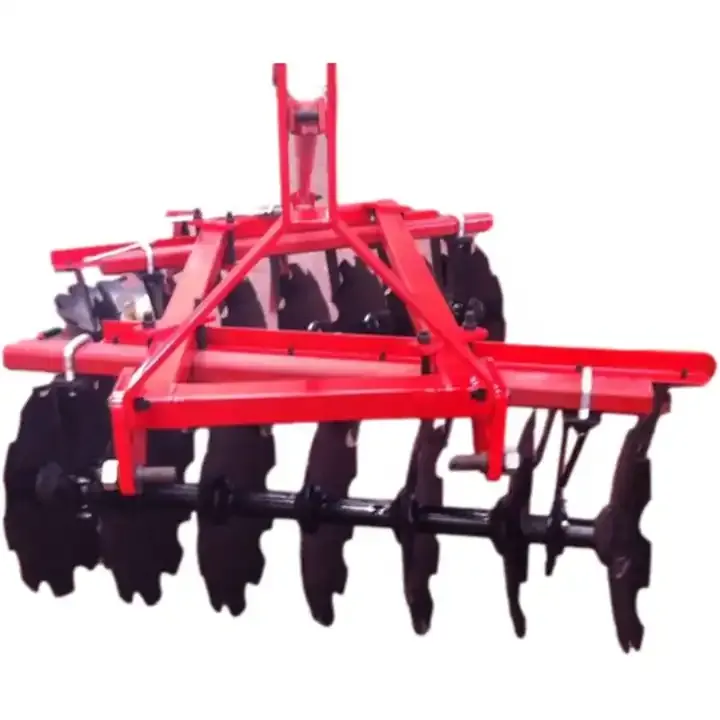

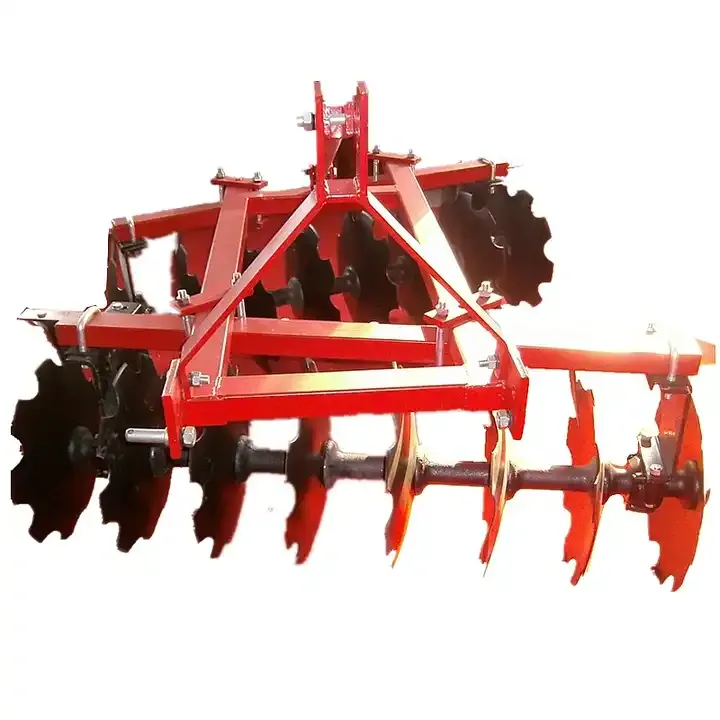

Tractor Mounted Light-Duty Disc Harrow 1BQX-1.1,18" Disc Blade

A tractor mounted light-duty disc harrow with an 18" disc blade is an agricultural implement designed for soil preparation. It attaches to a tractor, utilizing its power to efficiently break up and smooth the soil surface. The disc harrow is equipped with multiple steel disc blades, each 18 inches in diameter, which are arranged in parallel rows. These blades cut into the soil, breaking clods and mixing the top layer to create an even seedbed. This type of harrow is considered "light-duty," making it ideal for smaller farms or less intensive soil tillage tasks. It is particularly useful for working in lighter soils or previously tilled land where heavy-duty equipment is unnecessary. The 18" disc size provides a good balance between cutting depth and maneuverability, allowing it to work efficiently in tighter spaces or around obstacles. The design of the disc harrow ensures effective soil aeration and weed control, promoting better moisture retention and nutrient distribution. This makes it an essential tool for farmers aiming to enhance crop yields and improve soil health.

Specification of Light-Duty Disc Harrow 1BQX-1.1

Type	1BQX-1.1
Model	12 patches   mounted light-duty disc harrow
Power Supply	12-15hp
Working width	1100mm
Working depth	100~140mm
Dia. Of disc	460mm
No. of disc	12pcs
Productivity	0.97ha/h
Linkage	There-point mounted
Overall dimension	1905mm*1550mm*1118mm

Key Features of Tractor 3 Point Mounted Light-Duty Disc Harrow

The tractor 3-point mounted light-duty disc harrow is a crucial agricultural tool designed to facilitate soil preparation tasks efficiently. Here are some key features of this implement:

1. Three-Point Hitch Compatibility: The harrow is designed to attach easily to a tractor’s three-point hitch system, making it versatile and compatible with a wide range of tractor models. This setup allows for quick attachment and detachment, enhancing efficiency. The three-point linkage provides stability, ensuring the harrow operates smoothly across various terrains.
2. 18-Inch Disc Blades: Equipped with 18-inch disc blades, the harrow effectively penetrates the soil to break up clods and aerate the ground. This blade size strikes a balance between depth and coverage, making it suitable for light-duty tasks. The discs are typically made of durable steel, ensuring longevity and resistance to wear.
3. Adjustable Disc Angles: This feature allows operators to change the angle of the discs, providing control over the aggressiveness of the tillage. Adjusting the angles can help target specific soil conditions or residue levels, improving the harrow’s versatility. This adaptability ensures optimal soil preparation for different types of crops and planting requirements.
4. Light-Duty Frame Construction: The harrow’s frame is constructed from lightweight yet robust materials, making it easy to maneuver while still providing effective soil engagement. This construction is ideal for smaller tractors, ensuring they can pull the harrow without excessive strain. The light-duty design is perfect for small-scale farms or gardens.
5. Corrosion-Resistant Coating: To withstand the elements and prolong its lifespan, the disc harrow is often coated with a corrosion-resistant finish. This protective layer helps prevent rust and damage from moisture, ensuring the equipment remains functional and reliable over time. Regular maintenance is minimized, reducing overall operational costs.
6. Improved Soil Health: By breaking up soil and incorporating organic matter, the harrow enhances soil structure and fertility. This process aids in moisture retention and promotes better root development for crops. The harrow’s action helps control weeds and prepares an ideal seedbed, contributing to higher crop yields and healthier plants.

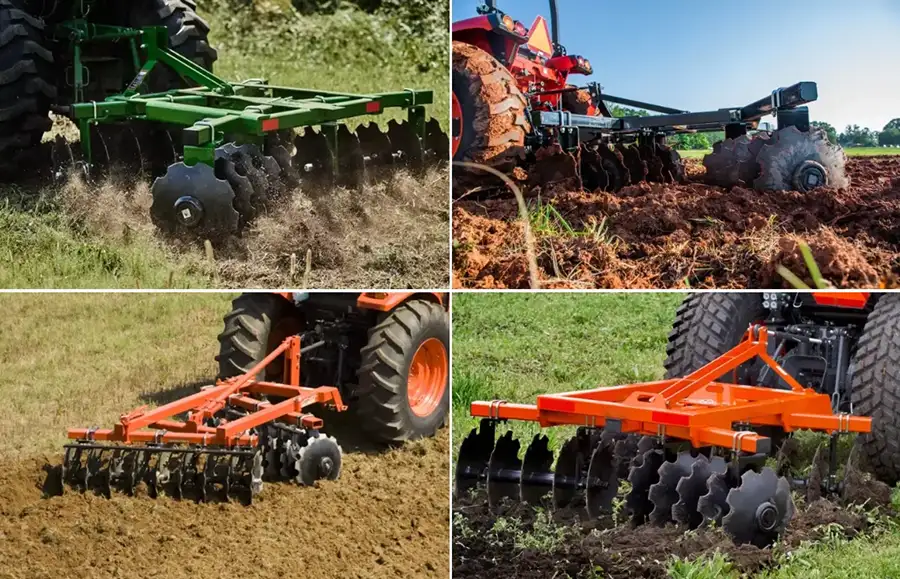

Typical Applications of Light-Duty Disc Harrows

Light-duty disc harrows are versatile agricultural implements commonly used for various soil preparation tasks. Here are some typical applications where light-duty disc harrows excel:

• Seedbed Preparation: Light-duty disc harrows are ideal for preparing seedbeds by breaking up soil clumps and creating a smooth, even surface. This ensures optimal seed-to-soil contact, promoting better germination rates. The harrow’s ability to mix soil layers helps incorporate nutrients, enhancing the growing environment for seeds and supporting robust crop establishment.
• Weed Control: By disrupting the soil surface, these harrows effectively uproot and bury weeds, reducing competition for crops. The mechanical action minimizes the need for chemical herbicides, making it an eco-friendly option. Regular use can help manage weed populations over time, contributing to healthier crop growth and increased productivity.
• Residue Management: After harvest, disc harrows help incorporate crop residues into the soil, speeding up decomposition. This process enriches the soil with organic matter, improving fertility and structure. Efficient residue management prevents the buildup of plant material on the surface, which can harbor pests and diseases, thus maintaining field health.
• Soil Cultivating: These harrows are essential for general soil cultivation, preparing fields for planting or other agricultural activities. They mix soil layers, distribute nutrients evenly, and help maintain a friable soil texture. Regular cultivation with a disc harrow can enhance soil health, leading to better crop yields and sustainable farming practices.
• Field Cultivation: For general field cultivation, light-duty disc harrows provide an efficient solution for small to medium-sized farms. They help manage field conditions by smoothing and leveling the soil, making subsequent farming operations easier. This application supports effective crop rotation and field management, contributing to long-term agricultural productivity.

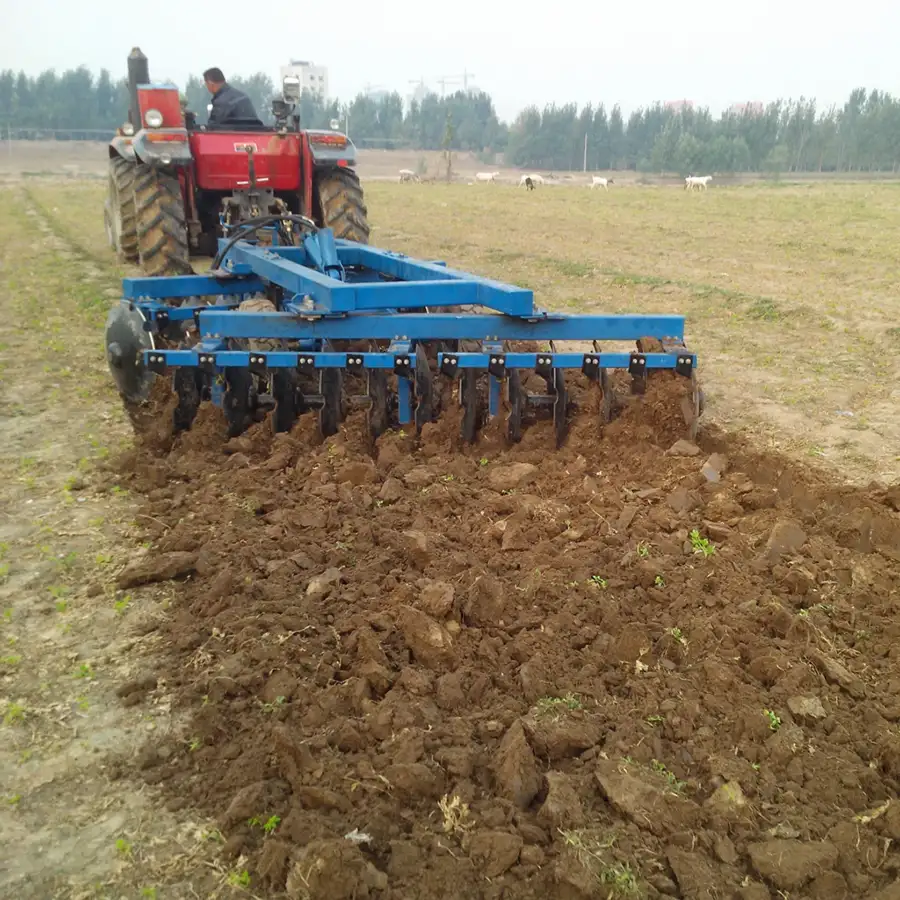

Working Principle of Tractor Mounted Light-Duty Disc Harrow for Soil Cultivating

The working principle of a tractor-mounted light-duty disc harrow involves a series of rotating disc blades that cut through the soil to break up clods, incorporate organic matter, and prepare the ground for planting. Here's a detailed explanation of how this agricultural implement operates:

1. Attachment to Tractor: The disc harrow is connected to the tractor via a three-point hitch system. This secure attachment allows the tractor to effectively transfer power and control to the harrow. The linkage ensures stability during operation, enabling precise maneuvering and efficient soil cultivation across various terrains.
2. Disc Blade Engagement: As the tractor moves forward, the mounted disc blades rotate and penetrate the soil surface. The weight of the harrow combined with the sharpness of the blades ensures effective cutting and slicing of soil clods. This action breaks up compacted soil, promoting better aeration and preparing the soil for planting.
3. Adjustable Disc Angles: The harrow allows for the adjustment of disc angles, which influences the aggressiveness of soil penetration. By changing the angle, operators can control how deeply the discs cut, adapting to different soil types and conditions. This flexibility ensures optimal soil cultivation, improving the seedbed preparation process.
4. Soil Mixing and Aeration: As the discs cut through the soil, they simultaneously mix and aerate it, incorporating organic matter and residues into the topsoil. This mixing enhances soil structure and fertility, creating an ideal environment for seeds to germinate. Aeration also improves water infiltration and root penetration, supporting healthy plant growth.
5. Weed and Residue Incorporation: The rotation of the discs helps to uproot weeds and bury crop residues, reducing surface clutter. This incorporation accelerates the decomposition process, returning nutrients to the soil. By managing weeds mechanically, the harrow helps reduce reliance on chemical herbicides, promoting sustainable farming practices.
6. Leveling and Smoothing: The consistent action of the discs levels and smooths the soil surface, eliminating large clods and uneven areas. This creates a uniform seedbed, which is crucial for even seed distribution and germination. A smooth surface also facilitates subsequent farming operations, such as planting and irrigation.

Types of Tractor Mounted Disc Harrows

Tractor-mounted disc harrows come in various types and configurations, each designed for specific soil conditions and cultivation requirements. Here are some common types of tractor-mounted disc harrows:

• Single Action Disc Harrows: Single action disc harrows are designed with one set of discs arranged in a single row. As the tractor pulls the harrow, the discs cut into the soil at a fixed angle, effectively breaking up clods and surface crusts. These harrows are ideal for initial soil preparation in lighter field conditions.
• Double Action Disc Harrows: Double action disc harrows feature two sets of discs arranged in parallel. The first set cuts and turns the soil in one direction, while the second set counteracts, leveling and refining the soil surface. This dual action provides thorough soil mixing and a more even seedbed, suitable for various soil types.
• Offset Disc Harrows: Offset disc harrows have discs arranged in an offset configuration, allowing them to work independently from the tractor's centerline. This setup provides excellent soil penetration and is particularly useful for working along field edges or under low-hanging branches. Offset harrows are versatile, handling both primary and secondary tillage tasks effectively.
• Heavy-Duty Disc Harrows: Designed for tougher soil conditions, heavy-duty disc harrows have larger, thicker discs and a more robust frame. They are capable of deeper penetration, making them suitable for breaking up hard, compacted soils. These harrows are often used in larger agricultural operations where intensive soil preparation is required.
• Light-Duty Disc Harrows: Light-duty disc harrows are fitted with smaller discs and a lighter frame, making them ideal for smaller tractors and less intensive tasks. They are perfect for gardens or small farms, where the soil is already loose or requires minimal tillage. These harrows offer precision and ease of use in tight spaces.
• Hydraulic Disc Harrows: Hydraulic disc harrows utilize hydraulic systems to adjust the disc angles and depth on the go. This allows operators to make real-time adjustments based on changing soil conditions, improving efficiency and effectiveness. The hydraulic feature provides greater control, making it ideal for varying terrains and complex field structures.

Choosing the Right Tractor Mounted Light-Duty Disc Harrow for Your Need

Selecting the appropriate tractor-mounted light-duty disc harrow is crucial for achieving effective soil preparation and maximizing agricultural productivity. Here are some key considerations to help you choose the right disc harrow for your specific needs:

1. Number of Discs: The number of discs on a harrow affects its coverage and efficiency. For smaller fields or gardens, a harrow with fewer discs may suffice, providing maneuverability and ease of use. Larger fields benefit from more discs, offering broader coverage and reducing the number of passes needed for thorough soil preparation.
2. Tractor Horsepower: Matching the harrow to your tractor's horsepower is crucial for optimal performance. A light-duty disc harrow requires less horsepower, making it compatible with smaller tractors. Ensure your tractor can comfortably handle the harrow’s weight and resistance to avoid straining the engine, which can lead to increased wear and fuel consumption.
3. Soil Type: Consider your soil type when selecting a disc harrow. Sandy or loamy soils may only need a light-duty harrow with moderate disc penetration. However, for clay or compacted soils, you might require a harrow with adjustable disc angles to effectively break up the ground and improve soil structure.
4. Field Size: The size of your field will influence the size and type of harrow needed. For small plots or gardens, a compact, light-duty harrow is sufficient and easy to maneuver. Larger fields may require a wider harrow to cover more ground efficiently, reducing the time and effort needed for soil preparation.
5. Blade Spacing: Blade spacing impacts the aggressiveness of the tillage. Closer spacing provides finer soil breakdown, suitable for seedbed preparation in softer soils. Wider spacing allows for deeper penetration, ideal for heavier soils or areas with significant crop residue. Choose spacing that matches your specific soil and crop requirements for optimal results.
6. Blade Size: Blade size determines the depth and impact of soil cutting. Smaller blades (around 18 inches) are suitable for light-duty tasks and easier to handle in tight spaces. Larger blades can penetrate deeper, useful for heavier soil types or when preparing fields with substantial crop residue, offering more versatile soil management.

Why Choose Raydafon's Disc Harrows?

Raydafon is a leading manufacturer and distributor specializing in the production and sale of disc harrows, with a robust presence in the agricultural equipment industry. Our company is equipped with advanced production facilities and a highly skilled workforce, enabling us to deliver high-quality products that meet international standards. With a commitment to innovation and excellence, Raydafon has established itself as a key player in the market, offering reliable and efficient solutions for farmers worldwide. Our disc harrows are designed to be perfect replacements for renowned brands such as John Deere, Case IH, New Holland, Massey Ferguson, Kubota, Mahindra, Landoll, Kuhn, AGCO, Bush Hog, RhinoAg, Land Pride, Agri-Fab, Woods Equipment, and more. These harrows are engineered with precision and durability in mind, ensuring optimal performance in diverse agricultural settings. Whether it's soil preparation, weed control, or residue management, our disc harrows provide unparalleled efficiency and effectiveness, making them indispensable tools for modern farming. At Raydafon, we pride ourselves on our expertise and influence in the disc harrows sector. Our products are characterized by their robust construction, ease of use, and adaptability to various terrains and conditions. We are committed to quality and have received numerous international certifications that attest to our standards. Our customizable solutions cater to specific farming needs, supported by state-of-the-art production facilities and a dedicated after-sales service team. In addition to disc harrows, we offer a wide range of agricultural machinery, including PTO shafts, agricultural gearboxes, large round balers, mini round balers, hay square balers, PTO wood chippers, diesel wood chippers, drum mowers, disc mowers, lawn mowers, sickle bar mowers, flail mowers, rotary mower, rotary tillers, land levelers, rotary hay rakes, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvesters, corn seeders, wheat seeders, vegetable seeders, post hole diggers, boom sprayers, subsoiler, trailers, snow blowers, chain trenchers, and more, ensuring comprehensive support for all agricultural operations.

FAQs:

Q: What is a light-duty disc harrow used for? A: A light-duty disc harrow is ideal for less intensive soil preparation tasks, such as breaking up small clods and shallow seedbed preparation. It is commonly used in smaller fields or gardens where heavy-duty equipment is unnecessary. Q: How does a light-duty disc harrow differ from a heavy-duty one? A: Light-duty disc harrows are generally smaller, lighter, and less robust than their heavy-duty counterparts. They are designed for lighter tasks and are more suitable for smaller tractors and less demanding soil conditions. Q: What maintenance does a light-duty disc harrow require? A: Regular maintenance includes checking for loose bolts, lubricating moving parts, inspecting the discs for wear, and cleaning to prevent rust. Consistent care ensures smooth operation and prolongs the lifespan of the equipment. Q: Can a light-duty disc harrow handle rocky or compacted soil? A: Light-duty disc harrows are not ideal for rocky or highly compacted soils, as they might not penetrate deeply or withstand the pressure. For such conditions, a heavier-duty harrow would be more effective and durable. Q: What are the benefits of using a light-duty disc harrow? A: Light-duty disc harrows are easier to maneuver and require less horsepower, making them cost-effective and efficient for small-scale farming. They are suitable for hobby farms, gardens, and small plots where heavier equipment is impractical. Q: How do I adjust the disc angles on a light-duty harrow? A: Adjusting disc angles typically involves manual adjustments to the gang bolts. This allows you to control the aggressiveness of soil cutting. Consult your harrow’s manual for specific instructions on making these adjustments safely and effectively. Q: Is a light-duty disc harrow compatible with all tractors? A: Light-duty disc harrows are generally compatible with a wide range of smaller tractors. Ensure that your tractor has the appropriate horsepower and hitch system to support the harrow’s operation. Q: What safety precautions should I take when using a light-duty disc harrow? A: Securely attach the harrow to the tractor, wear protective gear, and keep bystanders clear of the operation area. Regularly inspect the harrow for any damage or loose parts to ensure safe and efficient use. Author: Yjx
