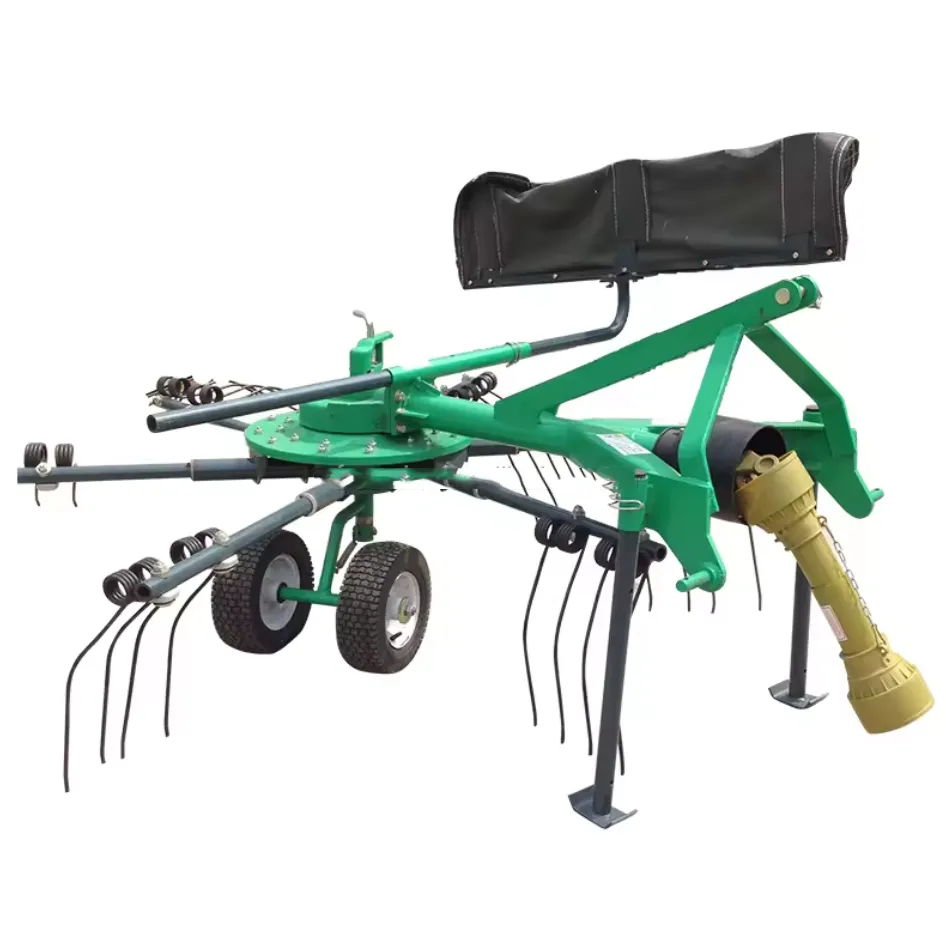

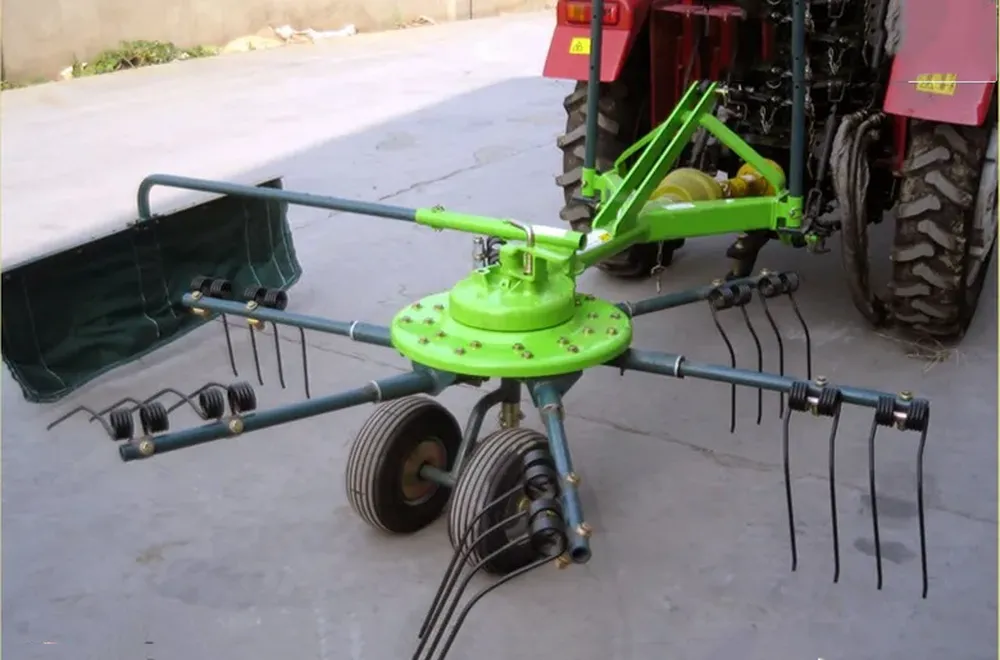

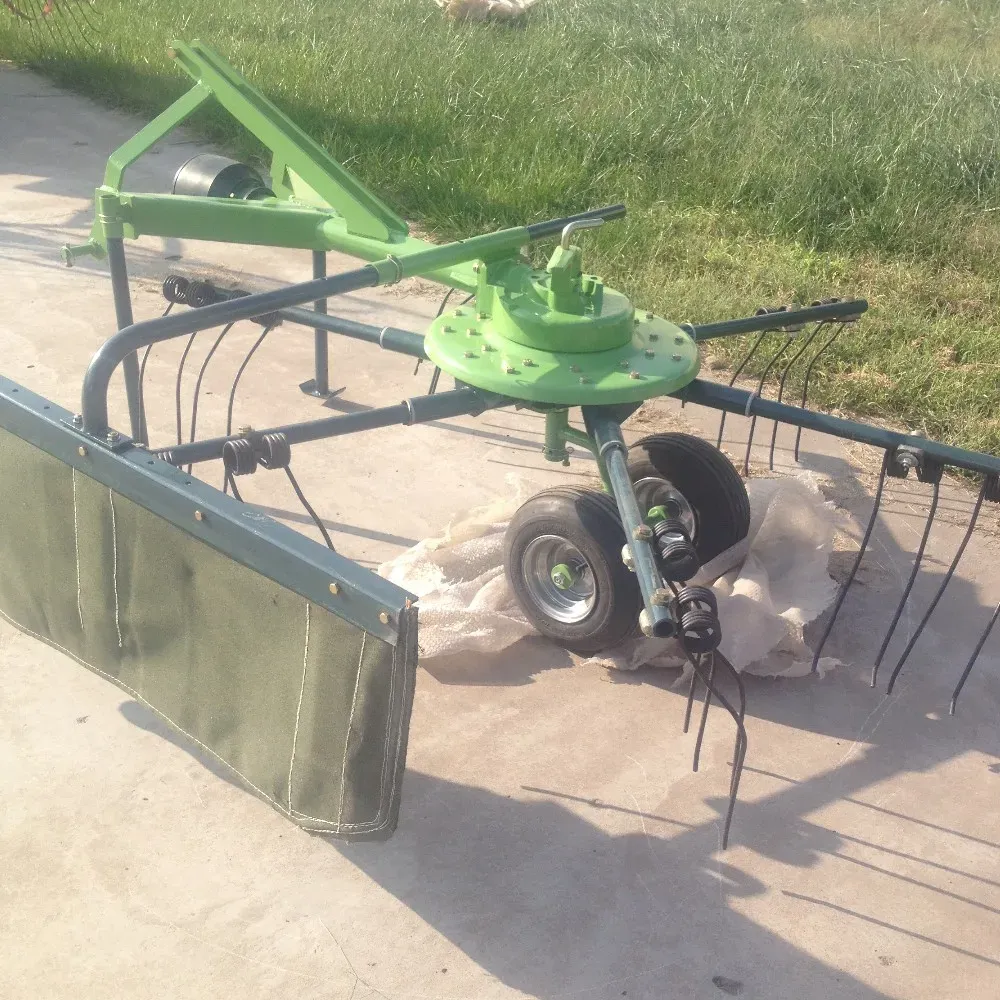

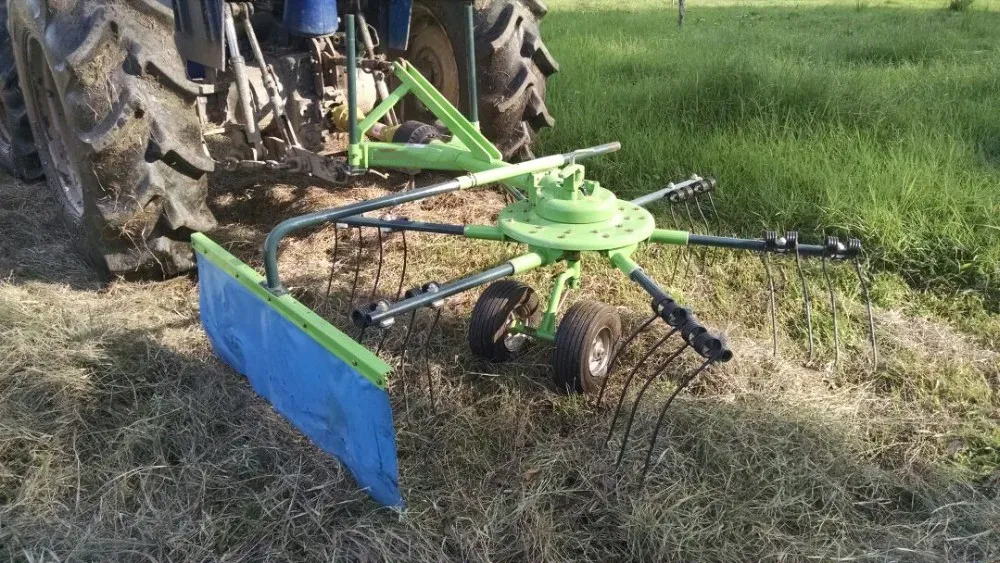

Tractor PTO Driven Hay Rake Wheels RXHR2500 for Sale

[embed]https://youtu.be/R7EALpVlwwc[/embed]

Tractor PTO Driven Hay Rake Wheels RXHR2500 for Sale

Tractor power take-off (PTO) driven hay rake wheels are an essential component of hay raking equipment used in agricultural operations. These wheels are designed to facilitate the efficient collection and organization of hay or straw into windrows, which are long, narrow rows of hay that make subsequent baling or handling easier. The PTO-driven hay rake wheels are typically attached to the rear of a tractor using a three-point hitch system or a drawbar. The power to rotate the wheels is provided by the tractor's PTO, which transfers power from the engine to the implement. The rotational motion of the PTO is transmitted to the hay rake wheels through a driveline, usually a series of shafts and gears. Hay rake wheels consist of multiple tines or teeth that extend from the wheel's circumference. These tines are designed to contact the ground as the tractor moves forward, picking up the hay or straw and moving it into a neat windrow. The number and spacing of the tines can vary depending on the specific design of the hay rake. The PTO-driven hay rake wheels are typically adjustable, allowing the operator to set the desired width and shape of the windrow. This adjustability is crucial as it enables the operator to match the hay rake's performance to the specific field conditions and the desired size of the windrow.

Tractor PTO Driven Hay Rake Wheels RXHR2500 Specifications

Specifications for Hay Rake RXHR2500
Model		RXHR2500
Raking width		2500mm
Tedding width		1600mm
Dimensions		2100x2500x950mm
Teeth No.s		12
Working speed		4-8km/h
Matched Power		18-50HP
PTO speed		540rpm
Packaging size		2100x1950x950mm

Benefits of Using the Tractor PTO Driven Hay Rake Wheels

Using tractor PTO-driven hay rake wheels offers several benefits for agricultural operations. Here are some of the key advantages: 1. Increased Efficiency: PTO-driven hay rake wheels significantly improve the efficiency of hay raking processes compared to manual methods. The power provided by the tractor enables faster and more consistent raking, allowing larger areas to be raked in less time. This saves labor and increases overall productivity. 2. Consistent Windrow Formation: The hay rake wheels are designed to create uniform windrows, which are long, narrow rows of hay or straw. This uniformity makes subsequent baling or handling operations much easier and more efficient. It ensures even drying of the hay and facilitates better airflow during the curing process. 3. Adjustable Windrow Width: PTO-driven hay rake wheels are typically adjustable, allowing operators to set the desired width of the windrow. This adjustability is essential as it enables the operator to match the hay rake's performance to the specific field conditions and the requirements of subsequent machinery, such as balers or forage harvesters. 4. Versatility: Tractor PTO-driven hay rake wheels are versatile implements that can be easily attached to and detached from the tractor. This versatility allows them to be used in various field conditions and on different types of terrain. They can be adjusted to adapt to different hay or straw densities and lengths. 5. Reduced Hay Loss: PTO-driven hay rake wheels are designed to efficiently collect and move hay or straw into windrows. By minimizing hay loss during the raking process, they help maximize the amount of usable forage or bedding material obtained from the field.

Install the PTO Driven Hay Rake Wheels to the Tractor

Installing PTO-driven hay rake wheels to a tractor requires following specific steps to ensure proper attachment and safe operation. Here's a general guide on how to install the hay rake wheels:

• Prepare the Tractor: Ensure that the tractor is parked on level ground and turned off. Engage the parking brake and disengage the PTO. Review the tractor's manual for any specific instructions or precautions related to attaching implements.
• Position the Tractor: Position the tractor in a way that allows easy access to the rear hitch area. If necessary, adjust the three-point hitch or drawbar to the appropriate height for attaching the hay rake wheels.
• Align the Hitch: Align the hay rake's hitch with the tractor's hitch point. The hitch on the hay rake will typically have three connection points, matching the three-point hitch system on the tractor. Ensure that the connection points are properly aligned and that the hitch pins will fit securely.
• Connect the Hitch Pins: Insert the hitch pins through the aligned connection points on the hay rake's hitch and the tractor's hitch. Make sure the pins are fully inserted and securely fastened. Use safety clips or locks, if provided, to prevent the pins from accidentally disengaging during operation.
• Attach the PTO Shaft: Locate the PTO shaft on the hay rake and align it with the PTO output shaft on the tractor. Connect the two shafts together, ensuring that they engage fully and securely. Some PTO shafts may have a telescoping design, allowing for adjustment of the length to match the distance between the tractor and the hay rake.
• Secure the PTO Shaft: Once the PTO shafts are connected, secure them using the appropriate locking mechanism or safety devices provided. This ensures that the shafts remain securely attached and prevent accidental disengagement during operation.
• Inspect the Connections: Double-check all the connections, including the hitch pins and PTO shaft, to ensure they are properly secured and aligned. Look for any signs of damage or wear that may compromise the safety or functionality of the attachment.
• Test the Connection: Before operating the hay rake, start the tractor and engage the PTO at a low speed. Observe the connection points and listen for any unusual noises or vibrations. If everything appears to be functioning properly, disengage the PTO and turn off the tractor.

PTO Shaft for Tractor PTO Driven Hay Rake Wheels

The power take-off (PTO) shaft is a crucial component for connecting and transferring power from the tractor to the PTO-driven hay rake wheels. The PTO shaft allows the rotational power generated by the tractor's engine to be transmitted to the hay rake wheels, enabling them to rotate and perform the raking action. To select the appropriate PTO shaft for a tractor PTO-driven hay rake with wheels, you'll need to consider a few factors. Here are the steps you can follow: (1) Determine the PTO speed: Check the specifications of your tractor's PTO system to find out the required speed. The PTO speed is typically measured in revolutions per minute (RPM). (2) Measure the distance: Measure the distance between the PTO connection point on your tractor and the PTO input on the hay rake. This measurement will help you determine the length of the PTO shaft you'll need. (3) Identify the PTO shaft type: There are various types of PTO shafts available, such as standard, telescoping, and constant velocity (CV) shafts. The type you choose will depend on the specific requirements of your hay rake and tractor. (4) Determine the PTO shaft size: PTO shafts come in different sizes, typically measured in inches. The most common sizes are 1-3/8 inches and 1-3/4 inches. Check the specifications of your hay rake and tractor to determine the appropriate size. (5) Check compatibility: Ensure that the PTO shaft you select is compatible with both your tractor's PTO system and the input on the hay rake. Consider factors such as spline count and shaft diameter to ensure a proper fit. (6) Consider safety: PTO shafts can be hazardous if not used correctly. Make sure to choose a PTO shaft with adequate shielding or guards to protect against entanglement and ensure safe operation.

Why Choose Raydafon's Tractor PTO Driven Hay Rake?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
