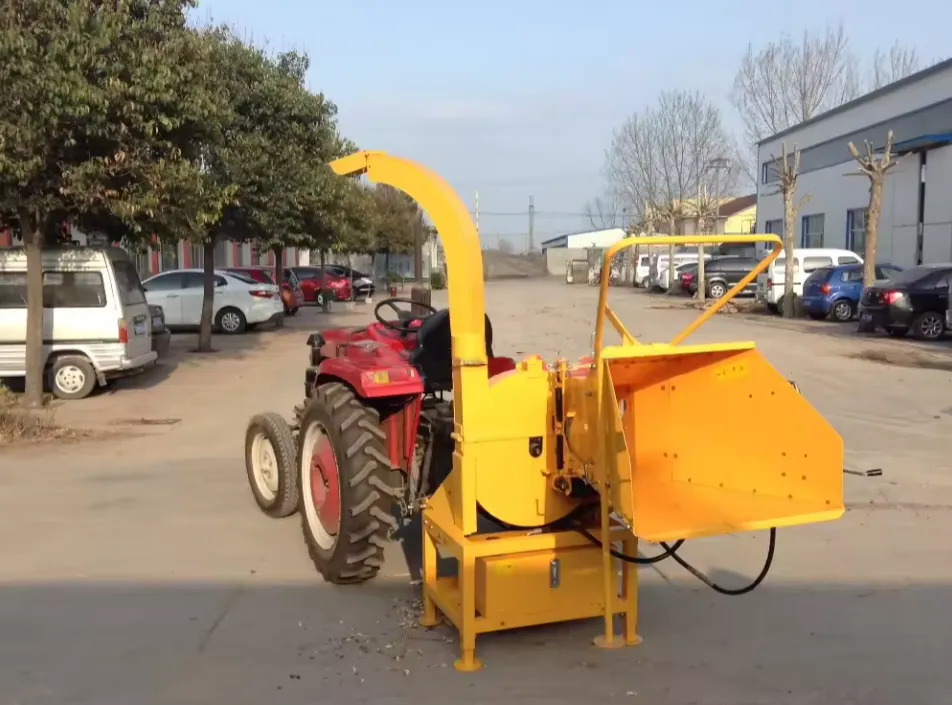

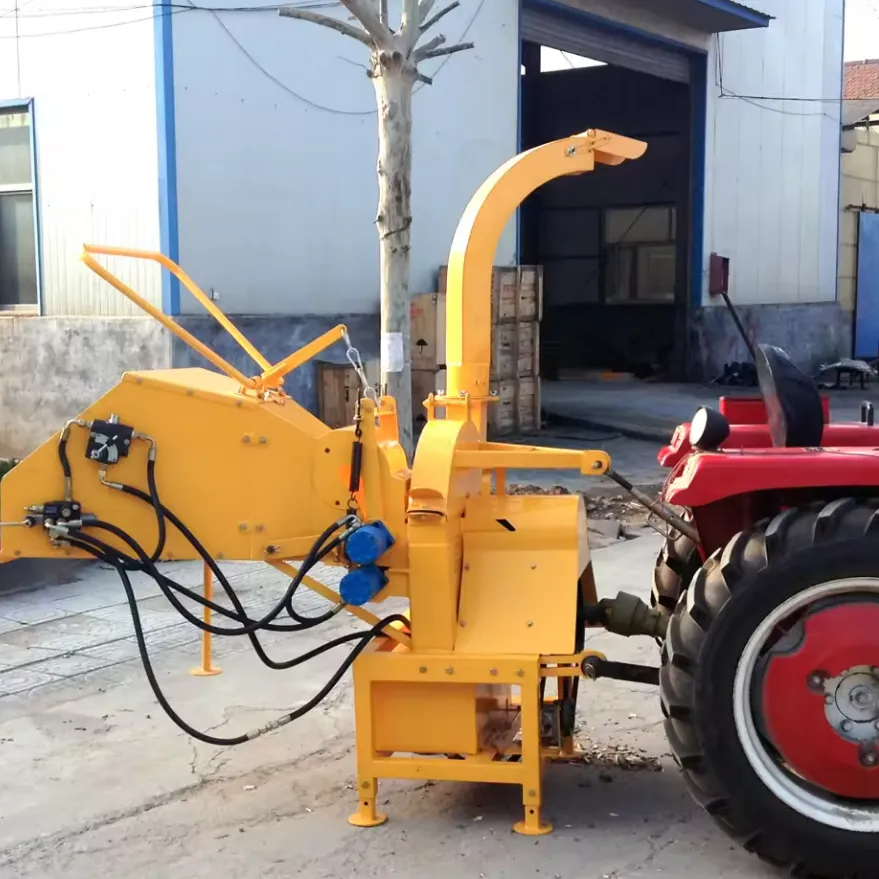

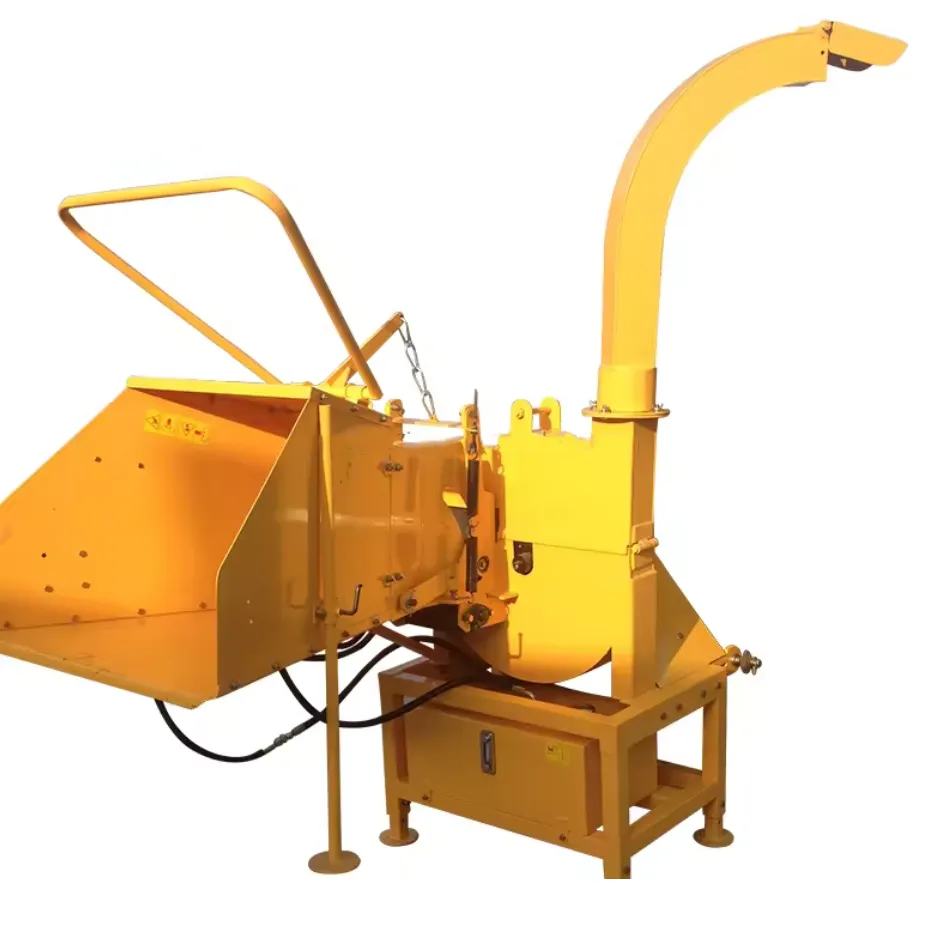

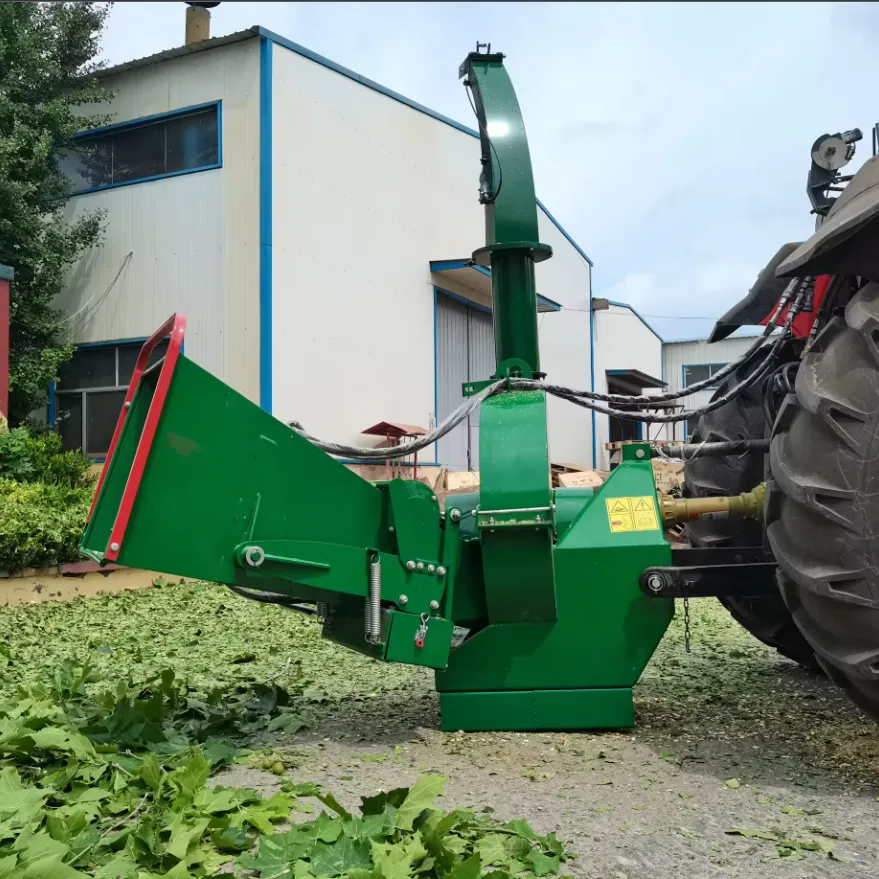

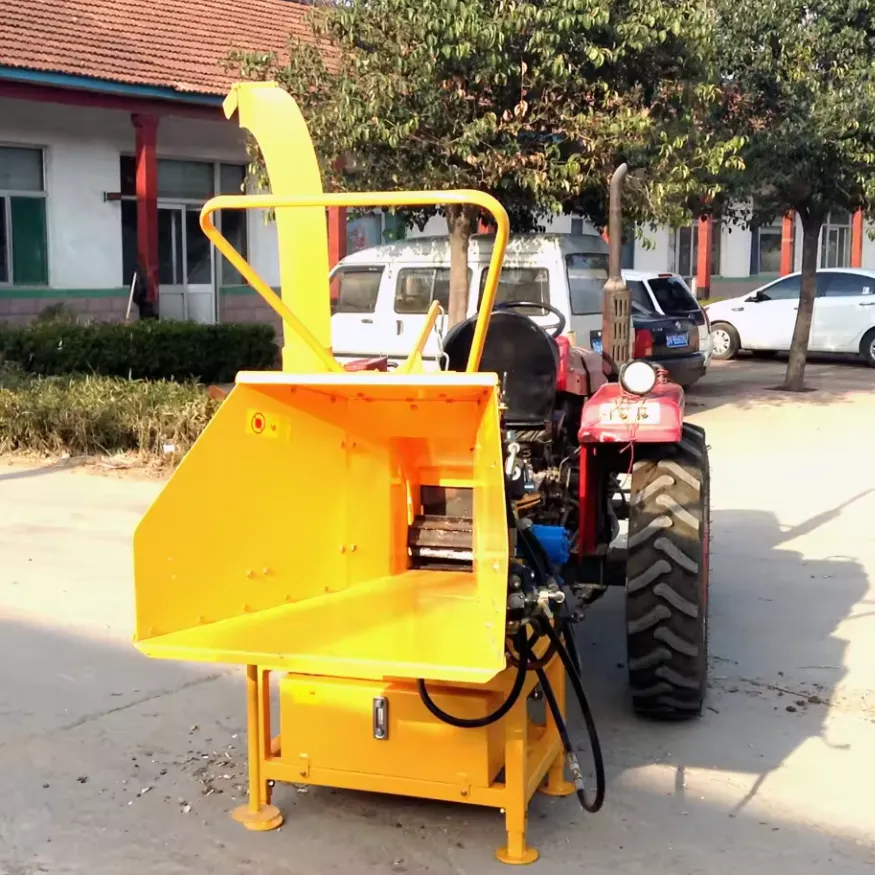

Tractor PTO Driven Wood Chipper for Chipping Wood and Tree Branch

[embed]https://youtu.be/j3Wm-RDreEc[/embed] The Raydafon tractor wood chipper is a high-performance, diesel-powered machine designed to process firewood into small wood chips. Manufactured by Weifang Raydafon Machinery Co., Ltd., a leading manufacturer and trading company, this wood chipper is ideal for farms and other industries that require efficient wood processing. The chipper comes with a one-year warranty and core components like the bearing and flywheel, guaranteeing durability and longevity. It is available in various colors including red, blue, yellow, and green. The Tractor PTO Driven Wood Chipper WC-8 is a powerful machine designed to efficiently process wood waste and convert it into valuable wood chips. It is primarily used in forestry, landscaping, and agricultural applications to handle branches, tree limbs, and other wood debris. The WC-8 wood chipper is powered by the power take-off (PTO) shaft of a tractor. It connects directly to the tractor's PTO system, utilizing the tractor's engine power to drive the chipper's cutting mechanism. The chipper is equipped with a heavy-duty cutting system that consists of a high-speed rotating drum or disc with sharp blades or knives. As the wood material is fed into the chipper, the cutting mechanism chops it into small, consistent-sized wood chips. The WC-8 chipper features a self-feeding mechanism that allows for easy and efficient processing of wood waste. The operator can feed the wood material into the chipper's hopper, and the rotating cutting blades pull it in automatically, minimizing the need for manual labor. Once the wood is chipped, the WC-8 chipper has a discharge chute or spout that directs the wood chips away from the machine. The chips can be directed into a collection bag, trailer, or spread directly onto the ground, depending on the desired application. The WC-8 chipper is compatible with tractors of varying horsepower, but it's important to ensure that your tractor meets the required power specifications for optimal performance. Additionally, the wood chips produced by the WC-8 can be used for a range of purposes, including mulching, biomass energy production, composting, and landscaping.

Tractor PTO Driven Wood Chipper WC-8 Specifications

Specifications for PTO Wood Chipper
Model	WCHA-8	WCHB-8	WCMA-8
Chipper capacity	max. 200mm	max. 200mm	max. 200mm
Feeding system	Hydraulic	Hydraulic	Mechanical
Flywheel diameter	640mm	640mm	640mm
Blades number	1 stationary blade, 2 rotary blades
Flywheel weight	85kg	85kg	85kg
Feed Hopper Inner Opening	200x220mm	200x220mm	200x220mm
PTO Speed	540rpm	540rpm	540rpm
Weight	390kg	390kg	390kg
Working efficiency	10-12cbm/h	10-12cbm/h	10-12cbm/h
Blade turning radius	302mm	302mm	302mm
Power required	25-50hp	25-50hp	25-50hp
Dimensions	1600*1020*1400mm	1600*1020*1400mm	1600*1020*1400mm
Hydraulic oil tank	with	without	without
Hydraulic pump	with	without	without
Double feeding rolls	Optional	Optional	Optional

Advantages of Tractor PTO Driven Wood Chipper

Using a Tractor PTO Driven Wood Chipper, such as the WC-8, offers several advantages for individuals or businesses involved in forestry, landscaping, or agricultural activities. Some of the key advantages include: 1. Power and Efficiency: The chipper utilizes the power of the tractor's engine through the power take-off (PTO), providing a robust and reliable source of power. This allows for efficient and continuous operation, even when dealing with larger branches or tougher wood material. 2. Cost-effective: By utilizing the existing power source of a tractor, the need for a separate engine or motor is eliminated, reducing the overall cost of the wood chipper. This makes it a more affordable option compared to standalone chippers. 3. Versatility: Tractor PTO Driven Wood Chippers are versatile machines that can be easily transported and used in various locations. They can be attached to different tractors, making it convenient to move the chipper to different job sites or areas where wood waste needs to be processed. 4. Increased Productivity: The WC-8 chipper's self-feeding mechanism and high chipping capacity allow for rapid processing of wood waste. This leads to increased productivity as more material can be chipped in less time, reducing labor requirements and improving overall efficiency. 5. Wood Chip Quality: The WC-8 chipper is designed to produce consistent-sized wood chips, which have various applications. These wood chips can be used for mulching, biomass energy production, composting, landscaping, or as raw material for manufacturing wood products. Consistent chip size ensures uniformity in the end product. 6. Waste Management: By converting wood waste into wood chips, the chipper helps in effective waste management. Instead of disposing of or burning the wood waste, it can be repurposed and used for beneficial purposes like mulching or energy production.

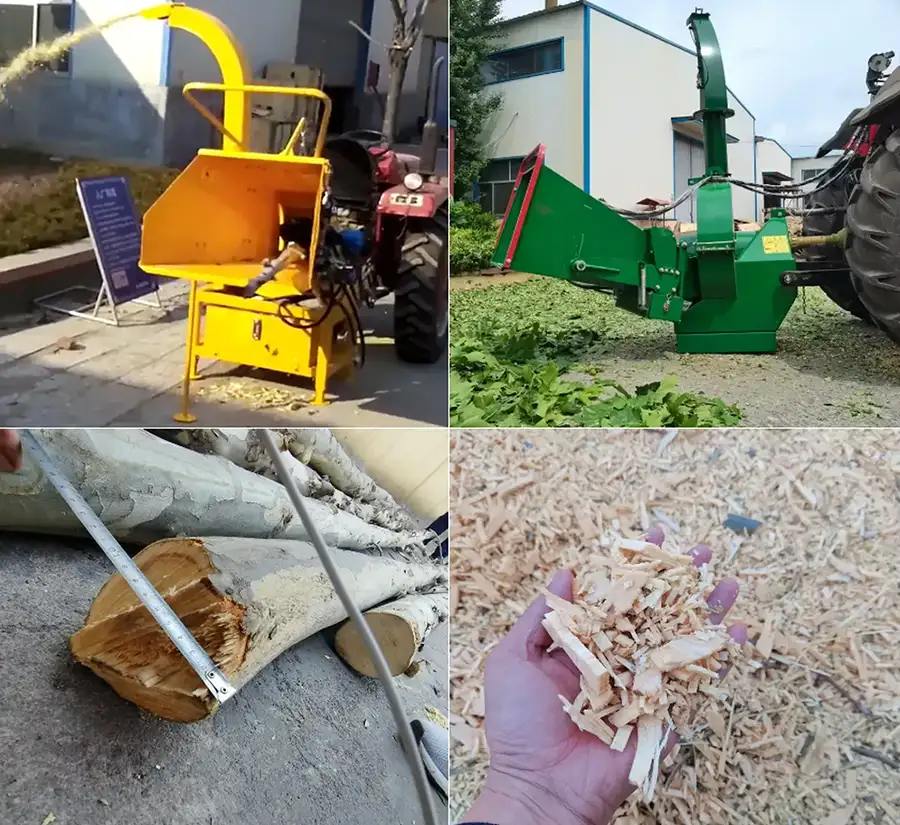

Applications of Tractor PTO Driven Wood Chipper

Tractor PTO Driven Wood Chippers WC-8, find common applications in several industries. Here are some specific applications in different sectors:

• Farms: Wood chippers are commonly used on farms for various purposes. They can help process tree and brush trimmings, crop residues, and other agricultural waste. The wood chips produced can be used for animal bedding, composting, or as a biomass fuel source.
• Wood Processing Industries: In wood processing industries, wood chippers are used to convert large logs, tree trunks, and timber waste into smaller wood chips. These chips can be further processed for various applications, such as pulp and paper manufacturing, particleboard production, or biomass energy production.
• Firewood Production: Tractor PTO driven wood chippers are often utilized in firewood production. They help convert branches, limbs, and small trees into wood chips or wood chunks suitable for firewood processing. The processed wood can be used for heating, cooking, or fireplace fuel.
• Landscaping: Wood chippers are extensively used in landscaping projects. They help clear tree branches, trimmings, and other organic debris from gardens, parks, and commercial landscapes. The wood chips produced can be used as mulch for weed suppression, moisture retention, and soil improvement.
• Waste Management: Tractor PTO driven wood chippers play a vital role in waste management operations. They help process and reduce green waste, tree prunings, and organic debris from municipal areas. The wood chips can be used for composting, biomass energy production, or as a cover material in landfills.
• Construction: Wood chippers are utilized in construction sites to manage tree and brush removal. They help process trees and branches that need to be cleared for construction projects. The wood chips produced can be used for erosion control, site stabilization, or as a biofuel source.

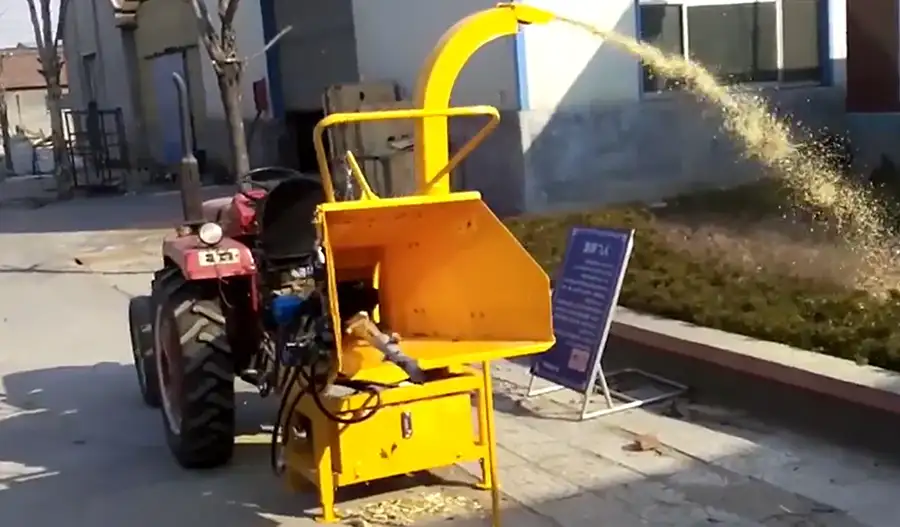

Tractor PTO Driven Wood Chipper Working Principle

A 3-point hitch tractor PTO wood chipper is designed to be attached to the rear of a tractor using the tractor's 3-point hitch system. This system allows for easy attachment and detachment of the chipper to the tractor. Here's how a 3-point hitch tractor PTO wood chipper works:

• Attachment: The chipper is positioned behind the tractor and aligned with the tractor's 3-point hitch. The lower arms of the hitch are connected to the chipper's frame, while the top link is attached to the top of the hitch. Secure the attachment with pins or latches to ensure a stable connection.
• Power Source: The chipper is powered by the tractor's PTO (Power Take-Off) shaft. The PTO shaft is connected to the chipper's drivetrain, which transfers power from the tractor's engine to the cutting mechanism of the chipper.
• Input Hopper: The wood material to be chipped is fed into the chipper through the input hopper. The hopper is usually equipped with safety features, such as a chute or cover, to prevent accidental contact with the cutting mechanism. Some chippers may have a self-feeding mechanism that assists in pulling the wood material into the chipper.
• Cutting Mechanism: Inside the chipper, there is a heavy-duty rotor equipped with sharp blades or knives. The rotor is connected to the chipper's drivetrain and is powered by the tractor's PTO. As the rotor spins at high speed, it draws in the wood material from the input hopper and cuts it into smaller pieces. The size of the wood chips or mulch can be adjusted using the chipper's settings.
• Discharge Chute: Once the wood is chipped, it is discharged through a chute or spout. The discharge chute can often be adjusted to direct the chips into a container or onto the ground in a specific location.
• Tractor Controls: The operator controls the operation of the chipper using the tractor's controls. This includes engaging and disengaging the PTO, controlling the tractor's speed, and adjusting the tractor's position to feed the wood material into the chipper effectively.

How to Install the 3 Point Hitch PTO Wood Chipper to Tractor?

Installing a 3-point hitch PTO wood chipper to a tractor involves a few steps to ensure a secure and proper attachment. Here's a general guide on how to install a 3-point hitch PTO wood chipper to a tractor:

1. Prepare the Chipper and Position the Tractor: Before attaching the chipper to the tractor, make sure it is on a level surface and in a position that allows easy access to the attachment points. Park the tractor on a level surface, engage the parking brake, and turn off the engine. Ensure the tractor's hitch is in the lowered position.
2. Align the Chipper: Position the chipper behind the tractor, aligning the lower arms of the tractor's 3-point hitch with the attachment points on the chipper. The attachment points are typically located on the chipper's frame.
3. Attach the Lower Arms: Connect the lower arms of the tractor's 3-point hitch to the attachment points on the chipper. Insert the pins or latches through the holes in the arms and attach them securely. Make sure the pins or latches are properly inserted and locked in place.
4. Adjust the Top Link: The top link of the tractor's 3-point hitch should be adjusted to match the height of the attachment point on the chipper. Extend or retract the top link as needed to align the holes on the top link with the attachment point on the chipper. Insert the pin or latch and secure it tightly.
5. Connect the PTO Shaft: Locate the PTO shaft on the chipper and the PTO output shaft on the tractor. Line up the splines on both shafts and slide them together. Ensure the locking mechanism engages properly and secures the PTO shaft in place.
6. Check the Attachment: Once all the connections are made, visually inspect the attachment to ensure it is secure and properly aligned. Shake the chipper slightly to check for any excessive movement or looseness.
7. Test the Operation: Start the tractor's engine and engage the PTO according to the manufacturer's instructions. Observe the chipper's operation to ensure it is functioning correctly and that there are no unusual vibrations or noises. Check the feeding, cutting, and discharge mechanisms for smooth operation.

Common Troubleshooting of the Tractor PTO Driven Wood Chipper

While a 3-point hitch tractor PTO wood chipper is a reliable machine, there may be instances where troubleshooting is necessary to address any issues that arise during operation. Here are some common troubleshooting steps for a 3-point hitch tractor PTO wood chipper:

• Chipper Does Not Start: Check the PTO engagement, ensure that the PTO is properly engaged and the PTO shaft is securely connected to the tractor's PTO output shaft. Make sure the tractor's engine is running at the recommended RPM to provide sufficient power to the chipper. Inspect the electrical connections and wiring to ensure there are no loose or damaged connections.
• Chipper Vibrates Excessively: Check for loose components, inspect all bolts, nuts, and fasteners to make sure they are tightened securely. Check the blades or knives on the cutting mechanism for any damage or dullness. Replace or sharpen them as needed. Ensure that the chipper is properly aligned with the tractor's hitch and the drivetrain is aligned with the PTO shaft.
• Chipper Produces Inconsistent Chip Sizes: If the chipper has an adjustable cutting system, ensure the blades are properly positioned for the desired chip size. Adjust the feed rate to ensure a steady and consistent flow of material into the chipper.
• Chipper Clogs or Material Does Not Feed Properly: Check feed mechanism, ensure that the feed mechanism, such as rollers or self-feeding system, is functioning correctly and not obstructed by debris. Make sure the wood material being fed into the chipper is within the recommended size and diameter limits. Remove any oversized or knotty pieces that may cause clogging.
• Unusual Noises or Excessive Heat: Inspect moving parts, check all moving parts, such as bearings and belts, for any signs of damage, wear, or misalignment. Replace or repair as necessary. Ensure that all moving parts are properly lubricated according to the manufacturer's recommendations.

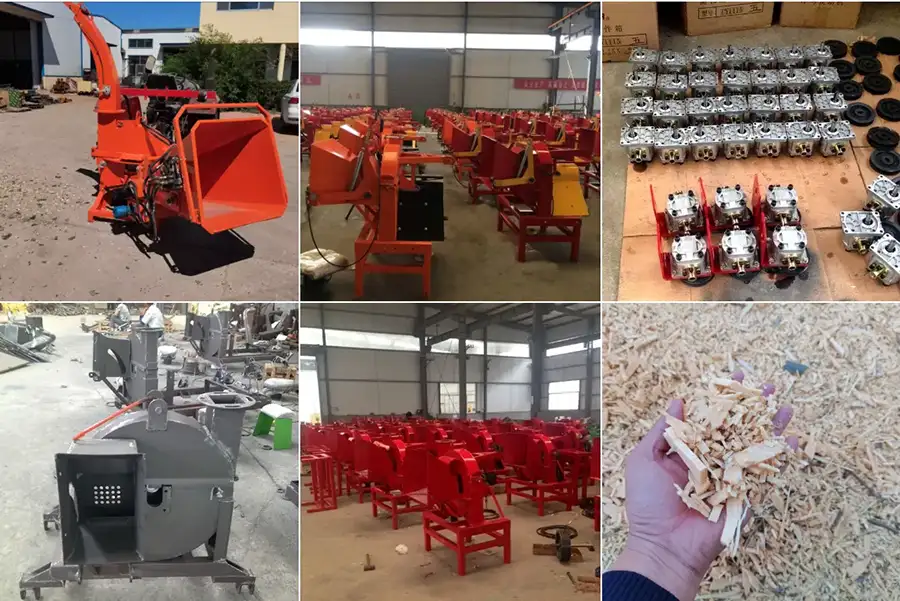

Why Choose Raydafon's PTO Wood Chipper?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Our commitment to professionalism, international certifications, customized services, cutting-edge production facilities, and dedicated after-sales services sets us apart in the industry. By choosing Raydafon's PTO Wood Chipper, you are not only choosing a high-quality product but also a long-term partner for your agricultural machinery needs. Author: Yjx
