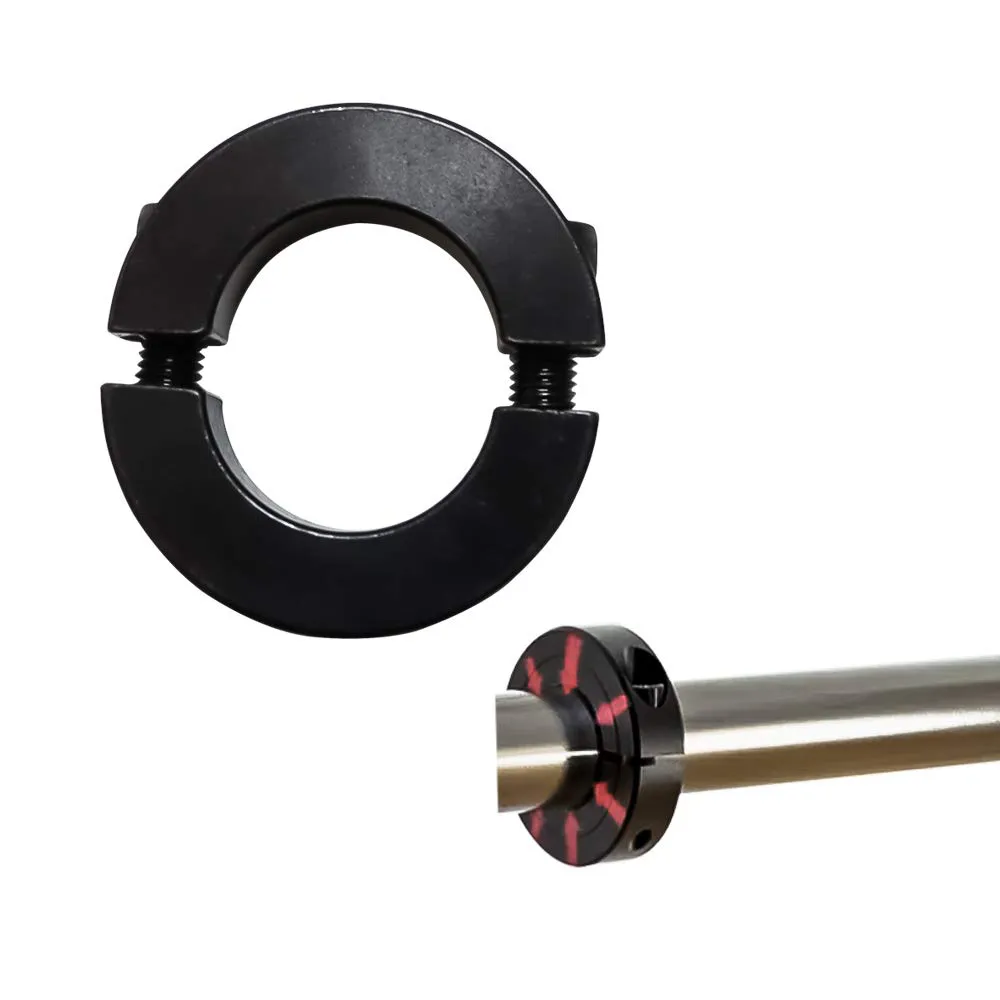

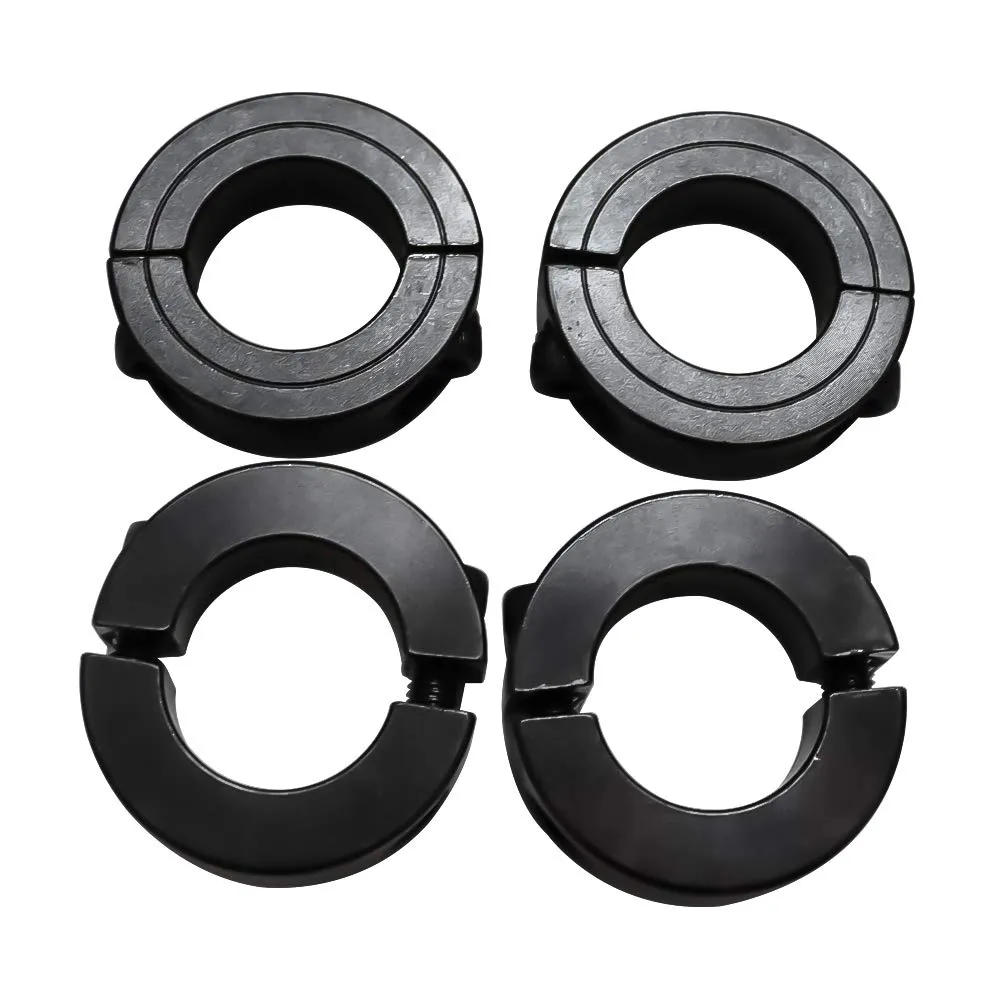

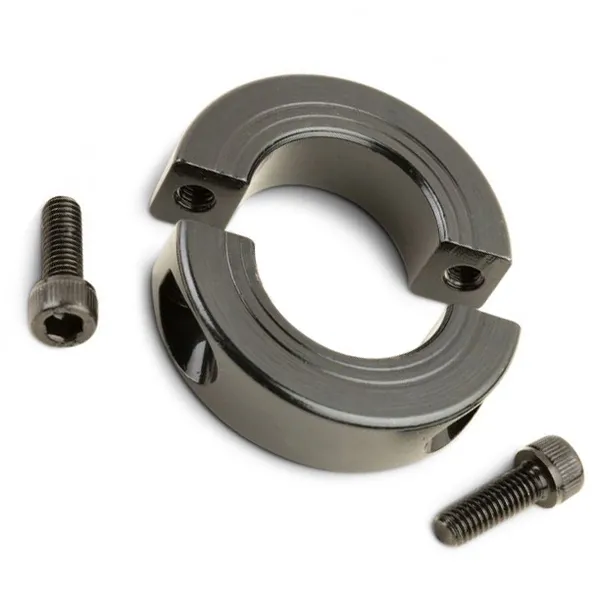

Two Piece Thin Line Shaft Collars (Shaft Clamps) Inch Series

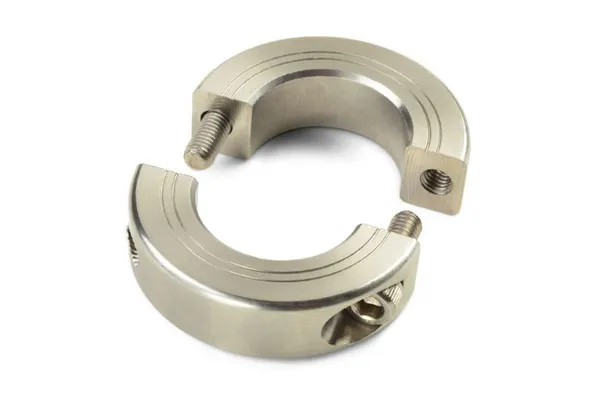

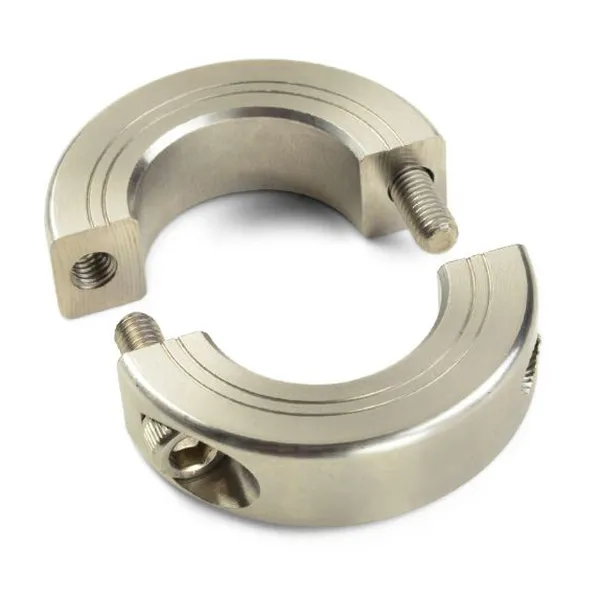

Two Piece Thin Line Shaft Collars (Shaft Clamps) Inch Series

Inch series two piece thin line shaft collars are a type of shaft collar that is designed for applications with space and weight restrictions. They are made of lightweight materials, such as aluminum or stainless steel, and have a smaller profile than traditional shaft collars. This makes them ideal for use in applications where space is limited, such as in packaging, printing, medical, and food industries. The inch series two piece thin line shaft collars are available in a variety of sizes and materials to meet the specific needs of each application. They are also available with a variety of mounting options, including face mounting, flange mounting, and bolt-on mounting.The inch series two piece thin line shaft collars are a versatile and reliable solution for a variety of applications. They are easy to install and maintain, and they provide a high level of performance and durability. If you are looking for a shaft collar that is designed for applications with space and weight restrictions, then inch series two piece thin line shaft collars are a great option. They are available in a variety of sizes and materials to meet the specific needs of each application, and they provide a high level of performance and durability.

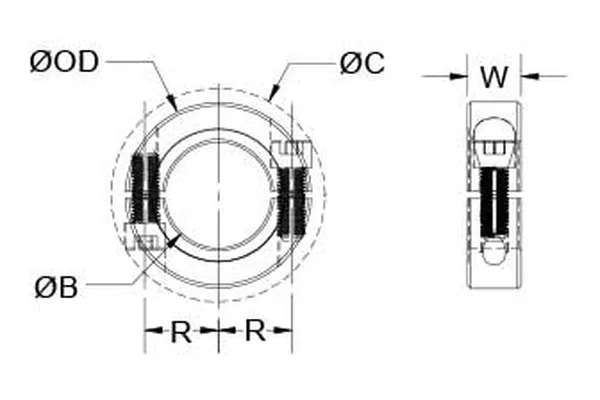

▍Two Piece Thin Line Shaft Collar Sizes Chart (Inch Series)

Part Number Aluminum	Part Number Stainless Steel	Bore (B) (in)	Outer Diameter (OD) (in)	Width (W) (in)
ENSP20-3-A	ENSP20-3-SS	0.1875 in	0.787 in	0.217 in
ENSP20-4-A	ENSP20-4-SS	0.2500 in	0.787 in	0.217 in
ENSP20-5-A	ENSP20-5-SS	0.3125 in	0.787 in	0.217 in
ENSP20-6-A	ENSP20-6-SS	0.3750 in	0.787 in	0.217 in
ENSP25-4-A	ENSP25-4-SS	0.2500 in	0.984 in	0.236 in
ENSP25-5-A	ENSP25-5-SS	0.3125 in	0.984 in	0.236 in
ENSP25-6-A	ENSP25-6-SS	0.3750 in	0.984 in	0.236 in
ENSP25-8-A	ENSP25-8-SS	0.5000 in	0.984 in	0.236 in
ENSP30-4-A	ENSP30-4-SS	0.2500 in	1.181 in	0.315 in
ENSP30-5-A	ENSP30-5-SS	0.3125 in	1.181 in	0.315 in
ENSP30-6-A	ENSP30-6-SS	0.3750 in	1.181 in	0.315 in
ENSP30-8-A	ENSP30-8-SS	0.5000 in	1.181 in	0.315 in
ENSP30-10-A	ENSP30-10-SS	0.6250 in	1.181 in	0.315 in
ENSP35-10-A	ENSP35-10-SS	0.6250 in	1.378 in	0.315 in
ENSP35-12-A	ENSP35-12-SS	0.7500 in	1.378 in	0.315 in
ENSP35-8-A	ENSP35-8-SS	0.5000 in	1.378 in	0.315 in
ENSP45-10-A	ENSP45-10-SS	0.6250 in	1.772 in	0.394 in
ENSP45-12-A	ENSP45-12-SS	0.7500 in	1.772 in	0.394 in
ENSP45-14-A	ENSP45-14-SS	0.8750 in	1.772 in	0.394 in
ENSP45-16-A	ENSP45-16-SS	1.0000 in	1.772 in	0.394 in
ENSP60-16-A	ENSP60-16-SS	1.0000 in	2.362 in	0.472 in
ENSP60-18-A	ENSP60-18-SS	1.1250 in	2.362 in	0.472 in
ENSP60-20-A	ENSP60-20-SS	1.2500 in	2.362 in	0.472 in
ENSP60-22-A	ENSP60-22-SS	1.3750 in	2.362 in	0.472 in
ENSP60-24-A	ENSP60-24-SS	1.5000 in	2.362 in	0.472 in

▍Features of Two Piece Thin Line Shaft Collars

Here are some of the features of two-piece thin line shaft collars:1. Reduced width: Two-piece thin line shaft collars have a reduced width compared to traditional shaft collars. This makes them ideal for use in applications where space is limited.2. Well suited for encoder applications: Two-piece thin line shaft collars are well suited for encoder applications. This is because they have a smaller profile than traditional shaft collars, which can help to prevent interference with the encoder.3. Lightweight: Two-piece thin line shaft collars are lightweight. This makes them easy to install and remove, and it also helps to reduce the overall weight of the system.4. Superior fit, finish, and holding power: Two-piece thin line shaft collars are manufactured to tight tolerances. This ensures a superior fit and finish, which helps to improve the holding power of the shaft collar.5. Additional sizes available: Two-piece thin line shaft collars are available in a variety of sizes. This makes it easy to find a shaft collar that is the right size for the application.6. Width tolerance: Two-piece thin line shaft collars have a width tolerance of +.003"/-.010". This ensures that the shaft collar will fit the shaft properly.7. Temperature range: Two-piece thin line shaft collars have a temperature range of -40° to 225° (aluminum) or -40° to 350° (stainless steel). This makes them suitable for a wide variety of applications.Two-piece thin line shaft collars are a versatile and reliable solution for a variety of applications. They are easy to install and maintain, and they provide a high level of performance and durability.

▍Applications of Two Piece Thin Line Shaft Collars

Two-piece thin line shaft collars are commonly used in various applications where precise axial positioning and holding of components on shafts are required. Some of the common applications of two-piece thin line shaft collars are:(1) Robotics: Two-piece thin line shaft collars are used in robotics to hold bearings, gears, or other components on shafts in a precise axial position. The thin profile of these shaft collars allows them to be used in tight spaces where clearance is limited.(2) Industrial Machinery: Two-piece thin line shaft collars are often used in industrial machinery to hold pulleys, sprockets, or other components on shafts. They are preferred because they can be easily adjusted and repositioned without disassembling the entire assembly.(3) Aerospace: Two-piece thin line shaft collars are also used in the aerospace industry to hold components in place on shafts. They are preferred because they are lightweight and do not add significant weight to the aircraft.(4) Medical Devices: Two-piece thin line shaft collars are used in medical devices to hold components on shafts in a precise axial position. They are preferred because they are small and can be used in tight spaces.(5) Automotive: Two-piece thin line shaft collars are used in the automotive industry to hold components on shafts, such as gears, pulleys, or bearings. They are preferred because they can be easily adjusted and repositioned without disassembling the entire assembly.Overall, two-piece thin line shaft collars are widely used in various applications where precise axial positioning and holding of components on shafts are required. Their thin profile, ease of adjustment, and versatility make them a popular choice in many industries.

▍How to Choose the Right Two Piece Thin Shaft Collar?

Choosing the right two-piece thin shaft collar involves considering several factors, including the application, shaft diameter, shaft collar material, and installation method. Here are the steps to follow:Determine the application: Consider the purpose of the thin shaft collar. Will it be used for positioning, stopping, or clamping? This will help you choose the right types of shaft collars.Measure the shaft diameter: Measure the diameter of the shaft that the shaft collar will be mounted on. This will determine the size of the thin shaft collar you need.Choose the collar material: Two-piece thin shaft collars come in different materials, including steel, aluminum, plastic, and brass. Consider the environment in which the thin shaft collar will be used and the level of corrosion resistance required.Consider the installation method: Two-piece thin shaft collars can be installed using a set screw or a clamp. Set screw collars are easier to install but may damage the shaft. Clamp collars distribute the clamping force evenly and are gentler on the shaft.Check for additional features: Some two-piece thin shaft collars come with additional features, such as keyways, tapped holes, or threaded bores. Consider these features if they are required for your application.By considering these factors, you can choose the right two-piece thin shaft collar for your application.

▍Two Piece Thin Line Shaft Collar Manufacturers

Shaft collars are machine components that feature a simple design but play an important role in a wide range of industrial applications. They serve three primary functions; holding components in place, locating or positioning components on a shaft, and creating an attachment between the shaft and another component. Designers have a variety of factors to consider, such as style, material, bore size, and shaft geometry, before a selection can be made. It is important to identify the requirements, parameters, and limitations of your system in order to determine the right style for the application.Despite their simple design, shaft collars play an important role in a wide range of industrial applications. As such, when choosing one for a particular application, it is essential to use the one with the right design and performance characteristics.As an experienced manufacturer and distributor of shaft collars suitable for use in power transmission, motion control, automation, and other OEM and ODM operations, Raydafon has the knowledge, skills, and inventory to help customers select and source the right shaft collar for their application. In addition to offering standard shaft collars, including set screw shaft collars, heavy duty shaft collars, one piece shaft collars, two piece shaft collars, quick release shaft collars, double wide shaft collars, mountable shaft collars, hex shaft collars, D profile shaft collars, and threaded shaft collars, we also provide custom design and engineering services to manufacturing specialized shaft collars for unique customer needs.

▍FAQ

Q: What is a thin line shaft collar?A: A thin line shaft collar is a type of mechanical fastener used to secure and position components on a shaft. It is typically a small, cylindrical device that is installed on a shaft to prevent sliding or rotating movement of the components.Q: What is the difference between a thin line shaft collar and a regular shaft collar?A: A thin line shaft collar is thinner in profile than a regular shaft collar. This makes it ideal for applications where minimal space is available or where a smaller profile is desired. It is also typically lighter in weight than a regular shaft collar.Q: What materials are thin line shaft collars made of?A: Thin line shaft collars are typically made from materials such as stainless steel, aluminum, brass, or plastic. The choice of material will depend on the specific application and the required properties such as strength, corrosion resistance, and weight.Q: How are thin line shaft collars installed?A: Thin line shaft collars are typically installed by sliding them onto the shaft and then tightening the set screw using a hex wrench. The set screw creates a secure grip on the shaft, preventing the collar from moving or rotating.Q: What are some common applications for thin line shaft collars?A: Thin line shaft collars are commonly used in applications where space is limited, such as robotics, automation, and medical devices. They are also used in applications where a low profile is desired, such as in optical equipment, instrumentation, and electronics. Additionally, they can be used in machinery and equipment for positioning and securing components such as bearings, gears, pulleys, and sprockets.
