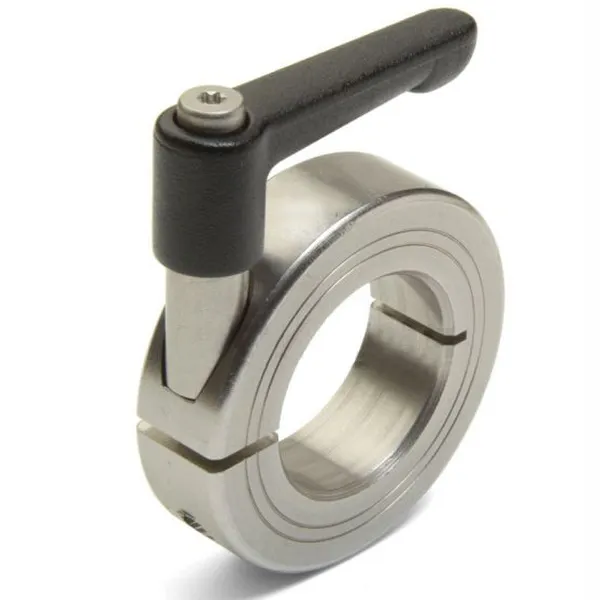

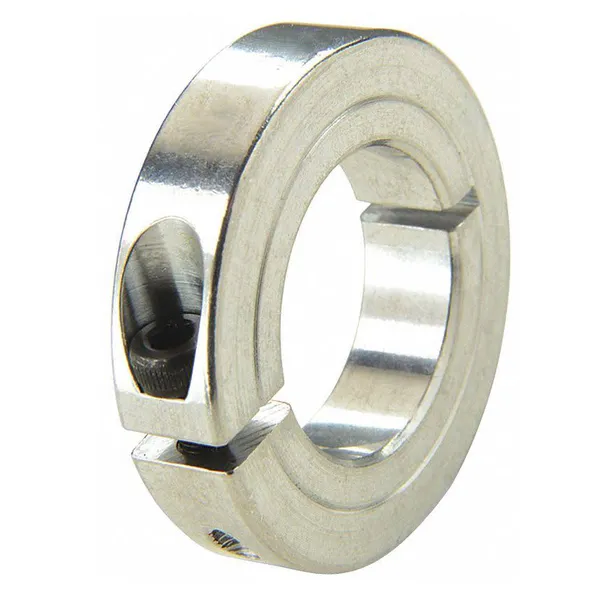

Inch series one piece thin line shaft collars are a type of shaft collar that is designed to be thin and lightweight. One-piece thin line shaft collars work by distributing compressive forces evenly around the shaft. This helps to prevent the shaft from bending or twisting, and it also helps to keep the shaft in alignment. One-piece thin line shaft collars are easy to install and adjust, and they have a high holding power. A one-piece thin line shaft collar is a type of shaft collar that is designed to be as thin as possible. This makes them ideal for applications where space is limited, such as in encoders, gearboxes, and robots.Inch series one piece thin line shaft collars are a versatile and effective way to secure shafts in a variety of applications. They are made from a variety of materials, including aluminum, stainless steel, and brass. Inch series one piece thin line shaft collars are available in a variety of sizes, with bores ranging from 3/16" to 1-1/2". If you are looking for a thin and lightweight shaft collar for your application, inch series one piece thin line shaft collars are a great option.

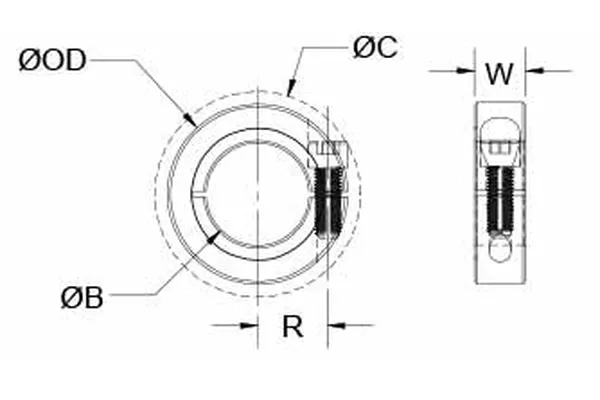

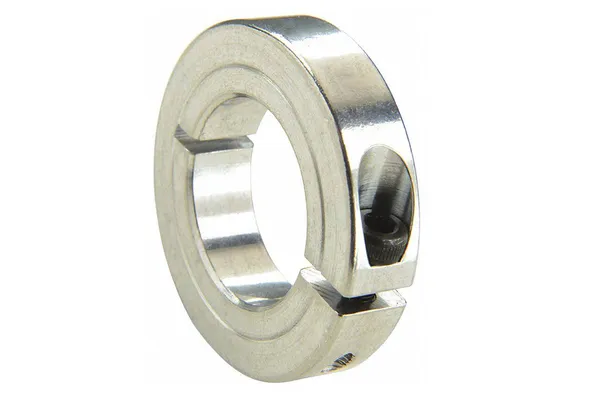

▍One Piece Thin Line Shaft Collar Sizes Chart (Inch Series)

Part Number Aluminum	Part Number Stainless Steel	Bore (B) (in)	Outer Diameter (OD) (in)	Width (W) (in)
ENCL20-3-A	ENCL20-3-SS	0.1875	0.787	0.217
ENCL20-4-A	ENCL20-4-SS	0.2500	0.787	0.217
ENCL20-5-A	ENCL20-5-SS	0.3125	0.787	0.217
ENCL20-6-A	ENCL20-6-SS	0.3750	0.787	0.217
ENCL25-4-A	ENCL25-4-SS	0.2500	0.984	0.236
ENCL25-5-A	ENCL25-5-SS	0.3125	0.984	0.236
ENCL25-6-A	ENCL25-6-SS	0.3750	0.984	0.236
ENCL25-8-A	ENCL25-8-SS	0.5000	0.984	0.236
ENCL30-10-A	ENCL30-10-SS	0.6250	1.181	0.315
ENCL30-4-A	ENCL30-4-SS	0.2500	1.181	0.315
ENCL30-5-A	ENCL30-5-SS	0.3125	1.181	0.315
ENCL30-6-A	ENCL30-6-SS	0.3750	1.181	0.315
ENCL30-8-A	ENCL30-8-SS	0.5000	1.181	0.315
ENCL35-8-A	ENCL35-8-SS	0.5000	1.378	0.315
ENCL35-10-A	ENCL35-10-SS	0.6250	1.378	0.315
ENCL35-12-A	ENCL35-12-SS	0.7500	1.378	0.315
ENCL45-10-A	ENCL45-10-SS	0.6250	1.772	0.394
ENCL45-12-A	ENCL45-12-SS	0.7500	1.772	0.394
ENCL45-14-A	ENCL45-14-SS	0.8750	1.772	0.394
ENCL45-16-A	ENCL45-16-SS	1.0000	1.772	0.394
ENCL60-16-A	ENCL60-16-SS	1.0000	2.362	0.472
ENCL60-18-A	ENCL60-18-SS	1.1250	2.362	0.472
ENCL60-20-A	ENCL60-20-SS	1.2500	2.362	0.472
ENCL60-22-A	ENCL60-22-SS	1.3750	2.362	0.472
ENCL60-24-A	ENCL60-24-SS	1.5000	2.362	0.472

▍Advantages of One Piece Thin Line Shaft Collars

One-piece thin line shaft collars are a type of shaft collar that is made from a single piece of material. They are typically used in applications where space is limited, such as in the automotive and aerospace industries. One-piece thin line shaft collars offer a number of advantages over other types of shaft collars, including:1. Reduced Weight and Size: One piece thin line shaft collars are designed to be lighter and smaller than traditional shaft collars, making them ideal for applications where space and weight are at a premium.2. Improved Precision: The one-piece design of these shaft collars ensures that they maintain a consistent diameter, which is critical for precision applications.3. Improved Performance: One piece thin line shaft collars offer superior performance when compared to traditional shaft collars. The reduced weight and size help to reduce vibration, and the precise fit ensures better alignment between the shaft and the shaft collar.4. Reduced Installation Time: The simple and easy-to-install design of one piece thin shaft collars means that they can be installed quickly and easily, reducing downtime and increasing productivity.5. Cost-Effective: One piece thin shaft collars are often less expensive than traditional two-piece shaft collars, making them a cost-effective solution for many applications.

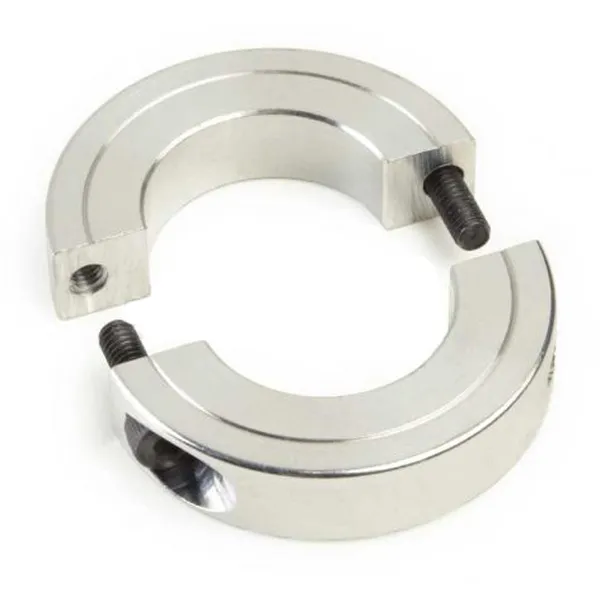

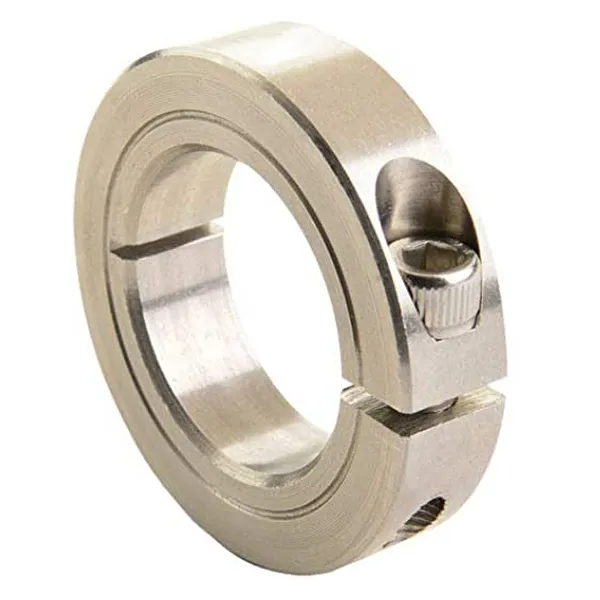

▍One Piece Thin Shaft Collars Vs Two Piece Thin Shaft Collars

One-piece thin shaft collars and two-piece thin shaft collars are both types of shaft collars that are used to secure rotating components to a shaft. They are both made from thin material, which makes them ideal for applications where space is limited. However, there are some key differences between the two types of shaft collars.One-piece thin shaft collars are made from a single piece of material. They are typically installed by sliding them over the end of the shaft and then tightening the set screws. One-piece thin shaft collars are relatively easy to install and remove, and they are typically less expensive than two-piece thin shaft collars.Two-piece thin shaft collars are made from two pieces of material that are joined together with a set screw. They are typically installed by sliding the two halves of the shaft collar over the end of the shaft and then tightening the set screw. Two-piece thin shaft collars are typically more durable than one-piece thin shaft collars, and they can be used in applications where high torque is required.The following table summarizes the key differences between one-piece thin shaft collars and two-piece thin shaft collars:The best type of shaft collar for a particular application will depend on the specific requirements of the application. If space is limited and cost is a factor, then a one-piece thin shaft collar may be the best option. If high torque is required or if the shaft collar needs to be removed and reinstalled frequently, then a two-piece thin shaft collar may be the best option.

One-Piece Thin Shaft Collar	Two-Piece Thin Shaft Collar

▍One Piece Thin Line Shaft Collar Manufacturers

Shaft collars are machine components that feature a simple design but play an important role in a wide range of industrial applications. They serve three primary functions; holding components in place, locating or positioning components on a shaft, and creating an attachment between the shaft and another component. Designers have a variety of factors to consider, such as style, material, bore size, and shaft geometry, before a selection can be made. It is important to identify the requirements, parameters, and limitations of your system in order to determine the right style for the application.Despite their simple design, shaft collars play an important role in a wide range of industrial applications. As such, when choosing one for a particular application, it is essential to use the one with the right design and performance characteristics.As an experienced manufacturer and distributor of shaft collars suitable for use in power transmission, motion control, automation, and other OEM and ODM operations, Raydafon has the knowledge, skills, and inventory to help customers select and source the right shaft collar for their application. In addition to offering standard shaft collars, including set screw shaft collars, heavy duty shaft collars, one piece shaft collars, two-piece shaft collars, quick release shaft collars, double wide shaft collars, mountable shaft collars, hex shaft collars, D profile shaft collars, and threaded shaft collars, we also provide custom design and engineering services to manufacturing specialized shaft collars for unique customer needs.

▍FAQ

Q: What is a thin line shaft collar?A: A thin line shaft collar is a type of mechanical fastener used to secure and position components on a shaft. It is typically a small, cylindrical device that is installed on a shaft to prevent sliding or rotating movement of the components.Q: What is the difference between a thin line shaft collar and a regular shaft collar?A: A thin line shaft collar is thinner in profile than a regular shaft collar. This makes it ideal for applications where minimal space is available or where a smaller profile is desired. It is also typically lighter in weight than a regular shaft collar.Q: What materials are thin line shaft collars made of?A: Thin line shaft collars are typically made from materials such as stainless steel, aluminum, brass, or plastic. The choice of material will depend on the specific application and the required properties such as strength, corrosion resistance, and weight.Q: How are thin line shaft collars installed?A: Thin line shaft collars are typically installed by sliding them onto the shaft and then tightening the set screw using a hex wrench. The set screw creates a secure grip on the shaft, preventing the collar from moving or rotating.Q: What are some common applications for thin line shaft collars?A: Thin line shaft collars are commonly used in applications where space is limited, such as robotics, automation, and medical devices. They are also used in applications where a low profile is desired, such as in optical equipment, instrumentation, and electronics. Additionally, they can be used in machinery and equipment for positioning and securing components such as bearings, gears, pulleys, and sprockets.
