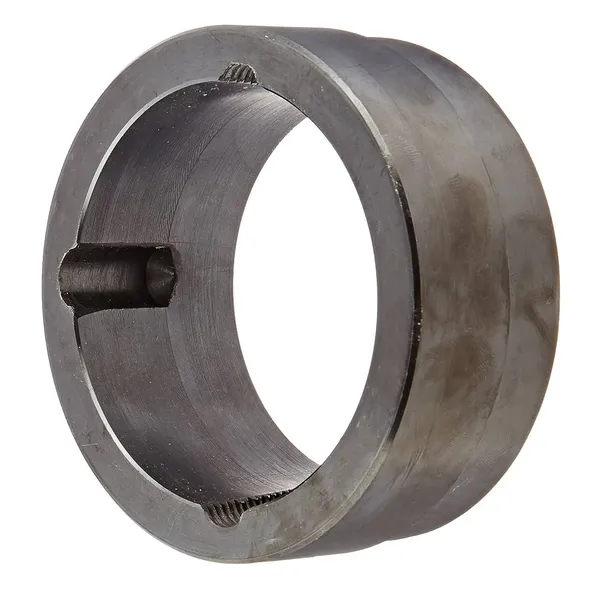

Type S Taper Lock Weld-On Hubs

Type S Taper Lock Weld-On Hubs

Type S taper lock weld-on hubs are mechanical components used in power transmission systems to connect shafts and other rotating elements. These hubs are specifically designed to provide a secure and reliable connection between a shaft and a mounted component, such as a pulley, sprocket, or gear.The "Type S" designation refers to a specific design standard for taper lock hubs. Taper lock hubs are widely used in various industries due to their ease of installation, durability, and ability to handle high torque and axial loads. They are commonly found in applications such as conveyor systems, industrial machinery, and agricultural equipment.The term "weld-on" indicates that these taper bore weld-on hubs are designed to be welded directly onto a shaft or other cylindrical components. This welding process ensures a strong and permanent connection, eliminating the need for additional fasteners or keys.The taper lock system itself consists of a hub with an internally tapered bore and a matching tapered bushing. The hub's bore is tapered at a specific angle, and the bushing has a corresponding taper on its outer surface. When the bushing is inserted into the hub and tightened, it creates a frictional grip that locks the hub securely onto the shaft.To install a Type S taper lock weld-on hub, the shaft or component to which it will be attached should be properly prepared by cleaning and ensuring it is free from any contaminants that could interfere with the welding process. The hub is then positioned on the shaft, and a qualified welder performs the welding operation to secure the hub in place.

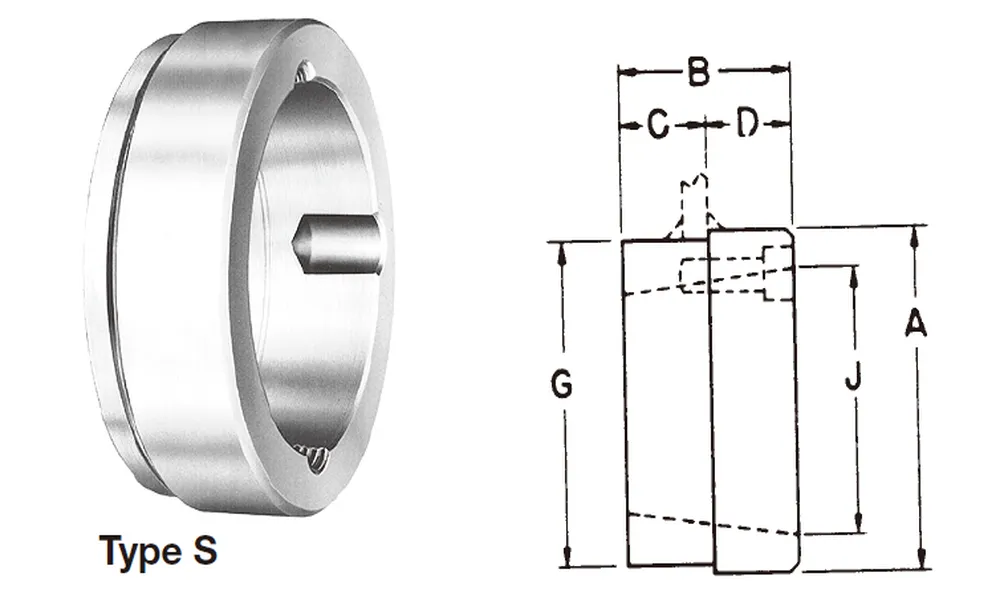

Type S Taper Lock Weld-On Hubs Dimensions:

Hub No.	Bush No.	Max. bore	A	B	C	D	G	J	Wt.
S16-4	1610	1 5/8"	3"	1"	0.275"	0.725"	2 7/8"	2 1/4"	0.9
S16-6	1610	1 5/8	3	1	0.450	0.550	27/8	2 1/4	0.9
S20-6	2012	2	3 9/16	1 1/4	0.450	0.800	3 7/16	2 3/4	1.8
S20-8	2012	2	3 9/16	1 1/4	0.570	0.680	3 7/16	2 3/4	1.4
S25-6	2517	2 1/2	4 1/4	1 3/4	0.450	1.300	4 1/8	3 3/8	2.6
S25-8	2517	2 1/2	4 1/4	1 3/4	0.565	1.185	4 1/8	3 3/8	2.6
S25-10	2517	2 1/2	4 1/4	1 3/4	0.685	1.065	4 1/8	3 3/8	2.5
S25-16	2517	2 1/2	4 1/4	1 3/4	1.090	0.660	4 1/8	3 3/8	2.4
S30-10	3020	3	5 1/4	2	0.675	1.325	5 1/8	4 1/4	4.3
S30-16	3020	3	5 1/4	2	1.090	0.910	5 1/8	4 1/4	4.2
S35	3535	3 15/16	6 1/2	3 1/2	1.160	2.340	6 3/8	5	12.8

Type S Taper Lock Weld-On Hubs Advantages:

Type S taper lock weld-on hubs offer several advantages in power transmission applications:1. Strong and Reliable Connection: The welded connection between the Type S weld-on hubs and the shaft or component provides a strong and permanent bond. It eliminates the risk of loosening or slipping under high torque or axial loads, ensuring a reliable power transmission.2. Easy Installation: Welding the Type S taper lock weld-on hubs onto the shaft is a straightforward process, requiring minimal additional components or fasteners. This simplifies the installation and reduces the time and effort required for assembly.3. Space-saving Design: Type S taper bore weld-on hubs have a compact design that minimizes the overall length of the power transmission system. This is particularly beneficial in applications with limited space or when multiple components need to be mounted on the same shaft.4. High Torque Capacity: Type S taper bore weld-on hubs are designed to handle high torque loads. The taper lock mechanism provides excellent torque transmission capabilities, allowing the hub to effectively transfer power from the shaft to the mounted component.5. Versatility: These Type S welding hubs for taper bushes are compatible with a wide range of shaft sizes and can accommodate different types of components such as pulleys, sprockets, and gears. They offer versatility in design and application, making them suitable for various industries and equipment.6. Durability: Type S taper lock weld-on hubs are typically made from high-quality materials such as steel or cast iron, which provide excellent strength and durability. They can withstand harsh operating conditions, including high temperatures, heavy loads, and corrosive environments.

Taper Bore Weld-On Hubs Vs QD Type Weld-On Hubs:

Taper bore weld-on hubs and QD type weld-on hubs are two different types of hubs used in mechanical power transmission systems. Let's compare them based on their features and applications:Taper Bore Weld-On Hubs:

1. Design: Taper bore weld-on hubs have a tapered bore with a keyway that matches the corresponding tapered shaft. They are typically made from steel and have a solid, one-piece construction.
2. Installation: These hubs are installed by heating them to expand the bore and then sliding them onto the tapered shaft. As they cool down, they shrink and create a tight fit.
3. Shaft Locking: The taper bore design provides a strong mechanical connection between the hub and the shaft, ensuring high torque transmission and minimizing slippage.
4. Alignment: Taper bore weld-on hubs require precise alignment during installation to ensure proper fit and alignment of the components.
5. Applications: Taper bore weld-on hubs are commonly used in heavy-duty applications like industrial machinery, conveyors, and equipment with high torque requirements.

QD Type Weld-On Hubs:

1. Design: QD type weld-on hubs feature a tapered and keyless bushing system. They consist of a flanged hub and a bushing with an internal taper and external screw threads.
2. Installation: These hubs are installed by tightening the screws on the bushing, which causes it to expand and grip the shaft tightly. The flanged hub is then welded onto the equipment.
3. Shaft Locking: The bushing's expansion and gripping action provide a secure and concentric connection between the hub and the shaft, ensuring torque transmission and reducing the chances of slippage.
4. Alignment: QD type weld-on hubs offer a self-centering feature, allowing for easy alignment during installation. The bushing compensates for minor misalignments between the hub and the shaft.
5. Applications: QD type weld-on hubs are commonly used in a variety of applications, including pumps, compressors, conveyors, and other machinery where quick installation, easy removal, and shaft repositioning are desired.

In summary, taper bore weld-on hubs provide a robust and precise connection between the hub and the shaft but require careful alignment during installation. On the other hand, QD type weld-on hubs offer quick installation, easy removal, and some misalignment compensation, making them suitable for applications requiring frequent shaft adjustments. The choice between the two depends on the specific requirements of the application, including torque, alignment precision, and the need for quick installation or removal.

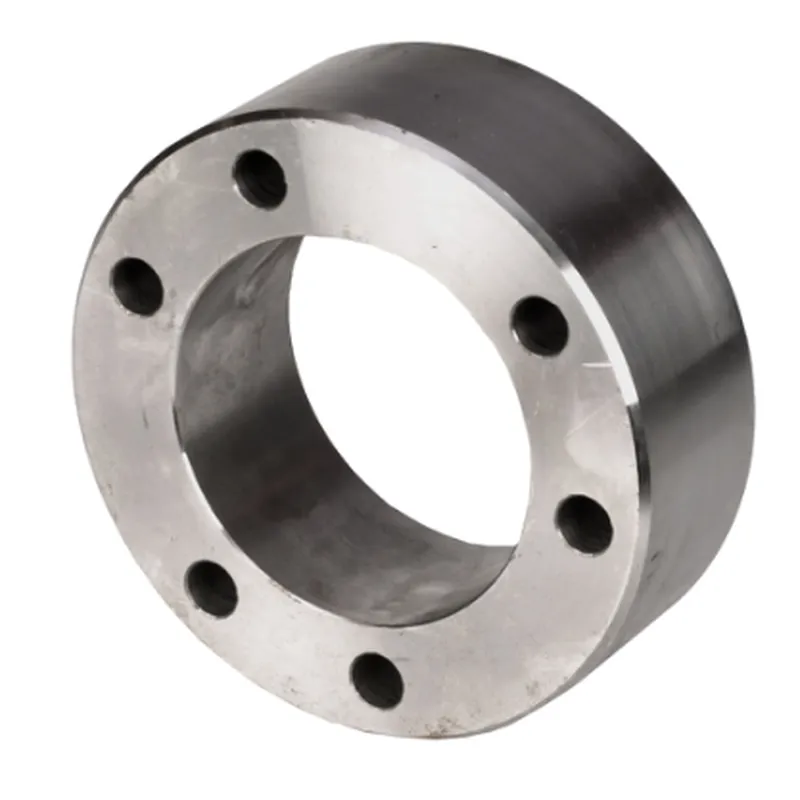

Taper Bore Weld-On Hubs	QD Type Weld-On Hubs

China Taper Lock Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT weld-on hubs, Type “B” steel hubs, split taper weld-on hubs, QD Type weld-on hubs, taper bore bolt-on hubs, taper lock adapter, and taper bore weld-on hubs will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
