Type W Taper Lock Weld-On Hubs

Type W Taper Lock Weld-On Hubs

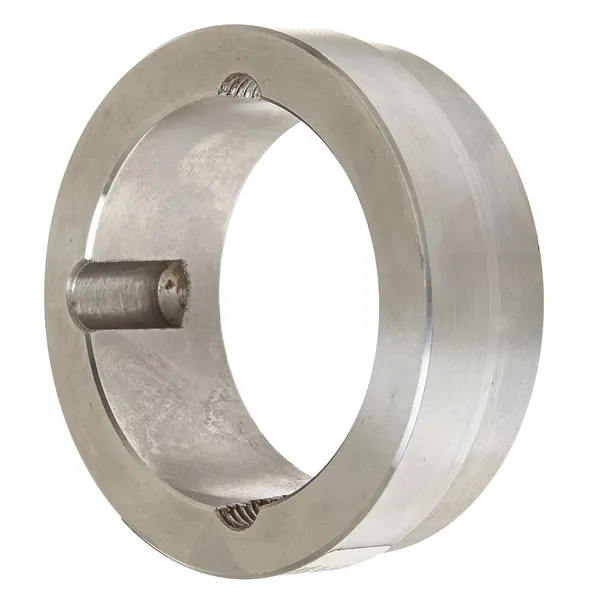

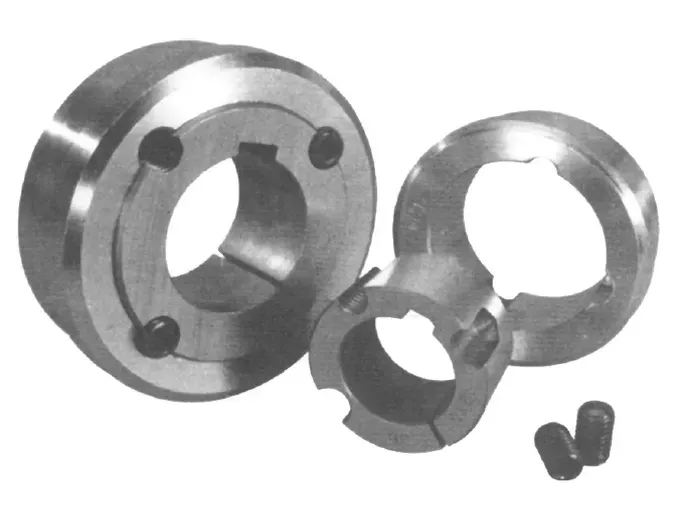

Type W taper lock weld-on hubs are mechanical components designed to provide a secure and reliable method for connecting shafts to various industrial equipment and machinery. These hubs are commonly used in applications where a shaft requires a rigid and durable connection to a rotating component, such as pulleys, sprockets, or gears. These Type W taper bore weld-on hubs are typically made from high-quality steel to ensure durability and resistance to wear and tear. They are available in various sizes and configurations to accommodate different shaft diameters, allowing for versatile usage across a wide range of industrial applications.

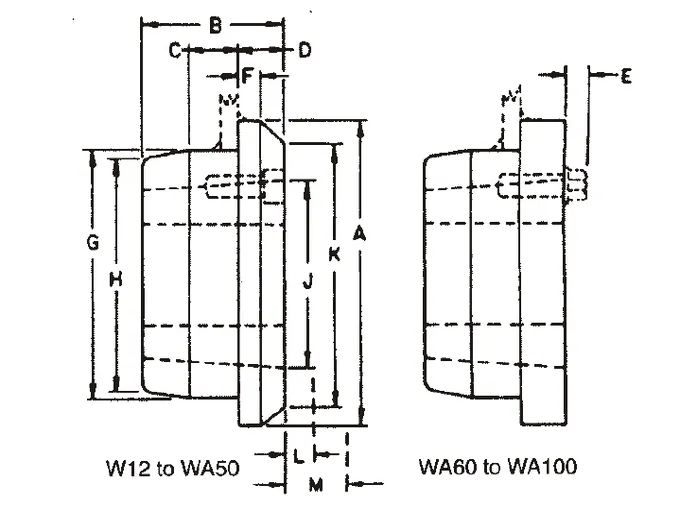

Type W Taper Lock Weld-On Hubs Dimensions:

Hub  No.

Bush  No.

Bore

A

B

C

D

E

F

G

H

J

K

L

M

Wt.

W12

1215

1/2" - 1 1/4"

2 7/8"

1 1/2"

-

5/8"

-

3/8"

2 1/2"

-

1 7/8"

2 5/8"

1 3/8"

1 5/8"

1.2

W16

1615

1/2 - 1 5/8

3 1/4

1 1/2

-

5/8

-

3/8

2 7/8

--

2 1/4

3

1 3/8

1 5/8

1.3

W25

2517

1/2 - 2 1/2

4 7/8

1 3/4

-

3/4

-

3/8

4 3/8

--

3 3/8

4 5/8

1 5/8

2 1/4

3.8

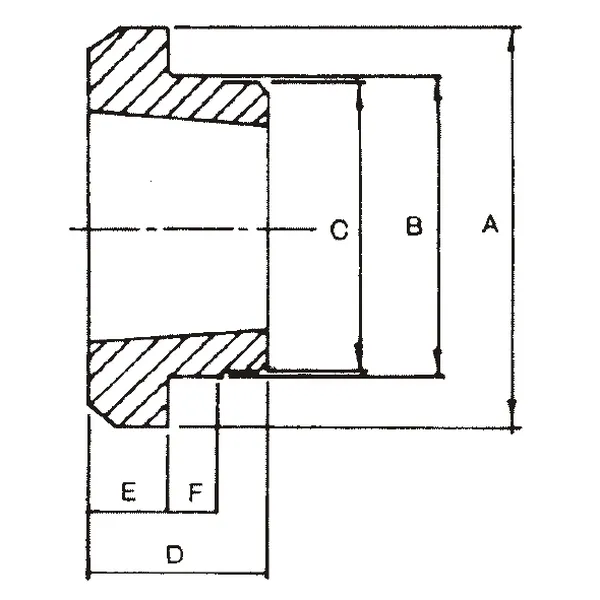

Type W Taper Lock Weld-On Hubs Specifications:

Hub No.	Bush No.	A	B	C	D	E	F
W12	1215	73.03	63.50	62.71	38.10	15.88	9.53
W16	1615	82.55	73.03	72.24	38.10	15.88	9.53
W20	2517	101.60	88.90	88.11	44.45	19.05	14.45
W25	2517	127.00	111.13	110.34	44.45	19.05	14.45
W30	3030	149.86	133.35	132.56	76.20	25.40	19.05
W35	3535	184.15	158.75	157.96	88.90	31.75	25.40
W40	4040	225.43	196.85	196.06	101.60	31.75	31.75
W45	4545	254.00	222.25	221.46	114.30	38.10	38.10

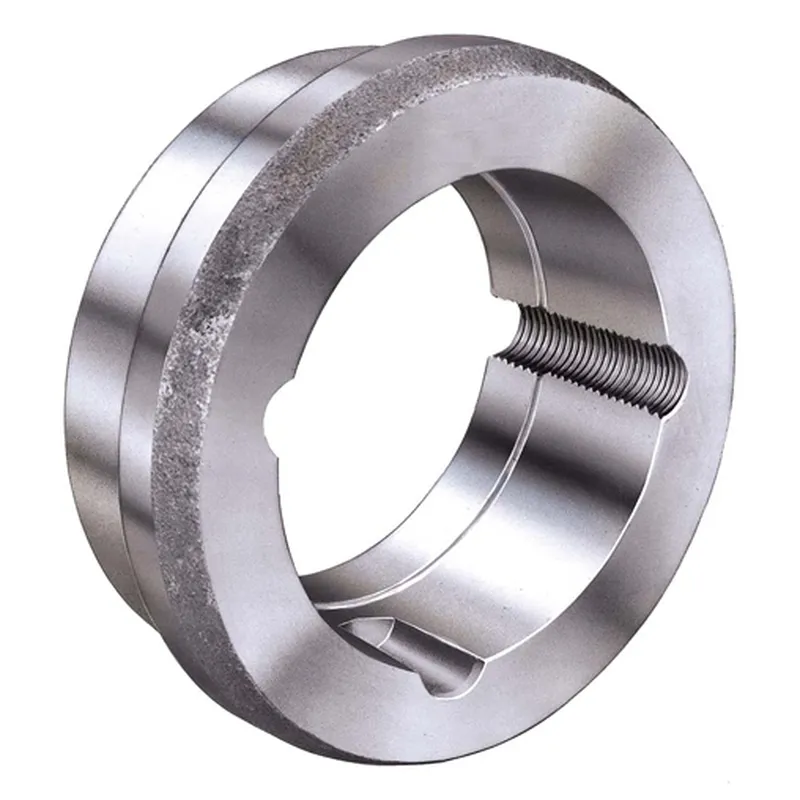

Type W Taper Lock Weld-On Hubs Design Features:

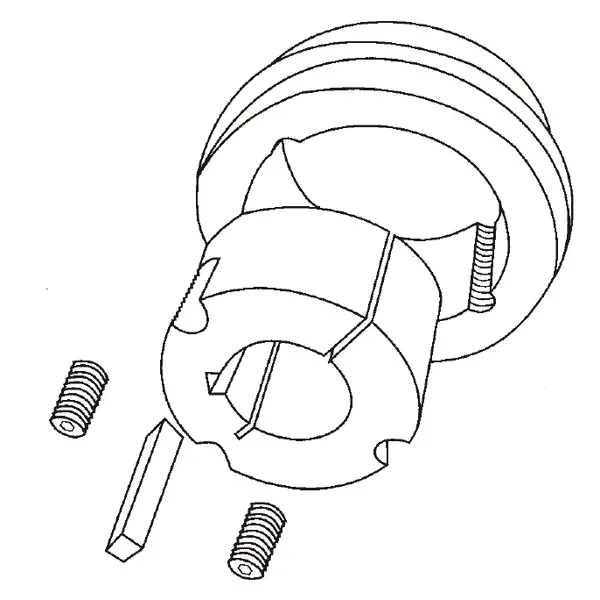

Type W taper lock weld-on hubs are commonly used in mechanical power transmission applications to secure components such as pulleys, sprockets, and gears to shafts. Here are the design features of a Type W welding hubs for taper bushes:1. Material: Type W taper lock weld-on hubs are typically made from high-strength steel or cast iron to provide durability and resistance to wear and fatigue.2. Taper Locking Mechanism: The taper lock Type W weld-on hubs incorporate a tapered bore with precision-machined inner surfaces. This taper matches the corresponding taper on the shaft, allowing for a secure and concentric fit. The hub is mounted on the shaft by sliding it onto the tapered portion and then tightening the locking device.3 Weld-On Design: The Type W taper bore weld-on hubs are specifically designed for welding applications. It features a solid flange with pre-drilled holes or slots to facilitate the welding process. The hub is welded directly to the mating component, creating a permanent and robust connection.4. Keyway: Type W taper lock weld-on hubs may include a keyway, which is a slot machined into the bore of the hub. The keyway allows for the insertion of a key that prevents the hub from rotating on the shaft, providing additional torque transmission capabilities.5. Locking Device: Type W taper bushed weld-on hubs typically use a locking device, such as a setscrew or a threaded collar, to secure the hub to the shaft. The locking device is tightened to apply radial pressure on the tapered bore, creating a tight fit and preventing the hub from slipping or rotating.6. Size Range: Type W taper bore weld-on hubs are available in various sizes and configurations to accommodate different shaft diameters and application requirements. The size range may include different bore diameters, keyway options, and flange designs to suit specific needs.
