Type WA Taper Lock Weld-On Hubs

Type WA Taper Lock Weld-On Hubs

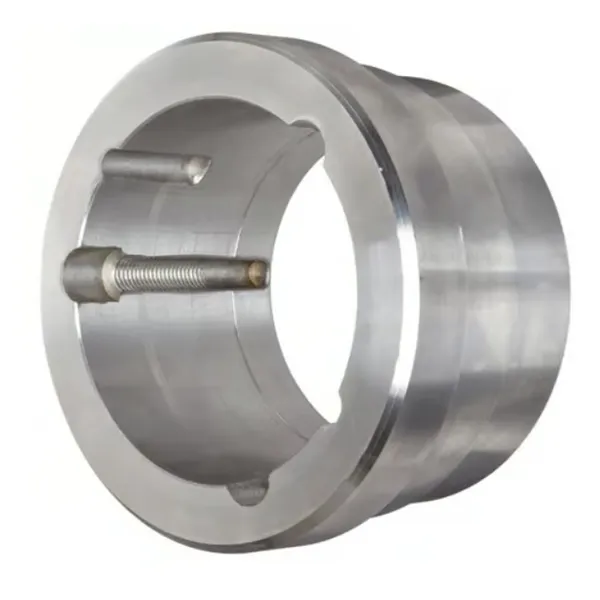

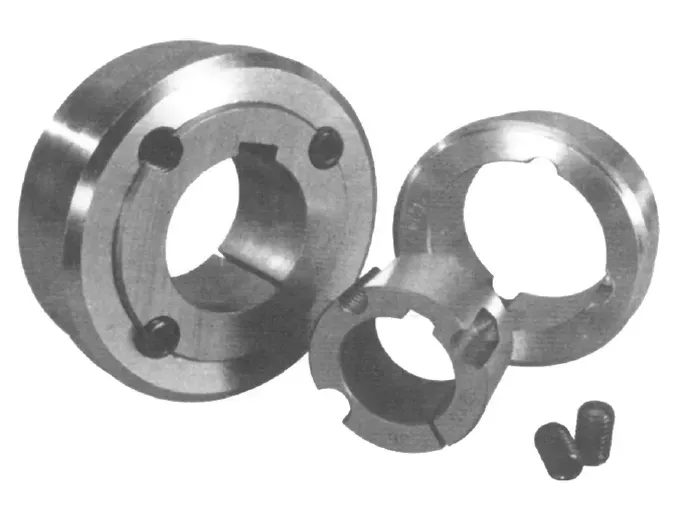

Type WA taper lock weld-on hubs are manufactured from steel, drilled and tapped, and taper bored to accept standard taper lock bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators, conveyor pulleys, and many other devices which must be securely fastened to the shaft. Type WA taper lock weld-on hubs are simple to install and entirely suitable for severe operating conditions. This type of construction eliminates mounting difficulties and prevents loosening and wear on the hub during operation.

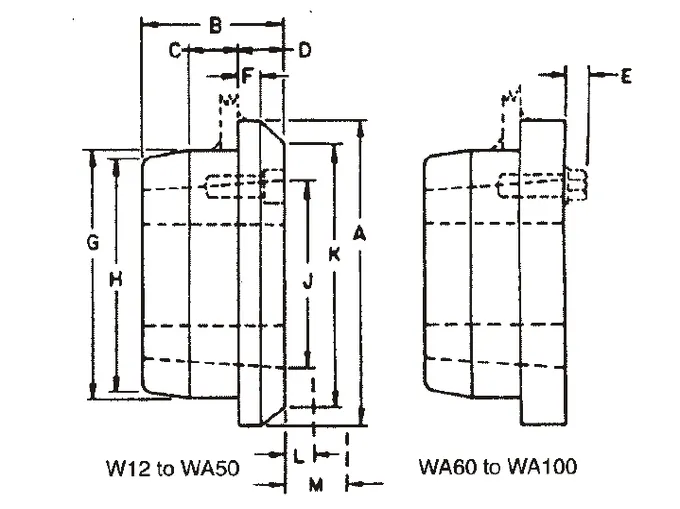

Type WA Taper Lock Weld-On Hubs Dimensions:

Hub  No.

Bush  No.

Bore

A

B

C

D

E

F

G

H

J

K

L

M

Wt.

W12

1215

1/2" - 1 1/4"

2 7/8"

1 1/2"

-

5/8"

-

3/8"

2 1/2"

-

1 7/8"

2 5/8"

1 3/8"

1 5/8"

1.2

W16

1615

1/2 - 1 5/8

3 1/4

1 1/2

-

5/8

-

3/8

2 7/8

--

2 1/4

3

1 3/8

1 5/8

1.3

W25

2517

1/2 - 2 1/2

4 7/8

1 3/4

-

3/4

-

3/8

4 3/8

--

3 3/8

4 5/8

1 5/8

2 1/4

3.8

WA35

3030

15/16 - 3

5 1/2

3

3/4

3/4

-

1/2

5 1/8

4 13/16

4 1/4

5

1 13/16

2 11/16

8.6

WA35

3535

13/16 - 3 15/16

6 3/4

3 1/2

1 1/4

1

-

5/8

6 1/4

5 15/16

5

6

2

3 3/8

15

WA40

4040

1 7/16 - 4 7/16

7 3/4

4

1 1/2

1

-

5/8

7 1/4

6 7/8

5 3/4

7

2 3/8

4 1/8

29

WA45

4545

1 15/16 - 4 15/16

8 3/4

4 1/2

1 3/4

1

-

5/8

8

7 5/8

6 3/8

8

2 5/8

4 3/4

42

WA50

5050

2 7/16 - 5

9 1/2

5

1 3/4

1

-

5/8

8 3/4

8 3/8

7

8 3/4

2 3/16

5 1/4

57

WA60

6050

3 7/16 - 6

13 1/4

5

1 3/4

1 1/4

1 7/16

-

12 1/4

11 7/8

9 1/4

-

1 5/8

4 3/8

115

WA70

7060

3 15/16 - 7

14 1/2

6

2 1/4

1 1/4

1 7/16

-

13 1/2

13 1/4

10 1/4

-

1 5/8

4 3/8

158

WA80

8065

4 7/16 - 8

15 1/4

6 1/2

2 1/4

1 1/4

1 7/16

-

14 1/4

14

11 1/4

-

1 5/8

4 3/8

180

WA100

10085

7 - 10

19 3/4

8 1/2

3 1/2

1 1/2

1 3/4

-

18 3/4

18 1/4

14 3/4

-

2

5 3/8

340

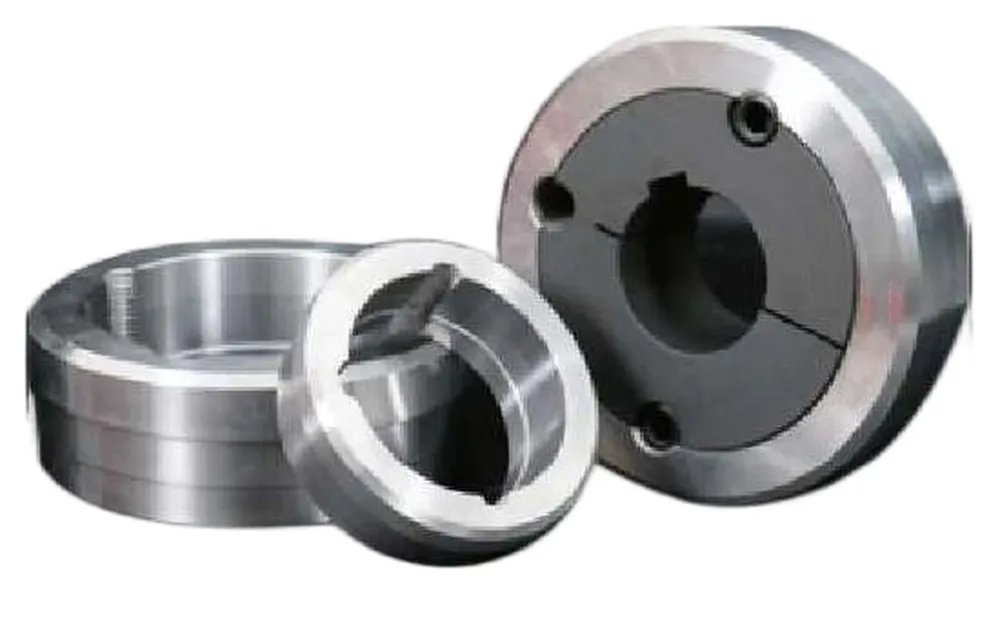

Type WA Taper Lock Weld-On Hubs Benefits:

Type WA taper lock weld-on hubs offer several benefits in various industrial applications. Here are some advantages of using Type WA taper lock weld-on hubs:1. Versatile and Flexible: Type WA taper lock weld-on hubs are designed to be versatile and flexible, allowing for easy attachment and detachment of components such as sprockets, pulleys, and gears. This flexibility enables quick and efficient customization and adjustment of machinery and equipment.2. Strong and Reliable Connection: These Type WA welding hubs for taper bushes provide a strong and reliable connection between the shaft and the attached component. The taper lock design ensures a secure fit, minimizing the risk of slippage or loosening during operation. This enhances overall equipment performance and reduces downtime.3. Easy Installation: Type WA taper bushed weld-on hubs are relatively easy to install. They don't require extensive machining or specialized tools. The hubs are generally pre-drilled, allowing for straightforward welding onto the shaft. This simplifies the installation process, saving time and effort.4. Wide Range of Sizes and Options: These Type WA taper bore weld-on hubs are available in a wide range of sizes and configurations to accommodate different shaft diameters and component requirements. This versatility makes them suitable for various industrial applications across different sectors.5. Compatibility: Type WA taper lock weld-on hubs are compatible with industry-standard taper lock bushings. This compatibility allows for easy interchangeability of components and facilitates equipment modification or upgrades without significant modifications to the existing setup.6. High Durability: These Type WA taper bore weld-on hubs are typically constructed from high-quality materials such as steel or ductile iron, which provide excellent durability and resistance to wear and tear. They can withstand demanding operating conditions, ensuring long-term reliability and extended service life.

China Taper Lock Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT weld-on hubs, Type “B” steel hubs, split taper weld-on hubs, QD Type weld-on hubs, taper bore bolt-on hubs, taper lock adapter, and taper bore weld-on hubs will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
