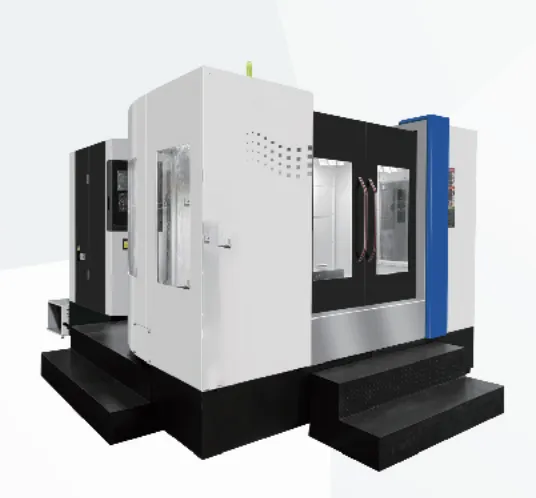

U Series Five-axis Vertical Machining Center Cathe CNC Turining

The U Series Five-axis Vertical Machining Center, equipped with a sophisticated Cathe CNC Turning gantry frame, represents a significant leap in CNC machining technology. The incorporation of a two-axis turntable into this machinery elevates its capabilities, allowing for intricate five-axis and five-sided processing. This series is specially designed to cater to complex machining requirements, particularly in the automotive industry and for the manufacturing of intricate multi-faceted covers and shells.The U Series Five-axis Vertical Machining Center, with its advanced Cathe CNC Turning gantry frame and dual-axis turntable, sets a new standard in the field of CNC machining. Its ability to achieve five-axis and five-sided processing with high precision makes it a valuable asset in industries where complexity, precision, and efficiency are paramount. The machine's design, featuring direct-drive torque motors and independent axis movement, offers unparalleled flexibility and precision in machining complex parts. Its suitability for a range of industries, including automotive, aerospace, and industrial machinery, underscores its versatility and effectiveness in meeting modern manufacturing challenges.

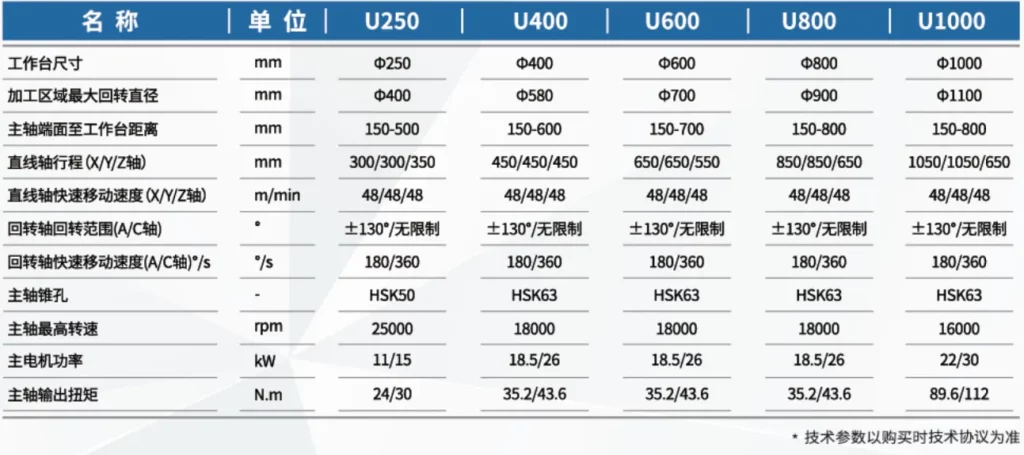

Parameter

Five-axis linkage, high speed and high precisionCan realize positioning and processing at any positionMachine tool performance optimization

Design and Structure

1. Cathe CNC Turning Gantry Frame: The gantry frame design is a hallmark of robust construction, providing stability and rigidity essential for precision machining. This structure supports the complex movements required in five-axis machining.
2. Two-Axis Turntable Integration: The integration of a two-axis turntable is a pivotal feature of this machining center. This turntable allows the machine to perform complex movements and machining processes, which are crucial for intricate designs and geometries.
3. Direct-Drive Torque Motors: Employing direct-drive torque motors for the turntables enhances the machine’s precision and responsiveness. These motors facilitate smooth and precise movements, which are vital for complex machining tasks.
4. Independent Axis Movement: The design allows each axis to move independently, providing flexibility and enabling the machining of complex parts. This feature allows positioning and processing at any angle or position, which is essential for multi-faceted components.
5. Table Size: With a table size of 400, the machining center can accommodate a wide range of part sizes, making it versatile for various applications.

Capabilities and Advantages

1. Five-Axis and Five-Sided Processing: The machine's ability to perform five-axis and five-sided processing allows for the machining of parts from virtually any angle. This capability is crucial for creating intricate and complex geometries in a single setup.
2. Complex Part Processing: The U Series is particularly suited for machining complex parts, such as those with irregular shapes and contours. This includes components with undercuts, deep cavities, or complex surface geometries.
3. High Precision and Accuracy: The precision of the direct-drive motors, coupled with the stability of the gantry frame, ensures high accuracy in machining, which is critical for components with tight tolerances.
4. Increased Productivity: The ability to process parts on five sides in a single setup reduces the need for multiple setups and part handling, thereby increasing overall productivity and efficiency.
5. Flexibility and Versatility: The independent axis movement and sizable table offer flexibility in handling various types of parts, making the machine versatile for different manufacturing needs.

Applications

1. Automotive Industry: Particularly suitable for the automotive sector, the U Series excels in machining complex parts such as automobile chassis components, which require high precision and complex geometrical shapes.
2. Aerospace Components: In the aerospace industry, the machining center can be used to create intricate components with complex aerodynamic shapes and high-precision requirements.
3. Industrial Machinery: For manufacturing components of industrial machinery, especially those requiring intricate designs and high accuracy, the U Series is an ideal choice.
4. Polyhedral Covers and Shells: The machine is adept at producing multi-faceted covers and shells, which are commonly used in various industrial and consumer products.

About Raydafon

Raydafon has complete casting production lines, intelligent machine tool equipment assembly lines, intelligent testing equipment, and professional R&D, manufacturing, and sales teams, aiming to provide high-quality CNC machine tools and intelligent equipment solutions to the industry. Relying on its strong CNC machine tool R&D and manufacturing capabilities, Raydafon not only provides customers with high-quality machine tool equipment but also integrates and optimizes the industrial chain to provide customer partners with shared machine tools, smart tool cabinets, automation integration solutions, tool health monitoring systems, and other comprehensive solutions. Industrial chain equipment and life cycle industrial services empower enterprises in all aspects and become industry leaders with high-quality products and professional services.

The Raydafon manufacturing base has advanced lathe flow assembly lines, standard vertical assembly lines, and medium and large equipment assembly lines. It is also equipped with constant temperature inspection rooms such as three-coordinate inspection and precision inspection, equipped with Zeiss high-performance coordinate measuring machines, Weir profilometers, and Ray High-end inspection equipment such as Nisho laser interferometer provides the industry with high-quality CNC machine tools and automated integration solutions.

While opening up the industrial chain of casting, key components, and complete machine assembly, Raydafon is committed to providing customers with flexible equipment purchase models such as shared machine tools, machine tool leasing, and sales-to-lease-to-purchase.

Accessories of CNC Machine Center

CNC Machine Center comes equipped with an array of standard accessories to meet diverse machining demands. Choose from leading controllers like the Siemens controller (optional for those seeking advanced customization), the GSK controller (a standard feature known for its reliability and user-friendliness), and the Fanuc controller (optional for its high performance in complex machining tasks). Additionally, our machine center is designed with a 24ATC (Automatic Tool Changer), enhancing your productivity by minimizing manual tool changing time.

Understanding the unique needs of our clients, Raydafon also offers an exclusive range of optional accessories. Enhance your machining capabilities with our 4th-axis CNC rotary table, allowing for precise and intricate multi-angle machining. To maintain a clean and efficient workspace, consider integrating the Chain-type chip conveyor, a must-have accessory for efficient chip management and removal.

Choose Raydafon’s CNC Machine Center for its commitment to quality, versatility, and precision. Whether standard or optional, each accessory is designed to elevate your machining process, ensuring optimal performance and outcomes. Trust Raydafon to provide the tools and support you need to keep your operations running smoothly and efficiently.



Application of CNC Machine Center

Raydafon's CNC Machine Center stands as a paradigm of versatility and precision in modern manufacturing. Primarily engineered for machining a diverse range of axial and disc parts, this machine showcases its prowess by adeptly turning various threads, arcs, and cones, and intricately machining both the internal and external surfaces of cylindrical parts. Its capability to meet the high-speed requirements of both ferrous and non-ferrous metals marks it as a preferred choice for industries aiming for utmost precision and efficiency.The machine's high-speed operation is a cornerstone feature, making it an indispensable asset in industries where time is of the essence. It's not just about speed; the CNC Machine Center excels in delivering high-quality, precision-machined parts consistently. With a processing accuracy that reaches up to the 7th level, it sets a high standard for precision.Industries such as agriculture, food, automotive, motorcycle, and electronics find this machine a game-changer, particularly in scenarios that demand high efficiency, large-scale production, and precision part machining. Whether it's creating intricate components for the latest electric vehicles or manufacturing robust parts for agricultural machinery, our CNC Machine Center is designed to deliver top-notch performance, meeting the stringent quality demands of various sectors.Embrace the future of manufacturing with our CNC Machine Center, where speed, precision, and versatility converge to revolutionize your production processes. Discover how our machine can transform your operations, ensuring that every component you create is a testament to excellence and innovation.

Why Choose Us？

 Choose our CNC Machine Center for its unmatched quality and precision, ensured by premium components sourced globally from Taiwan, Japan, and Germany. Each part, from the high-precision HIWIN or PMI Guide Rails and Lead Screws to the top-quality FAG or NSK bearings, is meticulously inspected to guarantee machine accuracy and stability. Our CNC Machine Center features a Sanjie brand tool magazine for efficient tool storage and changes, and a high-performance Taiwan Spindle, ensuring high speed, precision, and low noise operation. Trust in our dedication to excellence and let our machine elevate your manufacturing standards.
