Universal Cardan Drive Shaft SWC440BH-1500 for Steel Rolling Mill

Universal Cardan Drive Shaft SWC440BH-1500 for Steel Rolling Mill

The Cardan drive shaft SWC440BH-1500 is a crucial component used in steel rolling mills for transmitting torque from the main motor to the rolling equipment. It is designed to withstand heavy loads and provide reliable power transmission in demanding industrial environments.The Cardan drive shaft is typically constructed using high-quality steel materials to ensure strength, durability, and resistance to excessive wear and tear. It consists of a series of universal joints connected by solid shafts. The SWC440BH-1500 model refers to the specific design and size of the drive shaft. The primary function of the Cardan drive shaft is to transmit torque from the main motor to the rolling equipment in steel rolling mills. It allows the rotational energy generated by the motor to be efficiently transferred to the rolling stands, where the steel is shaped and processed.One of the key advantages of the Cardan drive shaft is its ability to compensate for misalignment between the motor and the rolling equipment. Due to the flexible design of universal joints, the drive shaft can accommodate angular, parallel, and axial misalignments, reducing stress on the equipment and ensuring smooth power transmission. Steel rolling mills operate under heavy loads, and the Cardan drive shaft is designed to handle these demanding conditions. The SWC440BH-1500 model is specifically engineered to withstand high torque requirements and provide reliable performance even under substantial loads.

Steel Rolling Mill Cardan Drive Shaft SWC440BH-1500 Dimensions

Steel Rolling Mill Cardan Drive Shaft SWC440BH-1500 Specifications

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angleβ(°)	Weary torqueTfKN·m	Flex quantityLs mm	Size (mm)										Rotating inertiakg.m2		Weight (kg)
						Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC440BH	440	355	180	≤15	190	1875	390	255	325	260	16-28	42	10	80	20	21.42	0.4744	1190	21.7

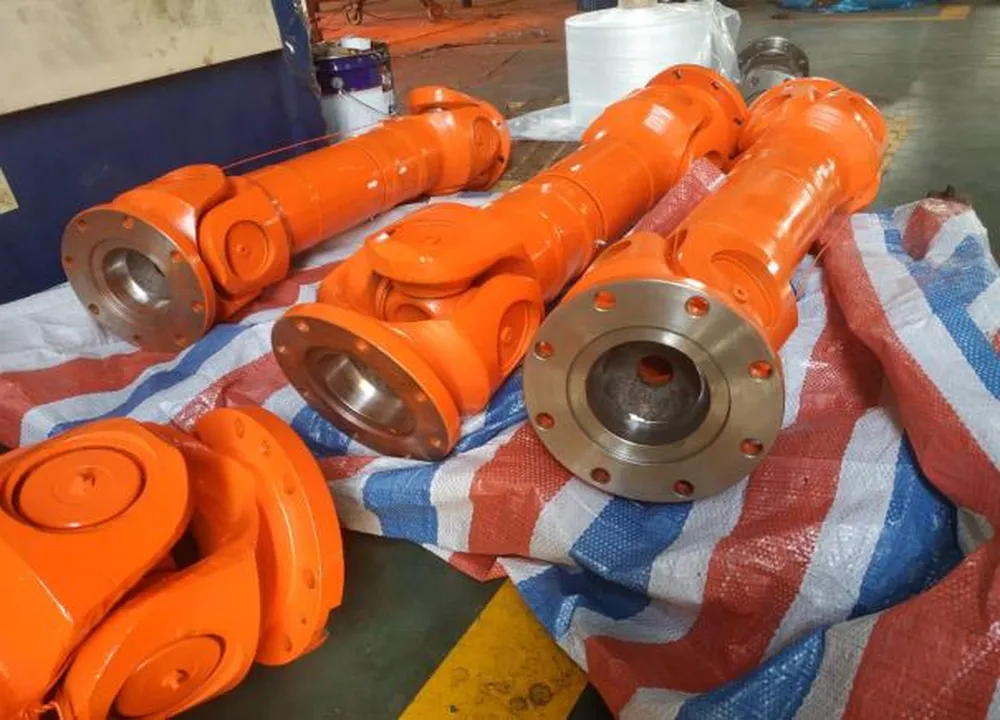

Features of Cardan Drive Shaft SWC440BH-1500 for Steel Rolling Mill

The Cardan drive shaft SWC440BH-1500 for steel rolling mills incorporates several features that make it suitable for its specific application. Here are some key features of the SWC440BH-1500 model:1. High Torque Capacity: The SWC440BH-1500 drive shaft is designed to handle high torque requirements, which are common in steel rolling mills. It is capable of transmitting substantial rotational power from the main motor to the rolling equipment efficiently.2. Heavy-Duty Construction: The drive shaft is constructed using high-quality steel materials, ensuring durability and resistance to heavy loads. The robust construction allows it to withstand the demanding conditions of steel rolling mill operations.3. Universal Joint Design: The Cardan drive shaft utilizes universal joints, which provide flexibility and compensation for misalignment. These joints allow for angular, parallel, and axial misalignment between the motor and the rolling equipment, reducing stress on the components and ensuring smooth power transmission.4. Easy Installation and Maintenance: The SWC440BH-1500 drive shaft is designed for easy installation and maintenance. It typically comes with standardized dimensions and mounting options, allowing for straightforward integration into steel rolling mill systems. Regular maintenance, such as lubrication and inspection of the universal joints, is important to ensure optimal performance and longevity.5. Safety Features: The drive shaft may incorporate safety features such as protective covers or guards to prevent accidental contact with moving parts. These safety measures help ensure the well-being of workers and minimize the risk of injuries associated with rotating machinery.6. Customizable Options: Depending on the specific requirements of the steel rolling mill, the SWC440BH-1500 drive shaft may offer customizable options. These could include different lengths, flange sizes, or additional features tailored to the particular needs of the application.7. Compatibility: The SWC440BH-1500 drive shaft is designed to be compatible with various types of steel rolling mill equipment. It can be integrated into different rolling stands, providing a versatile solution for power transmission in the mill.

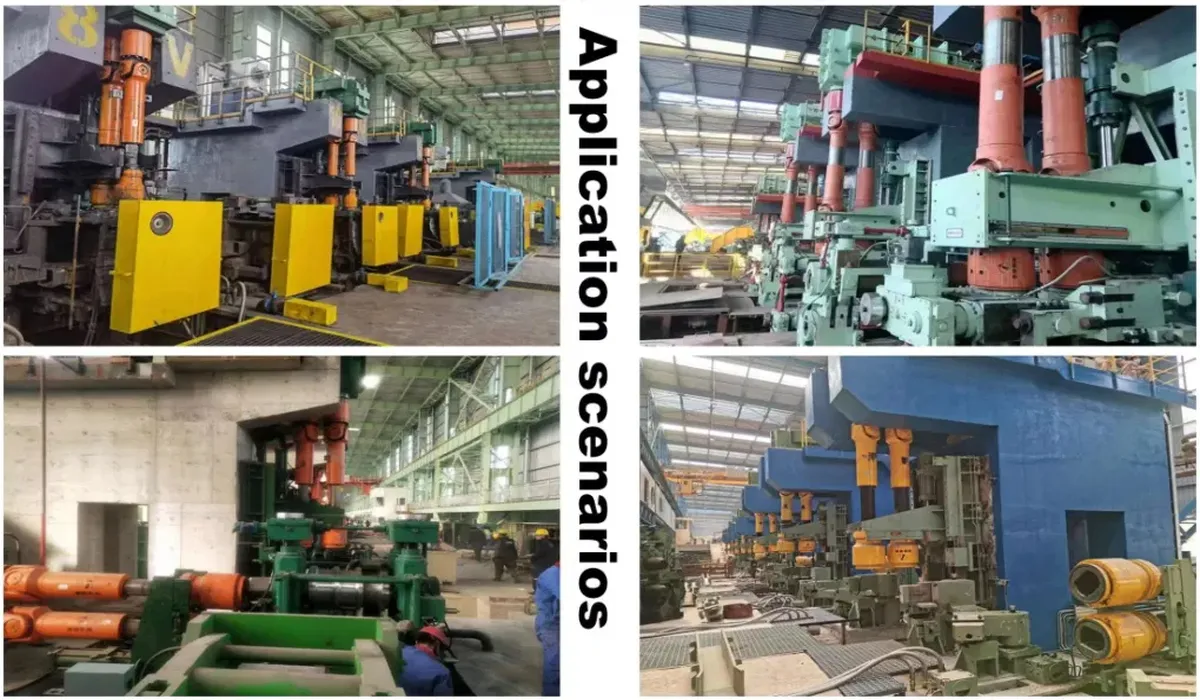

Cardan Drive Shaft SWC440BH-1500 for Steel Rolling Mill Application Scenarios

The Cardan drive shaft SWC440BH-1500 is commonly used in various application scenarios within steel rolling mills. Here are some specific scenarios where the SWC440BH-1500 drive shaft is typically employed:(1) Hot Rolling Mills: Hot rolling is a process that involves shaping steel at high temperatures. The SWC440BH-1500 drive shaft is utilized in hot rolling mills to transmit torque from the main motor to the rolling stands. It can withstand the extreme temperatures and heavy loads associated with hot rolling operations.(2) Cold Rolling Mills: Cold rolling is a process used to refine steel at lower temperatures, typically to achieve tighter tolerances and improved surface finish. The Cardan drive shaft SWC440BH-1500 is employed in cold rolling mills to transmit torque from the motor to the rolling stands, facilitating the reduction of steel thickness and the achievement of desired properties.(3) Tandem Mills: Tandem mills consist of multiple rolling stands arranged in a series to progressively reduce the thickness of steel coils. The SWC440BH-1500 drive shaft is commonly used in tandem mills to transmit torque between the motor and each rolling stand, ensuring synchronized operation and efficient material processing.(4) Reversing Mills: Reversing mills are equipped with rolling stands that can operate in both forward and reverse directions. The Cardan drive shaft SWC440BH-1500 is suitable for reversing mills as it allows torque transmission in both directions, enabling the rolling process to be performed in forward and reverse passes.(5) Continuous Casting Mills: Continuous casting is a method used to produce steel billets or slabs directly from molten metal. The SWC440BH-1500 drive shaft is utilized in continuous casting mills to transfer torque from the main motor to the casting equipment, ensuring a continuous and uninterrupted casting process.(6) Plate Mills: Plate mills are used to produce steel plates of various thicknesses and sizes. The Cardan drive shaft SWC440BH-1500 is commonly employed in plate mills to transmit torque from the motor to the rolling stands, enabling the reduction of steel thickness and the production of high-quality steel plates.

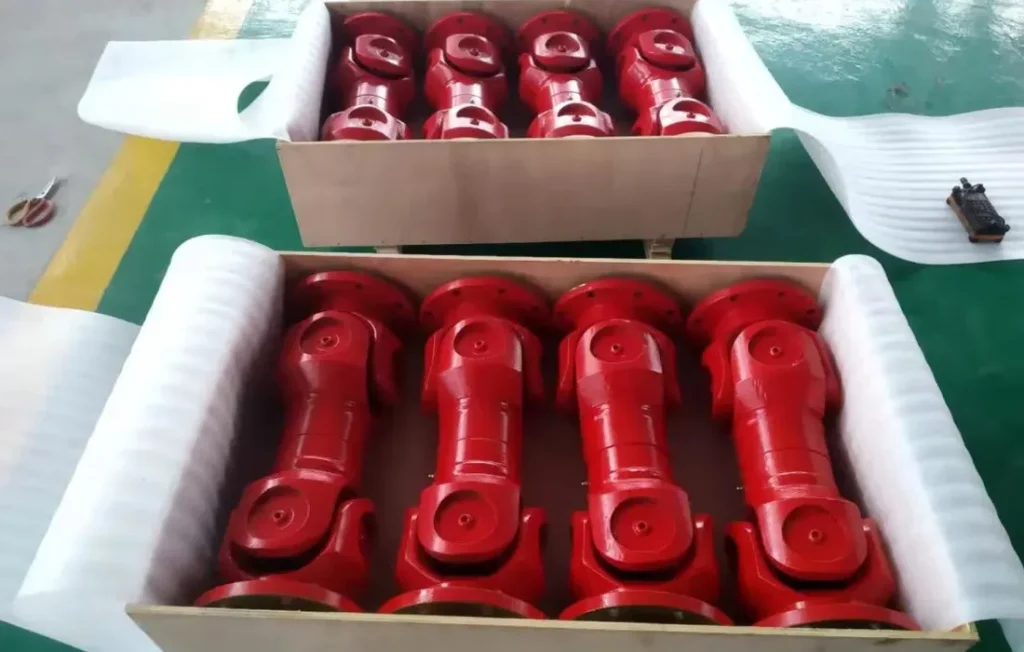

Proper Maintenance of Cardan Drive Shaft SWC440BH-1500 for Steel Rolling Mill

Proper maintenance of the Cardan drive shaft SWC440BH-1500 is crucial to ensure its optimal performance and longevity in a steel rolling mill. Here are some key maintenance practices to keep in mind:1. Regular Inspection: Conduct regular inspections of the drive shaft to check for any signs of wear, damage, or misalignment. Inspect the universal joints, shafts, and connecting components for cracks, excessive play, or any other abnormalities. Pay attention to the alignment and ensure that the drive shaft is properly aligned with the motor and rolling equipment.2. Lubrication: Proper lubrication is essential to reduce friction and prevent premature wear of the drive shaft. Follow the manufacturer's guidelines for the type of lubricant and the recommended lubrication intervals. Apply lubrication to the universal joints, bearings, and shafts as per the specifications to maintain smooth operation and minimize the risk of damage.3. Cleaning: Keep the Cardan drive shaft clean and free from dirt, debris, or any contaminants that could affect its performance. Regularly clean the shafts, universal joints, and other components using appropriate cleaning methods to remove any buildup or foreign particles.4. Torque Monitoring: Monitor the torque levels transmitted through the drive shaft during operation. Excessive torque can lead to premature wear and failure of the components. Implement torque monitoring systems or use torque sensors to ensure that the torque remains within the specified limits and take corrective actions if necessary.5. Alignment Adjustment: If misalignment is detected during inspections or through performance monitoring, take the necessary steps to correct it. Misalignment can put additional stress on the drive shaft and lead to accelerated wear. Consult the manufacturer's guidelines or seek the assistance of qualified professionals to properly adjust and align the drive shaft.6. Component Replacement: Over time, certain components of the drive shaft, such as universal joints or bearings, may wear out and require replacement. Use genuine replacement parts to maintain the integrity and performance of the drive shaft.

Industrial Cardan Drive Shaft Manufacturers

Raydafon Transmission Machinery Co., Ltd. is a professional company dedicated to the research, development, design, and manufacture of transmission shafts for metallurgical machinery, papermaking machinery, woodworking machinery, plastics machinery, mining machinery, textile machinery, petroleum machinery, water conservancy machinery, road construction machinery, excavating machinery, etc. The company adopts advanced computerized design technology, excellent numerical-control machining equipment, all-around screen test methods, and complete Microsoft system management, creating a reliable product strength. The factory specializes in the production of SWC, SWP, SWL cross shaft universal shaft, flexible jaw couplings, spacer couplings, rigid couplings, HRC couplings, fluid couplings, chain couplings, flange flexible couplings, gear couplings, and so on. Its various performance indicators by the user feedback have reached or exceeded the advanced level of the industry; the products are sold to major domestic OEMs and exported abroad with the host. After years of efforts, we have provided support services for a number of companies across the country; in the future, we will continue to do better for the majority of customers by providing quality products and quality service. And welcome friends from all walks of life to visit and negotiate.

FAQ

Q 1: Are you a trading company or a manufacturer?A: We are a professional manufacturer specializing in manufacturingvarious series of cardan drive shafts.Q 2: Can you do OEM?Yes, we can. We can do OEM & ODM for all customers with customized PDF or AI format artwork.Q 3: How long is your delivery time?Generally, it is 20-30 days if the goods are not in stock. It is according to quantity.Q 4: Do you provide samples? Is it free or extra?Yes, we could offer the sample but not for free. Actually, we have an excellent price principle, when you make the bulk order the cost of the sample will be deducted.Q 5: How long is your warranty?A: Our Warranty is 12 months under normal circumstances.Q 6: What is the MOQ?A: Usually, our MOQ is 1 pcs.Q 7: Do you have inspection procedures for the cardan drive shaft?A: 100% self-inspection before packing.Q 8: Can I have a visit to your factory before the order?A: Sure, welcome to visit our factory.Q 9: What's your payment?A:1) T/T.
