W2200 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

W2200 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

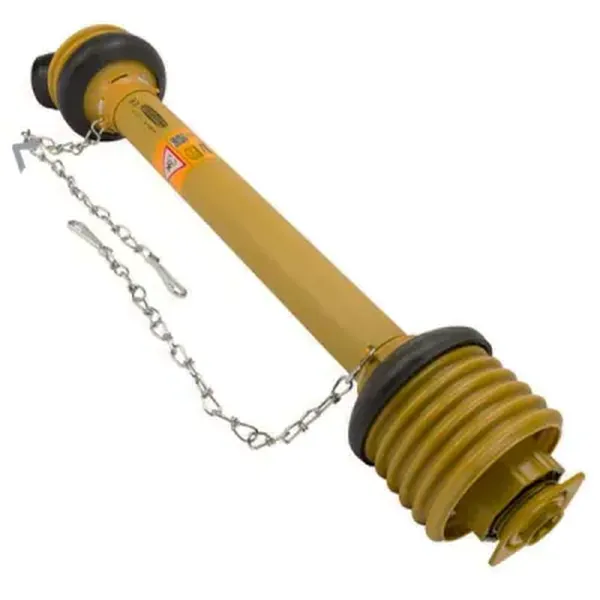

The W2200 series PTO shaft is a driveline component used to transfer power from a tractor power take-off (PTO) to various implements like rotary mowers, balers, and spreaders. The W2200 series PTO shaft is designed to be durable and efficient, featuring high-quality components like splined shafts, yokes, and bearings that are designed to handle the demands of heavy-duty use. The W2200 series PTO shaft is available in a range of lengths and configurations to suit different applications, and replacement parts are readily available to ensure easy maintenance and repair. Additionally, the W2200 series PTO shaft is compatible with a range of tractor models and can provide reliable power transfer for a variety of farm and landscaping tasks.

W2200 Series PTO Shaft Sizes Chart

Connection outside diameter tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Consists of	Pto shaft with shield and slip clutch K32B (60 daNm) Declaration of conformity Instruction manual
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection Ø machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Radial pin clutch
Size code	W2200
Length	710 mm
Power per 540 rpm	20 kW
Power per 1000 rpm	31 kW
Cross joint cap diameter tractor side	24 mm
Cross joint length tractor side	61 mm
Cross joint cap diameter machine side	24 mm
Cross joint length machine side	61 mm
Clutch type	K32B
Max clutch torque	600 N·m
Outer tube profile	1
Outer tube wall thickness	3 mm
Outer tube large outside diameter	48 mm
Inner tube profile	Ov
Inner tube wall thickness	4 mm
Inner tube large outside diameter	40 mm
Profile tube shape	Lemon
Max static torque	1850 N·m

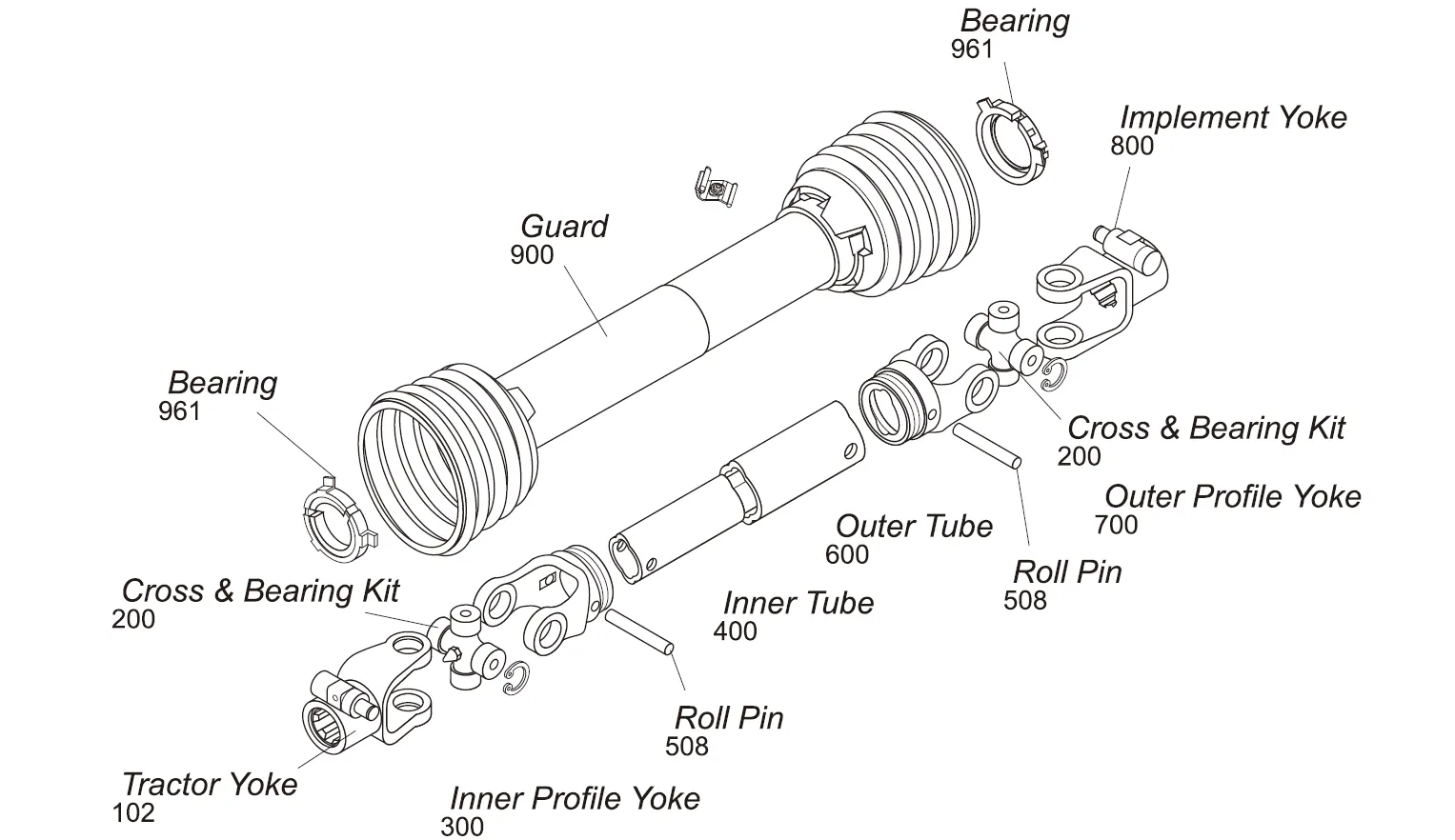

W2200 Series PTO Shaft Parts

The components of the W2200 series PTO shaft include:1. PTO Shaft Tube: A PTO shaft tube is a hollow tube that is used to connect the inner and outer yokes of a PTO shaft. It is typically made of a strong, durable material such as steel or aluminum. The PTO shaft tube is responsible for transmitting power from the tractor's PTO to the implement that is being powered. It is also responsible for protecting the inner and outer yokes from damage.2. PTO Shaft Splined: the main component of the PTO shaft that transfers power from the tractor to the implement.3. PTO Shaft Yoke: the component that connects the PTO shaft to the implement. The PTO shaft yoke typically has a male or female spline that is matched to the splined shaft of the PTO shaft.4. PTO Shaft Bearing: a component that helps reduce friction between the rotational shafts by supporting their weight and facilitating their movement.5. PTO Shaft Safety Cover: a protective enclosure that covers the rotating PTO shaft to prevent accidents and protect the operator and bystanders.6. PTO Shaft Plastic Guard: a flexible cover that shields the PTO shaft and yoke to help prevent injury and avoid entanglement with surrounding objects.7. PTO Shaft Friction Clutch: A component that provides overload protection.8. PTO Shaft Universal Joints: PTO shaft universal joints (U-joints) are used to connect the inner and outer yokes to the shaft. They allow the shaft to flex and rotate in all directions, which is necessary to accommodate the different angles of the tractor's PTO and the implement that is being powered.Overall, the various components of the W2200 series PTO shaft work together to provide efficient and reliable power transfer between the tractor and the implement.

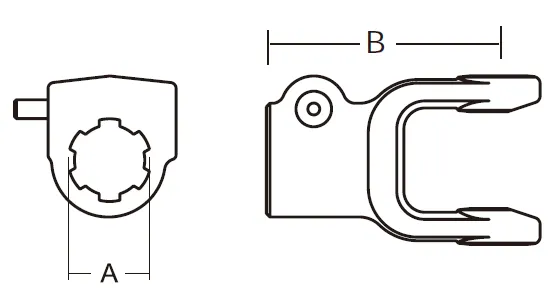

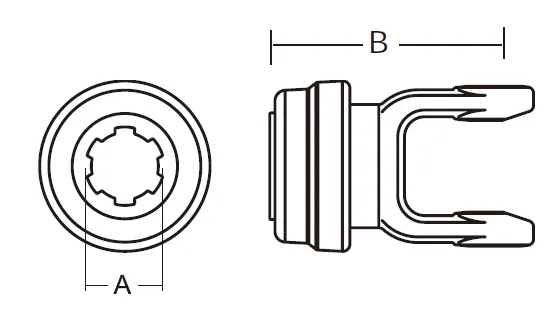

W2200 Series PTO Shaft Tractor Yoke

	Dim. “A”	Dim. “B”mm	in.
Safety Slide Lock	1 3/8” x 6 Spl.	106.0	4.17”
	1 3/8” x 21 Spl.	105.0	4.13”.
Quick Disconnect Yoke	1 3/8” x 6 Spl	98.0	3.86”.
	1 1/8” x 6 Spl.	94.0	3.70”
	1 3/8” x 21 Spl.	98.0	3.86”

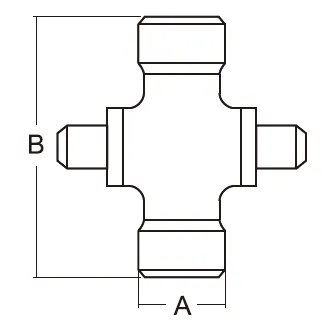

W2200 Series PTO Shaft Cross and Bearing Kit

	Dim. “A”mm	in.	Dim. “B”mm	in.
	23.8	.94”	61.2	2.41”

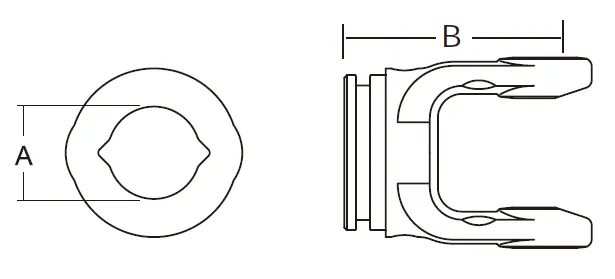

W2200 Series PTO Shaft Inner Profile Yoke

	Dim. “A”mm	in.	Dim. “B”mm	in.
With Bearing Groove	34.5	1.36”	75.0	2.95”

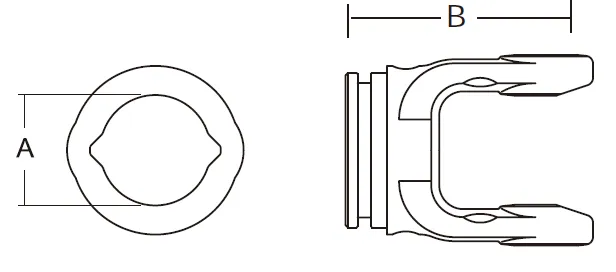

W2200 Series PTO Shaft Outer Profile Yoke

	Dim. “A”mm	in.	Dim. “B”mm	in.
With Bearing Groove	41.3	1.63	75.0	2.95”

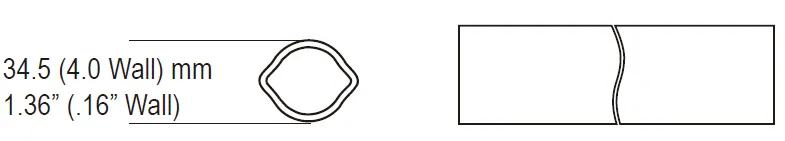

W2200 Series PTO Shaft Inner Tube

	Lengthmm	in.
	1.5	59.06”
	1.0	39.37”

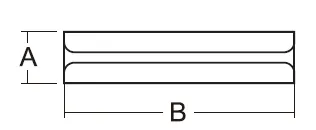

W2200 Series PTO Shaft Roll Pin

	Dim. “A”		Dim. “B”
	mm	in.	mm	in.
	10.0	.39”	60.0	2.36”

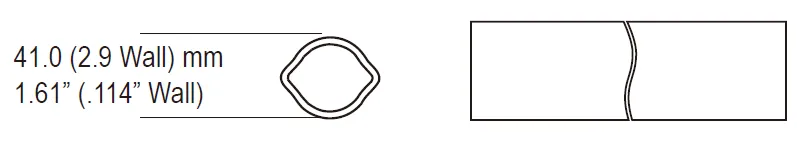

W2200 Series PTO Shaft Outer Tube

	Lengthmm	in.
	1.5	59.06”
	1.0	39.37”

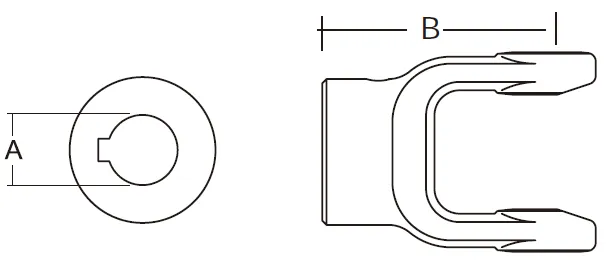

W2200 Series PTO Shaft Implement Yoke

	Dim. “A”		Dim. “B”		Standard Keyway
	mm	in.	mm	in.	mm	in.
Round BoreWith Keyway & Set Screw	25.0	.98”	80.0	3.15”	8.0	.31”
	25.4	1.0”	80.0	3.15”	6.4	.25”
	30.0	1.18”	80.0	3.15”	8.0	.31”
	31.8	1.25”	80.0	3.15”	6.4	.25”
	34.9	1.38”	80.0	3.15”	8.0	.31”
	28.6	1.13”	80.0	3.15”	6.4	.25”
	31.8	1.25”	80.0	3.15”	8.0	.31”

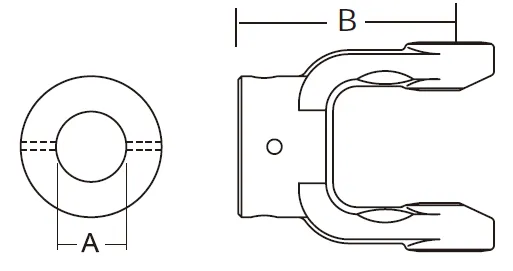

	Dim. “A”		Dim. “B”		Pinhole
	mm	in.	mm	in.	mm	in.
Shear PinWith Pin Hole	31.8	1.25”	80.0	3.15”	6.35	.25”
	35.0	1.38”	92.0	3.62”	12.9	.50”
	25.0	.98”	80.0	3.15”	8.0	.315”
	30.0	1.18”	80.0	3.15”	10.0	.394”

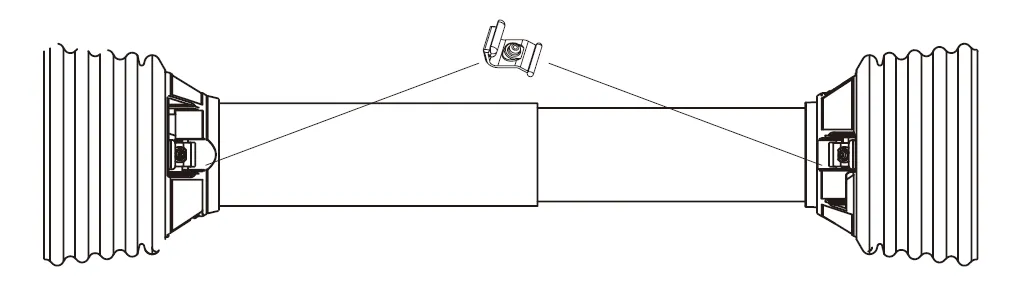

W2200 Series PTO Shaft Guard

Overall Driveline Length	Bearing Kit (2 per kit)
48”	961-3525
60”	961-3525

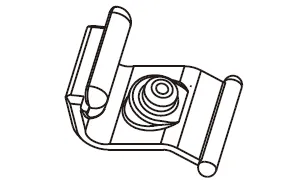

Easy Lock Replacement Kit

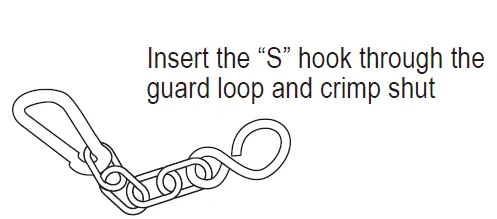

Guard Chain Kit

* Assembly instructions included with guard bearing kitNOTE: Guards must rotate freely on yokes

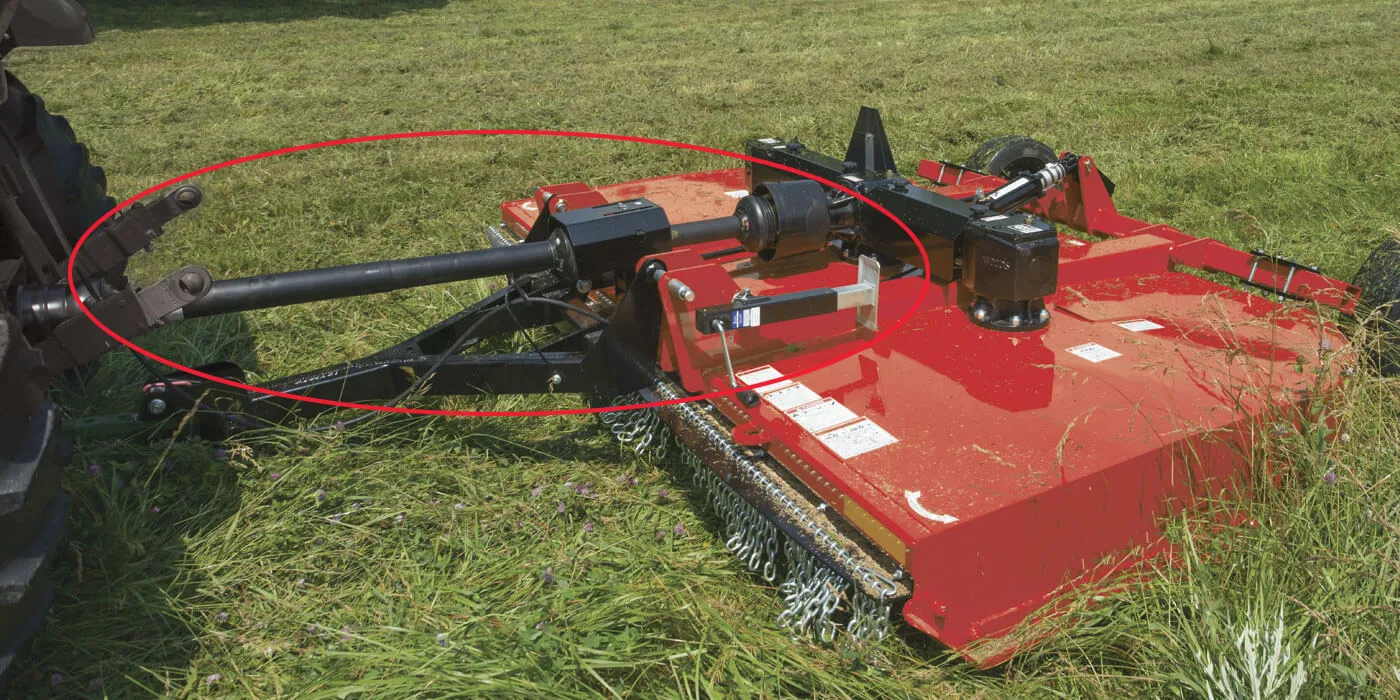

How Does the W2200 Series PTO Shaft Work?

The W2200 series PTO shaft works by transferring power from the engine of a tractor or other power source to an implement or attachment, such as a rotary mower, tiller, or baler. The PTO shaft consists of a rotating drive shaft with splines on each end that engage with corresponding splines on the tractor and implement. As the engine rotates the PTO shaft, power is transferred through the shaft to the implement, allowing it to perform its intended function. The PTO shaft also incorporates safety features, such as a shear pin or slip clutch, which will break or disengage if the implement becomes jammed, preventing damage to either the tractor or the implement or injury to the operator.The W2200 series PTO shaft uses a spline connection to transmit power between the tractor and the implement. The spline is a series of ridges or teeth that interlock the two shafts, transferring rotational force and torque from one to the other. To ensure proper engagement, the spline must be matched between the tractor and the implement. The W2200 series PTO shaft also features safety measures such as a shear bolt or a clutch mechanism that will disengage the shaft in case of overload or sudden impact, preventing damage to the machinery and injuries to the operator.

How to Remove PTO Shaft from Gearbox?

Removing a PTO shaft from a gearbox requires some care to ensure that the process is safe and that neither the shaft nor the gearbox is damaged. Here are some general steps to follow:1. Disengage the PTO: Before attempting to remove the PTO shaft, make sure that the PTO is disengaged and that the engine or power source is turned off.2. Locate the retaining clip: The PTO shaft is typically held in place by a retaining clip located either at the end of the shaft or on the gearbox. Locate the clip and remove it using pliers.3. Slide the PTO shaft out of the gearbox: Gently pull the PTO shaft straight out from the gearbox. Depending on the length and condition of the shaft, you may need to wiggle it or use a slight twisting motion to get it to slide out smoothly.4. Inspect the shaft and gearbox: After removing the shaft, inspect it for any signs of damage or wear, and also check the gearbox for any signs of wear or damage. If any problems are found, address them before reassembly.5. Reinstall the retaining clip: Once the PTO shaft has been removed, reinstall the retaining clip to prevent the shaft from sliding back into place accidentally.These steps are general in nature and not specific to any make or model of PTO shaft or gearbox. Always refer to the manufacturer's instructions for the specific procedures and safety precautions for your equipment.

PTO Shaft Maintenance & Lubrication

Proper maintenance and lubrication of a PTO shaft are essential for ensuring its long-term performance and preventing damage or wear. Here are some basic tips on maintaining and lubricating a PTO shaft:Keep it clean: Regularly clean the PTO shaft and any attached implements to remove dirt, debris, and other contaminants. This helps prevent corrosion and wear.Inspect for wear and damage: Check the PTO shaft, bearings, splines, and other components regularly for signs of wear or damage. If any problems are found, address them promptly to prevent further damage.Lubricate regularly: Use a high-quality lubricant specifically designed for PTO shafts to keep the moving parts well-l
