The W2400 series PTO shaft is a type of power take-off shaft used in agricultural equipment, such as tractors and other machinery. PTO shafts are used to transfer power from the engine of the tractor or other equipment to attached implements, such as mowers, cultivators, or hay balers. The W2400 series PTO shaft is available in various lengths and configurations to match the specific needs of different equipment setups. The shafts are typically made from high-strength steel and are designed to provide reliable and efficient power transfer with minimal maintenance requirements.The series number of a PTO shaft refers to its size and capacity. The W2400 series PTO shaft is designed for tractors with up to 240 horsepower. It has a 1 3/8" (6) spline shaft and a 47 x 61 x 2900mm profile tube. The W2400 series PTO shaft is available with a variety of universal joints, including S4LH, S5, and F5. It can also be equipped with a freewheel clutch or a shear bolt.The W2400 series PTO shaft is a reliable and durable drive shaft that is well-suited for demanding applications. It is easy to install and maintain, and it is backed by a limited warranty. If you are looking for a heavy-duty PTO shaft for your agricultural tractor, the W2400 series PTO shaft is a great option. It is reliable, durable, and easy to use.

Specifications of W2400 Series PTO Shaft

150-250cm Cross to Cross Length,165-260cm Overall Length,W2400 Series.32mm x 76mm x 86mm (approx.) Triangular Profile Drive Tube.39KW-53HP @ 540 rpm,61KW-83HP @ 1000 rpm.Standard Shaft Includes:1 3/8" x 6 Splines Quick Release Yokes at One End.NO End Yoke 0n the Other End.Safety Guard.I will accept a non-standard yoke.

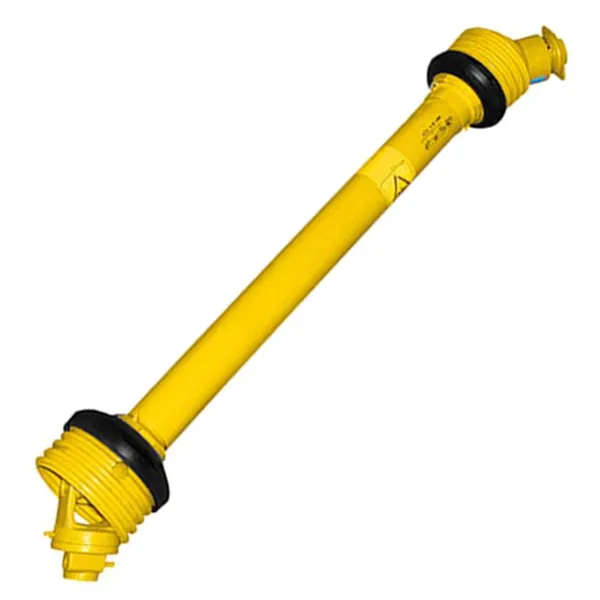

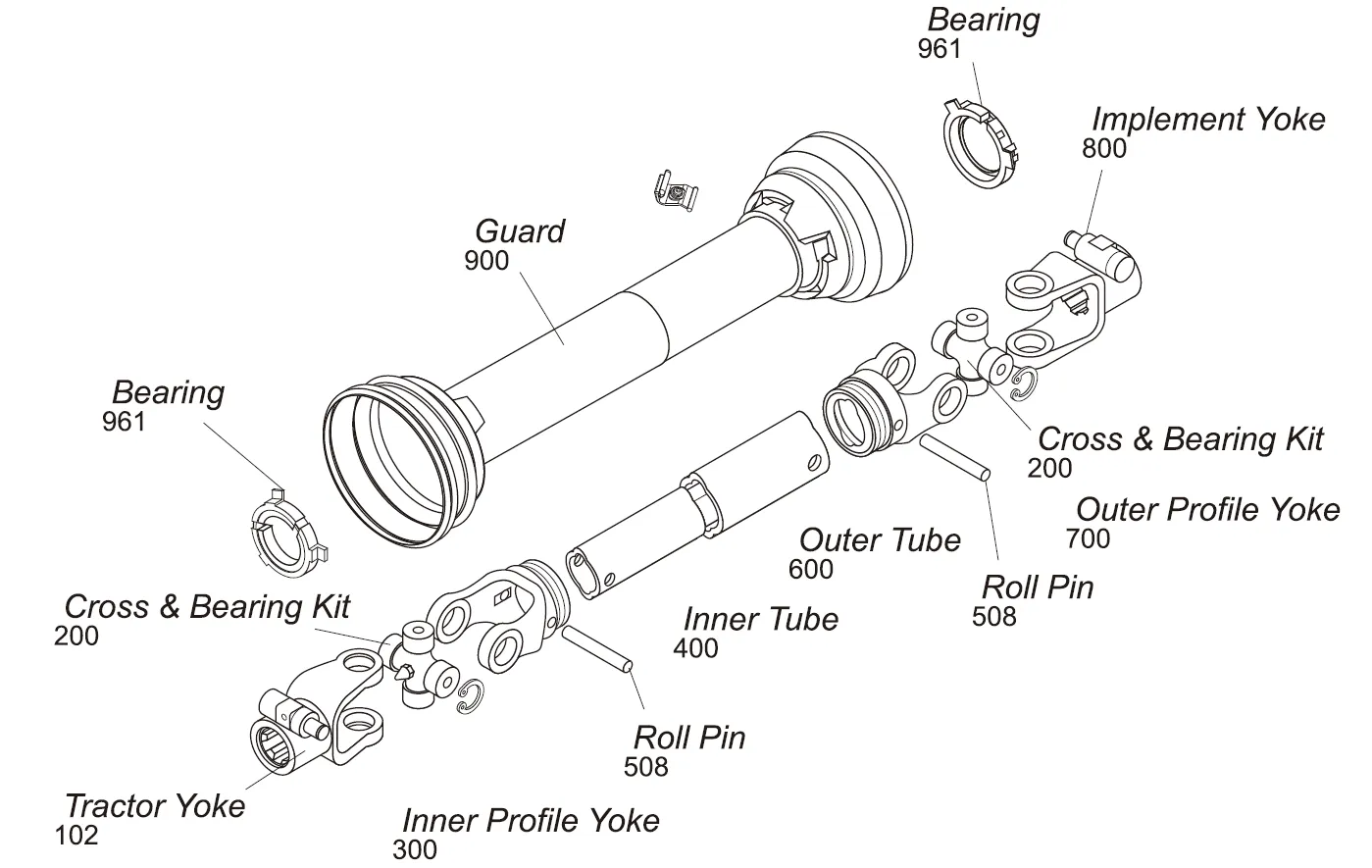

W2400 Series PTO Shaft Parts Diagram

The W2400 series PTO shaft is a common driveline component used in many agricultural and industrial applications. Here are the parts found in a W2400 series PTO shaft.

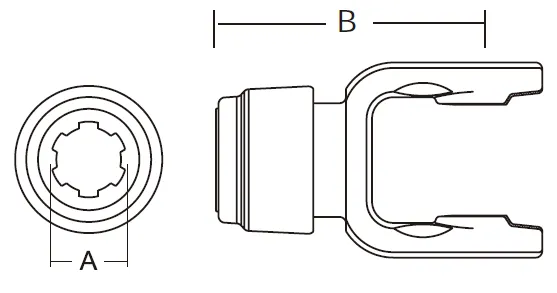

W2400 Series PTO Shaft Tractor Yoke

	Dim. “A”	Dim. “B”mm	in.
Safety Slide Lock	1 3/8” x 6 Spl.	126.0	4.96”
	1 1/8” Hex	116.0	4.57”
	1 3/4” x 20 Spl.	128.5	5.06”

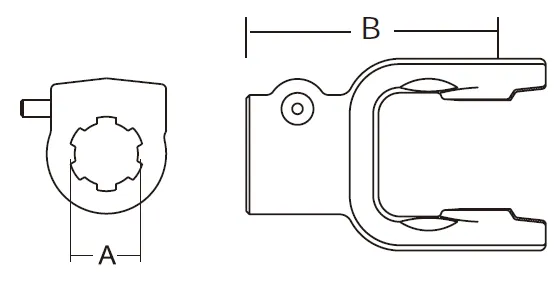

Quick Disconnect Yoke	1 3/8” x 6 Spl.	116	4.57”
	1 3/4” x 20 Spl.	116	4.57”
	1 3/8” x 21 Spl.	116	4.57”

	Dim. “A” Bore	Dim. “B”mm	in.	Shear Bolt

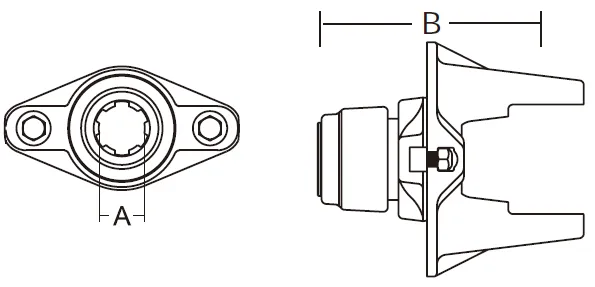

Ball Shear	1 3/8” x 6 Spl.	140.7	5.54”	3/8” - 16 Gr. 5
	1 3/4” x 20 Spl.	153.9	6.06”	3/8” - 16 Gr. 5
	1 3/8” x 21 Spl.	140.7	5.54”	3/8” - 16 Gr. 5

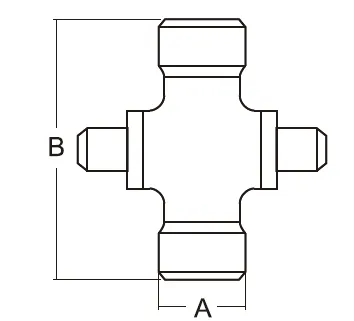

W2400 Series PTO Shaft Cross and Bearing Kit

	Dim. “A”mm	in.	Dim. “B”mm	in.
	32.0	1.26”	76	3.00”

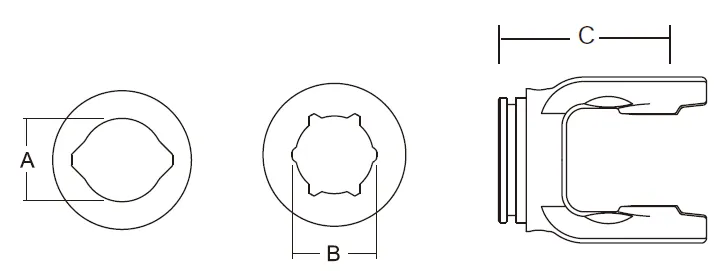

W2400 Series PTO Shaft Inner Profile Yoke

	Dim. “A” Profile		Dim. “B” Profile		Dim. “C”
	mm	in.	mm	in.	mm	in.
With Bearing Groove	39.5	1.56”	/	/	92.0	3.62”
	/	/	51.4	2.02”	92.0	3.62”

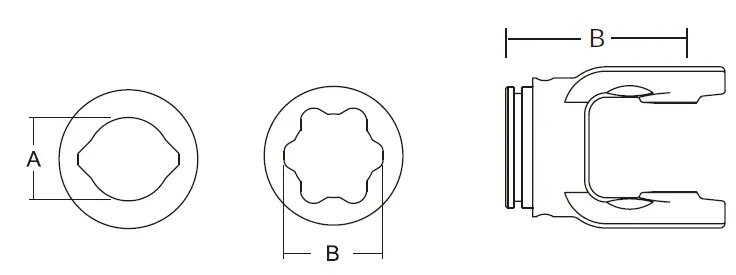

W2400 Series PTO Shaft Outer Profile Yoke

	Dim. “A” Profile		Dim. “B” Profile		Dim. “C”
	mm	in.	mm	in.	mm	in.
With Bearing Groove	48.0	1.89”	/	/	102.0	4.02”
	/	/	61.0	2.40”	102.0	4.02”

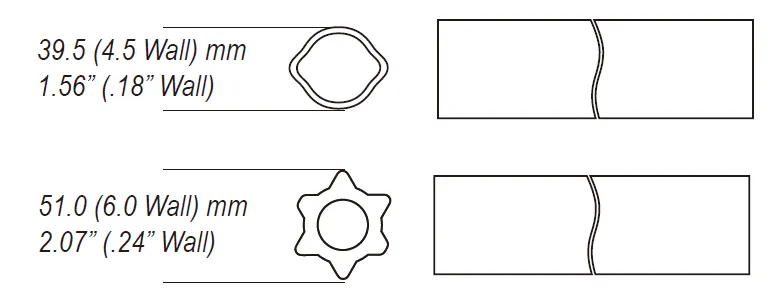

W2400 Series PTO Shaft Inner Tube

	Lengthmm	in.
	1.5	59.06”
	1.5	59.06”
	1.0	39.37”
	1.0	39.37”

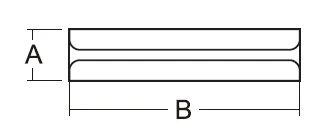

W2400 Series PTO Shaft Roll Pin

	Dim. “A”		Dim. “B”
	mm	in.	mm	in.
	10.0	.394”	75.0	2.95”

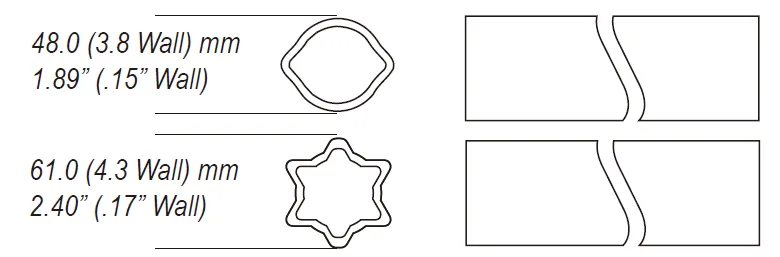

W2400 Series PTO Shaft Outer Tube

	Lengthmm	in.
	1.5	59.06”
	1.5	59.06”
	1.0	39.37”
	1.0	39.37”

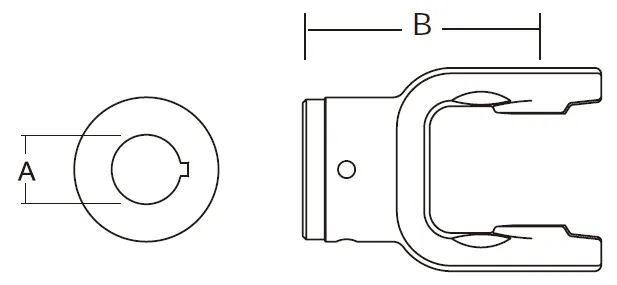

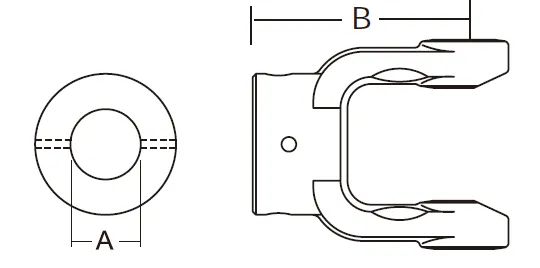

W2400 Series PTO Shaft Implement Yoke

	Dim. “A”		Dim. “B”		Standard Keyway
	mm	in.	mm	in.	mm	in.
Round BoreWith Keyway & Set Screw	31.8	1.25”	112.0	4.41”	6.4	.25”
	34.9	1.38”	112.0	4.41”	8.0	.31”
	38.1	1.50	112.0	4.42	8.0	0.31
	35.0	1.38”	112.0	4.41”	10.0	.39”
	40.0	1.57”	112.0	4.41”	12.0	.47”
	Dim. “A”		Dim. “B”		Pinhole
	mm	in.	mm	in.	mm	in.
Shear PinWith Pin Hole	35.0	1.38”	105.0	4.13”	12.9	.50”
	30.0	1.18”	106.4	4.19”	10.0	.39”
	40.0	1.57”	106.4	4.19”	13.0	.512”

	Dim. “A” Bore	Dim. “B” Bore	Dim. “C” Bore	Dim. “D”
				mm	in.

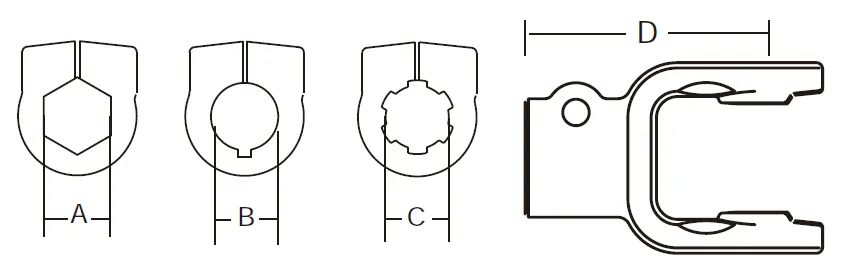

Clamp Yoke	/	/	1 3/8” x 6 Spl.	116.0	4.57”
	1 1/8” Hex	/	/	116.0	4.57”
	/	/	1 3/4” x 20 Spl.	116.0	4.57”
	/	/	1 3/8” x 21 Spl.	116.0	4.57”
	/	*1 3/8” Rd. Bore	/	116.0	4.57”

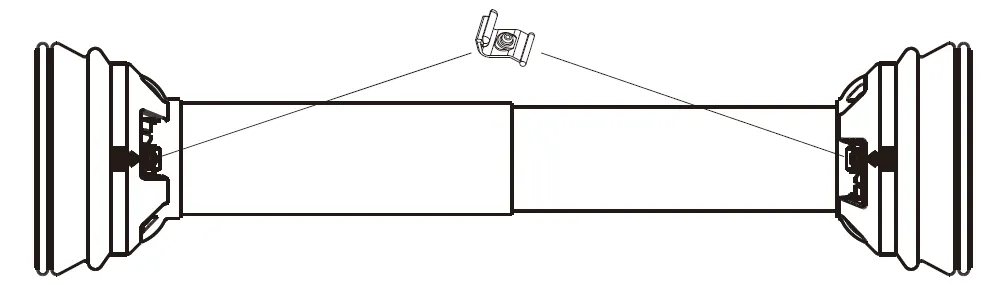

W2400 Series PTO Shaft Guard

Overall Driveline Length	Bearing Kit (2 per kit)
48”	961-0251
60”	961-0251
