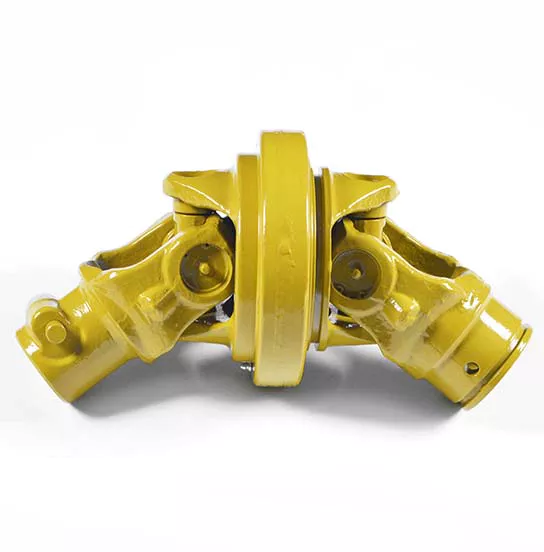

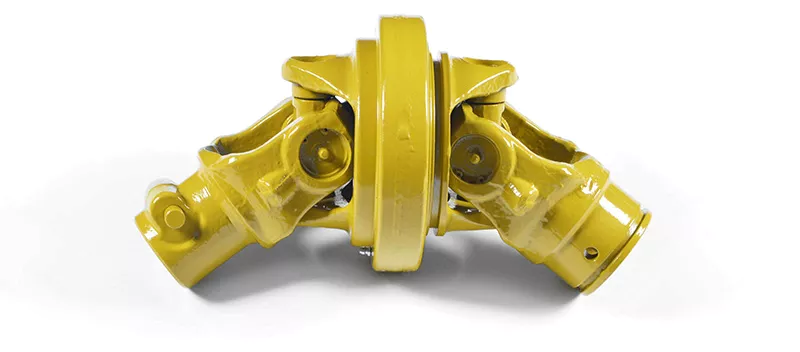

WA Series Wide Angle Joint for PTO Shaft (CV Joint)

WA Series Wide Angle Joint for PTO Shaft (CV Joint)

The Wide Angle Joint is a component of the Raydafon high-performance Wide Angle PTO drive shafts, which are the foremost drive shaft solution in the agriculture and lawn & turf industries. Raydafon  Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all-purpose use and meet the requirements of large farms and contractors.  Wide Angle yokes are made from steel to withstand robust conditions and are engineered for a precise fit. Raydafon wide-angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Raydafon Profile, meets and/or exceeds the quality of products currently offered by our competitors within various industries.

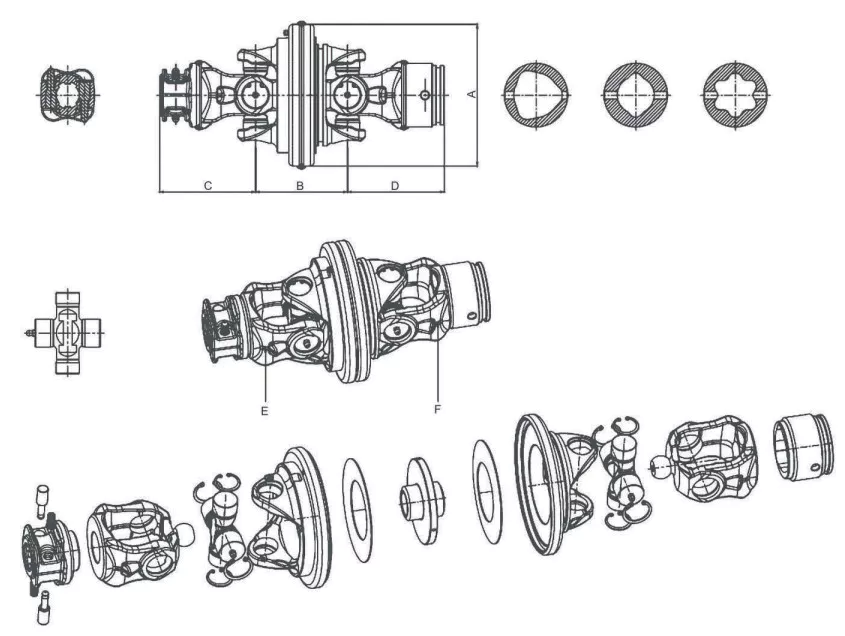

Series	Cross	A(mm)	B(mm)	C(mm)	D(mm)	E	F
2WA.01	23.8*61.3/22*76	153	104	119	105	2WA.0505B/D/G	2WA.06/06L
4WA.01	27*74.6/23.8*91	153	104	124	110	4WA.0505B/D/G	4WA.06/06L
6WA.01	30.2*92//27*100	176	105	136	127	6WA.0505B/D/G	6WA.06/06L/06ST
8WA.01	35*106.5/30.2*106	184	120	146	147	8WA.0505B/C/D/G	8WA.06/06L/06ST
32WA.01	32*76/27*94	176	126	126	117	32WA.0505B/D/G	32WA.06/06L/06ST
36WA.01	36*89/32*106	184	125	125	126	36WA.0505B/C/D/E	26WA.06/06L/06ST
42WA.01	42*104.5/36*124	184	124	149	150	42WA.0505B/C/D/E	42WA.06/06ST/06G

Performance Benefits of Raydafon Wide Angle Joint

The WA series joint offers proven Raydafon technology and is optimally designed for all application areas. Excellent power transmission, long service life, low maintenance, convenient operation. For decades, Raydafon has been a guarantor of top quality. The WA series is optimally dimensioned for simple to heavy drive tasks. It is characterized by its robust design and high reliability in daily use. Another advantage: All components of the WA series drive shafts can be easily replaced to increase operating comfort or in the case of spare parts.▎Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.▎ Yokes: Interchangeable with all other Replacement of Weasler yokes and standard yokes available in the market, Cast iron collars, Through-Bore keeps debris from collecting inside.▎ Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high-quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.▎ Same component designs are used for Replacement of Weasler’s domestic and metric product lines.

PTO Shafts & Agricultural Gearboxes are Available

Agricultural equipment requires vast operating torque and power to operate, and PTOs are the key to delivering this performance for long periods. To meet the needs of these machines, Raydafon offers various PTO shafts for different applications, and we have a comprehensive range to choose from. In addition to PTOs, we also stock agricultural gearboxes. For all your agricultural equipment needs, find the right agricultural gearbox and PTOs at Raydafon.

Wide Angle Joint Manufacture

Raydafon covers an area of more than 12000 square meters and employs more than 100 people. We specialize in developing, manufacturing, and selling PTO shafts, industrial universal shafts, automobile drive shafts, universal joint coupling shafts, universal joints, etc. The annual turnover is 60 million yuan and 9 million US dollars, increasing year by year. Our products enjoy a high reputation among customers in Europe, the United States, Asia, Australia, and North America. We are the top three professional OEM suppliers of many agricultural tool factories in the domestic market. Raydafon transmission shaft adheres to our “QDP” principle: quality first, rapid delivery, and competitive price. We have obtained CE, TS / 16949, and ISO9001 certification, and have systematic production equipment and a QC team to ensure our quality and delivery. We warmly welcome friends from all walks of life to visit and establish mutually beneficial long-term cooperative relations.
