WD102/ WDH102 Chain Sprockets

WD102 Sprocket

WD102-6 Sprockets will work with both WD102 and WDH102 welded steel drag chains. This WD102 sprocket is manufactured using a high quality steel and to precise specifications to ensure the best performance and a long working life. We can supply this sprocket with the standard configuration or the flanged configuration.

• Flanged & Standard Style Available
• High Quality Sprocket
• Best Pricing In The Industry
• Made For WD102 & WDH102 Chain

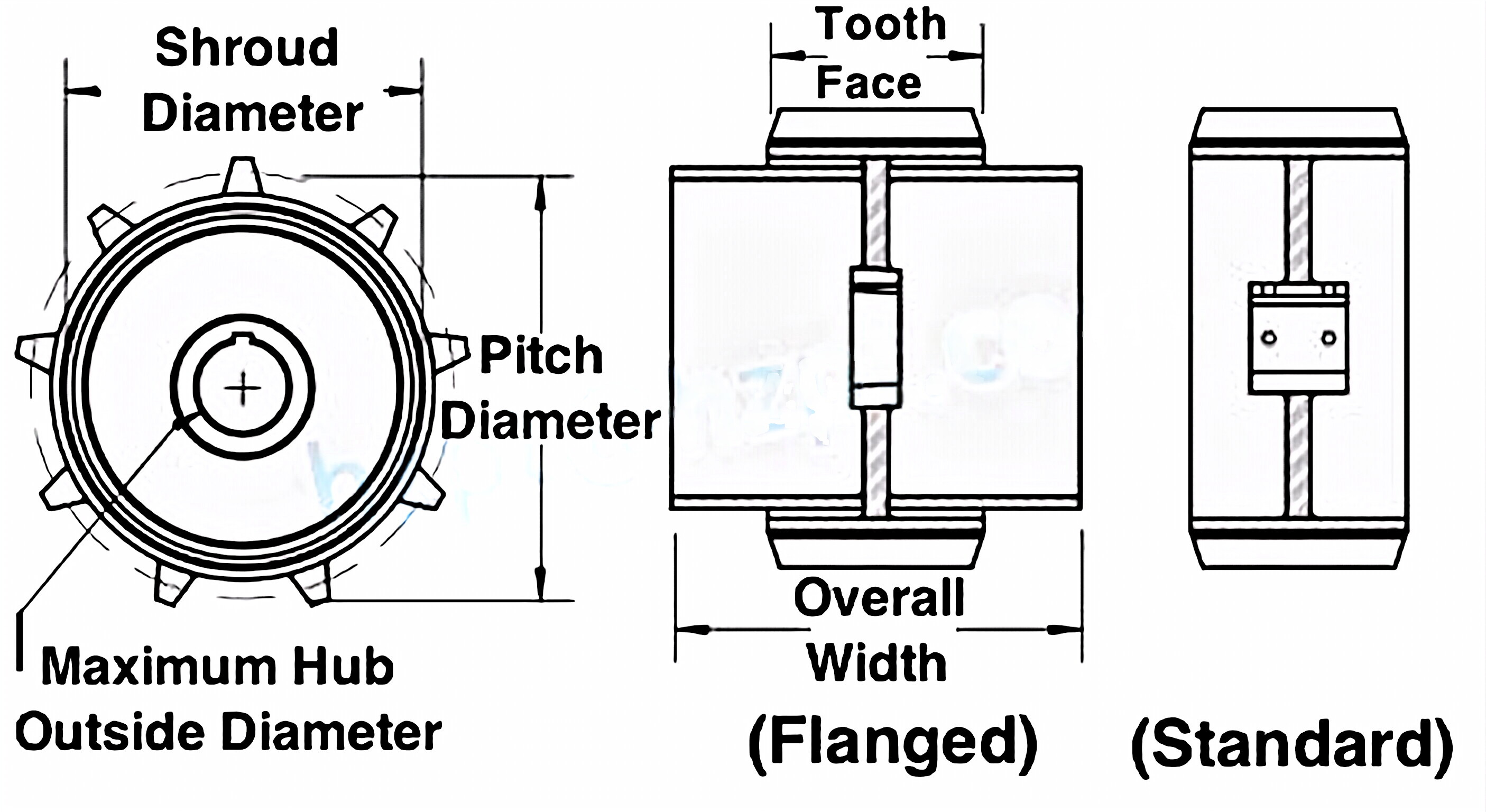

Sprocket Number	Number Of Teeth	Pitch	Pitch Diameter	Shroud Diameter	Tooth Face	Maximum Bore
WD102-6	6	5.00"	10.00"	5.680"	6-3/8"	3-15/16"
WD102-7	7	5.00"	11.52"	8.800"	6-3/8"	4-7/16"
WD102-8	8	5.00"	13.07"	10.567"	6-3/8"	5-15/16"
WD102-9	9	5.00"	14.62"	12.242"	6-3/8"	5-15/16"
WD102-10	10	5.00"	16.18"	13.888"	6-3/8"	5-15/16"
WD102-11	11	5.00"	17.75"	15.354"	6-3/8"	5-15/16"
WD102-12	12	5.00"	19.32"	17.162"	6-3/8"	5-15/16"

 We aslo offer a full range of both precision roller chain and engineered.Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
