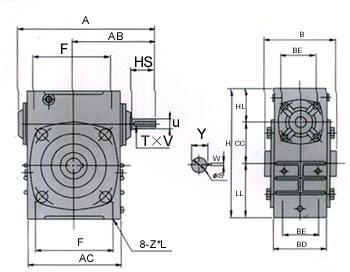

WK | Shaft Direction |
| SIZE | RATIO | A | AB | B | AC | F | BD | BE | CC | LL | HL | H | Z×L | INPUT SHAFT | OUTPUT SHAFT | KG | ||||
| HS | U | T×V | S | W | Y | |||||||||||||||
| 50 | 1/10 1/20 1/30 1/40 1/50 1/60 | 175 | 105 | 107 | 115 | 85 | 70 | 50 | 50 | 65 | 35 | 150 | M6×18 | 30 | 12 | 4×2.5 | 20 | 6 | 22.8 | 6 |
| 60 | 195 | 120 | 117 | 126 | 105 | 80 | 55 | 60 | 75 | 42 | 177 | M8×20 | 40 | 15 | 5×3 | 25 | 8 | 28.3 | 85 | |
| 70 | 234 | 140 | 131 | 155 | 125 | 90 | 65 | 70 | 90 | 55 | 215 | M10×25 | 40 | 18 | 5×3 | 30 | 8 | 33.3 | 12.5 | |
| 80 | 264 | 160 | 144 | 174 | 140 | 100 | 70 | 80 | 105 | 65 | 250 | M12×28 | 50 | 22 | 7×4 | 35 | 10 | 38.3 | 20 | |
| 100 | 322 | 190 | 175 | 224 | 180 | 120 | 90 | 100 | 130 | 80 | 310 | M12×30 | 50 | 25 | 7×4 | 40 | 12 | 43.3 | 33 | |
| 120 | 385 | 230 | 200 | 264 | 220 | 140 | 100 | 120 | 155 | 95 | 370 | M14×32 | 65 | 30 | 7×4 | 45 | 14 | 48.8 | 50 | |
| 135 | 435 | 260 | 212 | 304 | 260 | 150 | 110 | 135 | 185 | 105 | 425 | M16×35 | 75 | 35 | 10×4.5 | 60 | 18 | 64.4 | 77 | |
| 155 | 494 | 302 | 312 | 330 | 280 | 170 | 120 | 155 | 203 | 103 | 461 | M16×35 | 85 | 40 | 10×4.5 | 70 | 20 | 74.9 | 100 | |
| 175 | 548 | 325 | 334 | 370 | 320 | 186 | 140 | 175 | 223 | 123 | 521 | M16×35 | 85 | 45 | 12×4.5 | 80 | 22 | 85.4 | 140 | |
| 200 | 688 | 350 | 346 | 420 | 360 | 200 | 150 | 200 | 245 | 130 | 575 | M18×35 | 95 | 50 | 12×4.5 | 85 | 22 | 90.4 | 200 | |
