Worm Gear Reducer-Replacement of Mitsubishi Heavy Worm Gear Unit SCHV Series Base Mounting Double Stage Reducer SCHV400L(R)-1000

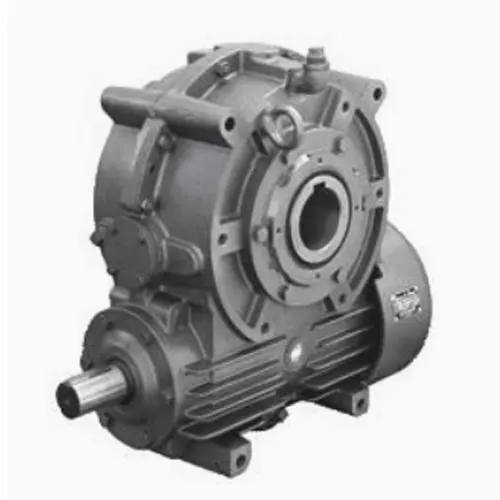

SCHV400L(R)-1000 Worm Gear Unit

The SCHV400L(R)-1000 is a double stage worm gear reducer from the SCHV series. It is known for its durability, high precision, and compact design, making it suitable for installations with limited space while maintaining high performance. The worm gear mechanism ensures smooth and quiet operation, reducing noise levels in industrial environments. With its high reduction ratio and durable structure, this model is ideal for applications requiring high torque and precise reduction, such as heavy machinery, automation systems, and material handling.

Mitsubishi Worm Gear Reducer Replacement

• Quality Replacement: Our company (Raydafon) provides Mitsubishi brand replacement worm gear reducers that are of high quality and offered at competitive prices. It's important to note that our products are replacement parts and not original equipment from the manufacturer. For purchasing original equipment, please contact the original supplier.

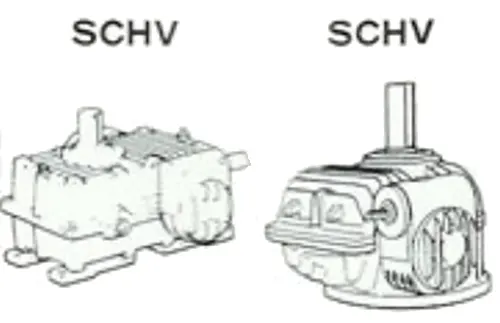

• Image:
• Advantages of Mitsubishi Worm Gear Reducer Replacement:
1. High Load Capacity: Designed to handle large loads and suitable for demanding industrial environments.
2. Robust Structure: Made with high-strength cast iron housing, ensuring durability and reliability even in harsh conditions.
3. Efficient Power Transmission: Precision-designed worm and worm wheel guarantee high efficiency and effective power transmission.
4. Compact and Durable: Despite its compact design, the reducer is made with high-quality materials to ensure durability and long lifespan.
5. Low Noise Operation: Designed for quiet operation, reducing noise levels in sensitive environments.

Advantages of Using SCHV400L(R)-1000 Worm Gear Unit

• Improved Mechanical Efficiency: Enhances overall mechanical efficiency through effective power transmission and high load capacity.
• Long Service Life: Durable and requires minimal maintenance, reducing total ownership costs.
• Wide Range of Applications: Its compact and robust design makes it suitable for various industrial applications.
• Image:

Installation and Operation of Worm Gear Reducer

Installation:

1. Preparation:
   • Ensure the installation area is clean and level.
   • Verify compatibility between the gearbox and your equipment and application.
2. Mounting:
   • Align the gearbox with the mounting points on the equipment.
   • Secure it using appropriate bolts and fasteners.
   • Ensure the gearbox is firmly mounted to prevent vibration and ensure stable operation.
3. Input Connection:
   • Connect the input shaft of the gearbox to the driving motor or power source.
   • Use suitable couplings or adapters to ensure a secure and aligned connection.
   • Check alignment to prevent excessive gear wear.
4. Electrical and Mechanical Connections:
   • Connect any necessary electrical components.
   • Tighten all mechanical connections to ensure they are secure and properly aligned.

Operation:

1. Startup:
   • Gradually start the reducer.
   • Observe for any unusual noise or vibration during startup.
   • Allow the equipment to reach its operating speed before applying full load.
2. Operating Tips:
   • Operate the gearbox within specified torque and speed limits.
   • Regularly monitor its performance to ensure smooth and reliable operation.
   • Avoid sudden or excessive loads that may damage the gear reducer.
3. Image:

Motors for Worm Reducers

Worm reducers and electric motors are closely related and important components in various industrial applications. Our company also offers a wide range of electric motors for sale, complementing the performance of worm gear reducers. Combining a reliable worm gear reducer with a high-quality electric motor ensures efficient power transmission and optimal system performance.

About Raydafon

We are a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. With over 20 years of experience, we have become a reputable company serving customers in Europe, America, Africa, Asia, and other regions. Our commitment to providing the market with the highest quality products, competitive prices, and excellent service has earned us a strong reputation. We boast advanced production and testing equipment, a team of industry professionals and technicians, and a standardized production management system. Our gearboxes are widely used in various industries such as equipment, food, car washing, packaging, transmission, automation, and solar energy. We encourage customers to explore our products and contact us for purchases.

Q&A

Q: Can the SCHV400L(R)-1000 Worm Gear Unit be used in heavy-duty applications?

A: Yes, the SCHV400L(R)-1000 is designed to handle large loads and is suitable for demanding industrial environments.

Q: How often should the worm gear reducer be lubricated?

A: It is important to follow the manufacturer's recommendations for proper lubrication. Regular lubrication intervals should be adhered to, and the lubricant should be replaced if contaminated.

Q: Can Raydafon
