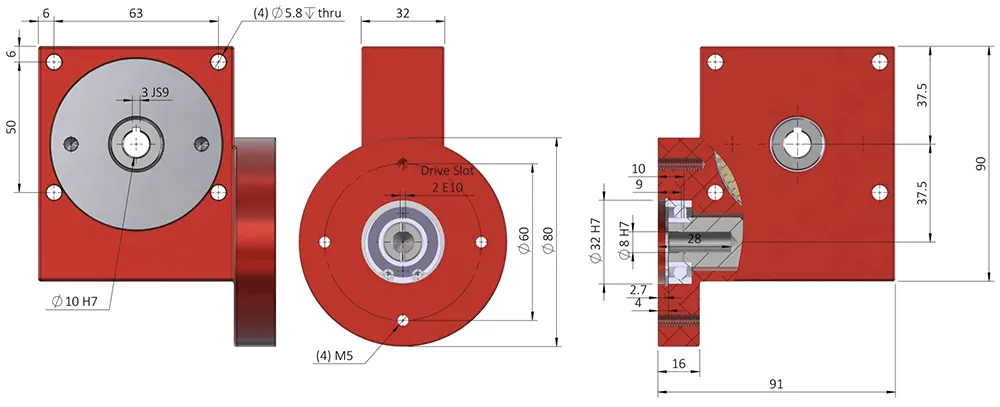

Worm Gearbox for Industrial Robotics, Solar Energy, Military Industry, VRV030 Replacement of Ondrives & Rino PF40

VRV030 Replacement of Ondrives & Rino PF40

The VRV030 worm gearbox emerges as a superior alternative to the Ondrives & Rino PF40, boasting a suite of enhancements that render it more apt for demanding applications. It distinguishes itself with a higher torque capacity, making it an ideal choice for tasks necessitating robust torque output. Furthermore, the VRV030 outshines the PF40 in efficiency, ensuring reduced wastage and diminished operational expenses. An advanced lubrication system is another hallmark of the VRV030, guaranteeing smoother operation and extended durability. Additionally, its availability in an expansive array of sizes and configurations offers unprecedented flexibility, accommodating a diverse range of applications with ease.Our worm gear reducer is a replacement part for Ondrives & Rino's worm reducer, and we provide high-quality replacement parts rather than original parts. If you need to purchase the original parts, please contact the original supplier for purchase.

What is a Worm Gearbox?

A worm gearbox is a type of gearbox that uses a worm screw to drive a worm wheel. The input shaft of the gearbox is connected to the worm screw, while the output shaft is connected to the worm wheel. The worm screw has a helical thread, which meshes with the teeth of the worm wheel. This creates a gear reduction, allowing the output shaft to turn at a slower speed than the input shaft, but with increased torque. Worm reducers are highly efficient and can provide large gear reductions in a compact package.

Applications of Worm Gearboxes Replacement of Ondrives & Rino PF40

This type of worm gearboxes are widely used in various industries, such as industrial robotics, solar energy, military industry equipment, etc. The VRV030 replacement of Ondrives & Rino PF40 is a popular choice for many applications.

Industrial Robotics

Worm gearboxes are commonly used in industrial robotics because of their compact size, high efficiency, and ability to provide large gear reductions. They are particularly useful in robotic arms and grippers, where precise control and high torque are required.

Solar Energy

Worm gearboxes are also used in solar energy applications, such as solar panel tracking systems. These systems require precise tracking of the sun's position throughout the day, which is achieved using a worm gearbox. The gearbox drives the azimuth and elevation axes of the solar panel, allowing it to track the sun and maximize energy output.

Military Industry

The military industry requires rugged and reliable equipment that can withstand harsh environments. Worm gearboxes are often used in military applications, such as missile launchers and radar systems, because of their high torque capabilities and ability to operate in extreme temperatures.

Benefits of Worm Gearboxes

High Efficiency

Worm gearboxes are highly efficient, with efficiency levels as high as 90%. This means that very little power is lost to heat during operation, resulting in less waste and lower operating costs.

Large Gear Reductions

Worm gear reducers can provide large gear reductions in a compact package. This makes them ideal for applications where space is limited, but high torque is required.

Smooth Operation

Worm gearboxes provide smooth and quiet operation, making them ideal for applications where noise and vibration are a concern.

Rugged and Reliable

Worm gearmotors are highly durable and can withstand harsh environments. They are less prone to wear and tear than other types of gearboxes, making them a reliable choice for many applications.

Features of VRV030 Worm Reducer

Our VRV030 Worm Reducer has a compact body structure that is easy to install, and it features a fully synthetic lubricating oil with a long service life. The integrated body has good sealing performance, and there is no risk of oil leakage. The simple structure, high transmission efficiency, stable operation, good noise reduction effect, compact size, and strong corrosion resistance make it an excellent choice for industrial robotics, solar energy, and military industry applications.

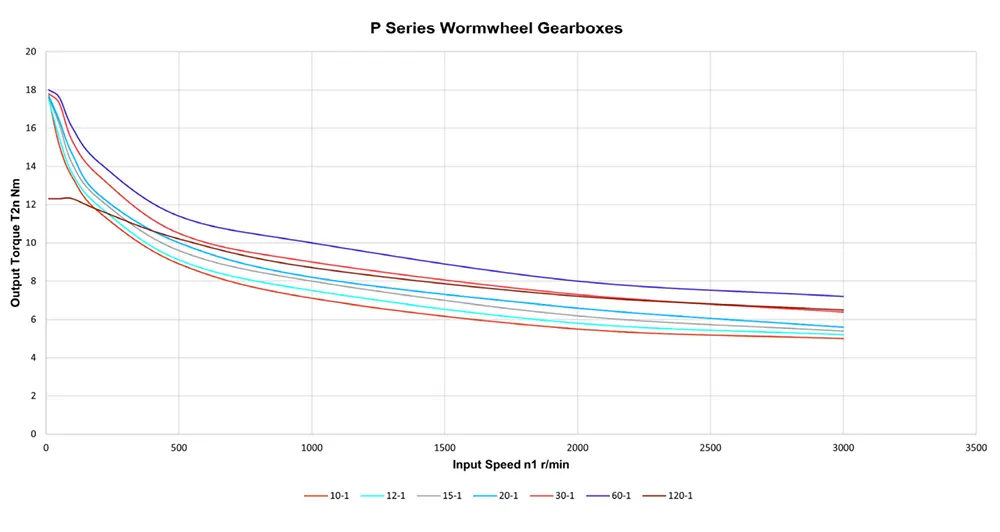

Technical Parameters of Worm Gearbox

Our Worm Gearbox has the following technical parameters:

Specification	Value
Weight	1.15 kg
Nom. Input Speed [S1 T₂n]n1nom	1,000 min-1 (r/min)
Max. Input Speed n1max	3,000 min-1 (r/min)
Lubrication	Grease Shell Gadus S5 V4P 2.5
Lubrication Temperature	Max. Operating ≈ 60℃
Max. Output Radial Load Fr2	300N
Max. Output Axial Load Fa2	200N

OutputBacklash j	OutputBacklash jA	OutputBacklash jAR	Gear Ratio i	Efficiency ηz	LeadDirection	ReflectedInertia atInput
≤0.50°	≤0.13°	≤0.066°		n1nom		kg-m²
PF40-10	PF40-10A	PF40-10AR	10:1	89%	Right Hand	3.78x10-6
PF40-12	PF40-12A	PF40-12AR	12:1	87%	Right Hand	3.62x10-6
PF40-15	PF40-15A	PF40-15AR	15:1	85%	Right Hand	3.49x10-6
PF40-20	PF40-20A	PF40-20AR	201	83%	Right Hand	3.39x10-6
PF40-30	PF40-30A	PF40-30AR	30:1	76%	Right Hand	3.32x10-6
PF40-60	PF40-60A	PF40-60AR	60:1	65%	Right Hand	3.27x10-6
PF40-120	PF40-120A	PF40-120AR	120:1	41%	Right Hand	3.26x10-6

Electric Motors for Worm Gearboxes

Our electric motors are an excellent match for our worm gearboxes. They provide reliable and efficient power to operate the gearboxes, and they are available in a variety of sizes to fit any application. Our electric motors are built to the highest standards of quality and durability, ensuring that they will provide years of trouble-free operation.At Raydafon, we not only provide worm gear reducers but also high-quality electric motors. Our electric motors are the perfect complement to our worm gearboxes, providing reliable and efficient power to operate the gearboxes. We use cutting-edge technologies from both domestic and international sources for our production and testing equipment. We employ skilled technical experts for innovative R&D and manufacturing processes and adhere to standardized production management methods to ensure stringent control over every stage of reducer production.
