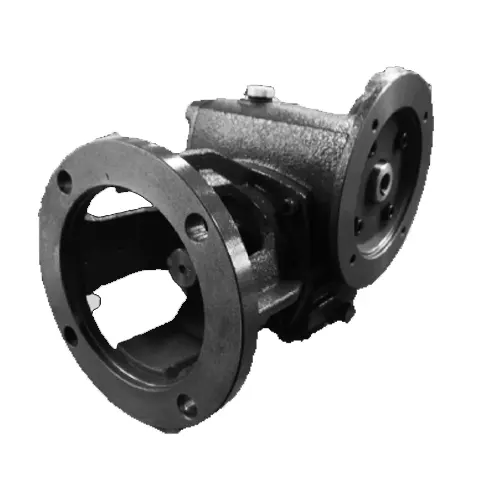

Worm Gearbox-Replacement of Chenta DLM Worm Gear Reducer (Output with Flange)

Our company offers the Worm Gearbox, also known as Worm Gearmoto, Worm Speed Reducer, or Worm Drive, as a replacement for the Chenta DLM Worm Gear Reducer (Output with Flange). Our products are of high quality and offered at competitive prices. Please note that our products are replacement parts and not original equipment manufacturer (OEM) parts. If you require OEM parts, please contact the original supplier for purchase.

Product Structure

The Worm Gearbox consists of several components, each serving a specific purpose:

• High-quality double-lip oil seals ensure effective sealing.
• The worm is made of medium carbon steel and undergoes hardened heat treatment and thread grinding.
• For larger gearbox sizes of 300 and above, the worm is made of chromium-molybdenum alloy steel and also undergoes high-frequency heat treatment and thread grinding.
• The worm wheel is made of aluminum bronze and provides durability.
• The sturdy gearbox housing is made of gray cast iron and ductile iron, suitable for gearbox sizes of 300 and above.
• A detachable base is included for universal gearbox installation.

Product Features

• Compatible with IEC and NEMA motors.
• Ratio range from 1/5 to 1/3600.
• Horsepower range from 1/4HP to 100HP.
• Utilizes high-quality double-lip oil seals.
• Medium carbon steel worm undergoes hardened heat treatment and thread grinding.
• Chromium-molybdenum alloy steel worm (for gearbox size 300 and above) undergoes high-frequency heat treatment and thread grinding.
• Aluminum bronze worm wheel provides durability.
• Sturdy gearbox housing made of gray cast iron and ductile iron (for gearbox size 300 and above).
• Detachable base for universal gearbox installation.

Applications

• The Worm Gearbox is suitable for various applications, including but not limited to:

• Industrial equipment industry
• Food industry
• Car washing industry
• Packaging industry
• Transmission industry
• Automation industry
• Solar energy industry

Chenta Worm Gear Reducer Replacement

• Our replacement Worm Gearbox offers several advantages over the Chenta DLM Worm Gear Reducer:

• High-quality and competitively priced
• Perfect replacement parts, not original equipment

We emphasize that our products are replacement parts and not OEM parts. For original equipment, please contact the original supplier. We welcome customers to provide drawings or samples for customization.

Installation

1. Connect the input shaft directly to the motor using a flexible coupling.
2. Connect the output shaft to the machine, preferably using a gear coupling.
3. Install the gearbox on a stable foundation, ensuring good ventilation and convenient oil filling/drainage.
4. The input shaft of the gearbox should be aligned with the motor shaft, with tolerances within acceptable limits.
5. After installation, manually check the smooth operation of the input shaft and ensure the nut rotates smoothly.
6. Perform a no-load test run before operation and promptly address any abnormalities.

Lubrication and Maintenance

1. Replace the gearbox after 300 hours of operation and subsequently every 2500 hours. Regularly check and change the oil as required.
2. Use oil of the same specification during oil changes and avoid mixing with oils of other brands.
3. Before replacing the oil, thoroughly flush and drain the gearbox, then refill with fresh oil.
4. If the temperature exceeds 80??C or any abnormal noise occurs during operation, immediately shut down the gearbox for inspection and resume operation only after resolving the issue.
5. Regular maintenance is necessary. Address any wear and tear promptly. Replaced parts must match the original specifications and undergo a no-load test run in advance.

Motors for Worm Gear Reducers

Worm Gearboxes and electric motors complement each other and play important roles in various applications. Our company not only provides top-quality Worm Gearboxes but also offers a wide range of electric motors for sale.We encourage our customers to explore the functionality of our products and contact us for purchases.

About Raydafon

We are a comprehensive transmission equipment manufacturer specializing in the research, development, manufacturing, and sales of speed reducers. With over 20 years of experience, we serve customers globally, including Europe, America, Africa, and Asia. We have earned a reputation for providing high-quality products, competitive prices, and excellent customer service. Our production facilities are equipped with advanced equipment, and our team of industry professionals and technicians ensures innovative research, development, and manufacturing. We adhere to standardized production management methods to ensure the highest quality standards for our reducers. Our gearboxes find wide application in various industries, including equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, and solar energy industry. We welcome and value the trust of our customers.

Q&A

Q1: Can the Worm Gearbox be used with motors other than IEC and NEMA motors?

A1: The Worm Gearbox is designed to be compatible with IEC and NEMA motors for optimal performance. However, it may be possible to use it with other motor types by ensuring proper alignment and compatibility.

Q2: Can the Worm Gearbox be used in high-temperature environments?

A2: The Worm Gearbox is designed to withstand normal operating temperatures. However, in high-temperature environments, it is important to monitor the gearbox's temperature and ensure proper ventilation and lubrication to prevent overheating.

Q3: Can I use the Worm Gearbox in applications requiring high torque?

A3: Yes, the Worm Gearbox is capable of handling applications requiring high torque due to its robust construction and high-quality materials. However, it is important to select the appropriate gearbox size and ensure proper installation for optimal performance.
