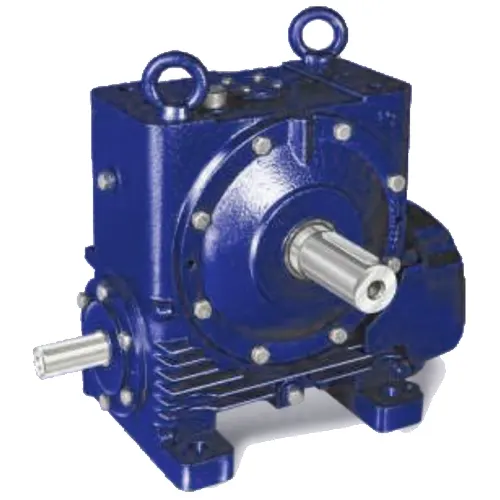

Worm Reducer-Replacement of PREMIUM Modular MSV Mark I 400 Worm Gearbox

Our Worm Reducer is a high-quality replacement for the PREMIUM Modular MSV Mark I 400 Worm Gearbox, featuring a compact design that makes it easy to install and maintain. With a wide range of specifications, including a rated power of up to 350 kW, reduction ratios of 5:1 to 3000:1, and dimensions of up to 203.2mm (8 inches), it is a durable and highly efficient product that offers excellent wear resistance and strength. Our company provides this brand of worm gear reducers as replacement parts, which come at an affordable price and excellent quality. Please note that we do not offer original factory parts, and customers needing those should contact the original supplier for purchasing.

Product Structure

Our Worm Reducer consists of the following parts:

• Worm shaft
• Worm wheel
• Bearing
• Housing
• Sealing
• Oil seal

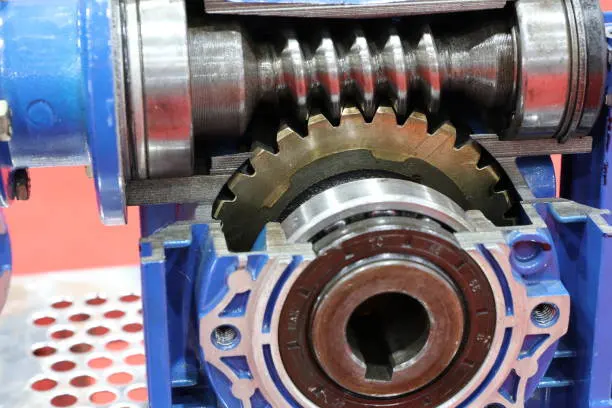

The worm shaft and worm wheel are the main components of the reducer, responsible for transmitting power and achieving speed reduction. The bearing and housing are designed to support and protect these components, while the sealing and oil seal are used to prevent oil leakage and maintain lubrication.

Product Features

Our Worm Reducer has several outstanding features:

• Based on a universal housing for each size, resulting in high part commonality and interchangeability
• Equipped with double extended input shafts, which allows changing the operating mode by moving the fan and rectifier from one end to the other
• Easy to change the mounting position from underdriven to overdriven by inverting the unit and changing the position of the drain plug, filler/breather, oil level gauge, and detachable feet
• Highly durable and energy-efficient, with a large carrying capacity and low noise
• Sturdy, compact, and streamlined design, with fewer parts and a large heat capacity
• Good appearance, with fewer bolts and screws

Each of these features ensures that our product is highly competitive in the market, and offers excellent performance and reliability.

Applications

Our Worm Reducer is suitable for use in the following industries:

• Mining
• Oil and gas
• Packaging and labeling
• Pulp and paper
• Power generation
• Rubber and plastics
• Sugar
• Cement
• Chemical
• Food and beverage
• Material handling
• Steel

Choosing the Right Worm Reducer

When selecting the right Worm Reducer, the following factors should be taken into consideration:

1. Type of prime mover
2. Horsepower of the prime mover
3. Output torque required from the driven equipment
4. Input speed of the gear unit
5. Output speed of the gear unit
6. Drive arrangement and shaft configuration required
7. Total hours of operation per day. If intermittent, the duty cycle should be specified.
8. Details of any abnormal starting loads
9. Details of any reverse or impact loads
10. Details of any external loads on the gear unit
11. Details of any abnormal operating conditions, such as ambient temperature, humidity, etc.

PREMIUM Worm Gearbox Replacement

Our Worm Reducer has many advantages over the PREMIUM Worm Gearbox:

• High part commonality and interchangeability, allowing for faster delivery times and easier maintenance
• Lower cost and more affordable price
• Excellent quality and durability
• Factory replacement parts, rather than original parts, which are available from the original supplier
• Customization options available upon request

Our company offers a wide range of high-quality and affordable Worm Reducers, and we are committed to providing our customers with the best service, product quality, and competitive pricing. Please feel free to contact us for more information or to place an order.

Worm Gear Reducer Lubrication

The gears and bearings of our Worm Gear Reducer are lubricated using oil that splashes from the oil sump. The modular series of worm gear reducers comes equipped with an oil-immersed dipstick-oil filter, which doubles as a breather. No special maintenance is required other than occasionally topping up the lubricant to the required level. The input and output shafts are fitted with chloroprene rubber lip-seals. For extremely low speeds below 50 rpm, forced lubrication is necessary. The gear reducer is shipped without lubricant and must be filled with the correct amount of lubricant. Care must be taken not to overfill, as this can cause oil churning, resulting in overheating and leaks.

Worm Gear Reducer Maintenance

The maintenance of our Worm Gear Reducer involves the following:

1. Weekly checks:
   • Check the oil level with the dipstick or oil level plug, and top up with recommended grade lubricant if necessary.
   • Ensure the breather is cleaned regularly. Ensure that no paint is applied to the breather, as this may create pressure and cause oil leakage.
   • For units with grease-lubricated bearings, lubricate with grease gun twice or install a threaded lubricator and turn it two turns and add the recommended grease when necessary.
2. Oil change:
   • Regular oil changes are critical to ensuring trouble-free operation of your equipment. The frequency of oil changes depends on several factors: oil temperature under load, oil type, environment (humidity, dust, etc.), operating conditions (impact loads, etc.).
   • Oil life is greatly reduced under high-temperature conditions. To prevent equipment damage due to oil failure, it is important to change the lubricant on a regular basis.

Motors for Worm Gear Reducers

Our Worm Reducer and electric motors are complementary products that work together to deliver excellent performance and efficiency. Our company also offers a wide range of electric motors for sale, ensuring that our customers have access to all the necessary components for their equipment needs. The proper selection and pairing of motors and reducers are critical to the performance and longevity of the equipment, and our company has the expertise and experience to help our customers make the best choices. Please feel free to contact us for more information.

Thank you for exploring our Worm Reducer product line. We encourage you to contact us with any questions or inquiries, and to place an order for our high-quality and affordable products. At Raydafon, we are committed to providing our customers with the best service, product quality, and competitive pricing. Our company is a comprehensive transmission equipment manufacturer with more than 20 years of experience in the design, production, manufacture, and sales of gearboxes. We serve customers in Europe, America, Africa, Asia, and other regions, and we have won the praise of the market. Our consistent mission and vision over the years have led us to introduce advanced production and testing equipment, employ industry professionals and technicians, carry out innovative research and development and manufacturing, and use standardized production management methods to strictly control every aspect of the production of reducers. We are proud to provide our customers with high-quality, energy-efficient, and stable production that meets their equipment needs. Our gearboxes are widely used in various industries, including the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, and solar energy industry, among others. Please contact us to learn more about our products and services, and we look forward to the opportunity to serve you.

Q&A

Q: Is your Worm Reducer compatible with other types of motors?

A: Yes, our Worm Reducer is compatible with a wide range of motors, including electric motors, hydraulic motors, and pneumatic motors.

Q: Can you customize your Worm Reducer to meet specific equipment needs?

A: Yes, we offer customization options upon request to meet the specific needs of our customers. Please contact us for more information.

Q: Does your company provide installation services for the Worm Reducer?

A: No, we do not provide installation services for our Worm Reducer. However, we are happy to provide technical support and guidance to our customers to ensure proper installation and operation of our products.
