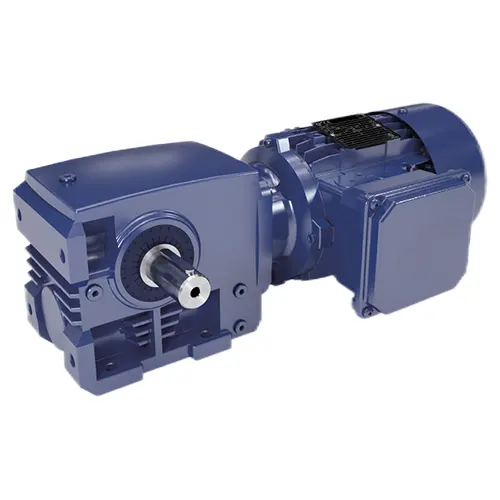

The Worm Speed Reducer-Replacement of Nord Helical Worm Gear Unit SK13080 is a multi-stage helical worm gear unit where the motor shaft and the output shaft form a 90?? angle. This allows for flexible installation in limited spaces. These gearboxes are made of high-strength aluminum or die-cast aluminum, ensuring maximum strength and rigidity while being lightweight. They can be further protected with surface treatment.
This series has a wide power range, from 0.16 horsepower to 20 horsepower, with a maximum output torque of 27,350 pound-inches. The broad range of speed ratios (from 5.37:1 to 330:1) optimally meets the requirements of customers. The motors can be directly mounted without the need for couplings or adapters (NEMA or IEC). We offer Nord brand replacement of helical worm gear reducers, which are of good quality and offered at competitive prices. Please note that our products are replacement parts, not original parts. If you require original parts, please contact the original supplier for purchase.
The components of the helical worm reducer and their functions are as follows:
| Component | Function |
|---|---|
| Input Flange | Connects the gearbox to the motor |
| Input Shaft | Transmits power from the motor to the gearbox |
| Worm Gear | Transmits power from the input shaft to the worm |
| Worm Wheel | Transmits power from the worm to the output shaft |
| Output Shaft | Transmits power from the gearbox to the application |
| Issue | Solution |
|---|---|
| Abnormal Noise | Check for loose gears and tighten if necessary. Inspect for damaged gears and replace if needed. |
| Overheating | Ensure proper lubrication and check for any obstructions to cooling airflow. If the problem persists, consult a professional. |
| Leakage of Lubricant | Inspect the seals and gaskets for damage and replace if necessary. Make sure the lubricant is filled to the recommended level. |
| Excessive Vibration | Check for misalignment between the motor and the gearbox. Align if needed. Inspect for worn or damaged bearings and replace if necessary. |
| Insufficient Output Torque | Check for worn or damaged gears and replace if needed. Ensure proper lubrication and adjust the load to within the gearbox's rated capacity. |
| Difficulty Shifting Gears | Inspect the shifting mechanism for any obstructions or damage. Clean or repair as necessary. |
| Excessive Backlash | Check for worn gears and replace if needed. Adjust the meshing of the gears to reduce backlash. |
| Severe Gear Wear | Inspect the lubrication system for proper function and adjust if necessary. Ensure the gears are properly aligned and replace any worn gears. |
| Electrical Malfunction | Check the power supply and connections for any issues. If the problem persists, consult a qualified electrician. |
| Excessive Load on Output Shaft | Check the application for any misalignment or excessive loads. Adjust or modify the application as necessary. |
Our replacement products aim to provide the same level of quality and performance as the original parts. With our Nord Worm Gear Units Replacement, you can expect reliable operation, durability, and compatibility with your existing systems. We have a wide range of models available to suit various applications. For more information and to explore our product offerings, please contact us.
Worm gear reducers and motors are closely related and essential components in many applications. The motor provides the power input, while the worm gear reducer converts and transmits this power to the application. The combination of a high-quality motor and a reliable worm gear reducer ensures efficient and precise operation of various machinery and equipment.
At our company, we not only offer a wide range of worm gear reducers but also provide various electric motors for sale. We understand the importance of matching the right motor with the appropriate worm gear reducer to achieve optimal performance. Our motors are designed to complement our worm gear reducers, ensuring a seamless integration and maximizing the overall efficiency of your system.
With our comprehensive range of products, you can find the perfect combination of motor and worm gear reducer to meet your specific requirements. Whether it's for industrial applications, automation systems, or any other application that requires reliable power transmission, we have the solutions you need.
We are a comprehensive transmission equipment manufacturer specializing in research and development, manufacturing, and sales of speed reducers. With over 20 years of experience, we have become a trusted provider of gearboxes, serving customers in Europe, America, Africa, Asia, and beyond. Our commitment to quality, service, and competitive pricing has earned us a reputation in the market.
At Raydafon, we prioritize innovation and quality, which is why we have invested in advanced production and testing equipment. Our team of industry professionals and technicians ensures that each gearbox is meticulously designed, manufactured, and tested to meet the highest standards. We take pride in offering high-quality, energy-efficient, and reliable products to our customers.
Our gearboxes find applications in various industries, including equipment manufacturing, food processing, car wash systems, packaging, automation, solar energy, and more. We welcome customers to explore our products and contact us for any inquiries or purchase requirements. With Raydafon, you can expect superior service, top-quality products, and competitive prices.
A: Yes, the design of the gearbox allows for flexible installation in limited spaces.
