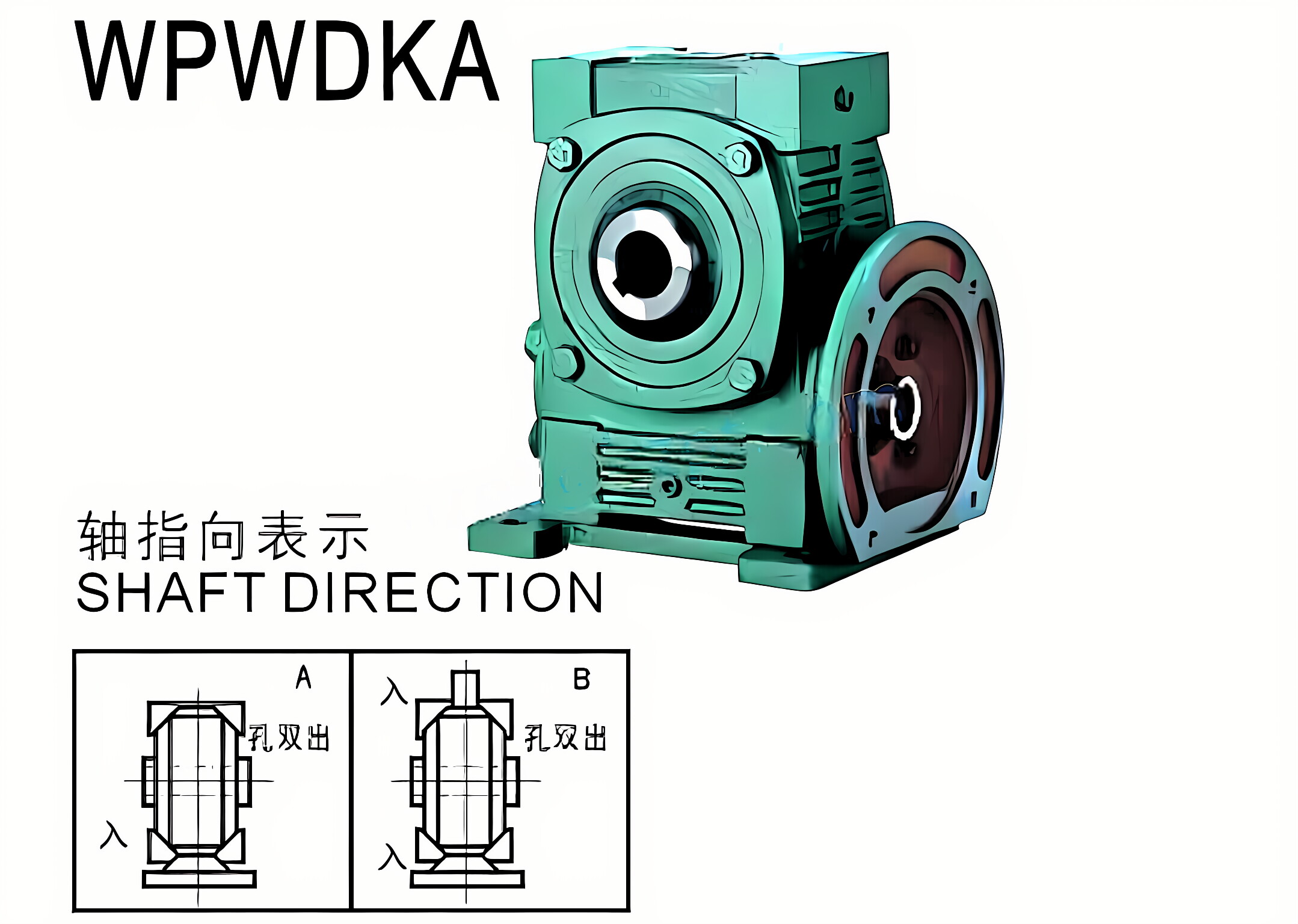

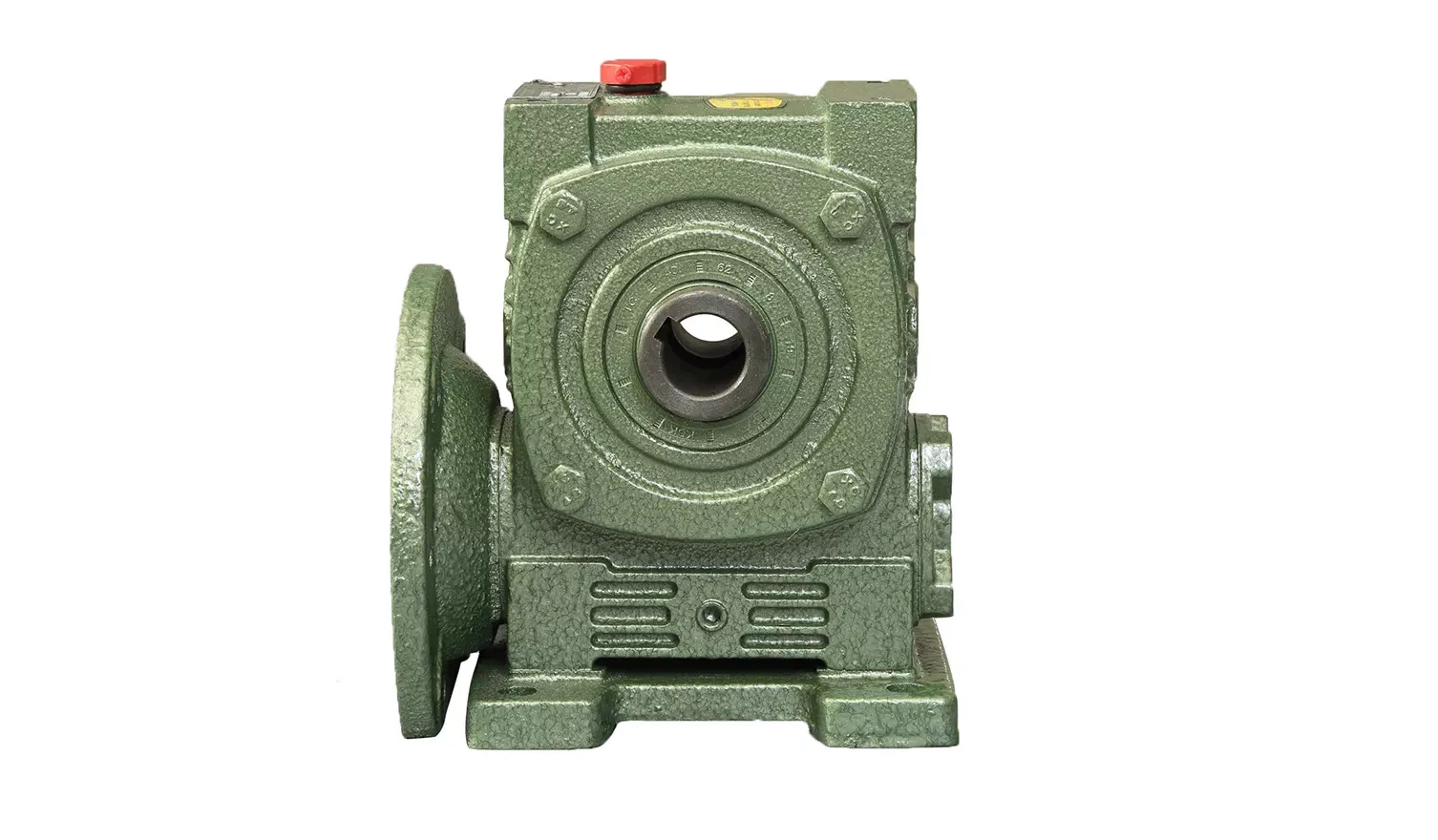

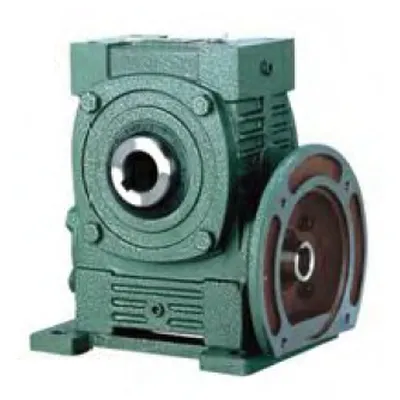

WPWDKA Series Universal Speed Worm Gearboxes

WPWDKA Series Universal Speed Worm Gearboxes

WPWDKA series reducer, modular design, shell made of HT200 cast iron. With high strength, beautiful appearance, good heat dissipation effect, long service life, low noise, and so on. Easy connection with other power sources, simple installation advantages. WPWDKA series reducer is practical transmission equipment, and the type classification and body volume are more in line with the equipment configuration requirements.Two combined into a double stage to achieve a more excellent transmission ratio and output torque. WPWDKA series reducer can be combined with an ordinary motor, frequency conversion motor, brake motor, continuously variable speed machine, etc. It can also be connected with various equipment by coupling into different transmission devices, and product serialization and the modular structure can be suitable for a full range of applications.

WPWDKA Standard Worm Gear Speed Reducer

Type	WPWDKA standard worm gear speed reducer
Model	WPWDKA 40-250
Ratio	1:10,15,20,25,30,40,50,60
Color	Blue/Silver Or On Customer Request
Material	Housing: Die-Cast Iron cast
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC.
	Shaft-chromium steel-45#
Packing	Carton and Wooden Case
Bearing	C&U Bearing
Seal	KSK
Warranty	1 Year
Input Power	0.06KW,0.09KW
Usages	Industrial Machine: Food Stuff, Ceramics, Chemicals, Packing, Dyeing,Woodworking, Glass.
IEC Flange	56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON
Lubricant	Synthetic&Mineral

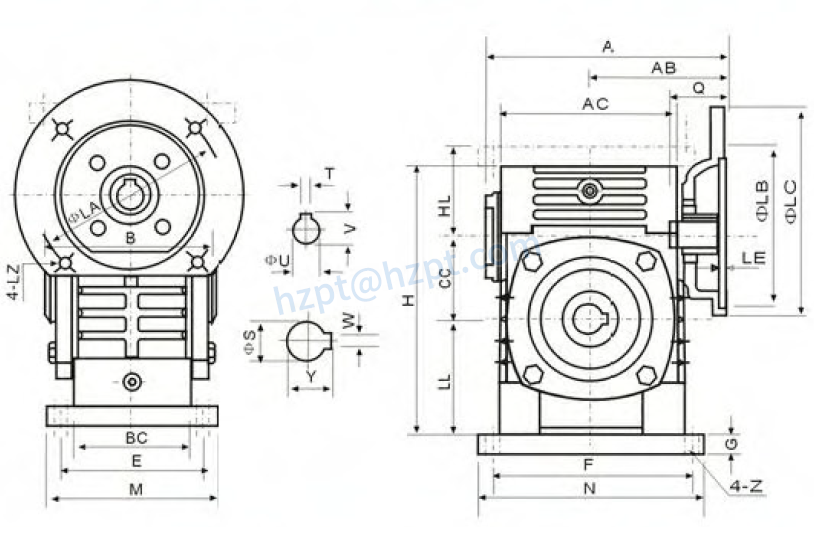

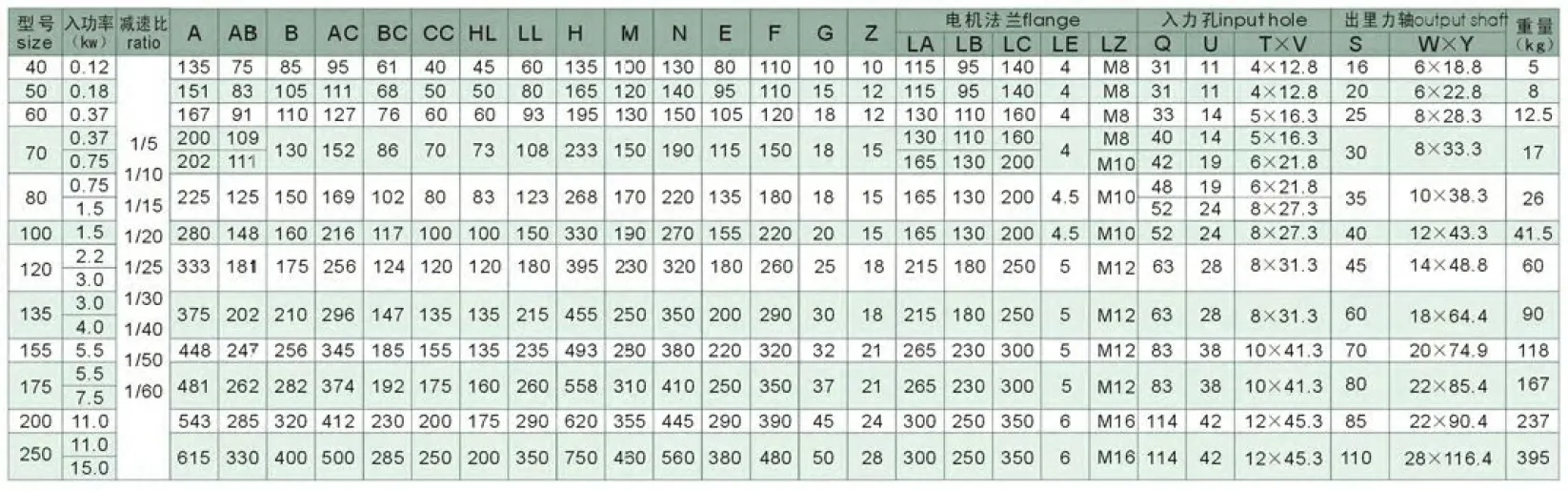

Product Specifications

Features of WPWDKA Universal Speed Worm Gearboxes:

1. High quality, It adopts hard tooth gear with high accuracy2. Large output torque, stable transmission with lower noise3. High heat-radiating efficiency, elegant shape, durable service life4. Suitable for Omni-bearing installation5. Low noise and smooth running6. Worm drive uses hollow flank worm7. High loading capacity, low-temperature rise, and the long useful life8. Few differences between transmission ratio rate, I = 6~138009. Compact structure, small size, convenient maintenance

The Reason for the Large Vibration of the Turbine Worm Reducer?

The main components of the turbine worm reducer are worm gear, worm, bearing, casing, etc., and others include oil seals, oil caps, bolts, etc. Turbine and worm reducers are widely used in the chemical industry, printing, packaging, lifting, food, and other fields. However, various failures will inevitably occur during use, and abnormal vibrations during operation are related to these components. According to experience analysis, the reasons for the strange vibration of the worm gear reducer are as follows:1. Installation quality problems, poor fixation;2. The turbine and worm are worn or damaged;3. The bearing is damaged or poorly lubricated;4. There are foreign objects, such as particulate metal, inside.Standard maintenance methods such as re-fixing the turbine and worm reducer, replacing the turbine, worm, bearing, and lubricating oil are generally adopted to deal with the failure. These failures are usually caused by non-standard installation, use, or maintenance.

Company Profile

We have rich experience, abundant technical force, advanced test equipment, steady and credible product quality, and a group of the colossal research team. As a specialized manufacturer of Archimedean worm reduction domestically, our company constantly introduces advanced technology from abroad to develop and produce worm reduction. Our products are widely used in many trades, such as metallurgy, the chemical industry, hoisting, mining, petroleum, textile, medical treatment, woodworking, etc. Our company provides outstanding educators, and satisfying our clients is our eternal pursuit. Our products are exported to the USA, Japan, Korea, Southeast Asia, etc.

FAQ

Q1. What information should I tell you to confirm the worm gearbox?A: Model/sizeB: Ratio and output torqueC: Power and flange typeD: Shaft directionE: Housing colorF: Order quantityQ2. What type of payment methods do you accept?A: T / TB: B / LC: CASHQ3. What's your warranty?One year.Q4. How to deliver?A: By sea- Buyer appoints forwarder, or our sales team finds a suitable forwarder for buyers.B: By air- Buyer offers to collect express account, or our sales team finds suitable express for buyers. (Mostly for sample)C: Other- We arrange to deliver goods to some place in China appointed by buyers.Q5. Can you make OEM/ODM order?Yes, we have rich experience on OEM/ODM orders and like signing Non-disclosure Agreements before sample making.
