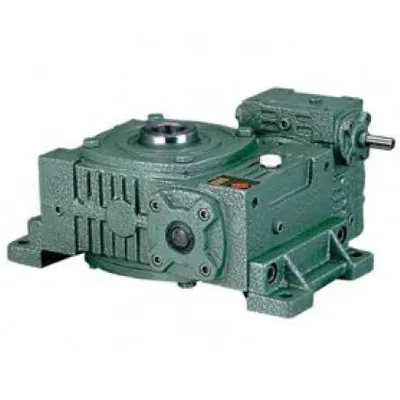

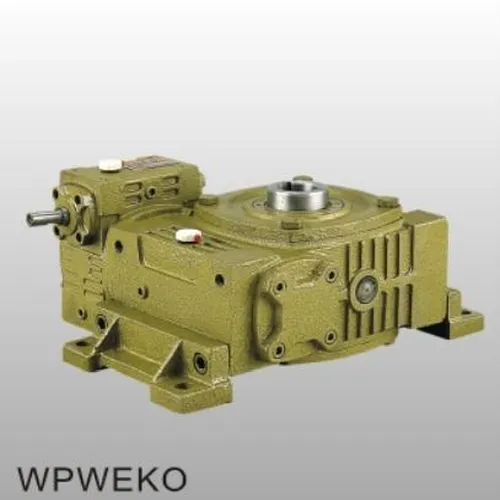

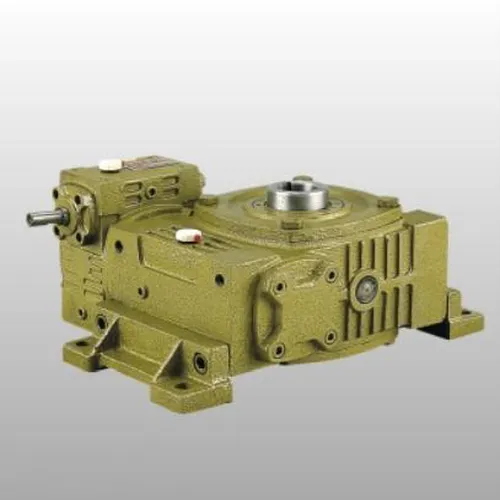

WPWEKO Series Double Stage Worm Gearboxes

Precautions for the Use of Worm Gearboxes

1. Ensure assembly quality. Some special tools can be purchased or made by yourself. When disassembling and installing the parts of the reducer, try to avoid knocking with hammers and other devices; when replacing gears, worm gears, and worms, try to use original accessories and replace them in pairs; when assembling the output shaft, pay attention to Tolerance fit; use an anti-sticking agent or red dan oil to protect the hollow shaft to prevent wear and rust or scale on the mating area, which is difficult to disassemble during maintenance.2. Selection of lubricating oil and additives. Membrane to prevent direct metal-to-metal contact during heavy loads, low speeds, high torque, and start-up. Worm gear reducers generally use 220# gear oil. For reducers with heavy loads, frequent starting, and poor use environment, some lubricating oil additives can make the gear oil adhere to the gear surface when the reducer stops running, forming a protective effect. The additive contains a seal ring adjuster and anti-leakage agent, which keeps the seal ring soft and elastic and effectively reduces the leakage of lubricating oil.3. Selection of the installation location of the reducer. If the location allows, try not to use vertical installation. During vertical installation, the amount of lubricating oil added is much higher than that in horizontal installation, which may easily cause the reducer to heat up and leak oil.4. Establish a lubrication maintenance system. The reducer can be maintained according to the "five-determination" principle of lubrication work so that each reducer has a responsible person to check regularly, and it is found that the temperature rise is obvious. When more copper powder and abnormal noise are located in the machine, stop using it immediately, repair it in time, remove the fault, and replace the lubricating oil. When refueling, pay attention to the amount of oil to ensure that the reducer is adequately lubricated. The gearbox cleaning and maintenance machine can also be selected to use the gearbox's original oil supply and discharge system and the filtered lubricating oil to clean the gearbox without changing any hardware facilities of the gearbox and adding any cleaning agent to ensure the safe operation of the gearbox. , extending the service life of the gearbox.

Packing and Transportation

●Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.
