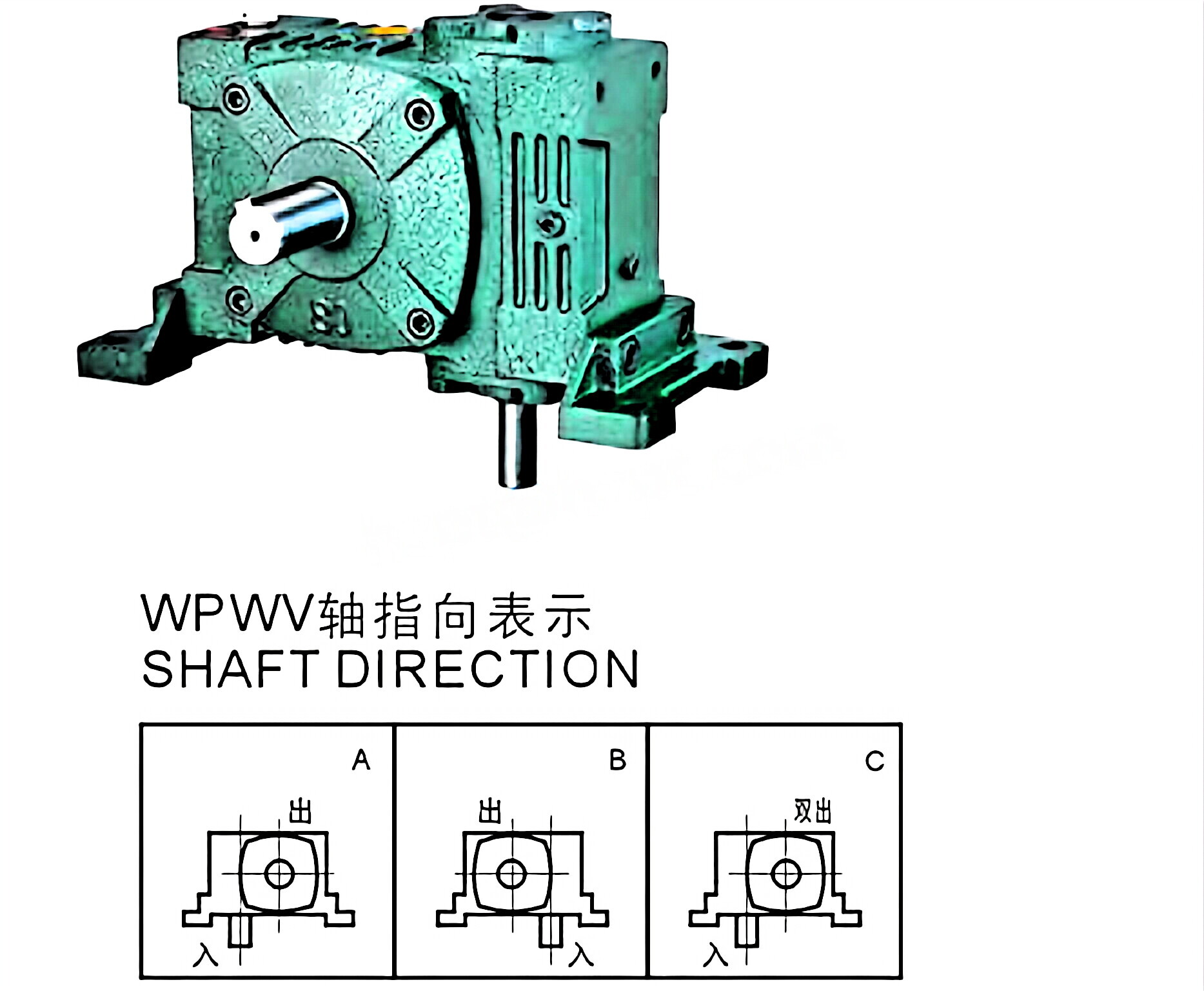

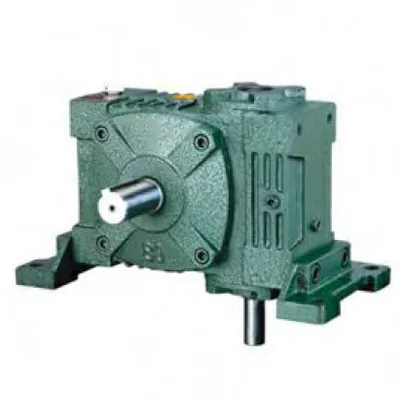

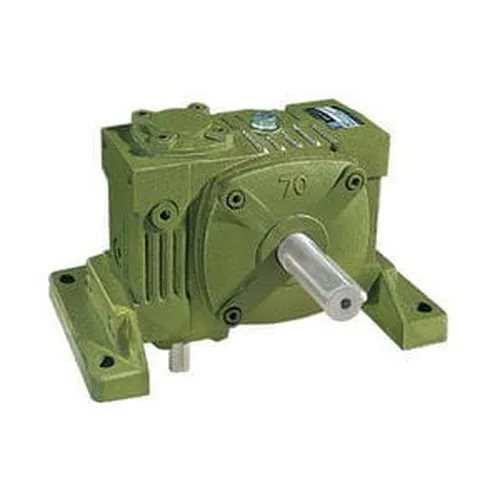

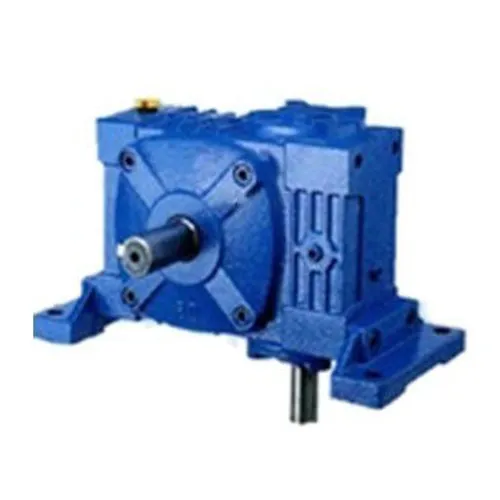

WPWV Series Universal Speed Worm Gearboxes

WPWV Series Universal Speed Worm Gearboxes

WPWV series worm gearbox is one of the WP series worm gear reducers. It consists of worm and worm gear. It has a compact structure, large transmission ratio, and self-locking function under certain conditions. It is one of the most commonly used reducers. Not all worm gear reducer has good self-locking function; the self-locking function of worm gear can only be realized when the speed ratio reaches a certain level. This is related to the lead Angle; the self-locking function of worm gear with a small speed ratio is not ideal.

WPWV Worm Transmission Reducer

Type	WPWV 40~250
Ratio	5, 10, 15, 20, 25, 30, 40, 50, 60
Color	Blue/Green Or On Customer Requests
Material	Housing: Die-Cast Iron cast
	Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC.
	Shaft-chromium steel-45#
	Carton and Wooden Case
Bearing	C&U Bearing
Seal	KSK
Warranty	1 Year
IEC Flange	56B5, 63B5, 71B5, 80B5, 90B5, 100B5, 132B5, 160B5
Lubricant	Synthetic&Mineral

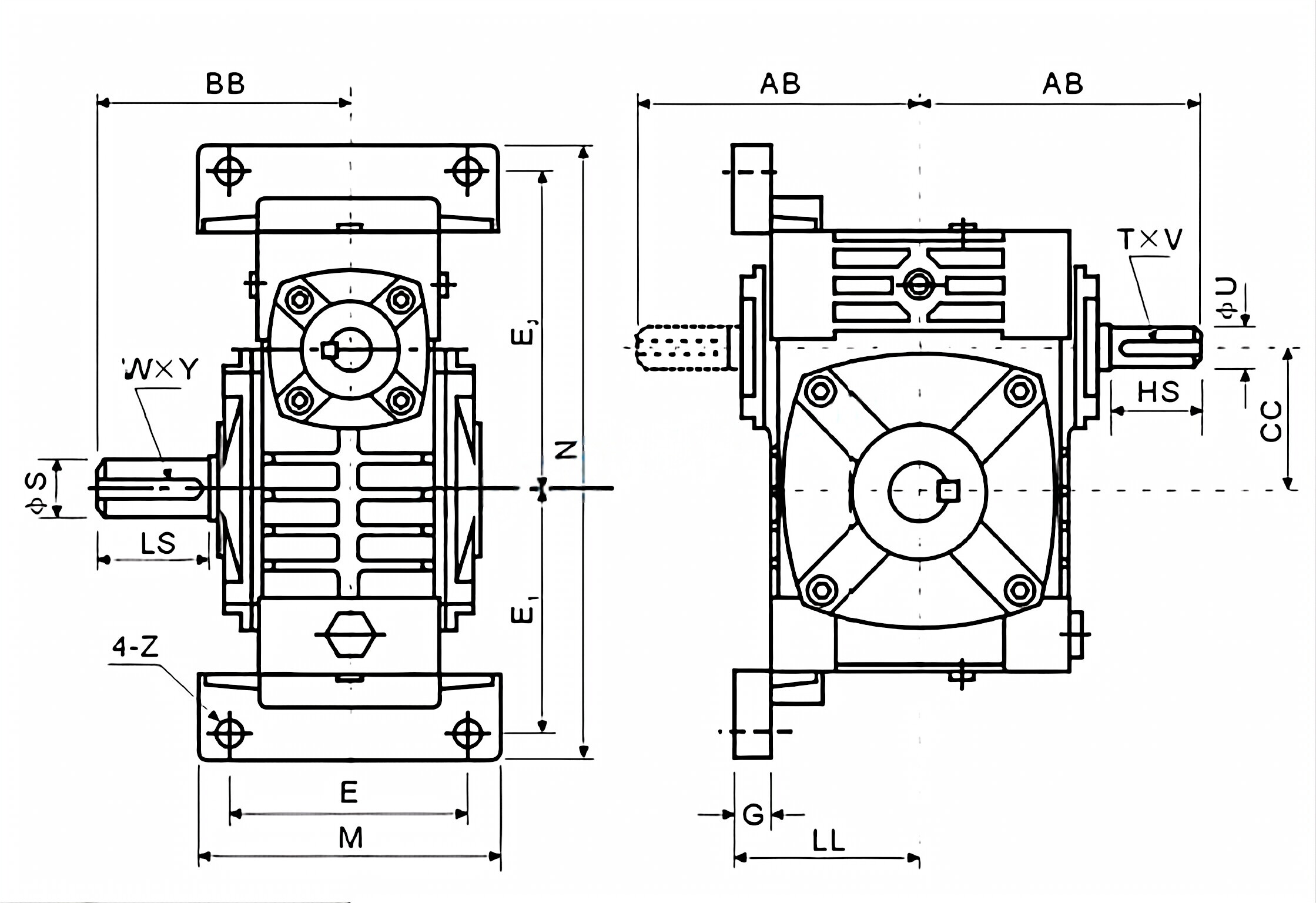

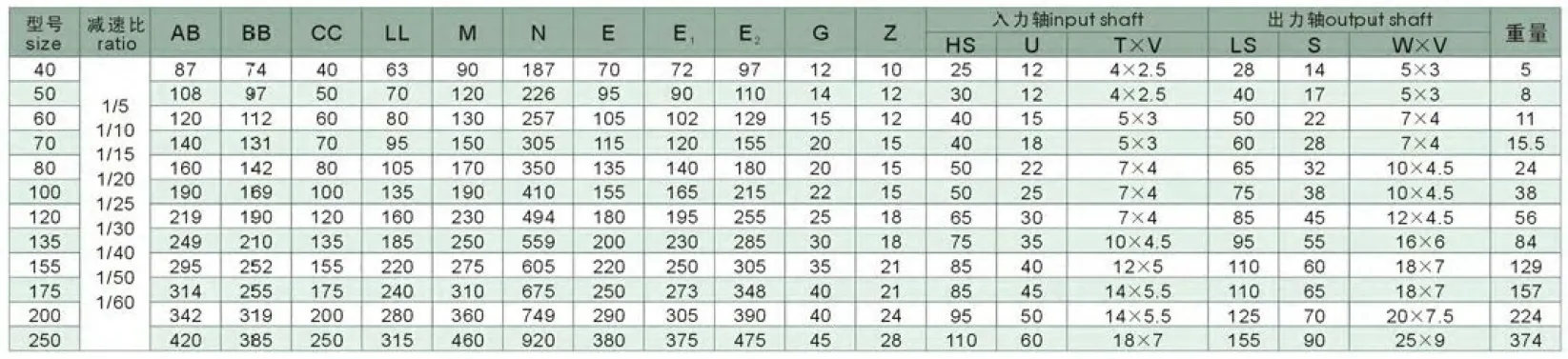

Specifications Parameter

WPWV Worm Transmission Reducer Advantages

1. Product advantages: High modular design, making all the series apply fewer components, and it can be convenient to equip electric motors or other driving forces of various types.2. The gear unit applies a low-carbon alloy steel quenching gear grinding process and shape-correction technology, making the product have a larger bearing capacity. The operation is reliable, which can decrease noise and improve efficiency. The transmission ratio is divided into details, and the scope is wide. Combined type can obtain a larger transmission ratio.3. The cabinet applies integral and high-strength casting mode, which has high rigidity and vibration resistance performance.4. Gear unit is appropriate for mounting at any space and Angle.Gear reducer boxes transfer rotation and torque from the motor to the working machine. Most reducer gearboxes are used to decrease speed by gears in the gearbox.Reducer gearbox is widely used in modern machinery systems since its ratio can be up to 1:100 easily, which is much bigger than all gears box. Its abscission is much smaller than all gears when the balance is identical.

Company Profile

We handle power transmission products; our lines mainly cover series products in speed reducers, gearboxes, associated electrical motors, and other accessories. Based on their versatile functions, our products can be utilized in many fields: wastewater treatment machines, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers worldwide.Furthermore, the R&D investment is increasing annually to meet our customers' new demands better and adapt to the recent tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you.

FAQ

Q: Are you a trading company or manufacturer?A: We are a factory.Q: How long is your delivery time?A: Generally, it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock.Q: Can we buy one pc of each item for quality testing?A: We are glad to accept a trial order for quality testing.Q: How to choose a gearbox that meets your requirement?A: You can refer to our catalog to choose the gearbox, or we can help to decide when you providethe technical information of required output torque, speed, and motor parameters.Q: What information shall we give before placing a purchase order?A: a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor information.b) Housing color.c) Purchase quantity.d) Other special requirements.
