WR78/ WH78 Offset Sidebar Welded Steel Chain A-Plate Sprockets

Discover the robust performance of Raydafon Group's WR78/WH78 Offset Sidebar Welded Steel Chain A-Plate Sprockets, engineered for industrial durability and precision. These high-strength sprockets are crafted with welded steel and an offset sidebar design, ensuring reliable power transmission in heavy-duty applications like manufacturing and agriculture. Ideal for engineers and maintenance professionals, they offer enhanced efficiency, reduced downtime, and superior longevity compared to standard options. Trust Raydafon Group to elevate your machinery with innovative solutions that deliver confidence and productivity—request a quote today to experience the difference!

Send Inquiry

Product Description

WH78XHD-A Sprocket

This WH78 sprocket will work with both WR78 welded steel chain and WH78 welded steel chain. We can supply this sprocket manufactured out of mild steel or QT400 hardened steel and either solid construction, split to bolt, split for welding construction per request. Also we can supply this sprocket machined or precision hobbed for high-speed applications. Additionally, we can supply this sprocket as a brass, nylon or UHMW idler complete with grease grooves and grease fittings. WR78/ WH78 Offset Sidebar Welded Steel Chain A-Plate Sprockets

Will Work With WR78 Chain & WH78 Chain
Premium Quality Chain Sprocket
Wide Range Of Options Available
Best Pricing From USA Roller Chain & Sprockets

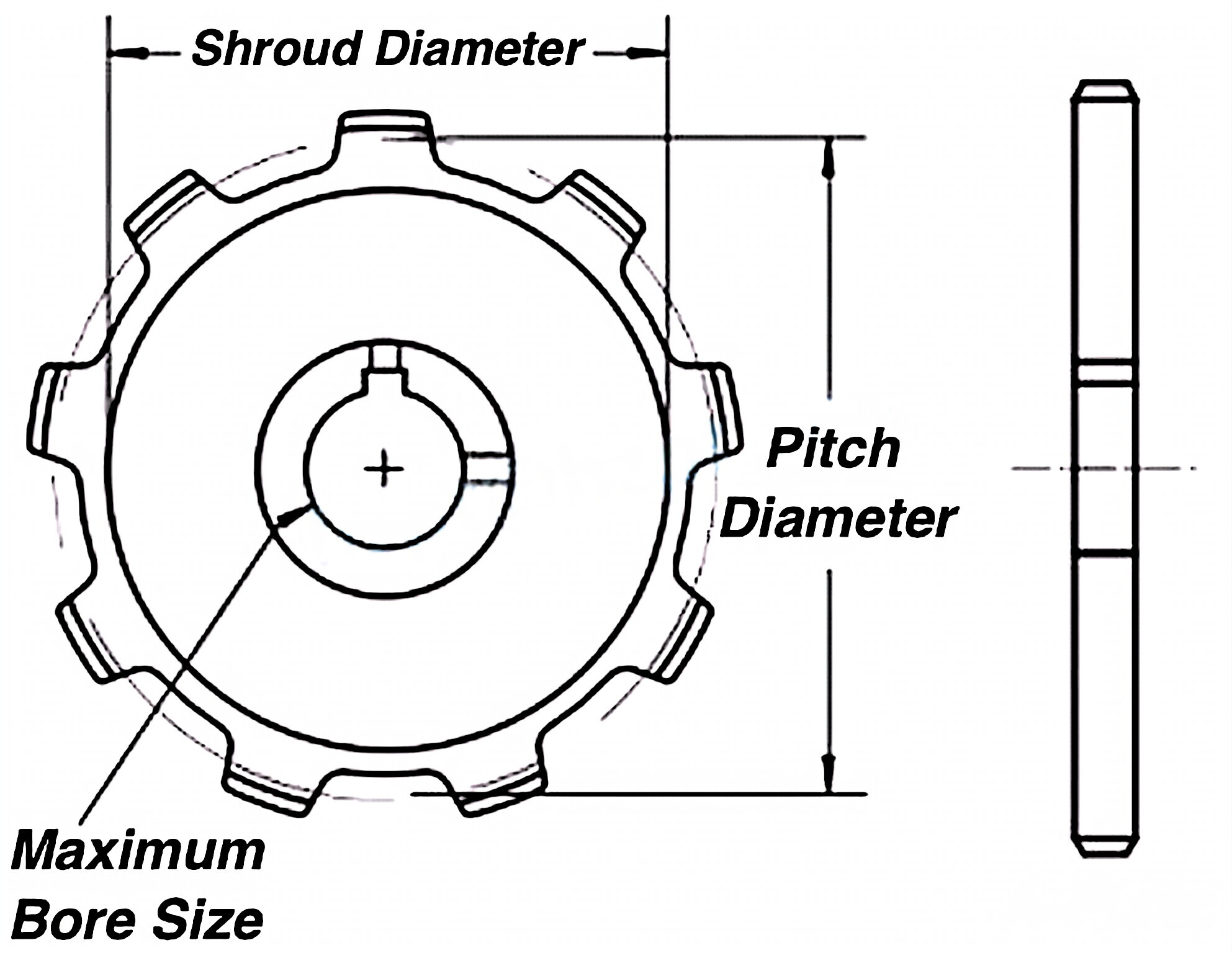

Sprocket Number	Number Of Teeth	Pitch	Pitch Diameter	Style	Shroud Diameter	Barrel Diameter	Tooth Face	Maximum Bore	Weight
WH78-A7	7	2.609"	6.01"	A-Plate	4.150"	0.875"	1.000"	2.1875"	7.50 LBS
WH78-A8	8	2.609"	6.82"	A-Plate	5.040"	0.875"	1.000"	2.4375"	9.00 LBS
WH78-A9	9	2.609"	7.630"	A-Plate	5.920"	0.875"	1.000"	2.6875"	11.00 LBS
WH78-A10	10	2.609"	8.44"	A-Plate	6.776"	0.875"	1.000"	2.9375"	14.00 LBS
WH78-A11	11	2.609"	9.260"	A-Plate	7.640"	0.875"	1.000"	3.4375"	17.00 LBS
WH78-A12	12	2.609"	10.080"	A-Plate	8.500"	0.875"	1.000"	3.4375"	20.00 LBS
WH78-A12	13	2.609"	10.900"	A-Plate	9.35"	0.875"	1.000"	3.9375"	23.00 LBS
WH78-A14	14	2.609"	11.720"	A-Plate	10.180"	0.875"	1.000"	4.9375"	27.00 LBS
WH78-A15	15	2.609"	12.550"	A-Plate	11.030"	0.875"	1.000"	4.9375"	31.00 LBS
WH78-A16	16	2.609"	13.370"	A-Plate	11.860"	0.875"	1.000"	4.9375"	35.00 LBS
WH78-A17	17	2.609"	14.200"	A-Plate	12.710"	0.875"	1.000"	4.9375"	38.00 LBS
WH78-A18	18	2.609"	15.020"	A-Plate	13.550"	0.875"	1.000"	4.9375"	41.00 LBS
WH78-A19	19	2.609"	15.850"	A-Plate	14.380"	0.875"	1.000"	4.9375"	44.00 LBS
WH78-A20	20	2.609"	14.200"	A-Plate	12.710"	0.875"	1.000"	5.9375"	47.00 LBS

We aslo offer a full range of both precision roller chain and engineered.Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
