WT-125 CNC Rotary Table

Introduction to CNC Rotary Table

A CNC Rotary Table is a precision work positioning device used in metalworking. It enables the operator to cut or drill work at exact intervals around a fixed axis. The WT-125 CNC Rotary Table, specifically, plays a crucial role in the field of numerical control machine tools by providing efficient and high-precision machining operations.

Application of WT-125 CNC Rotary Table

The WT-125 CNC Rotary Table is versatile and finds its application in a wide range of industries such as automotive, energy, military, aerospace, and 3C industry. It is widely used in various processing equipment, including non-standard automatic special machines and metal cutting machines.

Features of the WT-125 CNC Rotary Table

• Large aperture design
• High segmentation accuracy
• High rigidity and high performance
• High efficiency and strong braking structure system

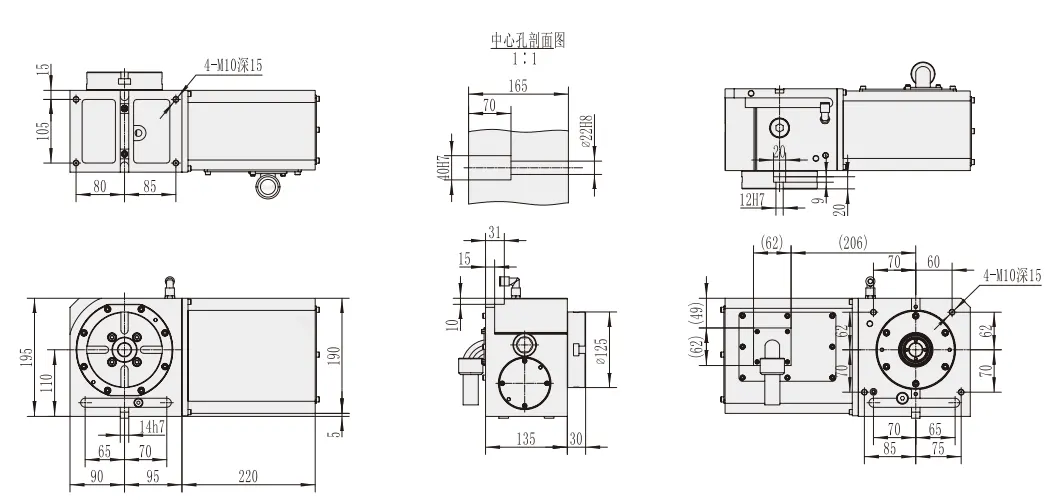

Dimension Parameters

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Positioning Button	Min lncrement
WT-125	??125mm	??40mm	??22mm	110mm	12H7mm	14H7mm	0.001??

Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed Reduction\Ratio	Maximun Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight??Without Motor??
20""	4""	13kg.m	??4is;HF-105	1:60	66r.p.m	2kg.cm.sec2	9Kg.m	40Kg

Max.load

Vertical: 50KGHorizontal: 80KGTailstock applied: 80KG

Structure and Types of CNC Rotary Tables

The CNC Rotary Table generally consists of two primary types: the horizontal and vertical rotary tables. The choice between the two depends widely on the specific application requirements.

worm gear and Worm Group in WT Series CNC Rotary Table

• High precision
• Double lead
• High rigidity
• Wear resistance
• Special high rigidity materials
• High torque transmission efficiency
• Use of large bore worm gears

Safety Precautions and Maintenance

When using the CNC rotary table, it is vital to follow all safety precautions. Regular maintenance and upkeep are also essential to ensure the equipment's long-term stable operation.

About Raydafon

Raydafon, as a supplier of CNC turntable, actively develops R & D innovation and production technology. Raydafon has always adhered to the business philosophy of "honesty based, harmony based, technology-based, industry competitive". The company's products are widely used in various processing equipment, such as non-standard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, military, aerospace and other fields.We encourage you to explore this product and contact us for any purchase inquiries. Trust in Raydafon for all your CNC turntable needs.Edited by Zqq.
