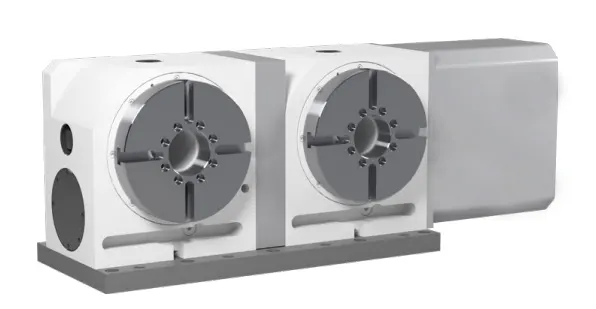

WT-170-2W CNC Rotary Table

Introduction to CNC Rotary Table

A CNC Rotary Table is a precision work positioning device used in metalworking. It allows the operator to cut or drill work at exact intervals around a fixed (usually vertical or horizontal) axis. The WT-170-2W model is designed with a range of features that enhance performance, efficiency, and accuracy.

Product Features

• Large aperture design
• High segmentation accuracy
• High rigidity
• High performance
• High efficiency
• Strong brake structure
• Center distance can be lengthened

Product Specifications

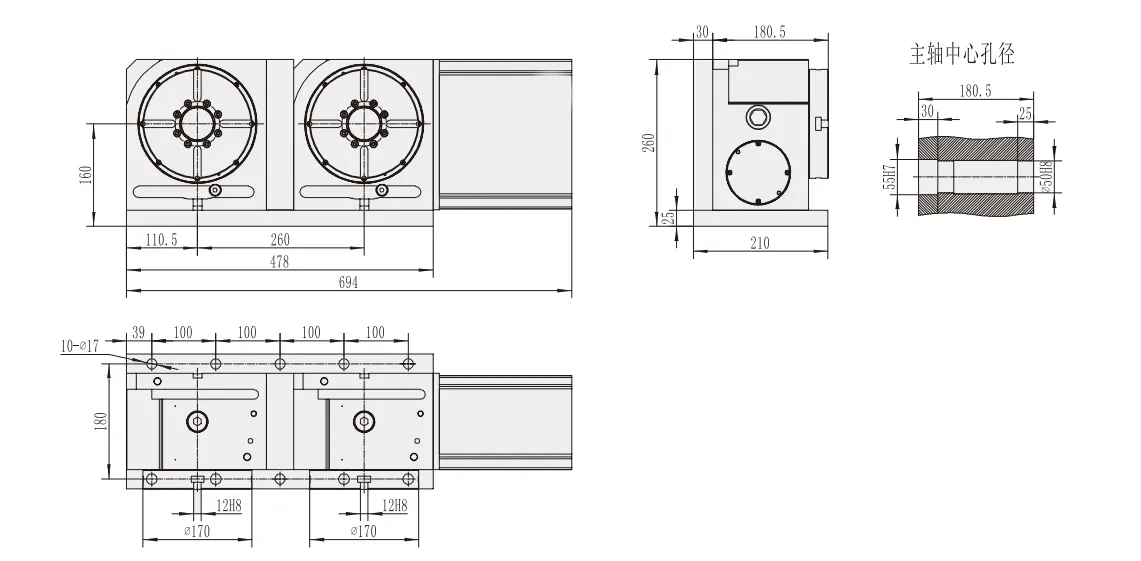

Dimension Parameters

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	Center Distance	T-Slot Width	Positioning Button	Min lncrement
WT-170-2W	170mm	55H7mm	50mm	160mm	260mm	12H7mm	14H7mm	0.001°
Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed ReductionRatio	Maximun Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight（Without Motor）
15"	4"	31kg.m	β8is;HF-104	1:90	33.3r.p.m	5.4kg.cm.sec2	18Kg.m	150Kg

Max.load

Vertical: 80KGTailstock applied: 160KG

About CNC Rotary Table

The CNC Rotary Table is made up of three main components: the spindle, the drive system, and the control system. The spindle is the axis that rotates the workpiece or tool, the drive system provides power to the spindle, and the control system controls the speed and direction of the spindle.

Applications of CNC Rotary Table

• Manufacturing: The CNC rotary table is used for manufacturing various parts such as automotive parts, electronic components, and medical equipment.
• Machining: The CNC rotary table is used for machining different materials such as metal, plastic, and wood.
• Testing: The CNC rotary table is used for testing various products including tires, bearings, and electronic equipment.

Advantages of CNC Rotary Table

• Increased production efficiency: The CNC rotary table can automatically rotate the workpiece or tool, thus enhancing production efficiency.
• Improved product quality: The CNC rotary table ensures that the workpiece or tool maintains a precise position during rotation, thereby improving product quality.
• Reduced labor costs: The CNC rotary table reduces the need for manual labor, thus lowering labor costs.

Choose Raydafon for Quality CNC Rotary Tables

Raydafon is a leading supplier of CNC rotary tables, including the WT-170-2W model. We prioritize innovative R&D and manufacturing technology to meet the rapidly changing needs of our customers. Our business philosophy is based on honesty, harmony, technology, and industry competitiveness. We have cooperated with domestic and foreign machine tool manufacturers to develop high-precision rotary tables that meet diverse processing needs. Our products are widely used in various processing equipment in the 3C, automotive, energy, military, and aerospace fields.Discover the quality and performance of our CNC rotary tables today. Contact us for more information and to make a purchase.

Common Q&A

1. Q: Can the center distance of the WT-170-2W model be lengthened?A: Yes, the center distance can be lengthened.
2. Q: What is the maximum load of the WT-170-2W model?A: The maximum load is 80KG vertically and 160KG when tailstock is applied.
3. Q: What are the applications of CNC Rotary Tables?A: They are used in manufacturing, machining, and testing various parts and products.
