WT-210 CNC Rotary Table

Introduction to CNC Rotary Table

The WT-210 CNC Rotary Table, a key component in CNC machine tools, plays an essential role in precise positioning and machining. This high-precision device enables the workpiece to rotate at specific angles or continuously, allowing the machine to perform complex operations such as spiral lines, arcs, and circles. It's extensively used in various fields, including automotive, electronics, aerospace, and more.

Product Features and Specifications

Key Features

• Large aperture design
• High segmentation accuracy
• High rigidity and high performance
• High efficiency and strong braking structure system

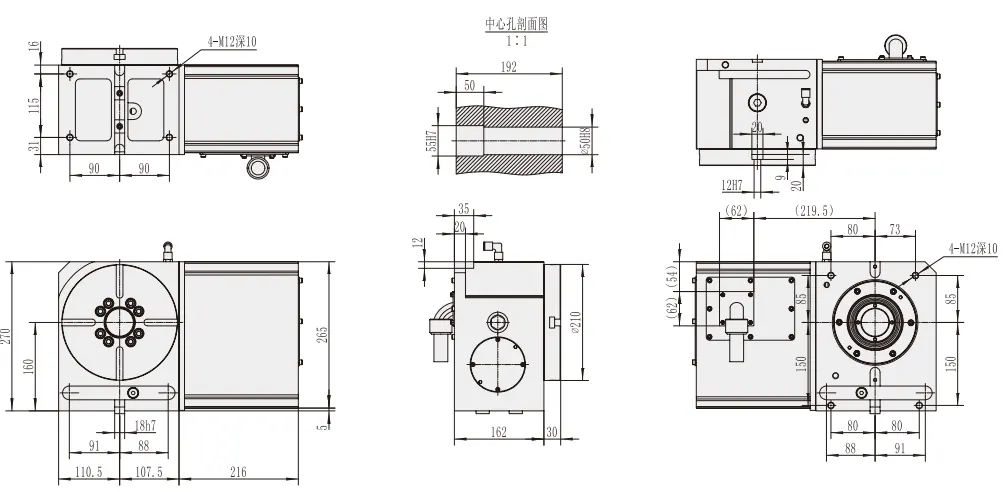

Dimension Parameters

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Positioning Button	Min lncrement
WT-210	??210mm	??55H7mm	??50mm	160mm	12H7mm	18H7mm	0.001??
Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed Reduction\Ratio	Maximun Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight??Without Motor??
20 ??	4 ??	45kg.m	??8is;HF-104	1:72	55.5r.p.m	8.3kg.cm.sec2	18Kg.m	70Kg

Load Capabilities

Vertical: 80KGHorizontal: 160KGTailstock applied: 160KG

Product Highlights

Common Structures and Types of CNC Rotary Table

With the advancement of technology, CNC rotary tables have evolved into various forms, such as horizontal and vertical rotary tables. Horizontal rotary tables are typically used in milling machines for precision angle settings and indexing. In contrast, vertical rotary tables are primarily used in vertical machining centers for 4th axis machining.

Worm Gear and Worm Group in WT Series CNC Rotary Table

• High precision
• Double lead
• High rigidity
• Wear resistance
• Special high rigidity materials
• High torque transmission efficiency
• Use of large bore worm gears

worm gear Group">

Safety Precautions and Maintenance Tips

About Raydafon

Raydafon, one of the leading suppliers of CNC turntables, champions R&D innovation and production technology. We design CNC rotary tables tailored to our customers' needs, showcasing our company's innovative prowess and manufacturing capabilities. We're committed to providing professional services and becoming a leading brand in China's machine tool industry.Explore our WT-210 CNC Rotary Table and contact us today for any inquiries or purchases!

Frequently Asked Questions

Edited by Zqq.
