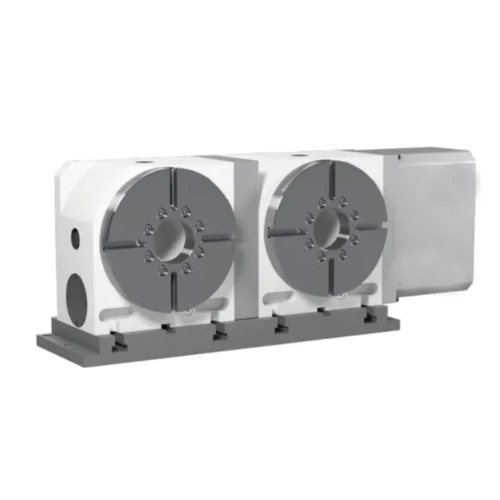

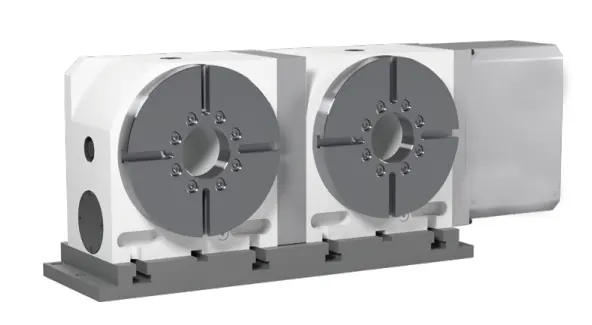

WT-255-2W CNC Rotary Table

The WT-255-2W CNC Rotary Table is a high-performance device used in CNC machine tools to improve efficiency, accuracy, and performance. It features a large aperture design, high segmentation accuracy, high rigidity, and a strong braking structure system. The center distance can also be lengthened, making it versatile for different operations.

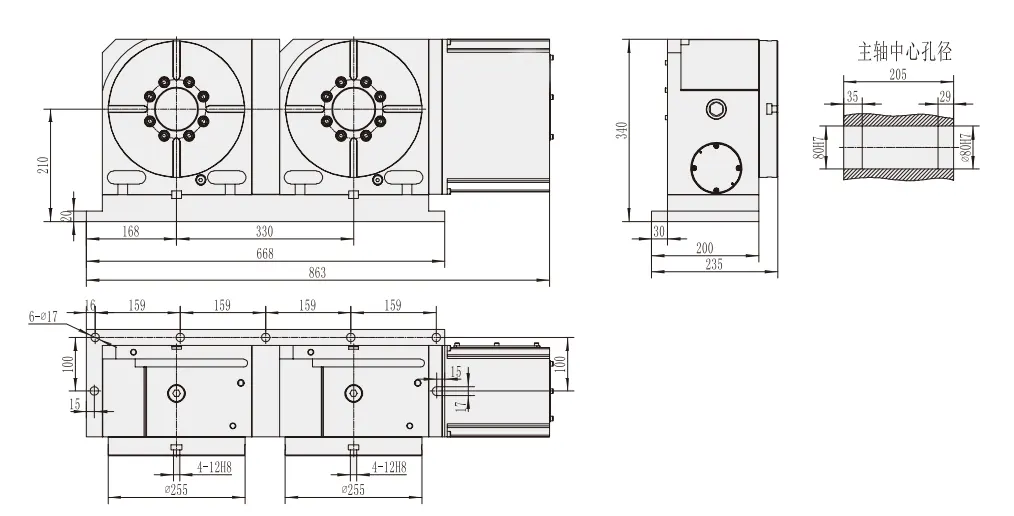

Product Specifications

Let's take a closer look at the specifications of the WT-255-2W CNC Rotary Table:

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	Center Distance	T-Slot Width	Positioning Button	Min lncrement
WT-255-2W	Φ255mm	Φ80H7mm	Φ80mm	210mm	330mm	12H7mm	18H7mm	0.001°
Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed ReductionRatio	Maximun Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight（Without Motor）
15"	4"	70kg.m	β8is;HF-154	1:120	33.3r.p.m	20.3kg.cm.sec2	55Kg.m	240Kg

Maximum Load

Vertical: 100KGTailstock applied: 250KG

Working Principle of CNC Rotary Table

The CNC Rotary Table is composed of three basic parts: the spindle, the drive device, and the control system. The spindle rotates the workpiece or tool, the drive device powers the spindle, and the control system controls the speed and direction of the spindle.

Applications of the WT-255-2W CNC Rotary Table

The WT-255-2W CNC Rotary Table is versatile and used in various industries, including manufacturing, processing, and testing. It can be used to manufacture various parts such as automotive parts, electronic components, and medical devices. It can also process a variety of materials, including metals, plastics, and wood. In testing, it can be used to test various products such as tires, bearings, and electronic devices.

Advantages of Using the WT-255-2W CNC Rotary Table

The CNC Rotary Table offers several benefits, including increased production efficiency, improved product quality, and reduced labor costs. Its automated rotation of the workpiece or tool increases efficiency, and its ability to maintain accurate positioning during rotation enhances product quality. The automation also reduces the need for manual labor, helping to lower labor costs.

Raydafon: Your Reliable CNC Rotary Table Manufacturer

Raydafon is a leading supplier of CNC Rotary Tables, including the WT-255-2W model. We are committed to developing innovative R&D and production technologies to meet the rapidly changing needs of our customers. Our products, including 4-axis, 5-axis CNC turntables, and horizontal 4-axis turntables, are widely used in various processing equipment in 3C, automotive, energy, military, aerospace, and other fields.We encourage you to explore the benefits of our WT-255-2W CNC Rotary Table. Contact us today to learn more and make a purchase.

Common Questions About the WT-255-2W CNC Rotary Table

Q: What is the maximum load capacity of the WT-255-2W CNC Rotary Table?A: The maximum vertical load is 100KG, and with tailstock applied, it is 250KG.Q: What industries can use the WT-255-2W CNC Rotary Table?A: It is versatile and can be used in manufacturing, processing, and testing industries, among others.Q: What are the benefits of using the WT-255-2W CNC Rotary Table?A: Benefits include increased production efficiency, improved product quality, and reduced labor costs.Edited by Zqq.
