WT-255 CNC Rotary Table

Introduction to CNC Rotary Table

The CNC Rotary Table stands as a crucial precision tool within CNC machining centers, holding immense significance. It serves as a vital component in numerous operations like milling, drilling, reaming, and boring. The WT-255 CNC Rotary Table facilitates accurate positioning and machining, presenting itself as an optimal selection for the exacting requirements within the realm of CNC machining.

Application Areas of the WT-255 CNC Rotary Table

The WT-255 CNC Rotary Table is a versatile tool used in various industries for precise positioning, indexing, and machining of workpieces. Its applications span across different sectors, including:

• Manufacturing and Machining: CNC rotary tables are extensively used in manufacturing processes such as milling, drilling, and grinding. The WT-255 enables multi-axis machining, allowing for complex and precise operations on workpieces.
• Aerospace Industry: In aerospace manufacturing, precision is crucial. CNC rotary tables aid in machining intricate components like turbine blades, engine parts, and structural components with high accuracy.
• Automotive Industry: These rotary tables play a vital role in creating engine components, gear parts, and other intricate automotive parts that demand high precision.
• Medical Device Manufacturing: For manufacturing medical devices and implants that require intricate designs and precise measurements, CNC rotary tables assist in achieving the necessary precision and accuracy.
• Electronics Manufacturing: In the production of electronic components and devices, precision machining is crucial. Rotary tables aid in creating intricate parts of electronics such as circuit boards, connectors, and housings.
• Tool and Die Making: Tool and die makers utilize CNC rotary tables to create molds, dies, and precise tooling required in various industries.
• Customized Prototyping: In research and development or prototyping scenarios, the versatility of CNC rotary tables allows for the creation of prototypes with complex geometries and precise specifications.
• Optical and Precision Instruments: Manufacturing components for optical devices, measuring instruments, and other precision equipment relies on the accuracy provided by CNC rotary tables.
• Jewelry Making: Crafting intricate and detailed jewelry pieces often involves precise machining of metal components, which can be accomplished efficiently using CNC rotary tables.
• General Engineering Applications: Beyond specific industries, these rotary tables find applications in general engineering tasks requiring precision positioning, cutting, or machining.

The WT-255 CNC Rotary Table's ability to precisely rotate workpieces in multiple axes and its compatibility with CNC machines make it a valuable tool across a wide range of industries requiring high-precision machining.

Product Features and Specifications of the WT-255 CNC Rotary Table

• Large aperture design
• High segmentation accuracy
• High rigidity and high performance
• High efficiency and strong braking structure system

The following table presents the detailed specifications of this product:

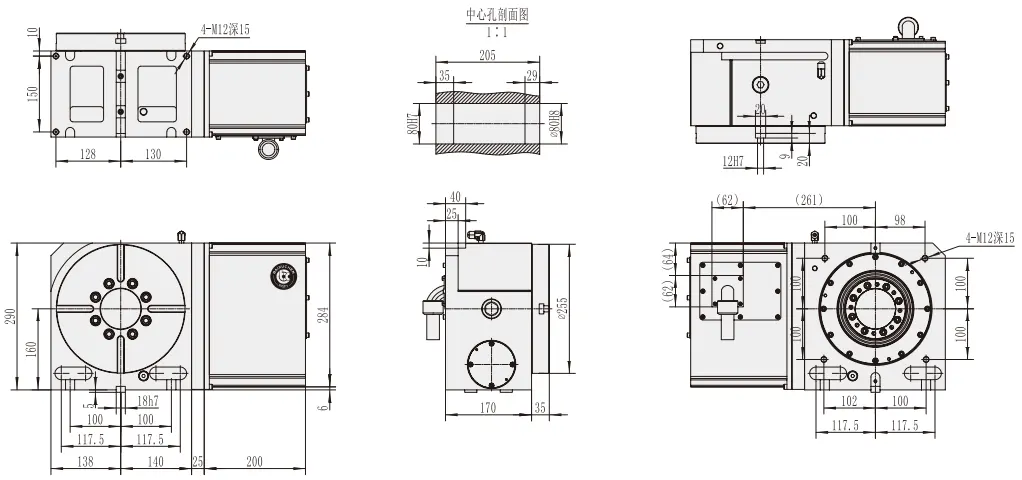

Dimension Parameters

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Positioning Button	Min lncrement
WT-255	Φ255mm	Φ80H7mm	Φ80mm	160mm	12H7mm	18H7mm	0.001°
Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed ReductionRatio	Maximun Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight（Without Motor）
15 ″	4 ″	70kg.m	β8is;HF-154	1:120	33.3r.p.m	20.3kg.cm.sec2	55Kg.m	105Kg

Max.load

Vertical: 100KGHorizontal: 250KGTailstock applied: 250KG

Common Structures and Components of CNC Rotary Tables

The CNC Rotary Table is typically available in horizontal and vertical configurations, each with their unique applications. Horizontal rotary tables are often used for machining asymmetric parts, while vertical rotary tables are ideal for parts requiring multiple sides machining.

About Raydafon

Raydafon is one of the leading suppliers of CNC Rotary Table. With a commitment to R&D innovation and production technology, Raydafon designs customer-centric CNC rotary tables. The company prides itself on its ability to keep pace with the rapidly changing needs of its customers. Raydafon's main products are 4-axis and 5-axis CNC rotary tables and horizontal 4-axis rotary tables for tool machine tools. The company also offers solutions for CNC precision rotary tables or swing mechanisms.

Explore the WT-255 CNC Rotary Table Today!

Experience the precision and efficiency of the WT-255 CNC Rotary Table. Contact us today to learn more about this product and make your purchase!Edited by Zqq.
