WT-320 CNC Rotary Table

Introduction to CNC Rotary Table

WT-320 CNC Rotary Table

Product Features and Specifications

Key Features

• Generous aperture construction
• Exceptional precision in segmentation
• Superior rigidity and performance
• Efficient and robust braking system

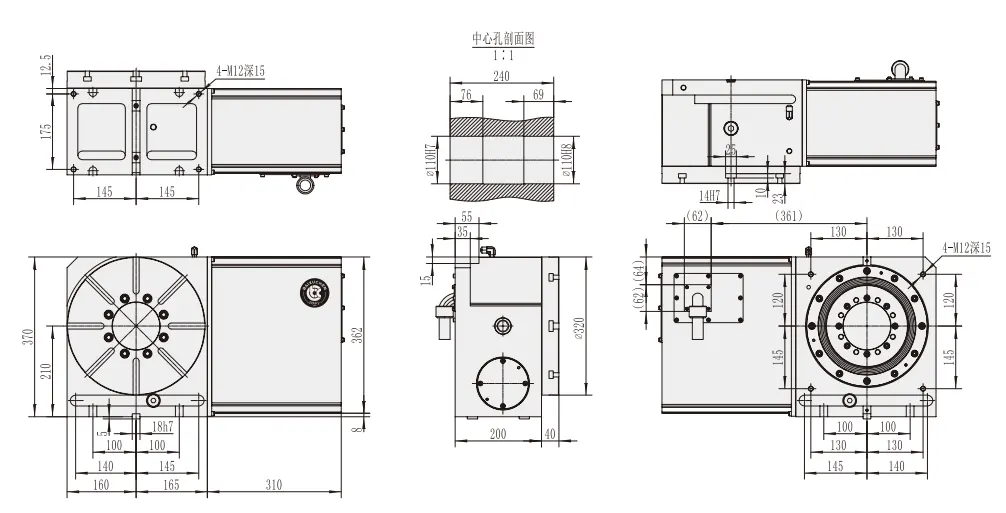

Dimension Parameters

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Positioning Button	Min lncrement
WT-320	Φ320mm	Φ110H7mm	Φ110mm	210mm	14H7mm	18H7mm	0.001°
Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed ReductionRatio	Maximun Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight（Without Motor）
15 ″	4 ″	115kg.m	β22is;HF-204	1:120	33.3r.p.m	44.8kg.cm.sec2	80Kg.m	175Kg

Max.load

Vertical: 150KGHorizontal: 350KGTailstock applied: 350KG

Common Structures and Types of CNC Rotary Table

With the advancement of technology, CNC rotary tables have evolved into various forms, such as horizontal and vertical rotary tables. Horizontal rotary tables are typically used in milling machines for precision angle settings and indexing. In contrast, vertical rotary tables are primarily used in vertical machining centers for 4th axis machining.

Applications of WT-320 CNC Rotary Table

The WT-320 CNC Rotary Table is a versatile tool used in various industries for precision machining and manufacturing. Its application areas include:

1. Automotive Industry: Used in the manufacturing of automotive components such as gears, shafts, and engine parts where precision and accuracy are crucial.
2. Aerospace Industry: Employed for machining complex aerospace components like turbine parts, aircraft landing gear, and other intricate structures requiring high precision.
3. Medical Equipment: Utilized in manufacturing medical devices and components, including implants and surgical instruments, where precision is essential for functionality and safety.
4. Tool and Die Making: Helps in the production of molds, dies, and tools by providing accurate positioning and rotation for machining various materials.
5. Electronics Manufacturing: Used in creating precise components for electronic devices, such as circuit boards and semiconductor parts.
6. General Manufacturing: Applied in a wide range of manufacturing processes for producing precise components used in various industries like consumer goods, industrial equipment, and more.
7. Prototyping and R&D: Essential for creating prototypes and conducting research and development in different fields due to its accuracy and ability to produce complex shapes.
8. Defense Industry: Utilized for manufacturing parts for defense applications, including weaponry, military vehicles, and other specialized equipment.

The CNC rotary table's ability to provide precise and controlled rotational movements makes it a valuable tool across multiple industries requiring accuracy and intricacy in their manufacturing processes.

About Raydafon

Raydafon, one of the leading suppliers of CNC turntables, champions R&D innovation and production technology. We design CNC rotary tables tailored to our customers' needs, showcasing our company's innovative prowess and manufacturing capabilities. We're committed to providing professional services and becoming a leading brand in China's machine tool industry.Explore our WT-320 CNC Rotary Table and contact us today for any inquiries or purchases!Edited by Zqq.
