WT-400 CNC Rotary Table

Introduction to WT-400 CNC Rotary Table

WT-400 CNC rotary table is a high-performance industrial rotary table that can be used for a variety of applications. It features a wide range of motion, high accuracy, and easy operation.

The WT-400 CNC rotary table can rotate up to 360 degrees in both directions. It has a positioning accuracy of ±0.005 degrees, which ensures precise and repeatable results. The table is also easy to use, with a simple control panel that allows users to set the desired rotation speed and angle.

The WT-400 CNC rotary table is a versatile tool that can be used for a variety of applications. It is ideal for machining, welding, and 3D printing. The table is also a good choice for applications that require precise rotation, such as optical alignment and laser cutting.

WT-400 CNC Rotary Table Features

• Large aperture design
• Suitable for heavy load machining
• High segmentation accuracy
• High rigidity and high performance
• High efficiency and strong braking structure system

Specifications of the WT-400 CNC Rotary Table

The following table presents the detailed specifications of this product:

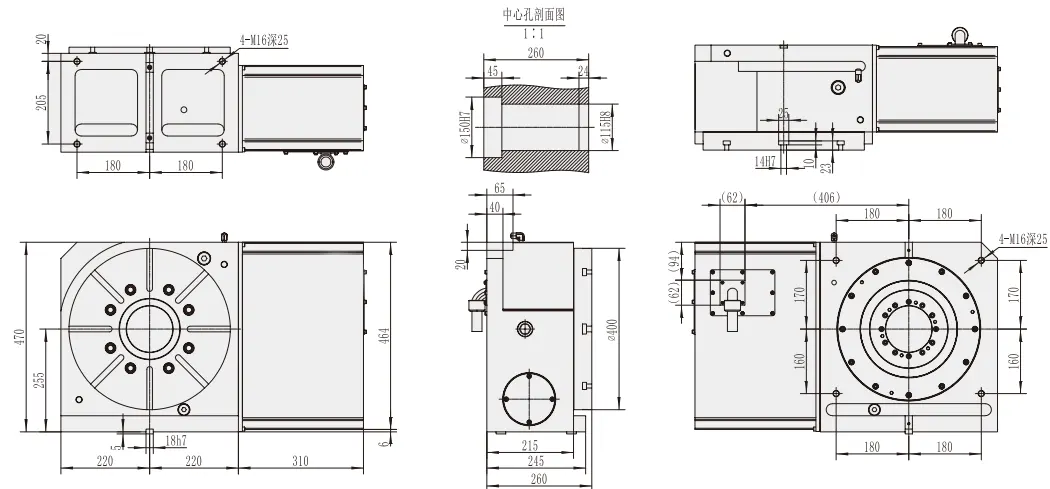

Dimension Parameters

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Positioning Button	Min lncrement
WT-400	400mm	150H7mm	115mm	255mm	14H7mm	18H7mm	0.001°
Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed ReductionRatio	Maximun Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight（Without Motor）
15 ″	4 ″	200kg.m	β22is;HF-204	1:120	33.3r.p.m	100kg.cm.sec2	170Kg.m	320Kg

Max.load

Vertical: 200KGHorizontal: 500KGTailstock applied:500KG

WT-400 CNC Rotary Table Applications

The WT-400 CNC rotary table can be used for a variety of applications in a variety of industries, including:

• Machining: The table can be used to rotate workpieces for machining operations such as milling, drilling, and turning. This allows for precise and repeatable results, even on complex parts.

• Welding: The table can be used to rotate workpieces for welding operations such as arc welding, TIG welding, and MIG welding. This allows for consistent weld quality and reduced distortion.

• 3D printing: The table can be used to rotate workpieces for 3D printing operations. This allows for complex parts to be printed with ease and accuracy.

• Optical alignment: The table can be used for optical alignment applications such as laser alignment and camera calibration. This allows for precise alignment of optical components, which is essential for many applications.

• Laser cutting: The table can be used for laser cutting applications. This allows for precise cutting of complex shapes and materials.

The WT-400 CNC rotary table is a versatile tool that can be used for a variety of applications. It is a valuable asset for any industrial application that requires precise rotation.

WT-400 CNC Rotary Table Advantages

• Precision: The WT-400 CNC rotary table has a positioning accuracy of ±0.005 degrees, ensuring precise and repeatable results. This is important for precision machining applications such as machining and welding.
• Range of motion: The WT-400 CNC rotary table can rotate 360 degrees in both directions. This is useful for applications that require rotation, such as optical alignment and laser cutting.
• Ease of use: The WT-400 CNC rotary table comes with a simple control panel that allows users to easily set the desired rotation speed and angle. This makes it suitable for both beginners and experienced users.
• Versatility: The WT-400 CNC rotary table can be used for a variety of applications. It is an ideal choice for machining, welding, 3D printing, and other applications.

Overall, the WT-400 CNC rotary table is a high-performance, versatile industrial rotary table with the advantages of precision, range of motion, ease of use, and versatility. It is a valuable asset for any industrial application that requires precise rotation.

About Raydafon

Raydafon is one of the leading suppliers of CNC Rotary Table. With a commitment to R&D innovation and production technology, Raydafon designs customer-centric CNC rotary tables. The company prides itself on its ability to keep pace with the rapidly changing needs of its customers. Raydafon's main products are 4-axis and 5-axis CNC rotary tables and horizontal 4-axis rotary tables for tool machine tools. The company also offers solutions for CNC precision rotary tables or swing mechanisms.

Explore the WT-400 CNC Rotary Table Today!

Experience the precision and efficiency of the WT-400 CNC Rotary Table. Contact us today to learn more about this product and make your purchase!Edited by Zqq.
