WT-RT125 CNC Machine Indexing Rotary Table Worm and Worm Gear

A Comprehensive Overview of the CNC Rotary Table

A CNC rotary table is a precision work positioning device used in metalworking. It enables the operator to rotate or index the workpiece to precise angles or increments that are set by the control unit of the machine. The WT-RT125 is an indexing rotary table model designed by Raydafon (Ningbo Raydafon). It features a worm and worm gear system with an impressive precision capability.

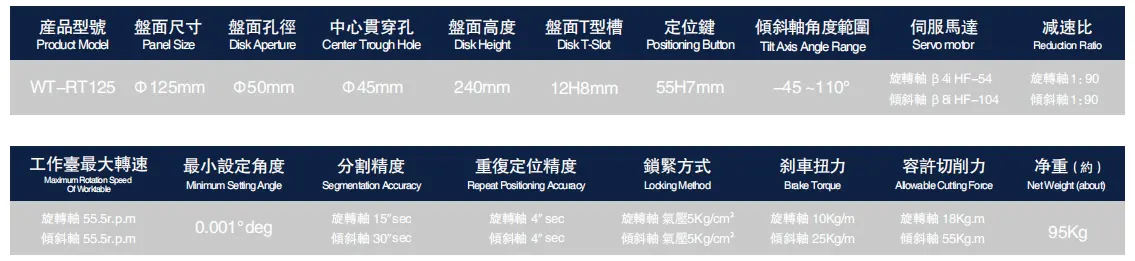

Product Specifications

Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	95 Kg
Brake:	Pneumatic / Hydraulic
Customization:	Available| Customized Request

Features of the WT-RT125 CNC Rotary Table

• Five-axis linkage machining: This feature enables complex machining that involves simultaneous movement in five different axes.
• High segmentation accuracy: The table provides high precision in terms of rotation and indexing.
• High performance and efficiency: The WT-RT125 offers high-speed operation without sacrificing accuracy and stability.
• Strong braking system: The pneumatic or hydraulic brake ensures safe and secure positioning of the table.
• Optional hydraulic brake: This feature provides an additional safety measure during operation.

Working Principle of the CNC Rotary Table

The CNC Rotary Table comprises three primary components: the main spindle, the drive device, and the control system. The main spindle is the axis that rotates the workpiece or tool. The drive device provides the power for the main spindle, and the control system controls the speed and direction of the spindle.

Applications of the CNC Rotary Table

The CNC Rotary Table is versatile and can be used in various machines, including Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, and Boring Machine.

Advantages of the CNC Rotary Table

The CNC Rotary Table not only increases production efficiency due to its capability to rotate the workpiece or tool automatically but also improves product quality by maintaining precise positioning during the rotation process. Furthermore, it reduces labor costs by decreasing the demand for manual labor.

Worm Gear System in CNC Rotary Tables

The worm gear system in the WT-RT125 CNC Rotary Table is designed for high torque output in a compact space. The worm, a screw-like structure, and the worm gear, a gear with more teeth than the worm, provide high gear ratios that ensure precise positioning and steady rotational motion. This makes the rotary table suitable for tasks that require precise control and stability.worm gear System">

Raydafon (Ningbo Raydafon) - Your Reliable CNC Rotary Table Provider

Raydafon is one of the leading suppliers of CNC rotary tables. With a strong commitment to R&D innovation and production technology, Raydafon designs and produces CNC rotary tables that meet the rapidly changing needs of customers. The company adheres to the business philosophy of "honesty based, harmony based, technology-based, industry competitive" and cooperates with domestic and foreign machine tool manufacturers to develop four-axis and five-axis high-precision rotary tables for various processing fields. Raydafon's products are widely used in various processing equipment in 3C, automotive, energy, military, aerospace, and other fields.We encourage you to explore our products and contact us for any queries or purchases. Invest in our high-quality, high-efficiency CNC rotary tables to improve your production efficiency and product quality while reducing labor costs.

Frequently Asked Questions

1. What is the quality guarantee period for the WT-RT125 CNC Rotary Table?We offer a one-year quality guarantee for the WT-RT125 CNC Rotary Table.
2. Do you perform factory inspections before shipping the CNC Rotary Table?Yes, we have a 100% self-inspection process before shipment to ensure the quality of our products.
3. What are the payment terms for purchasing the WT-RT125 CNC Rotary Table?For small orders, we require 100% payment in advance. For large orders, we can negotiate the payment terms.
