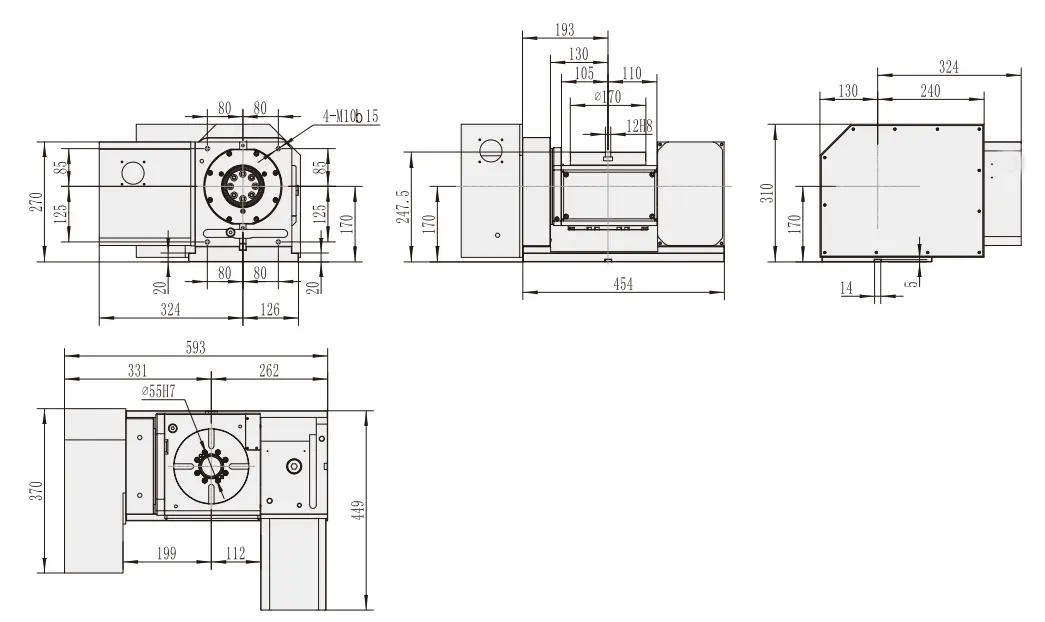

WT-S170 5th Axis Tilting Axis CNC Machine Use Hydraulic Brake 170mm Rotary Table

Product Introduction

Introducing the highly precise WT-S170 5th Axis Tilting Axis CNC Machine Use Hydraulic Brake 170mm Rotary Table. A CNC rotary table is a precision work positioning device used in metalworking. It enables the operator to rotate the workpiece around a third machine axis, an accessory to the milling machine. It provides precision work in degrees. The WT-S170 model offers a unique balance of strength, agility, and accuracy, making it a perfect choice for a wide range of CNC machining tasks.

Product Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Vertical And Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	150 Kg



Key Features

• Five axis linkage machining: This allows for complex machining that would be otherwise impossible or time-consuming with 3-axis machines.
• High segmentation accuracy: Ensures that the intricate designs are replicated with precision.
• High performance and high efficiency: Guarantees that tasks are completed on time, without compromising quality.
• Strong braking system: Ensures the machine remains stable during operation, promoting accuracy and safety.
• Optional hydraulic brake: Offers additional control and safety during machine operation.

How Does a CNC Rotary Table Work?

A CNC rotary table is comprised of three basic parts: the spindle, the drive unit, and the control system. The spindle is the axis that rotates the workpiece or tool. The drive unit provides power to the spindle. The control system regulates the speed and direction of the spindle.

Applications of CNC Rotary Table

Thanks to its versatility, the CNC rotary table is widely used across various machines such as Punching Machines, Grinding Machines, Slotting Machines, Milling Machines, Drilling Machines, Boring Machines, etc.

Advantages of Using a CNC Rotary Table

Using a CNC rotary table can significantly improve efficiency as it can automate the rotation of the workpiece or tool, thus increasing production speed. It also enhances product quality by maintaining precise positioning during the rotation process. Moreover, it reduces labor costs by minimizing the need for manual interventions.

Worm Gear System in CNC Rotary Tables

A worm gear is a spiral-like structure, similar to a propeller, and a worm wheel is the gear that pairs with it, typically having more teeth than the worm. This design provides a high transmission ratio, allowing for greater torque output within a smaller space. In CNC machines, rotary tables often use worm gear systems since they offer precise positioning and stable rotational motion, making them ideal for tasks requiring accurate control and stability.worm gear System">

Why Choose Raydafon's CNC Rotary Table?

Raydafon (Ningbo Raydafon), a leading supplier of CNC rotary tables, is renowned for its innovative R&D and high-quality production technology. We design CNC rotary tables that meet the specific needs of our customers, showcasing our strong innovation and manufacturing capabilities. Our main products include 4-axis and 5-axis CNC rotary tables and horizontal 4-axis rotary tables for machine tools. We also provide CNC precision turntable or swing mechanism solutions. We invite you to explore our product range and contact us for further discussions.

FAQs

Q: How long is the quality guarantee for the CNC rotary tables?

A: We offer a one-year quality guarantee for our CNC rotary tables.

Q: Are the products inspected before shipment?

A: Yes, all our products undergo a 100% self-inspection before shipment.

Q: Can the products and packages be customized?

A: Yes, we offer OEM services and can customize the products and packages according to your requirements.Edited by Zqq.
