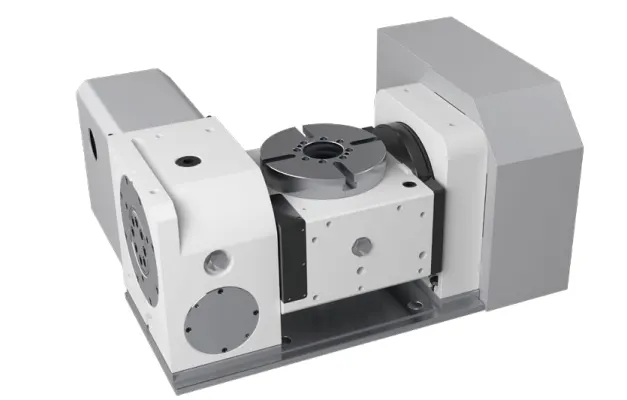

WT-S200 Pneumatic Brake 5th Axis Rotary Table CNC Machine Index Table Turntable

The CNC rotary table is an integral part of any CNC machine setup, offering increased precision and flexibility in machining processes. The WT-S200 Pneumatic Brake 5th Axis Rotary Table CNC Machine Index Table Turntable, developed by Raydafon (Ningbo Raydafon), is an excellent example of the power and potential of these devices. This article will provide an in-depth analysis of this product, its features, applications, and benefits.

Introduction to CNC Rotary Tables

A CNC rotary table is a precision work positioning device used in metalworking. It enables the operator to rotate the workpiece around a vertical or horizontal axis, offering an increased level of precision and flexibility in machining. The WT-S200 Pneumatic Brake 5th Axis Rotary Table CNC Machine Index Table Turntable is a model that stands out due to its advanced features and robust performance.

Product Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Vertical And Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	155 Kg

Key Features of the WT-S200 Pneumatic Brake 5th Axis Rotary Table CNC Machine Index Table Turntable

• Five axis linkage machining: Enhances the precision and flexibility of the machining process.
• High segmentation accuracy: Ensures the precision of the machined parts.
• High performance and high efficiency: Increases productivity and reduces operational costs.
• Strong braking system: Enhances the safety and reliability of the machine.
• Optional hydraulic brake: Provides an extra layer of control and safety.

How does a CNC Rotary Table Work?

A CNC rotary table is composed of three primary parts: the main spindle, the drive system, and the control system. The main spindle is the axis that rotates the workpiece or tool, the drive system provides power to the spindle, and the control system governs the speed and direction of the spindle. This arrangement ensures accurate and stable rotation, making it ideal for precision machining tasks.

Applications of CNC Rotary Tables

CNC Rotary tables are widely used in various machines such as Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine, etc.

Advantages of Using CNC Rotary Tables

CNC Rotary Tables offer numerous benefits including improved production efficiency, enhanced product quality, and reduced labor costs.

Worm Gear System in CNC Rotary Tables

Worm gears are spiral-shaped structures that resemble propellers, while worm wheels are the gears that mesh with them, typically having more teeth than the worm. This design provides a high transmission ratio, allowing for greater torque output in a smaller space. In CNC machines, rotary tables often use worm gear systems, as they provide precise positioning and stable rotational movement, making them ideal for tasks that require precision control and stability.

About Raydafon (Ningbo Raydafon)

Raydafon is one of the leading suppliers of CNC turntables. The company actively develops R&D innovation and production technology, fully cooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets the needs of customers. With the support from all walks of life, we will continue to advance in R&D and service, and strive to become a reliable professional service provider and leading brand in China's machine tool industry.

FAQs

Q: What is the quality guarantee for the WT-S200 Pneumatic Brake 5th Axis Rotary Table CNC Machine Index Table Turntable?A: We offer a one-year guarantee on all our products.Q: Is customization available for the WT-S200 Pneumatic Brake 5th Axis Rotary Table CNC Machine Index Table Turntable?A: Yes, we offer customized solutions to meet your specific requirements.Q: How are the products inspected before shipment?A: We conduct a 100% self-inspection before shipment to ensure the highest quality.Explore the possibilities of the WT-S200 Pneumatic Brake 5th Axis Rotary Table CNC Machine Index Table Turntable and contact us to make a purchase.Edited by Zqq.
