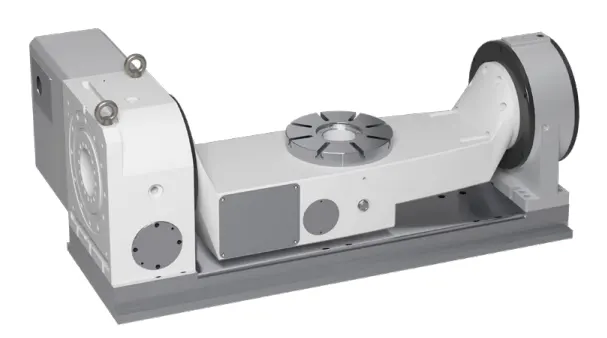

WT-SL255 High Precision 5 Axis Indexing Table for CNC Machine Rotary Table

Introduction to CNC Rotary Table

A CNC rotary table is a precision work positioning device used in metalworking. It enables the operator to precisely rotate workpieces on vertical or horizontal axes for machining multi-sided parts. The WT-SL255 model from Raydafon (Ningbo Raydafon) is a high-precision 5-axis indexing table, ideal for applications in Punching Machines, Grinding Machines, Slotting Machines, Milling Machines, Drilling Machines, and Boring Machines. It is made of durable stainless steel and weighs 600kg. The table can be used in both vertical and horizontal structures and has the ISO9001:2015 certification.

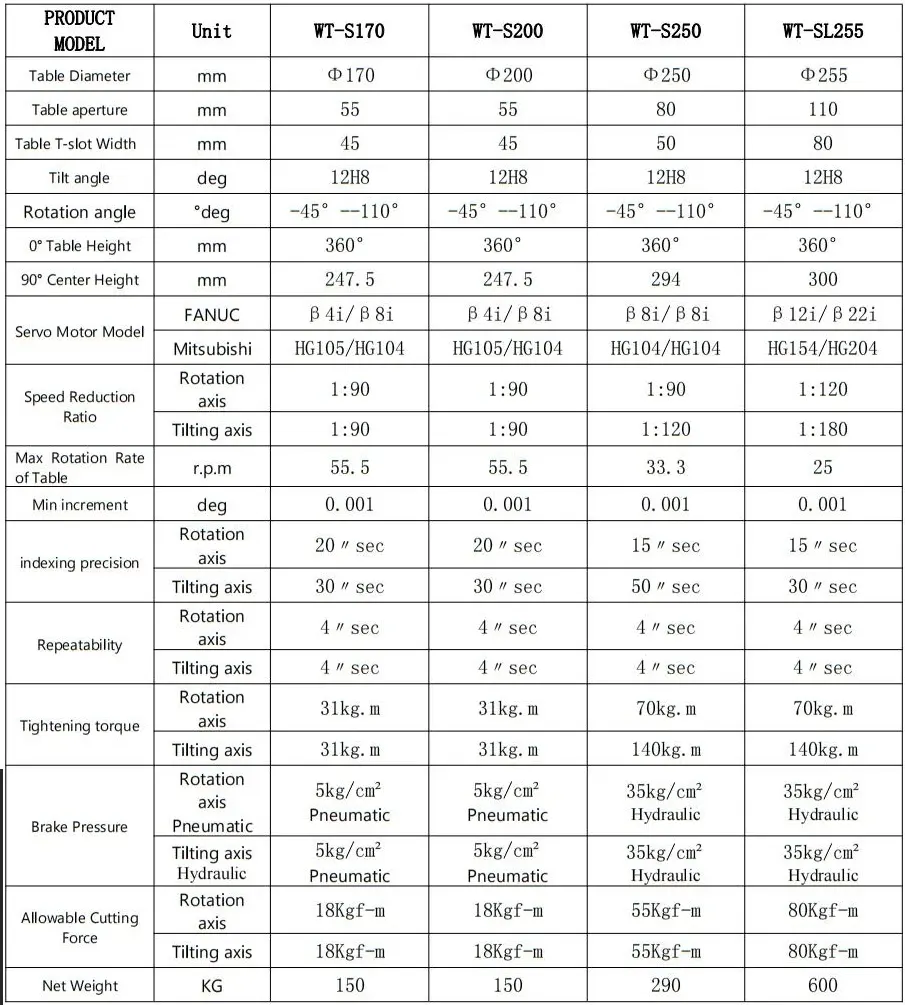

Product Features

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Vertical And Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	600 Kg

Key Features

• Cradle Type and Extended Type: The CNC rotary table comes in a variety of types to suit different machining requirements.
• Embracing Hydraulic Brake Mechanism: The tilting axis, rotating axis, and support seat all adopt this mechanism, ensuring high precision and stability.
• High Precision: The table ensures accurate and repeatable machining, reducing errors and increasing productivity.

Working Principle of CNC Rotary Table

The CNC rotary table comprises of three basic parts: the spindle, the drive, and the control system. The spindle is the axis that rotates the workpiece or tool, the drive provides power to the spindle, and the control system determines the speed and direction of the spindle??s rotation.

Advantages of CNC Rotary Table

Using a CNC rotary table can significantly enhance the productivity and quality of your machining processes. It improves efficiency by automatically rotating the workpiece or tool, thus reducing the need for manual intervention. The precise positioning of the CNC rotary table ensures high-quality products, while its automation capabilities minimize labor costs.

Worm Gear System in CNC Rotary Tables

Worm gears are spiral-shaped, similar to propellers, and worm wheels are the gears that mesh with them, usually having more teeth than the worm. This design provides high transmission ratios, enabling greater torque output within a smaller space. CNC machines often use a worm gear system in their rotary tables because it offers precise positioning and stable rotary movement, ideal for machining tasks that require accuracy and stability.worm gear Group">

Why Choose Raydafon's CNC Rotary Tables

Raydafon is a trusted supplier of CNC turntables, renowned for innovation and advanced production technology. We design and manufacture CNC rotary tables that cater to the dynamic needs of our customers, reflecting our commitment to R&D innovation and manufacturing capabilities. Our CNC rotary tables are widely used in various processing equipment, such as non-standard automatic special machines and metal cutting machines, serving industries such as 3C, automotive, energy, military, and aerospace. We invite you to explore the outstanding features and benefits of our products and contact us for your purchase needs.

Frequently Asked Questions

Q: Are you a trading company or a manufacturer?A: We are a manufacturer with over 15 years of experience, and you are welcome to visit our factory.Q: Can the products and the package be customized?A: Yes, we accept OEM. We can customize the products and packaging to your requirements.Q: How long is the quality guarantee?A: We offer a one-year quality guarantee for all our products.Edited by Zqq.
