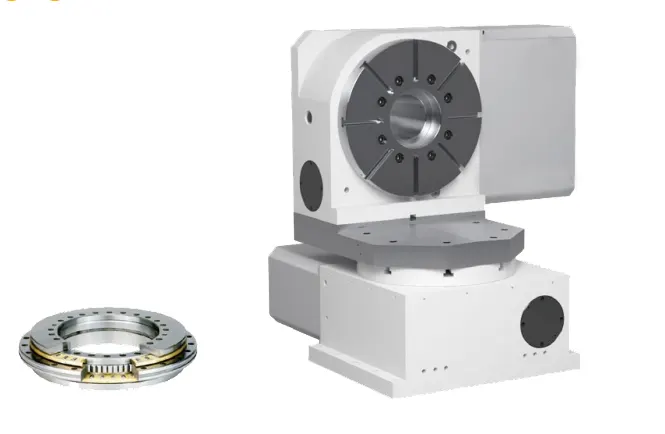

WT5S-H400 Water-Resistance 400mm CNC Machine 5 Axis Rotary Table

Introduction to CNC Rotary Table

The CNC Rotary Table is an essential part of numerical control machine tools. Its primary role is to provide precision rotational motion to the workpiece or tool, enabling the machine to perform complex cutting tasks efficiently. The WT5S-H400 model, manufactured by Raydafon (Ningbo Raydafon), is a standout product in our range of CNC rotary tables. This specific model is characterized by its water-resistant feature, 400mm size, and 5 axis functionality.

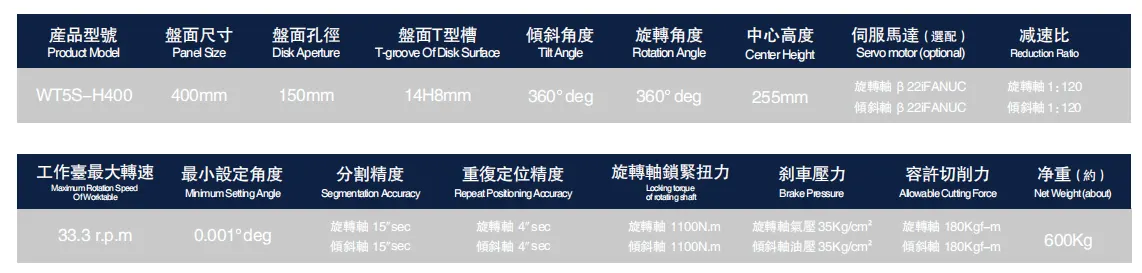

Product Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Vertical And Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	600 Kg



Product Features

• It is suitable for horizontal five-axis machining: The rotary table is designed to handle complex machining tasks with high precision.
• Five axis linkage processing: It can perform simultaneous 5-axis machining, enhancing the efficiency and precision of the machining process.
• High segmentation accuracy: The rotary table features high segmentation accuracy to ensure the precision of the finished product.
• High performance, high efficiency: With its robust design and advanced technology, the rotary table delivers high performance and efficiency.
• Strong braking system: It features a powerful braking system that ensures stability and safety during operation.

Working Principle of CNC Rotary Table

The CNC Rotary Table is composed of three main parts: the spindle, the drive mechanism, and the control system. The spindle provides the axis for the rotation of the workpiece or tool. The drive mechanism powers the spindle, and the control system controls the speed and direction of the spindle.

Applications of CNC Rotary Table

The WT5S-H400 CNC Rotary Table is widely used in various machines such as Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine, etc. It plays a critical role in enhancing the efficiency and precision of these machines.

Advantages of CNC Rotary Table

• Enhanced Production Efficiency: The CNC Rotary Table can automatically rotate the workpiece or tool, thereby improving the production efficiency.
• Improved Product Quality: The CNC Rotary Table can ensure that the workpiece or tool maintains a precise position during rotation, thus improving the quality of the product.
• Reduced Labor Cost: The use of CNC Rotary Table can reduce the dependence on manual labor, thereby lowering labor costs.

Worm Gear System in CNC Rotary Tables

The worm gear is a spiral-like structure, similar to a propeller, and the worm wheel is a gear that works in conjunction with it. This design provides a high transmission ratio, enabling greater torque output within a smaller space. In CNC machines, the rotary table often uses the worm and wheel gear system as it provides precise positioning and stable rotational motion, making it ideal for tasks requiring precise control and stability.worm gear Group">

About Raydafon (Ningbo Raydafon)

Raydafon is one of the leading suppliers of CNC turntables. We are committed to R&D innovation and production technology. Our 4-axis, 5-axis CNC turntables, and horizontal 4-axis turntables are widely used in various processing equipment in 3C, automotive, energy, military, aerospace, and other fields. We strive to become a reliable professional service provider and leading brand in China's machine tool industry.

Frequently Asked Questions

1. Q: What is the lead time for the WT5S-H400 CNC Rotary Table?A: The lead time is about 5-7 workdays for common models. For customized models, it may take about 30 workdays.
2. Q: What is the quality guarantee for this product?A: We provide a one-year guarantee for the quality of our products.
3. Q: Can I customize the product and the package?A: Yes, we accept OEM orders. We can make your trademark on the machine body and customize the packaging as per your requirements.

Discover the difference that a high-quality CNC Rotary Table can make in your production process. Contact us today to learn more about our products and how they can be tailored to meet your specific needs.Edited by Zqq.
