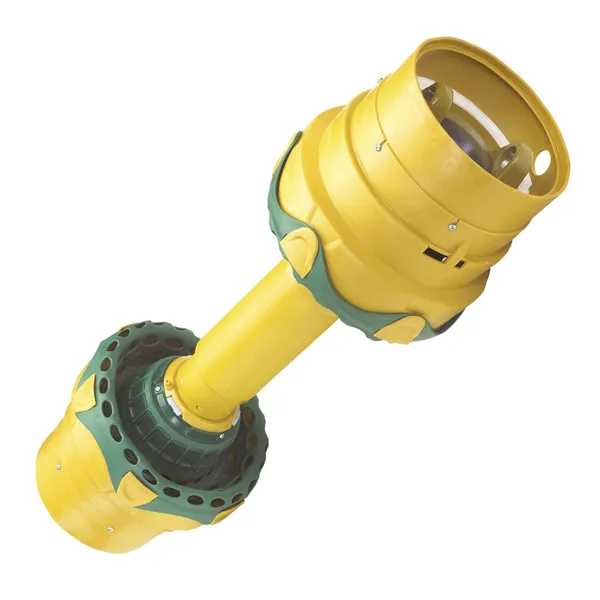

WWZ2480 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

WWZ2480 Series PTO Shaft-Replacement of Walterscheid PTO Shaft

The WWZ2480 series PTO shaft is also equipped with a safety guard, which helps to protect the operator from injury in the event of a failure. The PTO shaft is made from high-quality materials and is built to last. It is a reliable and durable choice for any application that requires a high-performance PTO shaft. If you are looking for a high-quality, heavy-duty PTO shaft that can handle demanding applications, the WWZ2480 series PTO shaft is a great option. It is a reliable and durable choice that will provide you with years of service.

WWZ2480 Series PTO Shaft Specifications

Product Name	WWZ2480 Series PTO Shaft
Long description	Wide-angle PTO shafts 80° series WWZ 2480 suitable for feed mixers, fertilizer machines, harvesters, loader wagons, etc.
Product details	PTO shaft 2-sided wide-angle with safety guard Declaration of conformity User instructions Tractor side 1-3/8" (6) collar fastening Machine side 1-3/8" (6) spring pin Lubricating interval of 8 hours Meets the requirements according to EC 89/392 EEC Meets safety standard EN12965 Provided with "CE" marking Angle in continuous use maximum 25° Angle may be 80° only briefly Max. dyn. power 540 rpm: 39kW - 695Nm Max. dyn. power 1000 rpm: 61kW - 580Nm Values at bending angle 10° and service life 1000 hours LZ= Retracted length c.t.c. outer cross
Application range	Mixing wagon Slurry wagon Harvesters Silage wagon
Properties	Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Technical info	Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 39 kW, 695 Nm Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm Values at a working angle 10° and service life 1000 hours LZ = slid in length center distance of the outer intersection
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Consists of	Wide angle pto-shaft, 2-sided, with guard tube Declaration of conformity Instruction manual
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Quick disconnect yoke
Size code	WWZ 2480
Length	1210 mm
Power 540 rpm	39 kW
Power 1000 rpm	61 kW
Cross joint bush diameter by tractor side - longer part	27 mm
Cross joint bush diameter by tractor side	32 mm
Cross joint length by tractor side - longer part	94 mm
Cross joint length by tractor side	76 mm
Cross joint bush diameter by machine side - longer part	27 mm
Cross joint bush diameter by machine side	32 mm
Cross joint length by machine side - longer part	94 mm
Cross joint length by machine side	76 mm
Clutch type	n/a
Outer tube profile	2aG
Outer tube wall thickness	3.5 mm
Outer tube large outside diameter	57.5 mm
Inner tube profile	1bGA
Inner tube wall thickness	4.5 mm
Inner tube large outside diameter	49 mm
Profile tube shape	Lemon
Max static torque	4000 N·m
Protection type	ST25
Original number equivalent	1800122
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take 24-48 hours to deliver.

WWZ2480 Series PTO Shaft Size Chart

1. WWZ2480 Series PTO Drive Shaft

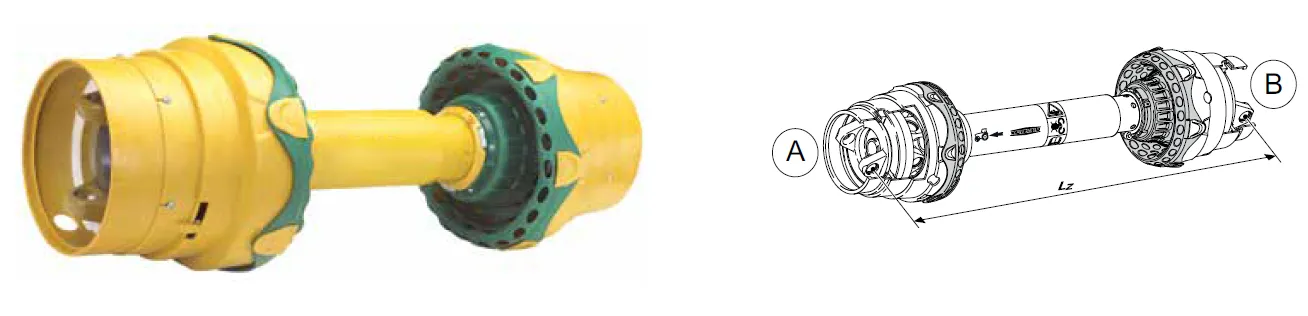

2. WWZ2480 Series PTO Drive Shaft with Wide Angle Joints on Both Sides

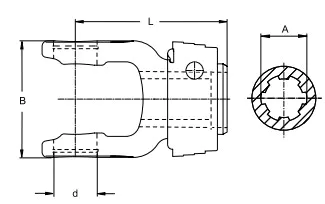

WWZ2480 Series PTO Shaft Yoke (QSG)
