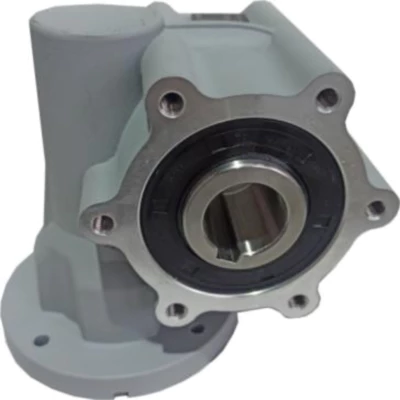

XRV050 Worm Gear Reducer for Field equipment

The XRV050 worm gear reducer is a specialized reduction device designed for use in field equipment and automatic car washers. It's renowned for its easy installation, low noise generation, long lifespan, and high protection class. This particular reducer can support motor power ranging from 0.25kw to 0.75kw, with matching flanges available to cater to diverse customer requirements.

Technical Specifications of the XRV050 Worm Reducer for Field Equipment

Below are the technical specifications of our XRV050 Worm Reducer:

Type	Ratio	Flange	Power
XRV050	5     7.5  10     12  15     20  30     40  50     60  80    100	71B14	0.18KW     0.25KW    0.37KW    0.55KW    0.75KW     1.1KW
		80B14

Type	i	n2/r/min	Mn2/Nm	Fr2/N	Motor	P1/kw	L/mm
XRV050	5	280	17	1577	7134	0.55	180
		280	23	1577	8024	0.75	205
	7.5	187	25	1805	7134	0.55	180
		187	34	1805	8024	0.75	205
	10	140	22	1987	7124	0.37	180
		140	32	1987	7134	0.55	180
		140	44	1987	8024	0.75	205
	12	117	26	2016	7124	0.37	180
		117	33	2016	7134	0.55	205
		117	48	2016	8024	0.75	205
	15	93	31	2274	7124	0.37	180
		93	46	2274	7134	0.55	180
		93	63	2274	8024	0.75	205
	20	70	27	2503	7114	0.25	180
		70	40	2503	7124	0.37	180
		70	59	2503	7134	0.55	180
		70	81	2503	8024	0.75	205
	25	56	32	2696	7114	0.25	180
		56	48	2696	7124	0.37	180
		56	71	2696	7134	0.55	180
	30	47	37	2865	7114	0.25	180
		47	55	2865	7124	0.37	180
		47	81	2865	7134	0.55	180
	40	35	33	3153	7114	0.25	180
		35	46	3153	7124	0.37	180
		35	68	3153	7134	0.55	180
	50	28	54	3397	7114	0.25	180
		28	72	3397	7124	0.37	180
		28	80	3397	7134	0.55	180
	52	27	55	3482	7114	0.25	180
		27	73	3482	7124	0.37	180
		27	82	3482	7134	0.55	180
	60	23	60	3610	7114	0.25	180
		23	75	3610	7124	0.37	180
		23	84	3610	7134	0.55	180
	80	18	64	3973	7114	0.25	180
		18	77	3973	7124	0.37	180
		18	89	3973	7134	0.55	180
	100	14	68	4280	7114	0.25	180
		14	79	4280	7124	0.37	180
		14	93	4280	7134	0.55	180

Distinctive Features of the XRV050 Worm Reducer for Field Equipment

• Modular design for each module, incorporating more common parts.
• Wide ratio range, offering more choices compared to typical RV reducers.
• Wheels made of SUS304+GcuSn12 for high wear and corrosion resistance.
• Compact body design that can fit into most equipment structures.
• Full-Synthetic Oil lubrication with the option to choose between viscosities of 320/220.
• Housing material is ADC12 with powder painting for improved anticorrosive properties and appearance.
• Effective sealing with NOK oil seals (NBR) for good sealability.
• Worms crafted from 20CrMnTi, undergo carburizing and quenching, with a thickness of 0.25-0.45mm and HRC58-62 hardness.
• IP Grade reaching IP67, making it adaptable to various spraying conditions.

Applicability of the XRV050 Worm Reducer

Though primarily used in car washes, the XRV050 worm reducer also finds application in the slaughter industry and water-related environments. Its compact body design allows it to fit into most equipment structures, while its high corrosion resistance makes it ideal for use in harsh environmental conditions.

Motors for Worm Gear Reducers

The efficiency of a worm gear reducer is greatly influenced by the motor it is paired with. At Raydafon, we also manufacture and supply electric motors designed to optimally complement our gear reducers.

Motor Dimensions

IP67 Motor DimensionIP56 Motor Dimension

Type	IP56 Motor					IP67 Motor
RV/De	L	D	ΦC	ΦS	T	L	D	ΦC	ΦS	T
71B14	190	140	85	14	M6	180	120	85	14	M6
80B14	215	158	100	19	M6	205	135	100	19	M6

About Raydafon

Raydafon is a comprehensive transmission equipment manufacturer with over 15 years of experience in the design, production, manufacture and sales of gearboxes. We have introduced advanced production equipment and testing equipment at home and abroad, and employ industry professionals and technicians to carry out innovative research and development. Our products are widely used in various industries and have won the praise of the market.We invite you to explore the superior performance and durability of our XRV050 worm Reducer. Contact us today for the best prices and services!
