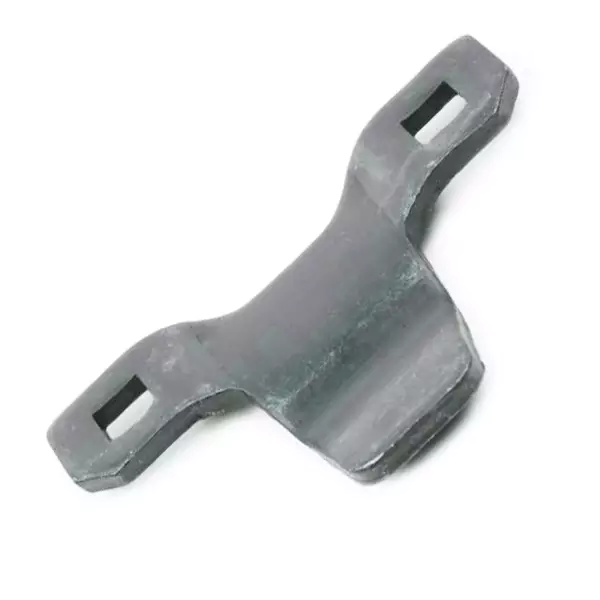

Z10417 Knife Thumb For John Deere Combine & Header

Z10417 Knife Thumb For John Deere Combine & Header Application A spare part for the finger beam of the header of the JOHN DEERE combine.   Destination Ensuring the optimal operation mode of the knife. Prevention of its oscillatory motion in slots for double fingers.

▍Replacement Parts For John Deere

Z10417 Knife Thumb Compatible Models: John Deere Header: 200 series 200E 800 810 812 814 816 818 820

John Deere Combine Harvester： 1032 1042 1052 1055 1065 1068H 1072 1075 1085 330 730 925 930 932 935 940 942 945 950 952 955 960 965 965H 968H 970 975 985

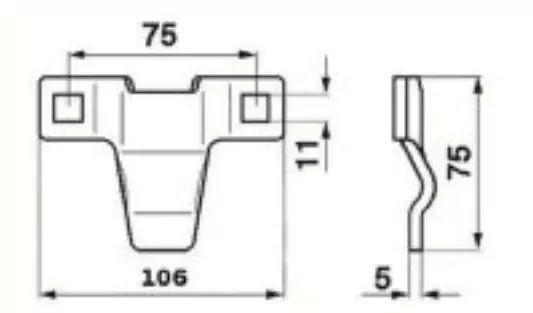

▍Parameters of Knife Thumb

Weight, kg	0.15
Length, mm	75
Thickness, mm	5
Overall width, mm	106
Number of fixing holes	2
Dimensions of mounting holes, mm	11х11
Distance between holes for attaching, mm	75

▍Product Description

Application Spare finger timber harvester reaper JOHN DEERE. Destination Ensuring optimal operation of the braids. Preventing its oscillating movements in the slots dual fingers. Used to replace worn or damaged parts in the repair work. Attribute Steel parts of complex spatial shapes, manufactured by forging. The base contains two square holes for articulation with the other parts of finger bar. Surface clamp braids - burnishing.

▍Parts by equipment type

We can supply the following repair replacement parts for John Deere agricultural machinery equipment and accept customization

▍Related Products

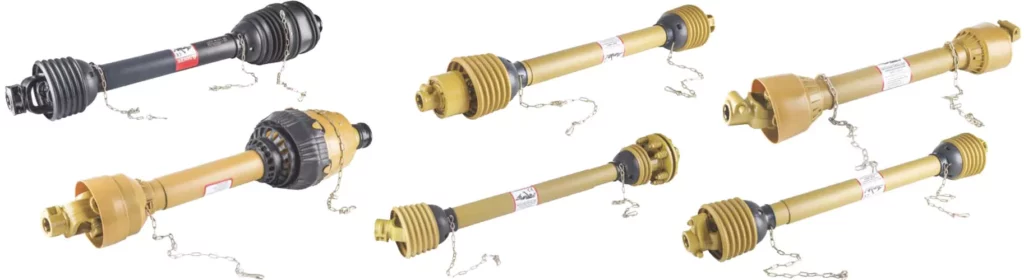

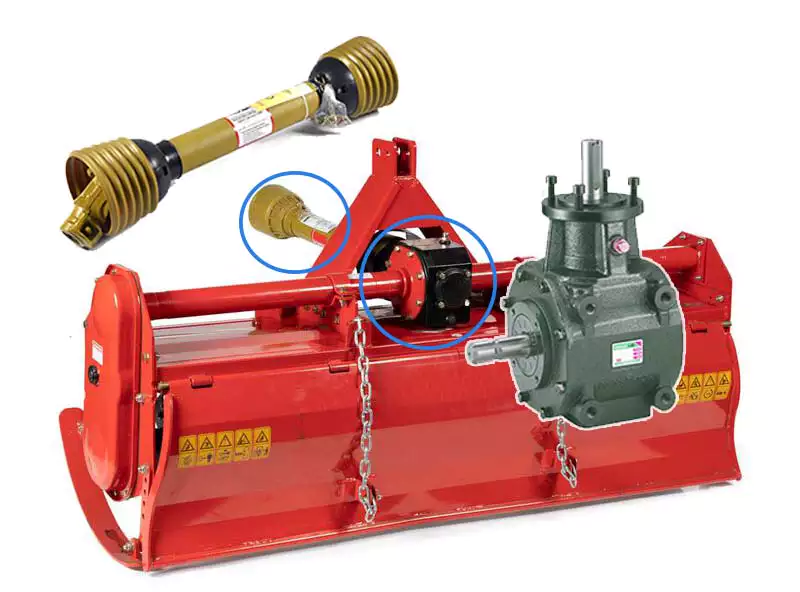

▍We Also Supply PTO Shafts & Agricultural Gearboxes
