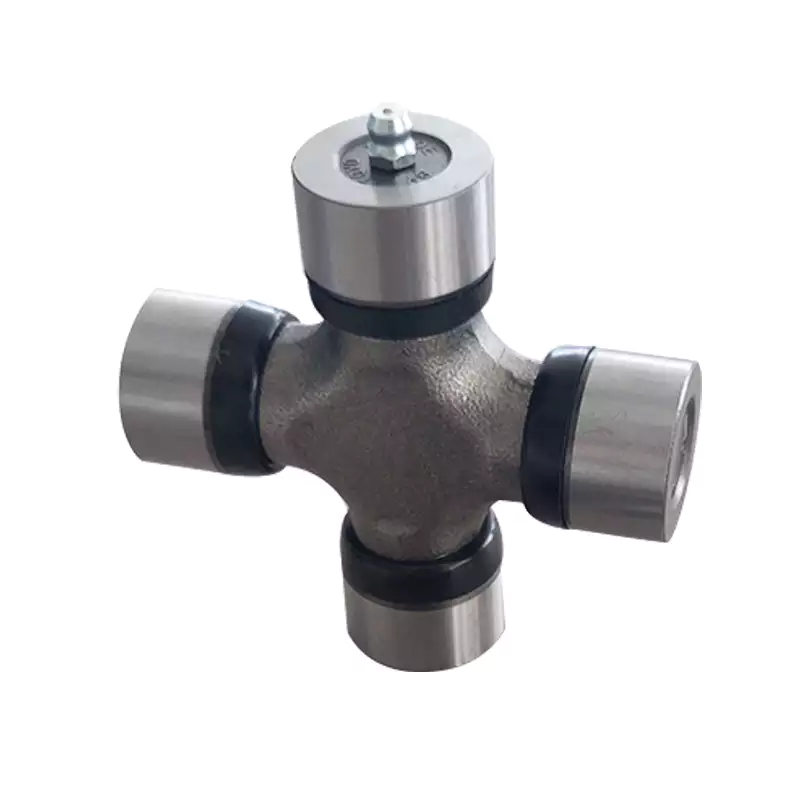

ZF Universal Joint Replacement Cross Size 30 x 83 mm

Product Information

A (mm): 30
B (mm): 83
Cross size (mm): 30 x 83
Type: Axle drive
Lubrication system: Maintenance-free
Dimensions (mm): 83 x 83 x 30
Reference no.: John Deere: DQ28725, AL64127
Weight: 666 g
To be found in category: PTO shafts & drive technology
Search filters: PTO shafts, universal joints
Part no.: 5457029457404

Introduction to Universal Joint

What is a Universal Joint?

Also known as a cross kit, Cardan Joint, or U-Joint, a Universal Joint is a pivotal component in machinery that allows for the transfer of power between two points which are not aligned.

Key Features of a Universal Joint

1. Shaft Misalignment Tolerance: A Universal Joint allows for misalignment between the shafts it connects, meaning the shafts do not need to be perfectly aligned.
2. Angle Change Tolerance: Universal Joints are capable of tolerating angle changes between the shafts they connect.

3. Torque Transmission: Universal Joints can transmit rotational power and torque.
4. Efficient Transmission: When transmitting torque, Universal Joints experience minimal energy loss.

Choosing the Right Universal Joint for Your PTO Shaft

When selecting a Universal Joint for your PTO Shaft, consider the following factors:

1. Power and Torque Requirements: The Universal Joint should meet the power and torque needs of your machinery.
2. Shaft Size and Interface Type: The size and interface type of your shaft will determine the size and type of Universal Joint you need.
3. Angle Change Range: Consider the range of angle changes between the shafts the Universal Joint needs to accommodate.
4. Working Environment and Conditions: The Universal Joint needs to be able to withstand the conditions it will be exposed to.
5. Standards and Certification Requirements: Ensure the Universal Joint meets any necessary industry standards and certifications.

Structure of a Universal Joint

A Universal Joint is composed of the following components:

1. Outer Yoke: This is the external part of the joint that connects to the shafts.
2. Inter Yoke: This is the internal part of the joint that connects the outer yoke and the cross.
3. Pin: The pin secures the cross in place.
4. Cross: This is the central part of the joint that allows for angle changes and misalignment.
5. Bearing Cups: These contain the bearings that allow for rotational movement.
6. Seal: This prevents the escape of lubrication and entry of contaminants.

About Raydafon Group

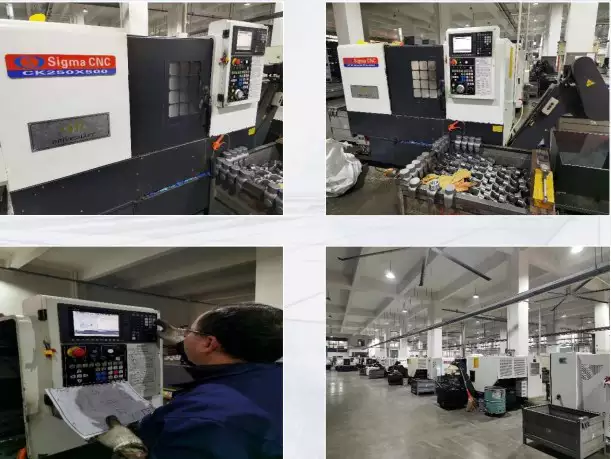

Raydafon Group is a leading provider of pto shafts, industrial Universal Joints, and automotive drive shafts in China. With a reputation for quality and excellence, our products are well-received by customers in Europe, America, Asia, Australia, and North America. We offer customization services, and are a top-three OEM supplier for numerous agricultural machinery factories. Raydafon is certified to CE, TS/16949, and ISO 9001 standards, and our systematic production equipment and team ensures quality and timely delivery. We also supply related products such as agricultural gearboxes, chains, sprockets, pulleys, couplings, and other transmission components and agricultural machinery parts. We welcome custom orders based on drawings or samples.
