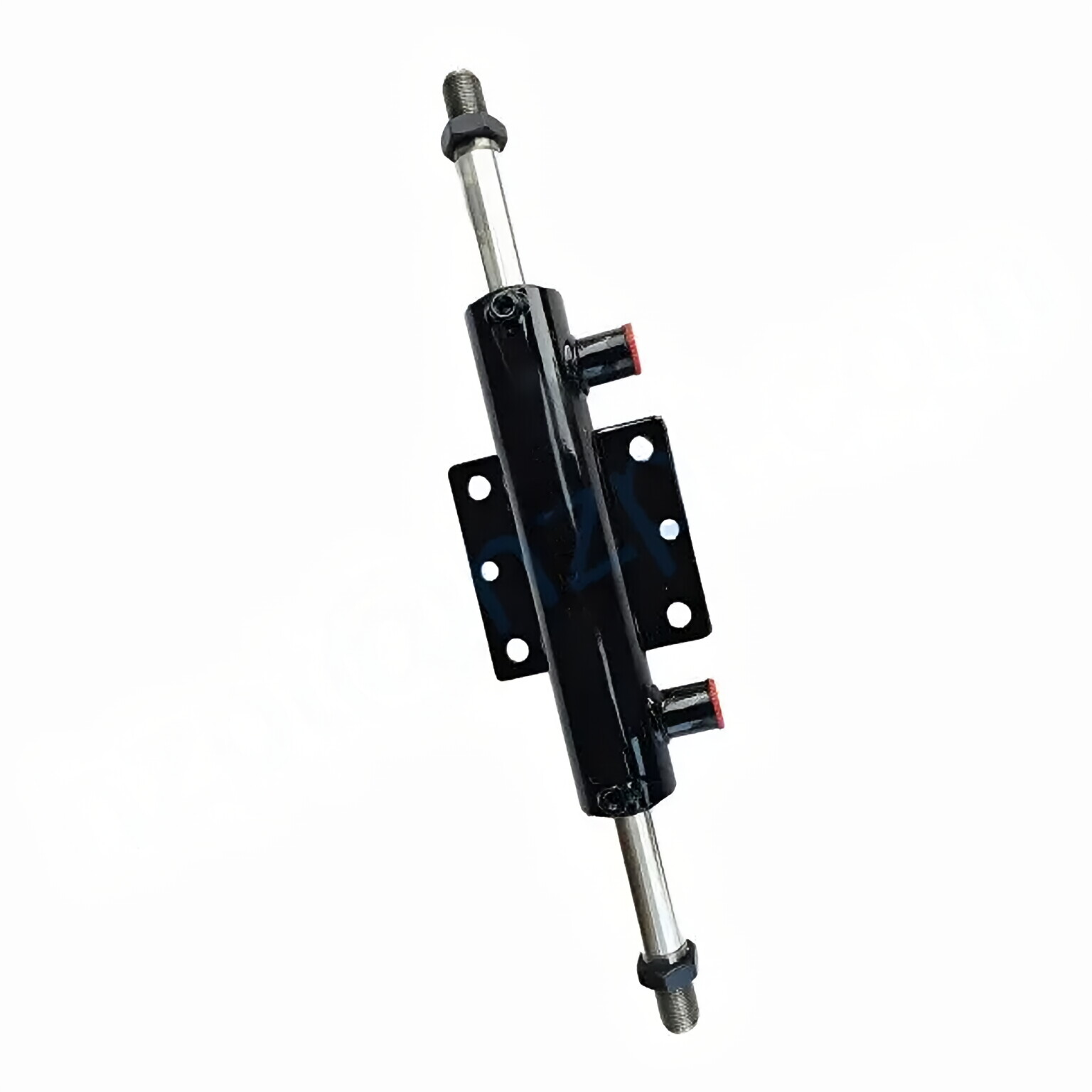

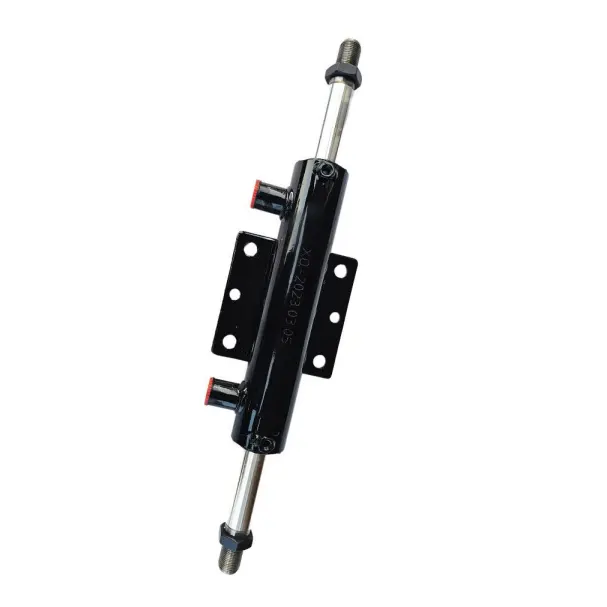

ZY254.31F.019A Steering Cylinder

ZY254.31F.019A Steering Cylinder

The ZY254.31F.019A Steering Cylinder is essential to the steering mechanism of vehicles and machinery. It effectively transforms hydraulic pressure into mechanical force, enabling operators to maneuver equipment with precision and ease. Engineered for both durability and efficiency, this cylinder is ideal for a wide variety of industrial applications, ensuring reliable performance in even the most demanding environments.The ZY254.31F.019A Steering Cylinder is a vital component for machinery that demands precise steering capabilities. Its robust durability, compact design, and straightforward maintenance make it a trusted choice for operators across diverse industries. By exploring its key features, usage techniques, and maintenance tips, users can maximize performance and prolong the lifespan of this essential hydraulic cylinder, ensuring smooth and efficient operation in any application.

ZY254.31F.019A Steering Cylinder Parameter:

Cylinder Diameter: 40mmRod Diameter: 25mmTravel: 140mmInstallation Distance: 480mm

Key Features of ZY254.31F.019A Steering Cylinder:

• Exceptional Durability: The ZY254.31F.019A is constructed from high-quality materials engineered to withstand the toughest operating conditions. This durability ensures it remains reliable even in the most demanding environments, giving operators peace of mind and reducing downtime.
• Precision Control: With outstanding responsiveness, this steering cylinder delivers precise steering adjustments. Operators can confidently maneuver heavy loads, enhancing overall handling and safety during operation. This level of control is crucial for tasks that require accuracy, such as navigating tight spaces or performing delicate maneuvers.
• Space-Saving Design: The compact structure of the ZY254.31F.019A minimizes space requirements, making it an excellent choice for various machinery setups. This feature is particularly beneficial in applications where space is limited, allowing for greater flexibility in equipment design and configuration.
• Corrosion Resistance: Designed with a specialized protective coating, this cylinder resists rust and wear, significantly extending its operational lifespan. This corrosion resistance is essential for equipment exposed to harsh weather conditions or corrosive environments, ensuring the cylinder maintains its integrity over time.
• Standardized Dimensions: The ZY254.31F.019A features dimensions that align with standard machinery specifications. This standardization simplifies the replacement process and guarantees compatibility with a wide range of existing systems, making it easy for operators to upgrade or maintain their equipment without complications.

ZY254.31F.019A Steering Cylinder Application:

How Does A Hydraulic Steering Cylinder Work?

Basic Components

1. Cylinder Barrel: The main body that houses the hydraulic fluid and piston.
2. Piston: A movable component inside the cylinder that divides the interior into two chambers.
3. Ports: Openings that allow hydraulic fluid to enter and exit the cylinder.
4. Hydraulic Fluid: The fluid used to transmit pressure within the system.

Operating Principle

1. Hydraulic Pressure Application:
   • When the operator turns the steering wheel, hydraulic fluid is pumped through the ports into one side of the cylinder.
   • This action increases pressure in that chamber, pushing the piston in the opposite direction.
2. Piston Movement:
   • As the piston moves, it translates the hydraulic pressure into linear motion, which moves the attached steering linkage.
   • The movement of the piston controls the angle of the vehicle's wheels, allowing for steering adjustments.
3. Fluid Return:
   • Once the desired steering position is reached, the hydraulic fluid is released from the pressurized chamber and returned to the reservoir through the other port.
   • This return allows the piston to return to its original position, ready for the following steering input.
