#180 Roller Chain Sprockets

Elevate your machinery's performance with Raydafon Group's #180 Roller Chain Sprockets. Designed for precision, durability, and seamless power transmission in industrial settings, these sprockets feature high-grade materials for unparalleled reliability. Ideal for engineers and manufacturers, they ensure efficient operation and long-lasting satisfaction, setting a new standard in chain drive solutions.

Send Inquiry

Product Description

180 roller chain sprockets are manufactured specifically for 180 roller chains and conform to ANSI B29.1 standards. Our sprockets are manufactured from high-grade 1045 steel and can be supplied with heat-treated hardened teeth for improved wear life. Using 1045 steel instead of the industry standard 1018 gives these sprockets an edge on the competition with being able to withstand higher tensile loads, having improved working life, and better wear characteristics.

180 A-Plate Sprockets

Sprocket Size	Tooth Count	Type	Outside Diameter	Stock Bore	(D)	Weight (LBS)
180A11	11	A	9.010	1 -/2''	5-1/2''	14.0
180A12	12	A	9.750	1-1/2''	6''	16.0
180A13	13	A	10.480	1-1/2''	6-3/4''	20.0
180A14	14	A	11.210	1-1/2''	7	24.0
180A15	15	A	11.930	1-1/2''	7	28.0
180A16	16	A	12.660	1-1/2''	7	32.0
180A17	17	A	13.390	1-1/2''	7	37.0
180A18	18	A	14.110	1-1/2''	7	43.0
180A19	19	A	14.830	1-1/2''	7-1/2''	47.0
180A20	20	A	15.560	1-1/2''	7-1/2''	53.0
180A21	21	A	16.280	1-1/2''	7-1/2''	57.0
180A22	22	A	17.000	1-1/2''	7-1/2''	62.0
180A23	23	A	17.720	1 -1/2''	7-1/2''	69.0
180A24	24	A	18.440	1-1/2''	7-1/2''	77.0
180A25	25	A	19.160	1-1/2''	7-1/2''	84.0
180A28	28	A	21.320	1-1/2''	8	104.0
180A30	30	A	22.760	1-1/2''	8-1/2''	120.0
180A35	35	A	26.350	1-1/2''	8-1/2''	172.0
180A40	40	A	29.940	1-1/2''	8-1/2''	229.0
180A45	45	A	33.530	1-1/2''	9''	284.0
180A54	54	A	39.980	1-1/2''	9''	420.0
180A60	60	A	44.280	1 -1/2''	9-1/2''	505.0

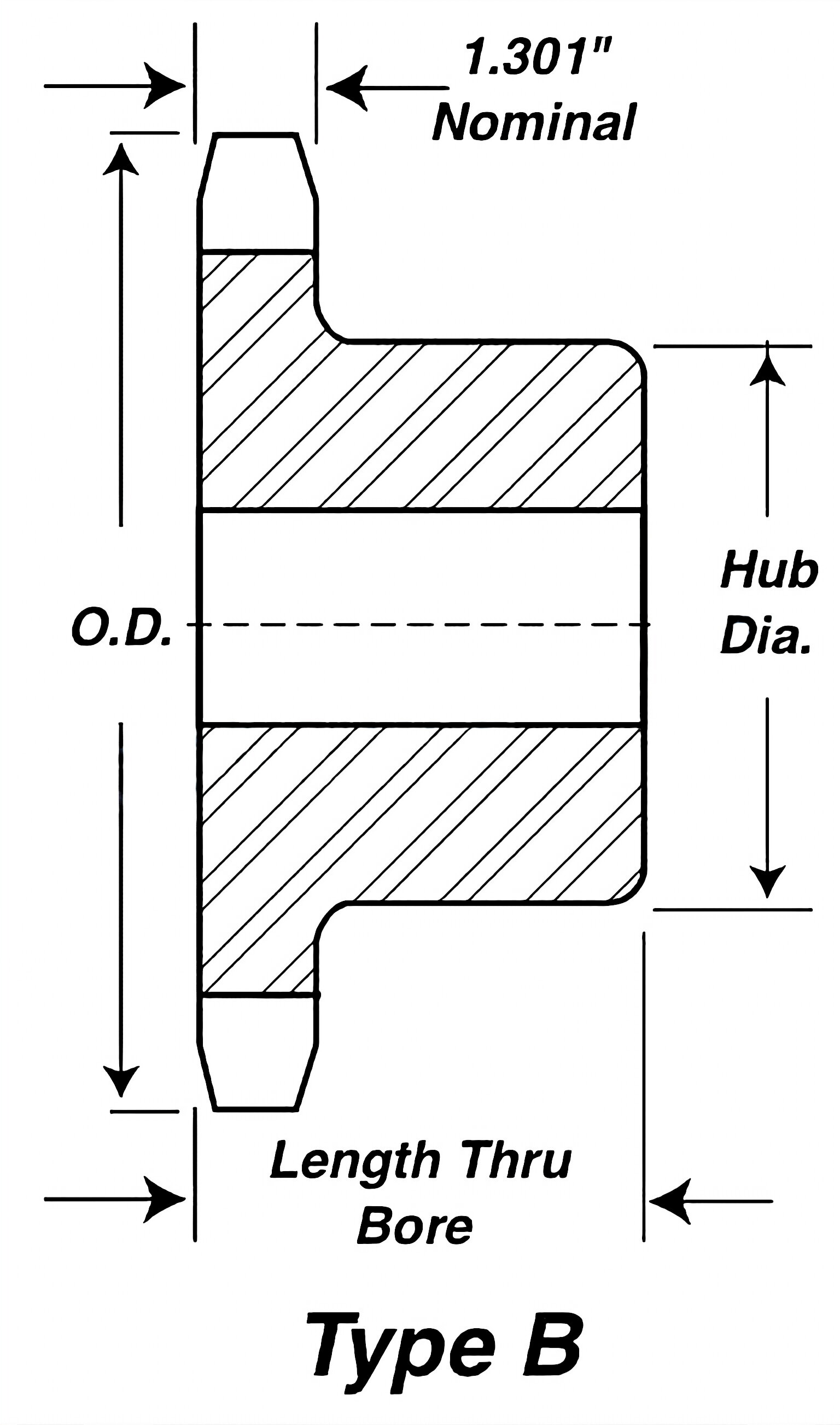

180 B-Hub Sprockets

Sprocket Size	Tooth Count	Type	Outside Diameter	Stock Bore	Recommend Max. Bore	Hub Diameter	Length Thru Bore	Weight (LBS)
180B11	11	B	9.010	1-1/2''	3-5/8''	5-1/2''	3''	29.0
180B12	12	B	9.750	1-1/2''	4''	6''	3''	32.0
180B13	13	B	10.480	1-1/2''	4-5/8''	6-3/4''	3-1/8''	40.0
180B14	14	B	11.210	1-1/2''	5-1/4''	7''	3-1/8''	44.0
180B15	15	B	11.930	1-1/2''	5-1/4''	7''	3-1/8''	48.0
180B16	16	B	12.660	1-1/2''	5-1/4''	7''	3-1/8''	52.0
180B17	17	B	13.390	1-1/2''	5-1/4''	7''	3-1/8''	58.0
180B18	18	B	14.110	1-1/2''	5-1/4''	7''	3-1/8''	63.0
180B19	19	B	14.830	1-1/2''	5-3/8''	7-1/2''	3-3/8''	74.0
180B20	20	B	15.560	1-1/2''	5-3/8''	7-1/2''	3-3/8''	81.0
180B21	21	B	16.280	1-1/2''	5-3/8''	7-1/2''	3-3/8''	83.0
180B22	22	B	17.000	1-1/2''	5-3/8''	7-1/2''	3-3/8''	92.0
180B23	23	B	17.720	1-1/2''	5-3/8''	7-1/2''	3-3/8''	99.0
180B24	24	B	18.440	1-1/2''	5-3/8''	7-1/2''	3-3/8''	105.0
180B25	25	B	19.160	1-1/2''	5-3/8''	7-1/2''	3-3/8''	113.0
180B28	28	B	21.320	1-1/2''	5-3/8''	8''	3-1/2''	135.0

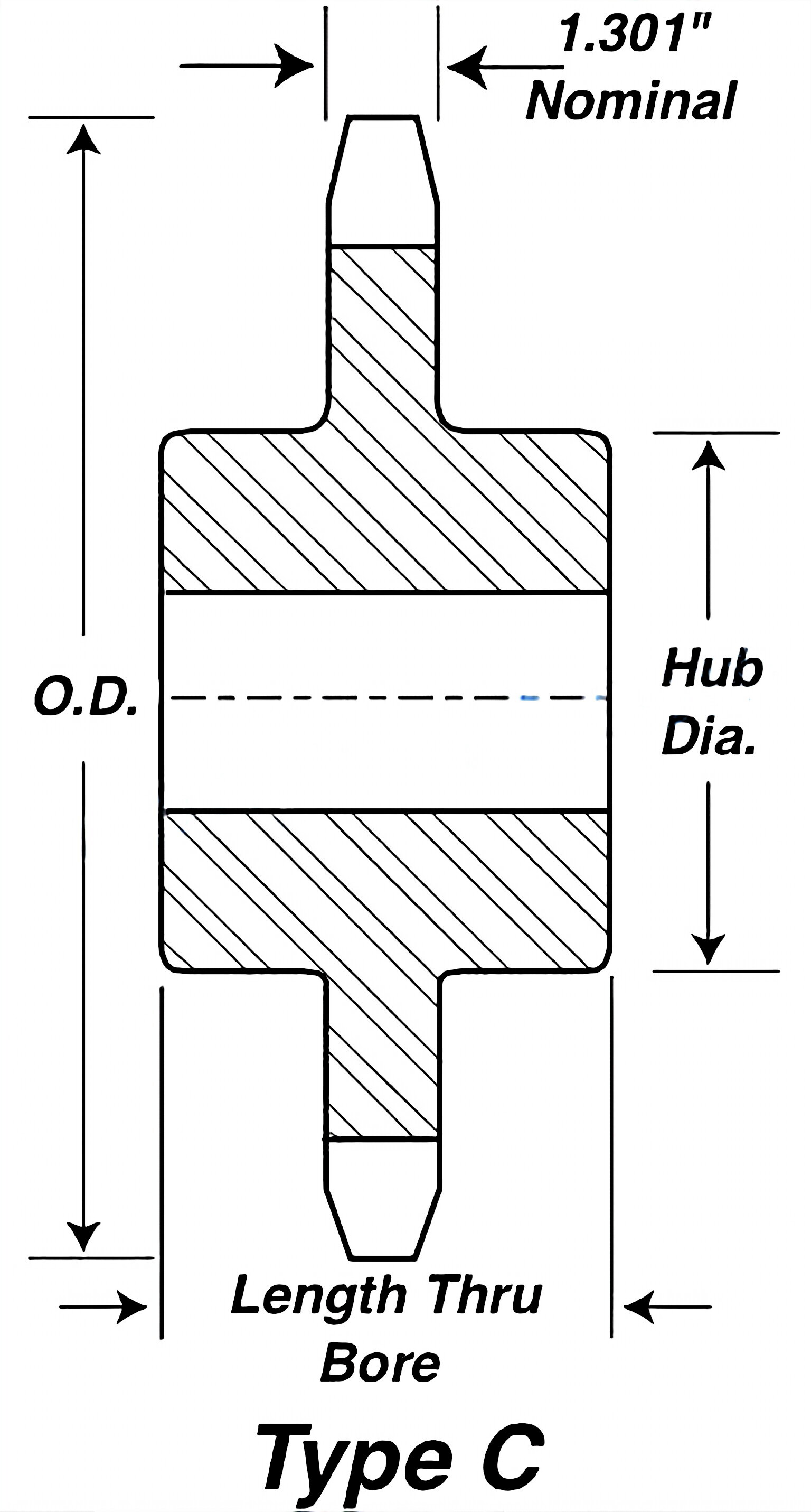

180 C-Hub Sprockets

Sprocket Size	Tooth Count	Type	Outside Diameter	Stock Bore	Recommend Max. Bore	Hub Diameter	Length Thru Bore	Weight (LBS)
180C30	30	C	22.760	1-1/2''	5 3/4''	8-1/2''	4-3/8''	180.0
180C35	35	C	26.350	1-1/2''	5 3/4''	8-1/2''	4-3/8''	222.0
180C40	40	C	29.940	1-1/2''	5 3/4''	8-1/2''	4-3/8''	270.0
180C45	45	C	33.530	1-1/2''	''	9''	5''	315.0
180C54	54	C	39.980	1-1/2''	6''	9''	5''	477.0
180C60	60	C	44.280	1-1/2''	6 1/2''	9-1/2''	5-3/8''	489.0
