#60 Roller Chain Sprockets

Discover Raydafon Group's #60 Roller Chain Sprockets: Precision-engineered for reliable power transmission in industrial applications. Made with durable materials, these sprockets ensure smooth operation and longevity, ideal for machinery and automotive use. Experience enhanced efficiency and reduced downtime—choose Raydafon Group for unmatched quality and superior performance in every rotation.

Send Inquiry

Product Description

Our 60 roller chain sprockets are manufactured in accordance with ANSI B29 standards meaning that they directly interchange with other manufactures. What separates our 60-1 sprockets from others is the utilization of high-strength steel (1018 - 1045), hardened teeth on all sprockets up to 30 tooth-count, black oxide coating, and superb precision machining for optimal performance and contact between the sprocket and 60 roller chain.

Types of 60 Chain Sprockets

A-Plate - 60 A-Plate sprockets consist of a plain sprocket plate with no hub on either side.
B-Hub - 60 B-Hub sprockets utilize a hub on one side, this makes it possible for the sprocket to have a key-way and set-screws.
C-Hub - 60 C-Hub sprockets utilize a hub on both sides, making an overall more stable sprocket with the ability to have a key-way and set-screws.
QD Bushed - QD style 60 chain sprockets have a "quick Detachable" hub for easy bore sizing and replacement.
Taper Bushed - Taper Bushed 60 sprockets utilize a taper bushing that will contain the desired bore size.

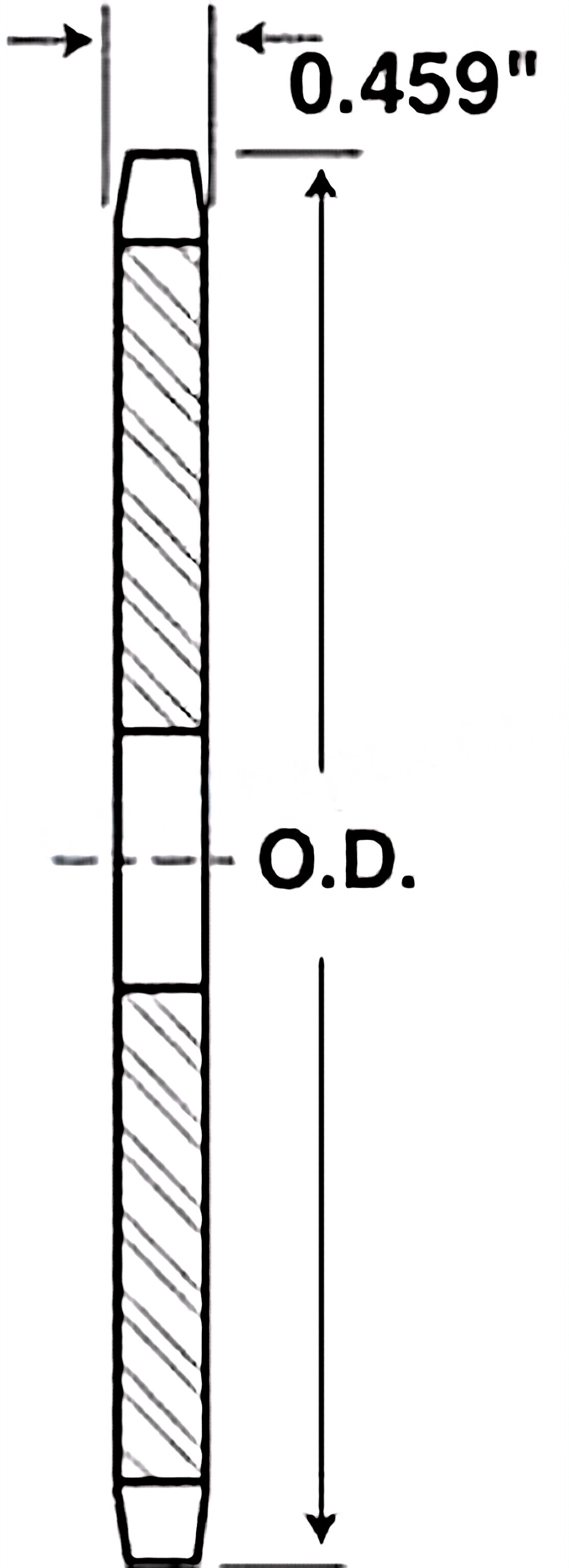

#60 A-Plate Sprockets

Sprocket Size	Tooth Count	Type	Outside Diameter	Stock Bore	(D)	Weight (LBS)
60A10	6	A	-	3/4	-	0.54
60A11	11	A	-	3/4	-	0.54
60A12	12	A	-	3/4	-	0.68
60A13	13	A	-	3/4	-	0.80
60A14	14	A	-	3/4	-	0.94
60A15	15	A	-	3/4	-	1.08
60A16	16	A	-	3/4	-	1.24
60A17	17	A	-	3/4	-	1.44
60A18	18	A	-	3/4	-	1.62
60A19	19	A	-	3/4	-	1.84
60A20	20	A	-	3/4	-	2.12
60A21	21	A	-	3/4	-	2.28
60A22	22	A	-	3/4	-	2.48
60A23	23	A	-	3/4	-	2.68
60A24	24	A	-	23/32	-	3.00
60A25	25	A	-	23/32	-	3.34
60A26	26	A	-	23/32	-	3.54
60A27	27	A	-	23/32	-	3.96
60A28	28	A	-	23/32	-	4.14
60A29	29	A	-	23/32	-	4.40
60A30	30	A	-	23/32	-	4.78
60A31	31	A	-	23/32	-	5.24
60A32	32	A	-	23/32	-	5.52
60A33	33	A	-	15/16	-	5.86
60A34	34	A	-	15/16	-	6.16
60A35	35	A	-	15/16	-	6.78
60A36	36	A	-	15/16	-	6.82
60A37	37	A	-	15/16	-	7.52
60A38	38	A	-	15/16	-	7.84
60A39	39	A	-	15/16	-	8.28
60A40	40	A	-	15/16	-	8.56
60A41	41	A	-	15/16	-	9.10
60A42	42	A	-	15/16	-	9.84
60A43	43	A	-	15/16	-	9.74
60A44	44	A	-	15/16	-	10.78
60A45	45	A	-	15/16	-	11.08
60A46	46	A	-	15/16	-	11.50
60A47	47	A	-	15/16	-	12.32
60A48	48	A	-	15/16	-	12.42
60A49	49	A	-	15/16	-	12.92
60A50	50	A	-	15/16	-	13.98
60A51	51	A	-	15/16	-	14.58
60A52	52	A	-	15/16	-	14.60
60A53	53	A	-	15/16	-	15.84
60A54	54	A	-	15/16	-	15.92
60A55	55	A	-	1-1/4	-	16.96
60A56	56	A	-	1-1/4	-	17.60
60A57	57	A	-	1-1/4	-	17.62
60A58	58	A	-	1-1/4	-	19.00
60A59	59	A	-	1-1/4	-	19.20
60A60	60	A	-	1-1/4	-	20.02
60A64	64	A	-	1-1/4	-	23.00
60A65	65	A	-	1-1/4	-	23.24
60A66	66	A	-	1-1/4	-	24.42
60A68	68	A	-	1-1/4	-	25.54
60A70	70	A	-	1-1/4	-	27.20
60A72	72	A	-	1-1/4	-	28.90
60A76	76	A	-	1-1/4	-	32.34
60A80	80	A	-	1-1/4	-	45.50
60A84	84	A	-	1-1/4	-	40.18
60A90	90	A	-	1-1/4	-	43.44
60A96	96	A	-	1-1/4	-	52.02
60A112	112	A	-	1-1/4	-	70.80

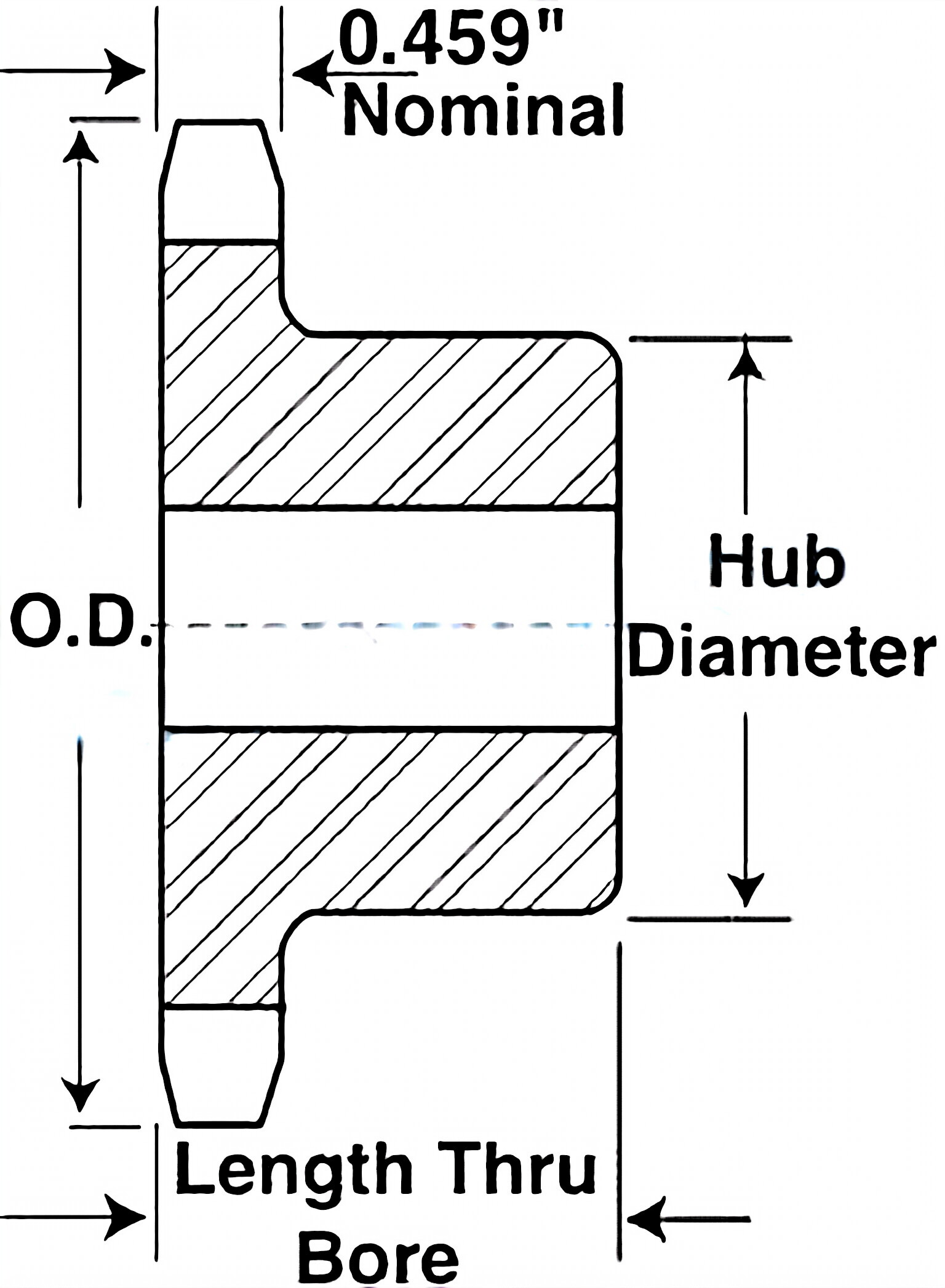

#60 B-Hub Sprockets

Sprocket Size	Tooth Count	Type	Outside Diameter	Stock Bore	Recommend Max. Bore	Hub Diameter	Length Thru Bore	Weight (LBS)
60B8	8	A	2.260	5/8	5/8	1-15/32	1-1/4	0.54
60B9	9	B	2.510	3/4	1-1/8	1-15/16	1-1/4	0.64
60B10	10	B	2.760	3/4	1-5/16	2-1/16	1-1/4	0.99
60B11	11	B	3.000	3/4	1-3/8	2-3/8	1-1/4	1.16
60B12	12	B	3.250	3/4	1-1/2	2-11/32	1-1/4	1.47
60B13	13	B	3.490	3/4	1-3/4	2-9/16	1-1/4	1.66
60B14	14	B	3.740	3/4	1-7/8	2-7/8	1-1/4	2.00
60B15	15	B	3.980	3/4	2	3-1/16	1-1/4	2.51
60B16	16	B	4.220	3/4	2-1/4	3-1/4	1-1/4	2.81
60B17	17	B	4.460	3/4	2-3/8	3-1/2	1-1/4	3.22
60B18	18	B	4.700	3/4	2-3/8	3-1/2	1-1/4	3.72
60B19	19	B	4.950	3/4	2-5/8	3-7/8	1-1/4	3.92
